Reliable G1/2'' Pressure Control for HVAC & Refrigeration Systems

Reliable G1/2'' Pressure Control for HVAC & Refrigeration Systems Description

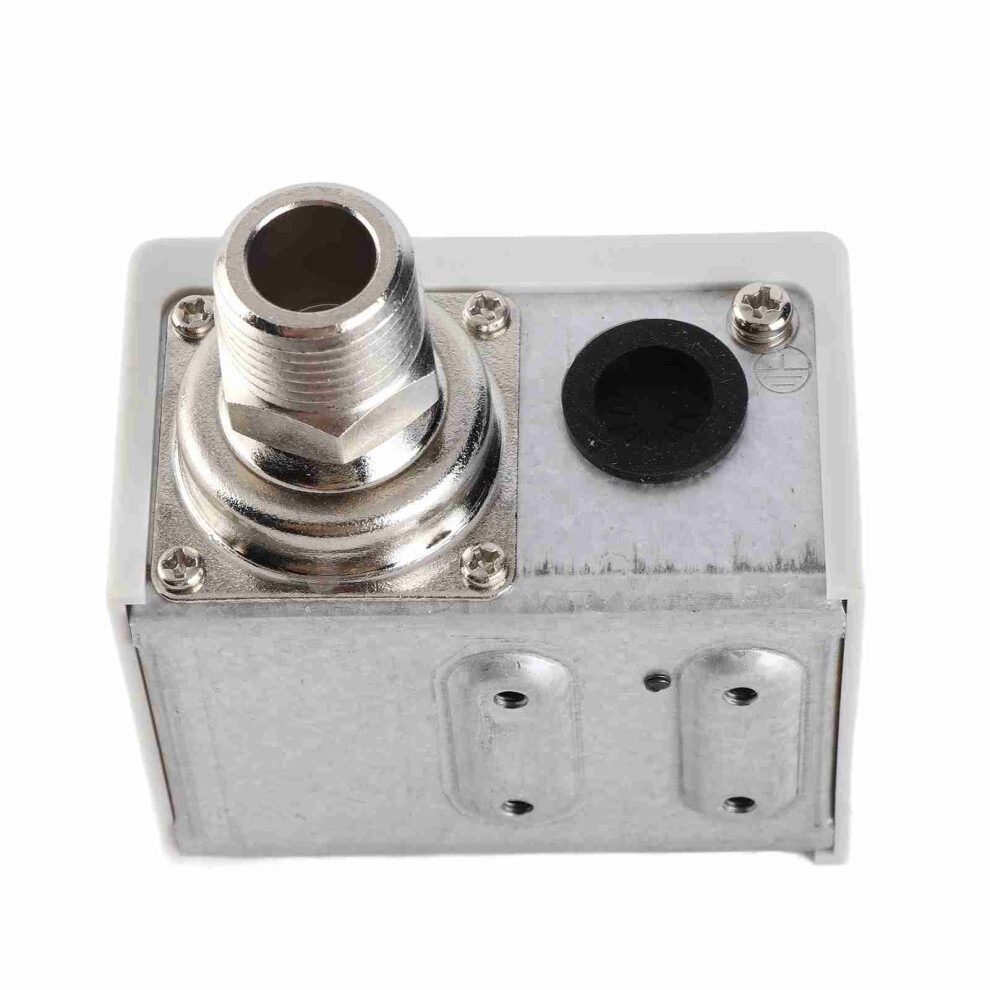

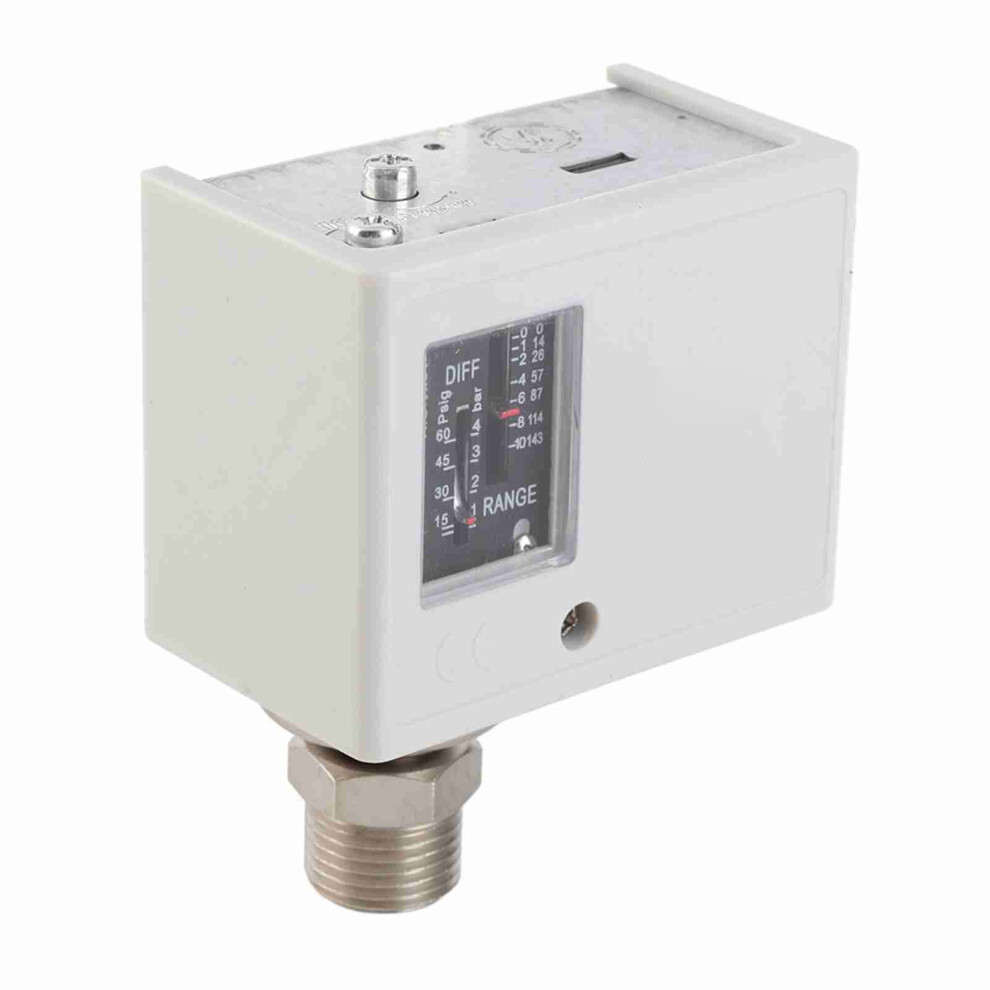

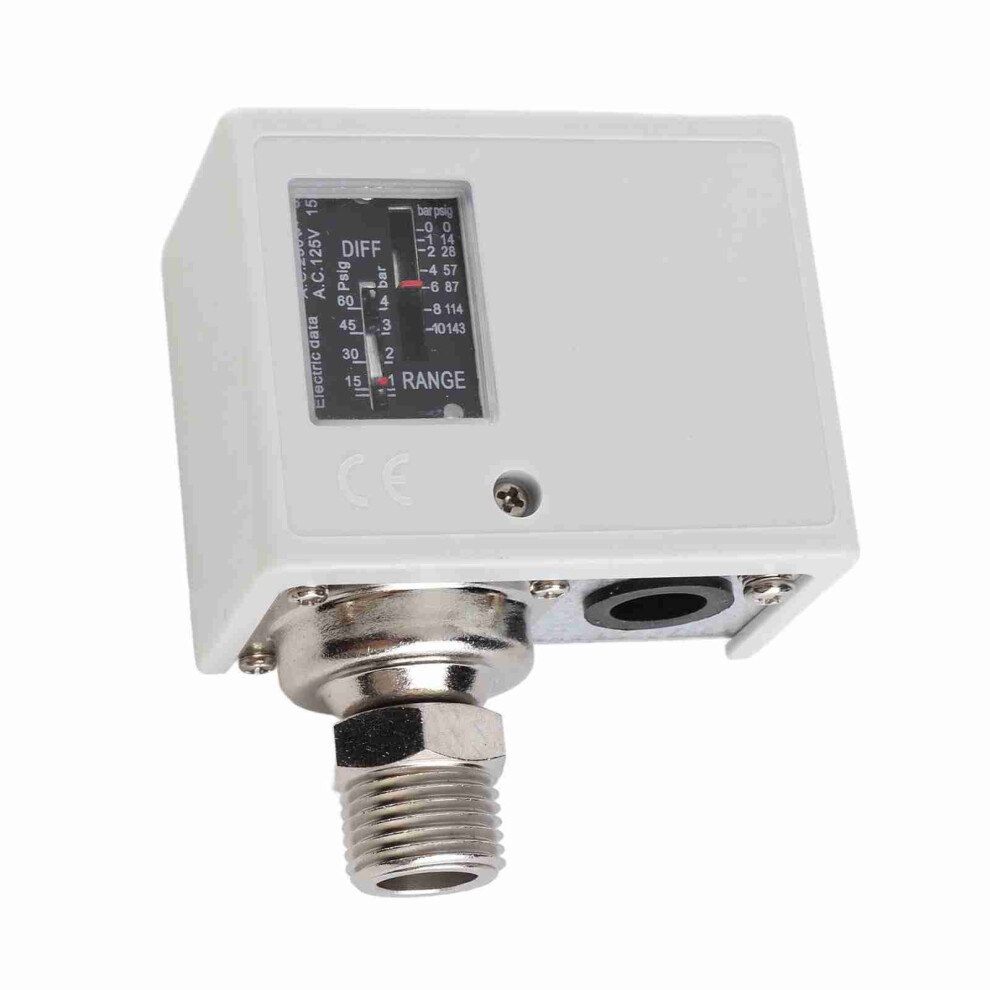

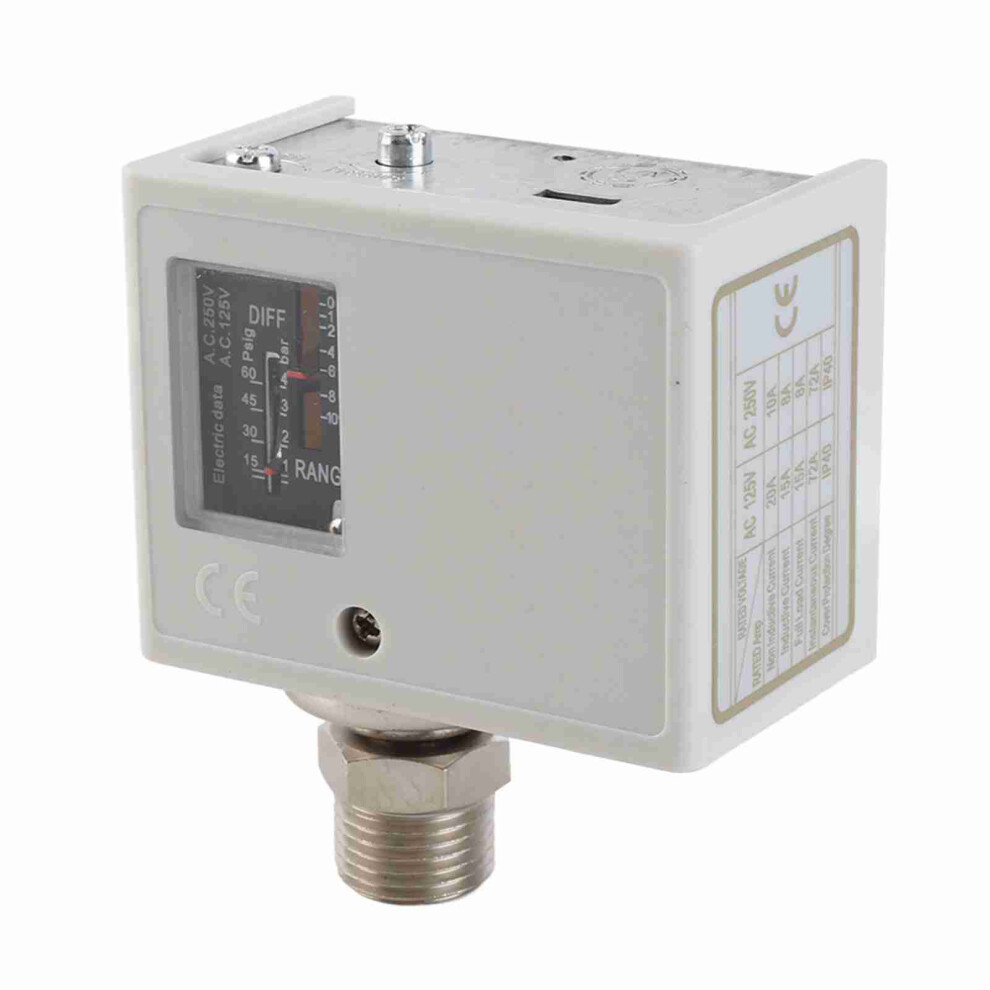

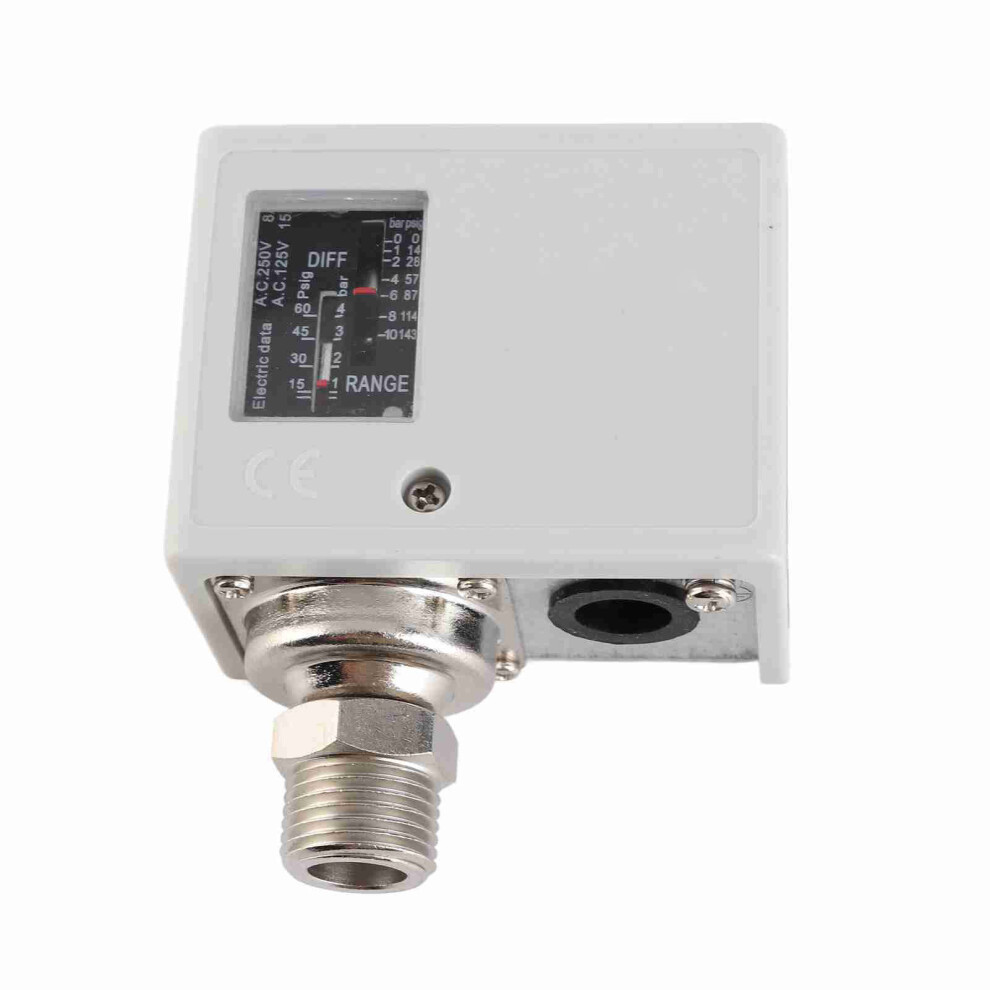

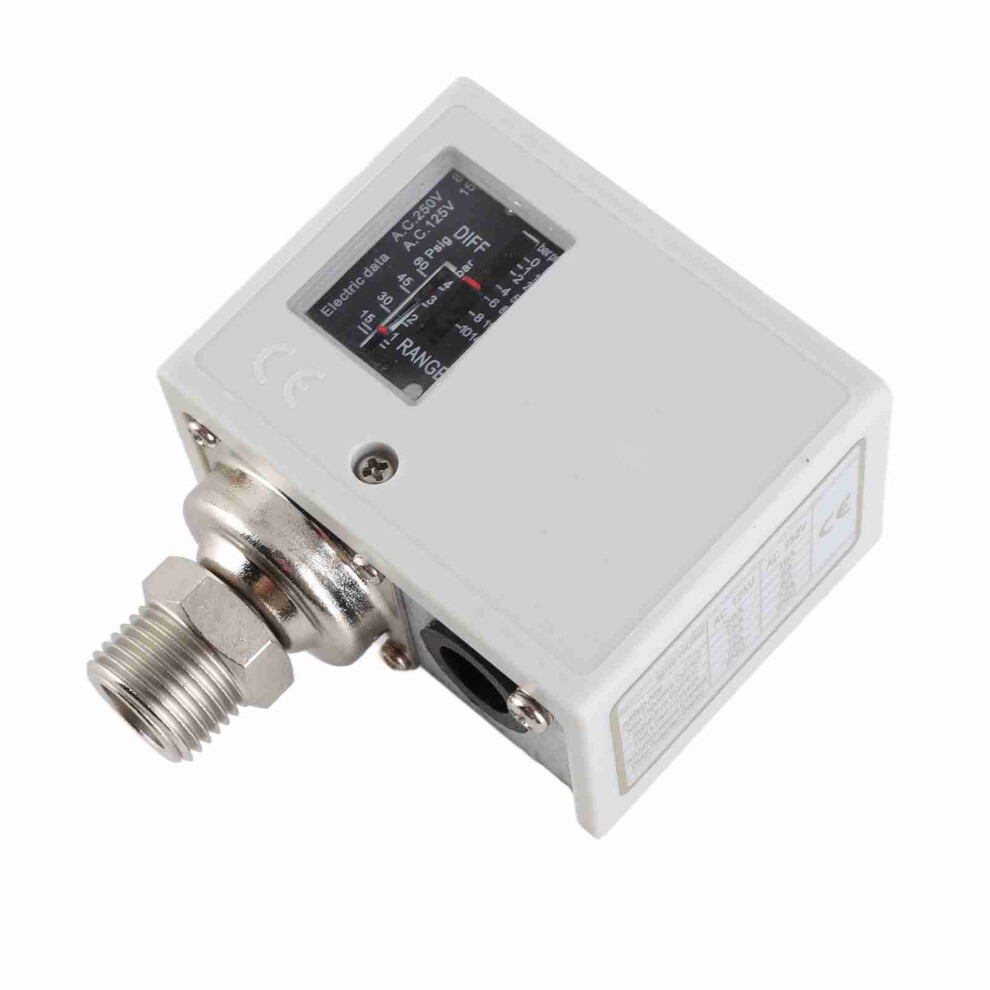

Electronic G1/2'' Pressure Control Switch Air Water Pump Compressor Pressure Controller
Features:

Made of premium material, anti-corrosion, high durability in use.


Apply for freon, air, liquid and other non-corrosive media.


Equipped with mounting bracket and screws, easy to install.


The SPDT switch ensures stable contact switching.


Mainly used for high and low voltage limit control of refrigeration equipment or automatic system air conditioning equipment.

Specification:
Material: Stainless steel, iron plated nickel, plastic
Weight: 420g/14.8oz
Pressure regulating range (bar): 1 (Min) ~ 10 (Maximum)
Differential pressure adjustment range (bar): 1(Min) ~ 3 (Maximum)
Factory setting (bar): 5 (OFF/ON) ~ 6 (ON/OFF)
Maximum air tightness test (bar): 16.5
Power supply voltage: 24V~380V
Micro switch life: 100,000 times
Electrical parameters:
When the voltage is 125VAC, the non-inductive current is 20A, the full load current is 15A, and the instantaneous current is 72A.
When the voltage is 250VAC, the non-inductive current is 10A, the full load current is 8A, and the instantaneous current is 72A.
Package List:
1* Pressure Control Switch
1* Mounting bracket
4* Screw
1* Instructions
