Description & Details
Summary
- Fast response to reverse polarity within 2US, input and output equivalent to diode. Detect the output Voltages is greater than the input immediately shut down the output, detection value of millivolt level, the corresponding speed is very fast
- 300A high current tube, one tube can pass 40A current, two tubes pass 60A current
- No input Voltages limitation. (Guaranteed reverse Voltages belows 40V
- Small appearance easy to understand operation; several types available to meet different customer needs
- 1 milliohm on-resistance, small loss, low heat generation
Reliabled Diode Component With Excellent Anti Interferences Perfect for Robotics 40D Description

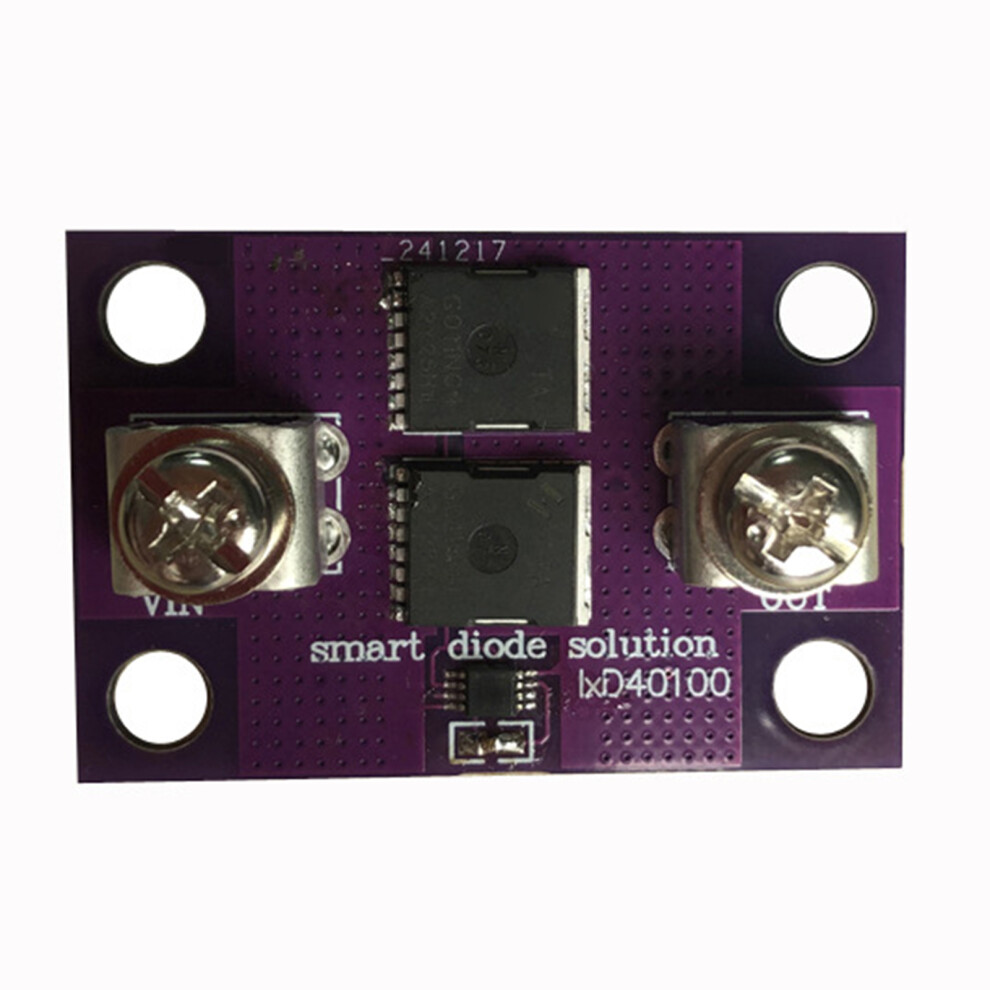

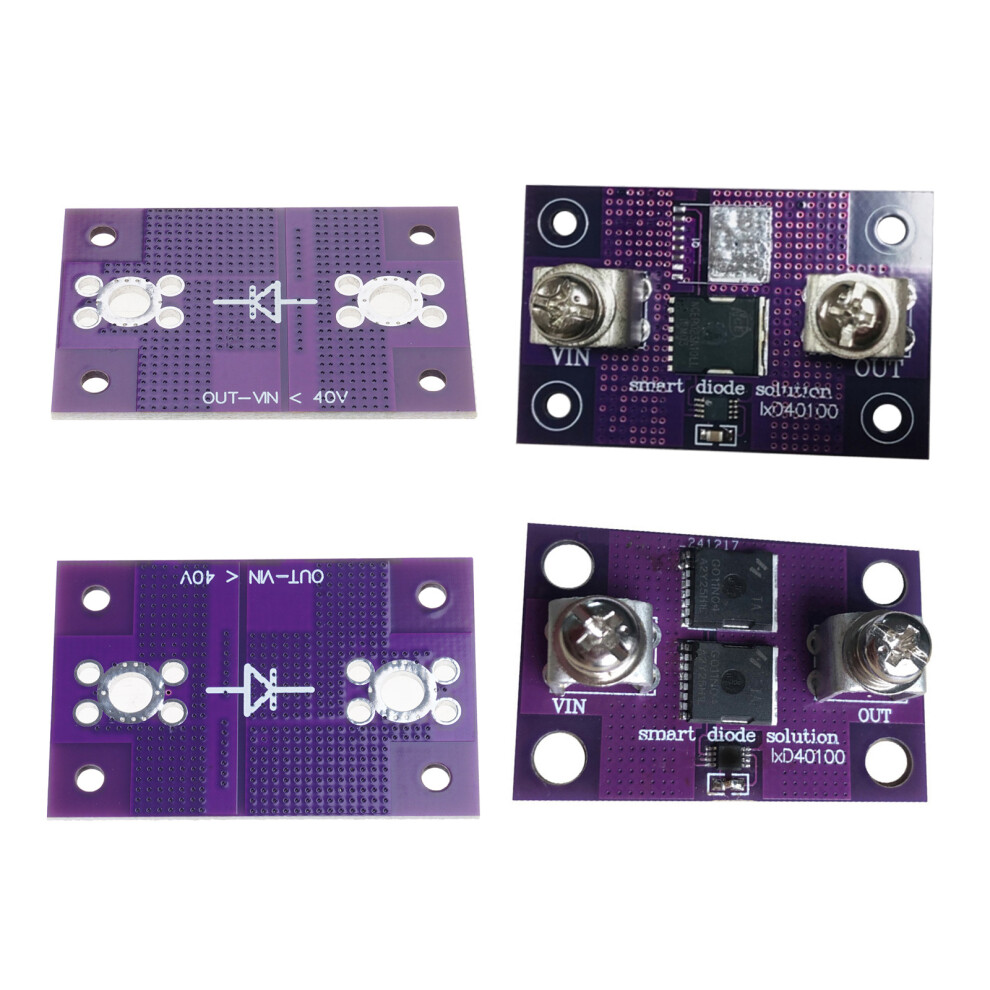

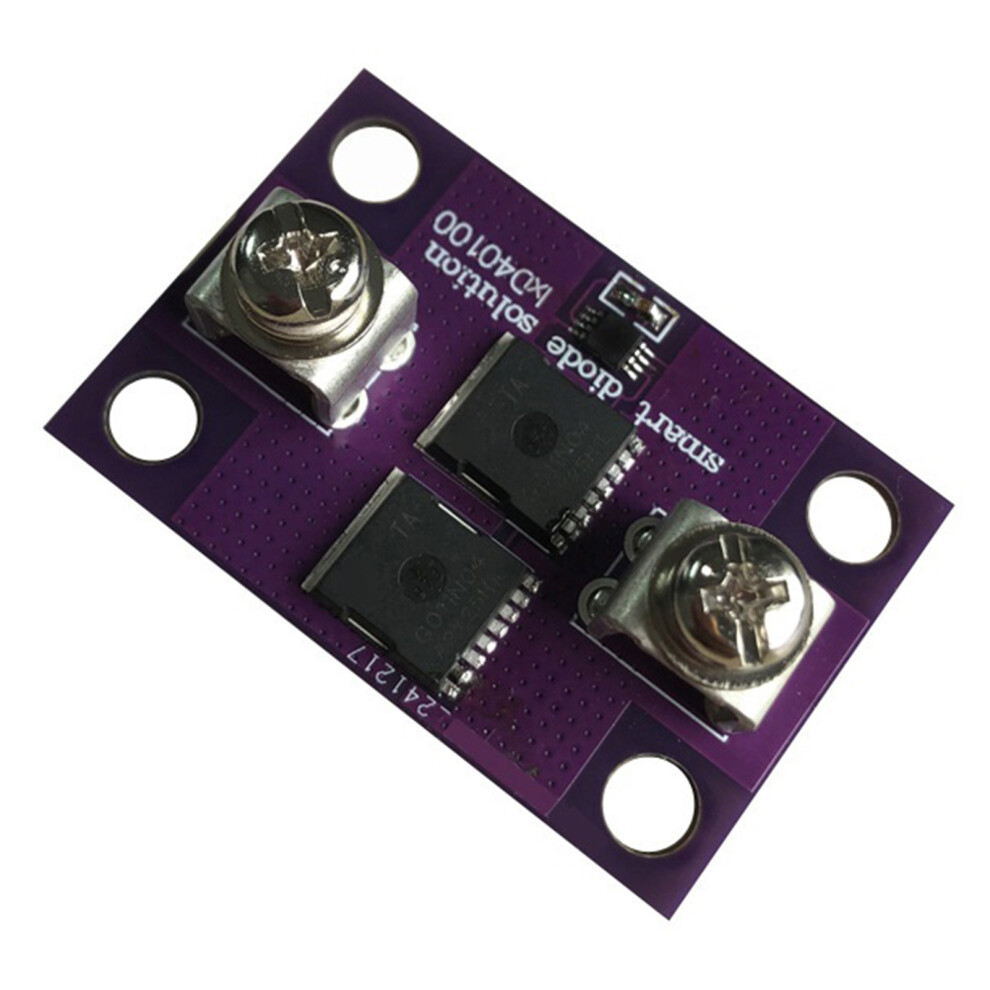

Features: Small appearance easy to understand operation; several types available to meet different customer needs Only need to be connection in series to the positive terminals of the circuit, no need to connect the negative terminals. No input Voltages limitation. (Guaranteed reverse Voltages belows 40V) 300A high current tube, one tube can pass 40A current, two tubes pass 60A current 1 milliohm on-resistance, small loss, low heat generation Fast response to reverse polarity within 2US, input and output equivalent to diode. Detect the output Voltages is greater than the input immediately shut down the output, detection value of millivolt level, the corresponding speed is very fast Specifications: Model: LXD40100 Features: 40A 60A No Voltages Limitation Ideal Diode Module Size: about 50x33x18mm/1.97x1.3x0.7in (with terminals); 50x33x4mm/1.97x1.3x0.16in (without terminals) Working environment temperature:-40-125 degree Component: PCBA Optional：40D/40/60D/60 Functions: 1.Replacement of ordinary high current diode, storage batteries, solared panel, reverse flooding and reverse current resistant. 2. Series connection in the input of the power supply is ideal for reverse poofed connection Precautions: The input Voltages is unlimitedly, but there reverse Voltages requirements, the reverse Voltages is lower than 40V, the output Voltages can not be higher than the input Voltages of 40V, for example: the input is connection to the 24V power supply, the output is connection to the battery, can be connection to the 12V, 24V 36V 48 60V battery, can not be connection to the battery above 72V, (72V output - 24V input =48Voltes) the reverse Voltages is higher than 40V. Package Includes: 1PC Ideal Diode Module note: There might be a bit color distortions due to different computer resolution There might be size errors due to different computer resolution
Details
| OPC | PXKXMGY |
|---|---|
| Codes | 7695001589581 (EAN) |
Product Data
| Product Packaging Length | 15.0cm |
|---|---|
| Product Packaging Width | 12.0cm |
| Product Packaging Height | 1.0cm |
| Weight | 22.0g |
