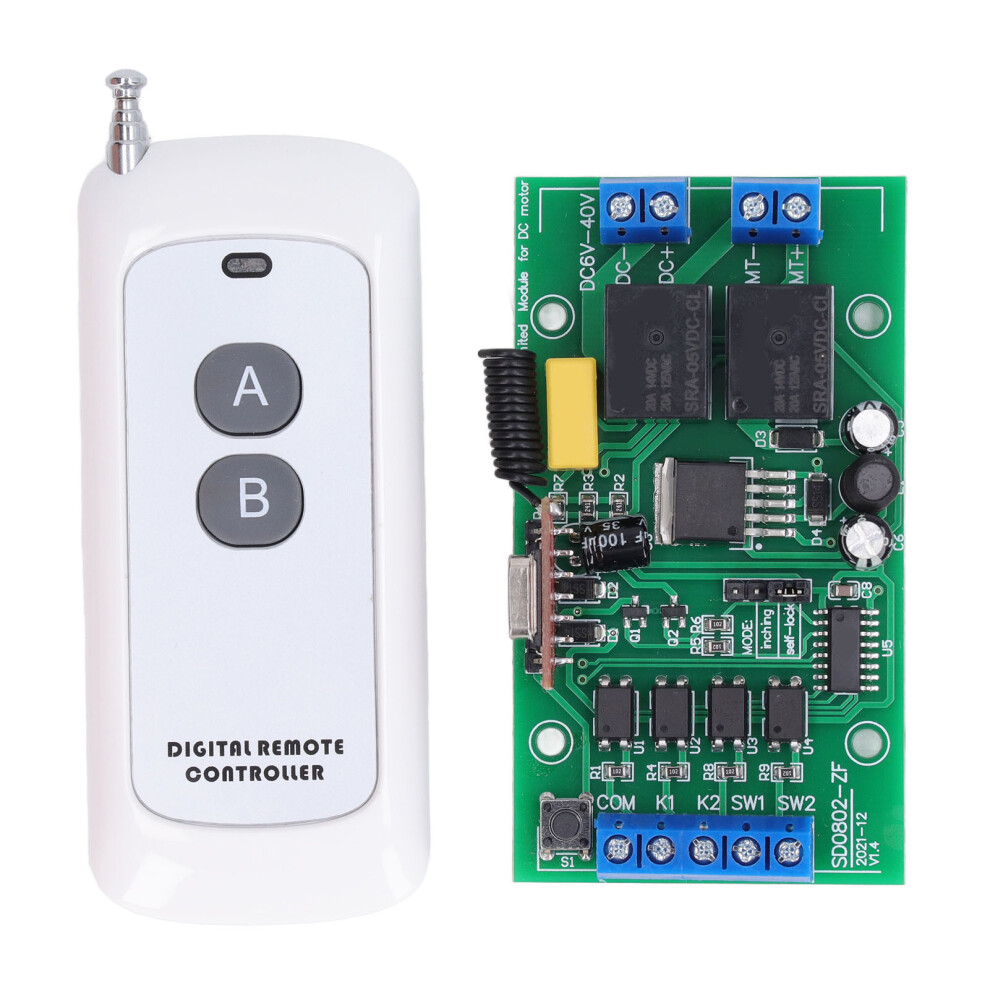

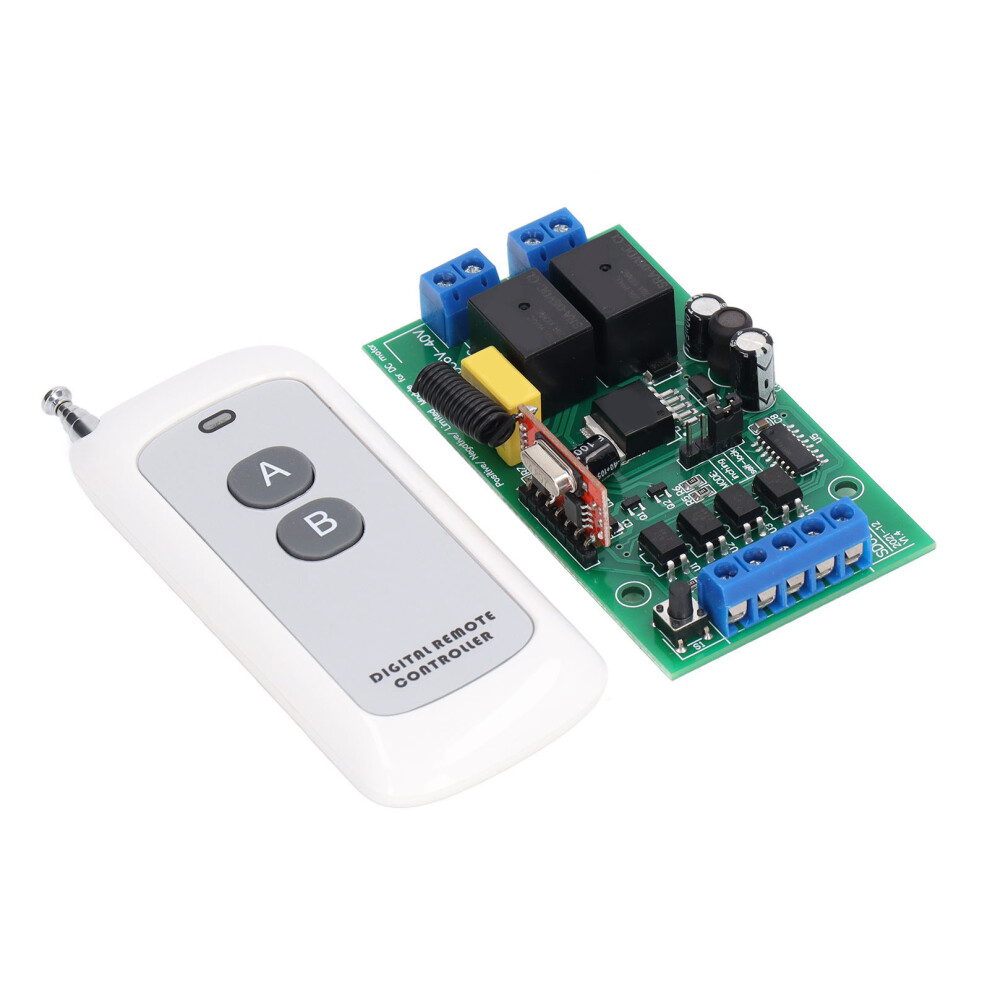

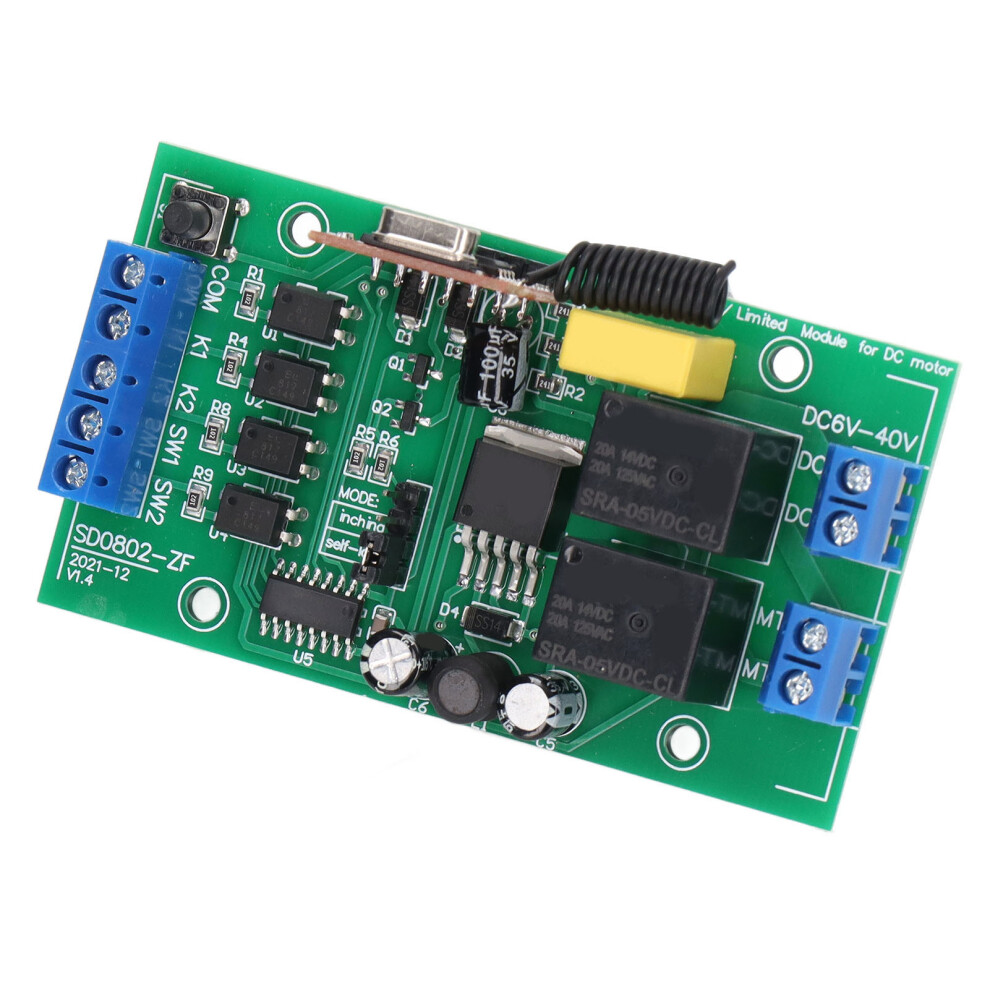

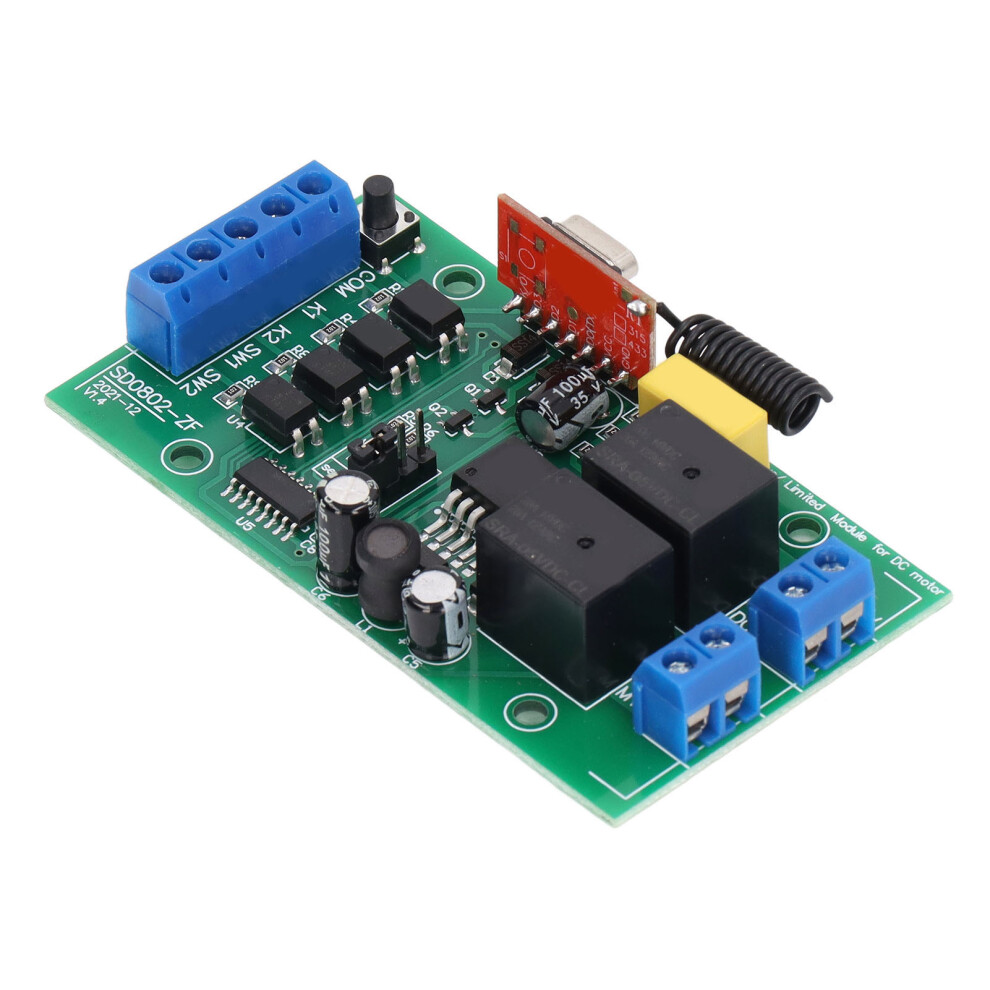

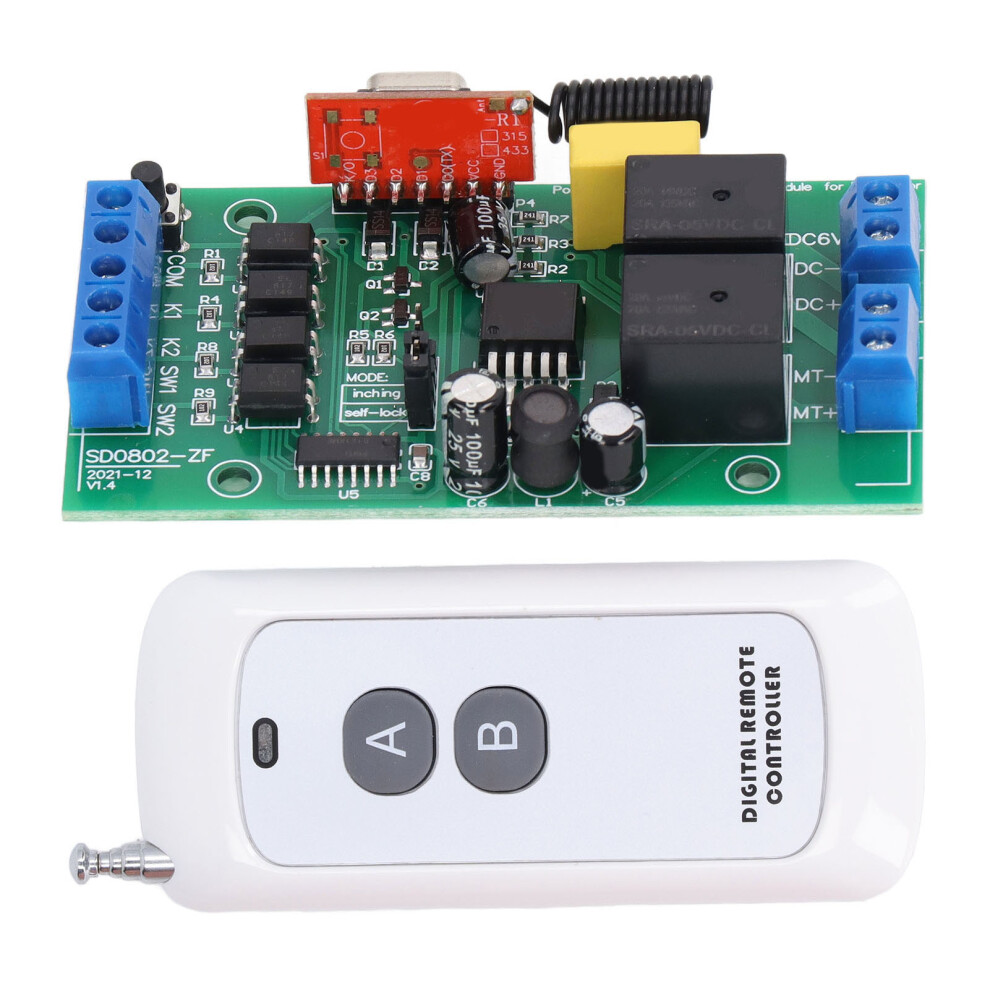

Remote Control Module Motor CW CCW DC 6V-40V Relay for Door Pump

Remote Control Module Motor CW CCW DC 6V-40V Relay for Door Pump Description

1、Smart Control: You can use the remote controller module to control the CW and CCW rotation as well as the on and off of motor. 2、Broad Utility: Can be applied for rolling shutters, rolling doors, projection screens, awnings, water pumps, winches and so on. 3、Reliable Work: Allowing independent control on multiple units at the same time, the work distance can get up to 200m in outdoor. 4、Signals Input: Low level active, inputs from the negative pole of optocoupler. There is signal when the voltage is lower than 2V. 5、Easy to Install: Designed to have a compact size and a light weight, the installation can be quickly completed within minutes.
Item Type: Remote Control Module
Working Voltage: DC 6.0V-40V
Module Power Consumption: 0.6W without load motor, 0.1W static.
Signal Input: Low level active, the input is the negative pole of the optocoupler. When the voltage is lower than 2V, it is considered that there is a signal.
Response Speed: K1 K2 is 20ms, SW1 SW2 is 50ms.
Action Life: More than 150,000 times.
Rated Current: 5A
Remote Control Battery: 1 x 23A 12V battery, delivery without battery.
1 x Remote Control Module
1 x Remote Control
