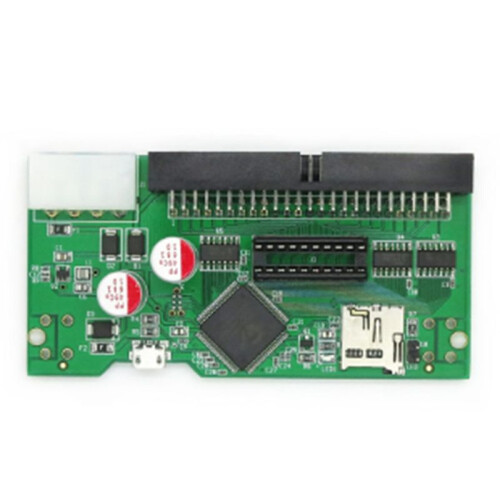

Replace the Old Hard Disk SCSI2SD V5.0A Card Analog SCSI Hard Drives

Replace the Old Hard Disk SCSI2SD V5.0A Card Analog SCSI Hard Drives Description

This is an improved version of the popular SCSI2SD. It's smaller, uses less power, and can be powered by the SCSI bus in some cases.

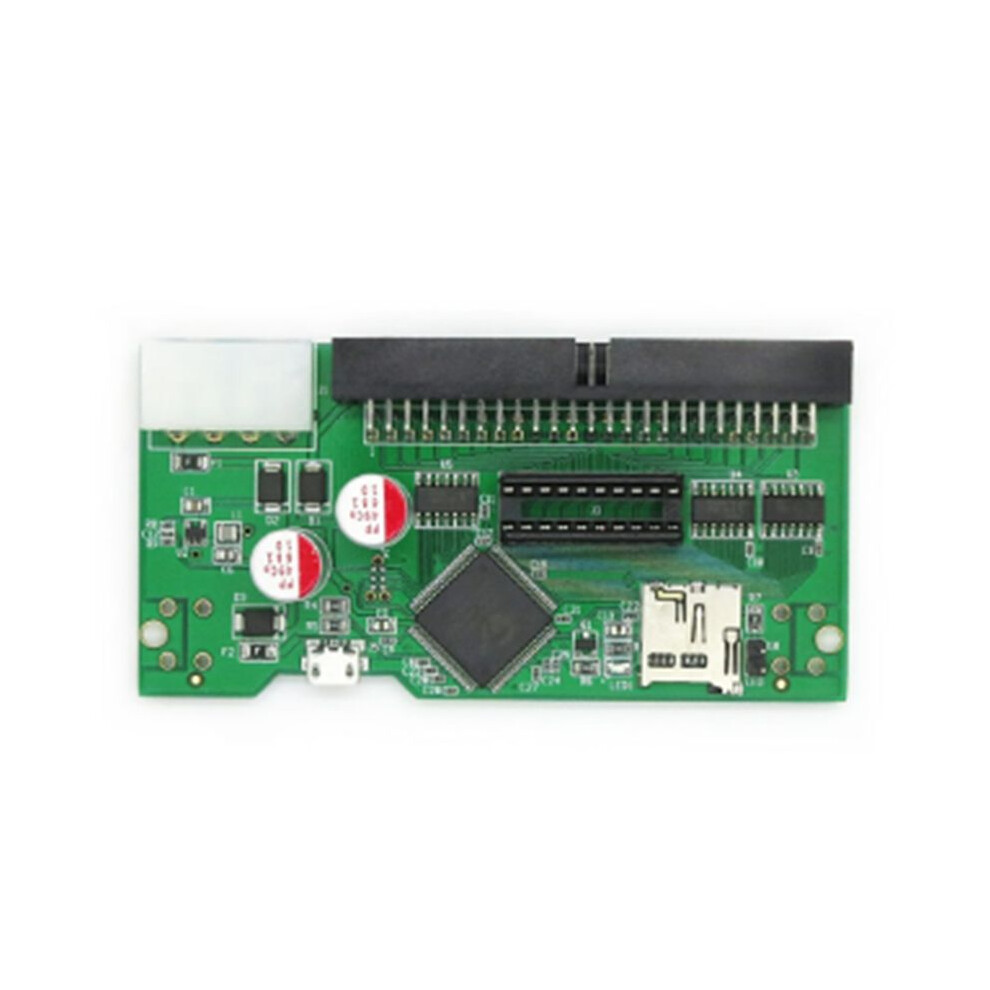

SCSI2SD emulates a SCSI-2 hard drive using a micro- memory card. Each SCSI2SD purchase includes a fully assembled and tested circuit board, ready for use.

A SCSI2SD purchase does NOT include the following:
Micro- memory card
Bracket for mounting within a 3.5Inch drive bay.
SCSI cables, power cables, usb cables, or any other accessory
SCSI2SD is an and open source project. Please visit the SCSI2SD page at here, where you will find the GPL3+ software source code.
Note:The hardware design for this new board is not currently open source.
Features:
In-built active terminator.
Emulates to 4 SCSI devices
Supports sector sizes from 64 bytes to 8192 bytes
Firmware updatable over USB
Highly configurable over USB
Selectable SCSI ID
Selectable parity support
Enable/disable Unit Attention Condition
Artificial limits the SCSI disk size (eg. limit size to 4G to avoid OS bugs)
Sector size (can also be set via the SCSI MODE SELECT command, as sent by SCSI format utilities).
External LED connector.
Technical Specifications:
SCSI Interface: SCSI-2 Narrow 8-bit 50-pin connector. Supports asynchronous transfers only.
Card Interface:Standard SDSC (1GB maximum size) SDHC, SDXC
Power: 5V via standard drive connector, USB, or SCSI BUS powered (requires the SCSI host to supply terminator power)
Due to different product batches, the appearance may vary, which does not affect the use.
Colour:Green
Material:PC

Package Contents:
1 * adapter
