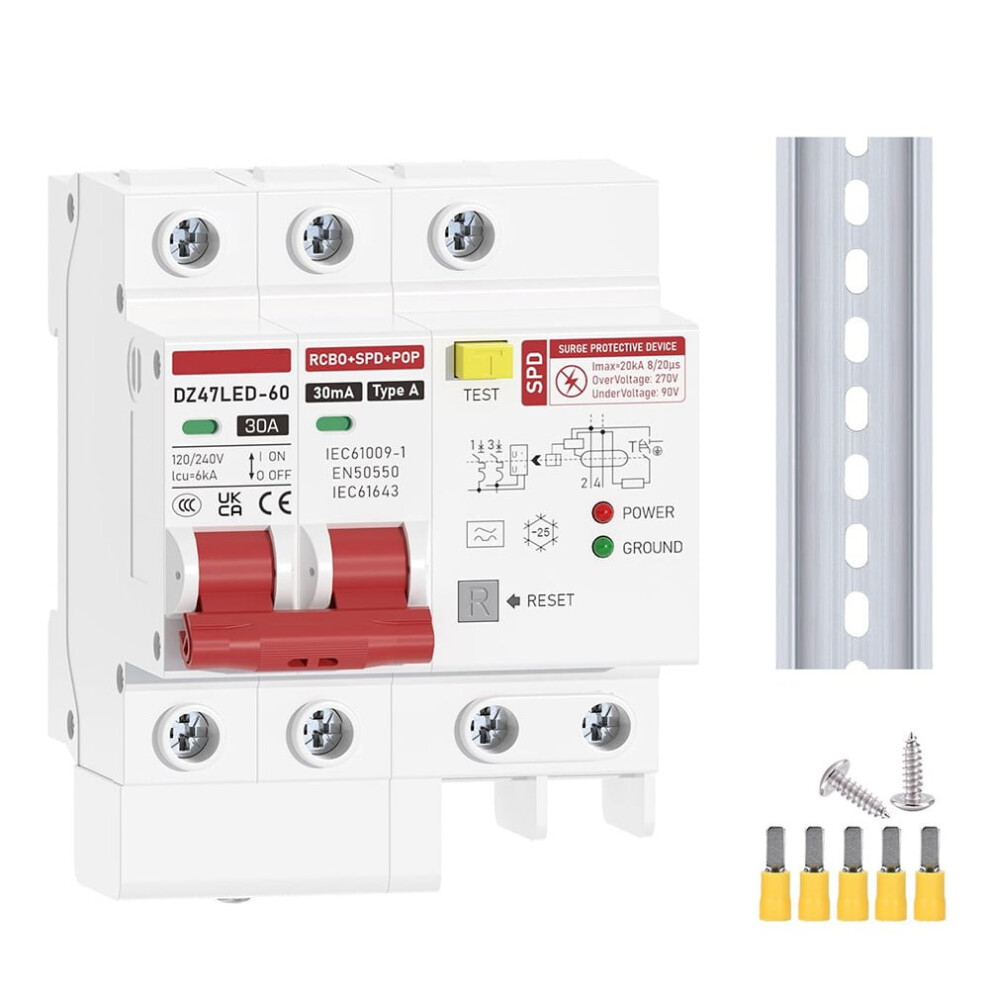

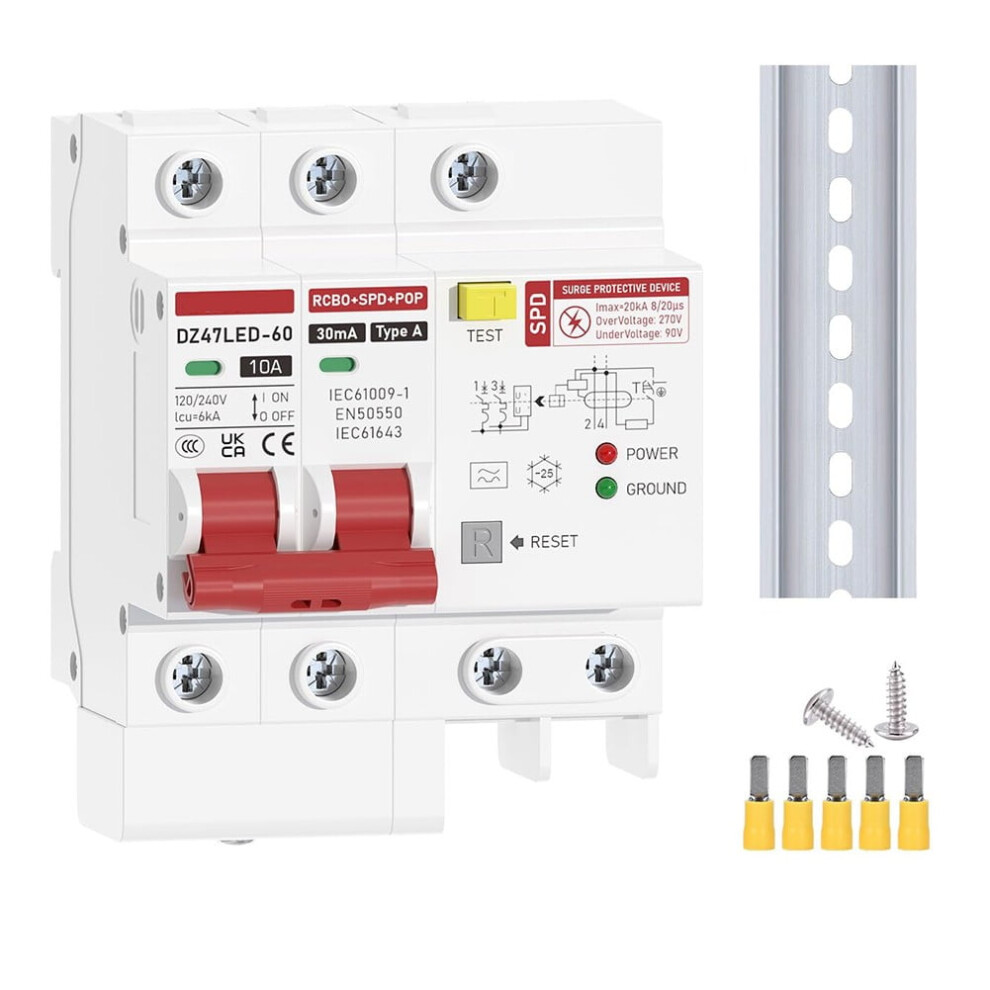

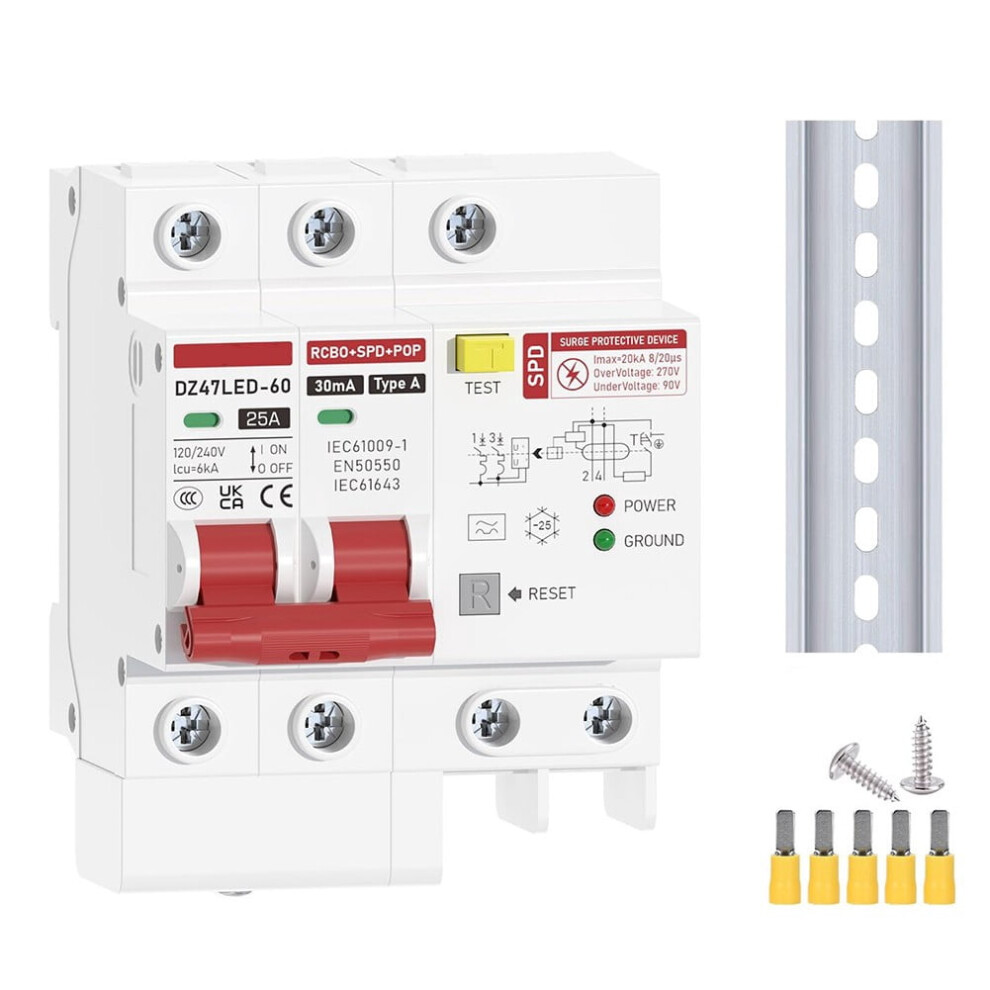

Residual Current Circuit Breaker Dual Pole Type A with

Residual Current Circuit Breaker Dual Pole Type A with Description

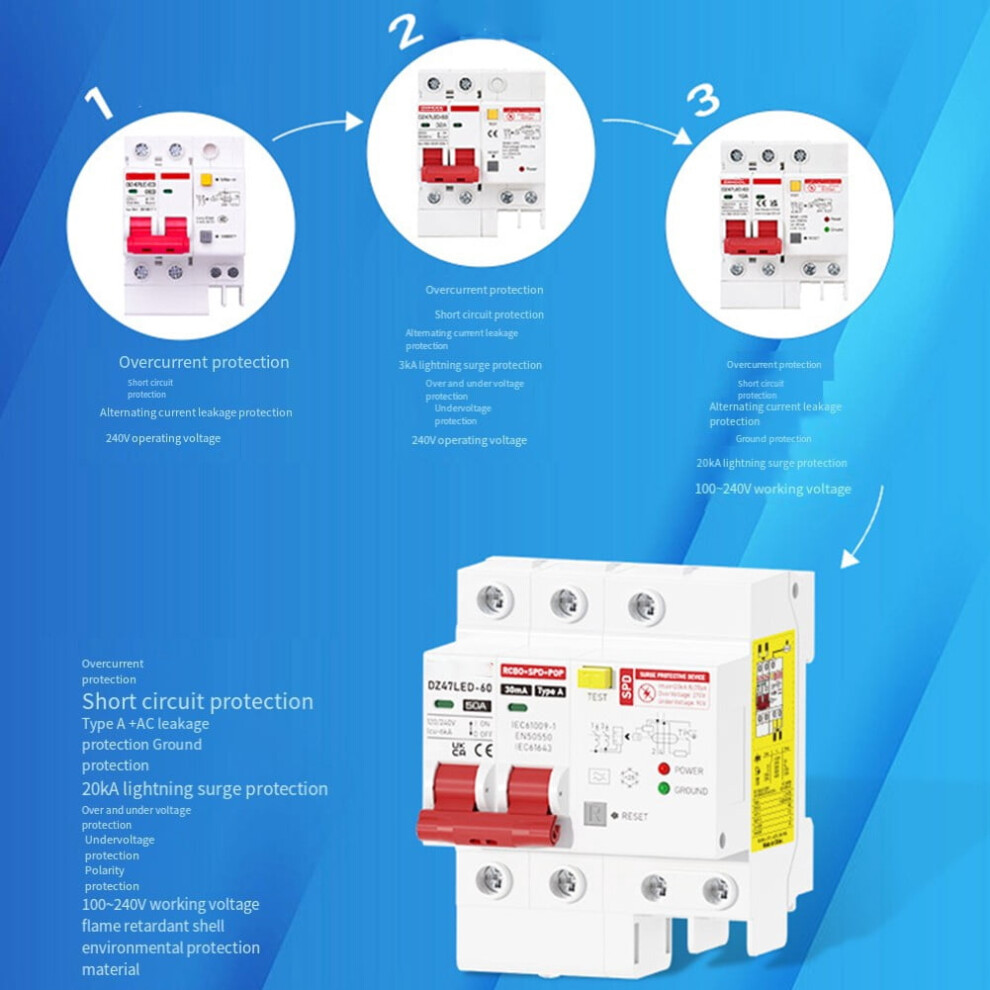

Features: Functions：6-fold protection: overload protection, surge protection, switch, leakage protection, flash protection and short circuit protection FI+LS：Type A residual current device with built-in overload and short circuit protection. When electric shock or leakage current exceeds a predetermined value, short circuit or overload, the residual current device can automatically cut off the power supply in a short time to protect personal safety and prevent accidents caused by leakage. Surge protection: Type 2 surge arrester with surge protection for level C, D flash protection, flash equipotential bonding, flash strike fast response, pressure relief, protecting household appliances and your safety. This greatly reduces the possibility of accidents. Performance standards: GB16917.1 "Residual current circuit breakers with integral overcurrent protection for use in households and similar applications (RCBO) Part 1: General rules", GB 18802.2, IEC61643-1 and GB 500057 "Construction code for protecting structures against flash strikes". Rated leakage current (8/20): 6kA; Rated voltage: 120/240V 50/60Hz AC; Rated residual current: 30mA; Rated current: 10-60A; Trip characteristics: C; Mounting: DIN rail TH35, number of modules 4 Specification: Part Name: Flash protection leakage protector Color: White Material: Plastic Model: DZ47LED LNE Rated current: 10-60A Poles: L+N+PE or LL PE Rated voltage Ue: 120V/240V AC Insulation voltage Ui: 500V Rated breaking capacity: 6kA Overvoltage and undervoltage protection range: 270V5V Undervoltage protection value: 90V5V Rated impulse withstand voltage (1.2/50) Uimp: 4kV Residual working current working type: Type A Residual leakage trip current: 30mA Thermo-Magnetic Release Characteristic: C-Curve (5-10ln) Maximum discharge Current In 8/20μs: 20kA Nominal discharge Current In 8/20μs: 10kA Response time t (ns):
