REX-C100 Intelligent Temperature Controller with K

REX-C100 Intelligent Temperature Controller with K Description

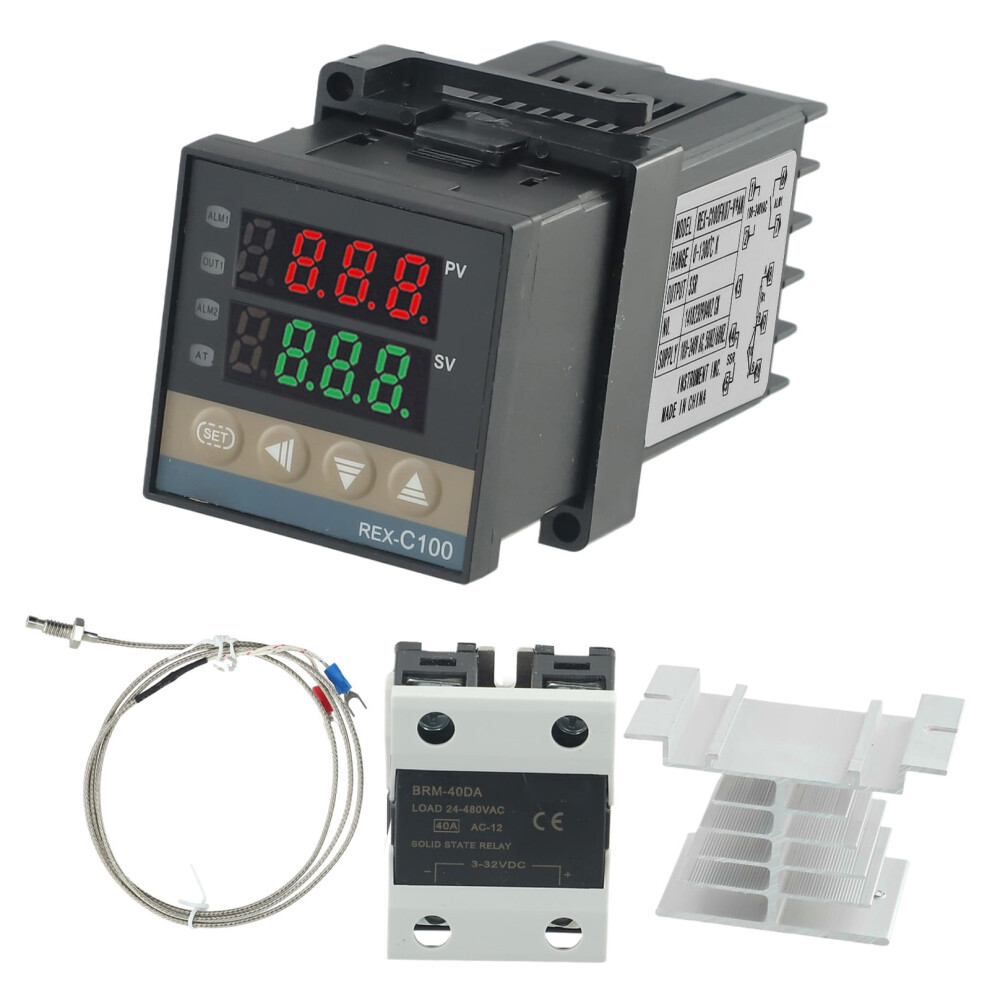

Features: *PID controller set comes with digital PID REX-C100 AN temperature controller + max.40A for SSR + K Thermocouple for your use. *This PID temp control is specially designed for phase solid state relay. *Proportional Bands (P): 0full r-ange (ON/OFF control when set to 0). *Integral t-ime (I): 03600 sec (no integral actions when set to 0), derivative t-ime (D): 03600 sec (no derivative actions when set to 0). *Setting value (SV) is identical to measuring r-ange (PV). *Detective temperature range: 0 to 1300 Specifications: REX-C100 0-1300AN Temperature Controller 1.3 Digit setup values 2. Measuring accuracy: 0.5%FS 3. Cold-end compensation tolerance: 2（can be modified by software in 050） 4. Resolution: 14 bit 5. Sampling cycle: 0.5 Sec 6. P-power: AC 100-240V 50/60HZ 7. Process value (PV), Setting value (SV) 8. Output, and self-tuning can be indicated by: L-ED 9. PIN control (including ON/OFF, step-type PID and continuous PID) 10. Self-tuning control 11. Relay output: contact capacity 250-V AC 3A (resistive load) 12. Proportional band (P): 0full r-ange (ON/OFF control when set to 0) 13. Detective temperature range: 0 to 1300 14. Insulation resistance: >50M ohm(500V D-C) 15. Insulation resistance: 1500V AC/min 16. Insulation resistance: P-ower Consumption < 10 VA 17. Service environment: 050 18. Environment with no corrosive g-as 3085% RH K Thermocouple Probe Cable: 1. Length: 1M 2. Sensor diameter: 4.5Mm 3. Temperature r-ang:0400 4. Internal Insulation: Fiberglass 5. External Shielding: Insulated Shielding 6. Thread: British M6 Max.40A for SSR: 1. Output Current: 40A 2. Input Voltage: D-C 3-32V 3. Output Voltage: 24-480V AC 4. Output Voltage R-ange: Standard Type Packing List: 1*PID Temperature Controller 1*K Type Probe Sensor 1*40DA for SSR 1*Heat Sink Note: 1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2. Please allow slight manual measurement deviation for the data.
