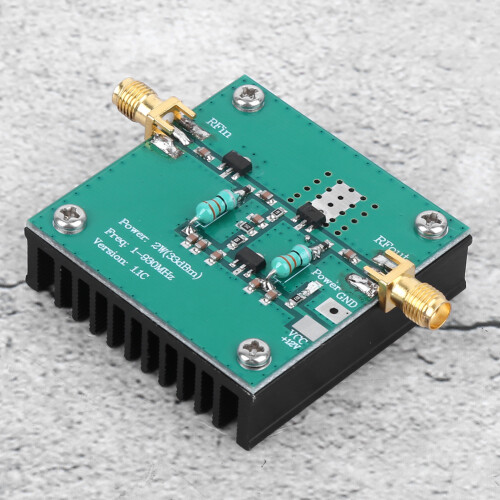

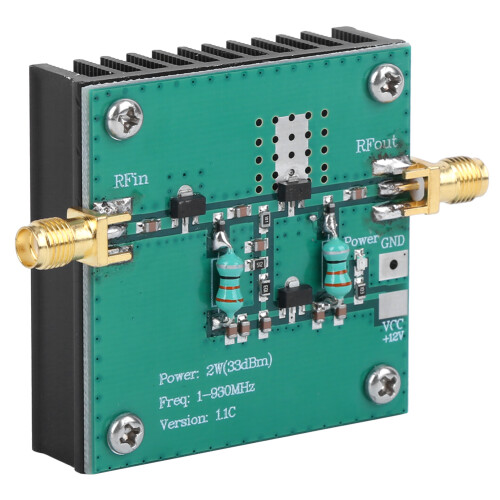

RF Broadband Power Amplifier Module 1-930MHz 2.0W SMA Female
New
£27.54
Similar Products we think you'll like
Would you like us to let you know when it's back?
Description & Details
Summary

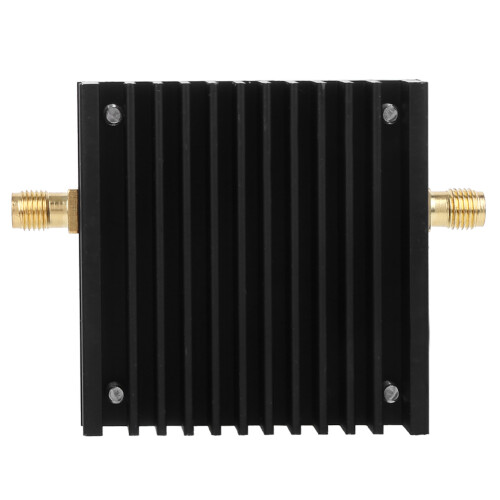

- RF broadband power amplifier uses a radiator design to keep long‑term stability.
- Broadband RF low power amplifier is with wide operating frequency from 1 to 930MHz.
- Standard SMA female RF connector helps such RF amplifier module with easy connection.
- Not require particularly complicated operations, this power amplifier's installation is simple.
- With good wiring, such amplifier board's quality is guaranteed, you can use it with confidence.
RF Broadband Power Amplifier Module 1-930MHz 2.0W SMA Female Description
RF Broadband Power Amplifier Module Electrical Accessory Standard SMA Female 1‑930MHz 2.0W
Item Type: RF broadband power amplifier
Material: Glass fiber, aluminum alloy
Working Frequency: 1--930MHz
Input Power: 1mW (0dBm)
Maximum Output:
2.0W (33dBm) low frequency end (10 MHz)
1.6W (32dBm) intermediate frequency end (512 MHz)
1.0W (30dBm) high frequency end (930 MHz)
0.8W (29dBm) high frequency end (1000MHz)
Working Voltage: 12V (DC)
Working Current: 300--400mA (determined by output power)
RF Connector: Standard SMA female
Size: Approx. 50 x 50 x 15mm / 2 x 2 x 0.6in (length x width x height)
Product Weight: Approx. 55 g / 1.9 oz(blackening of heat sink)
Details
| OPC | PJCKBRF |
|---|---|
| Codes | 5051333822833 (EAN) |
