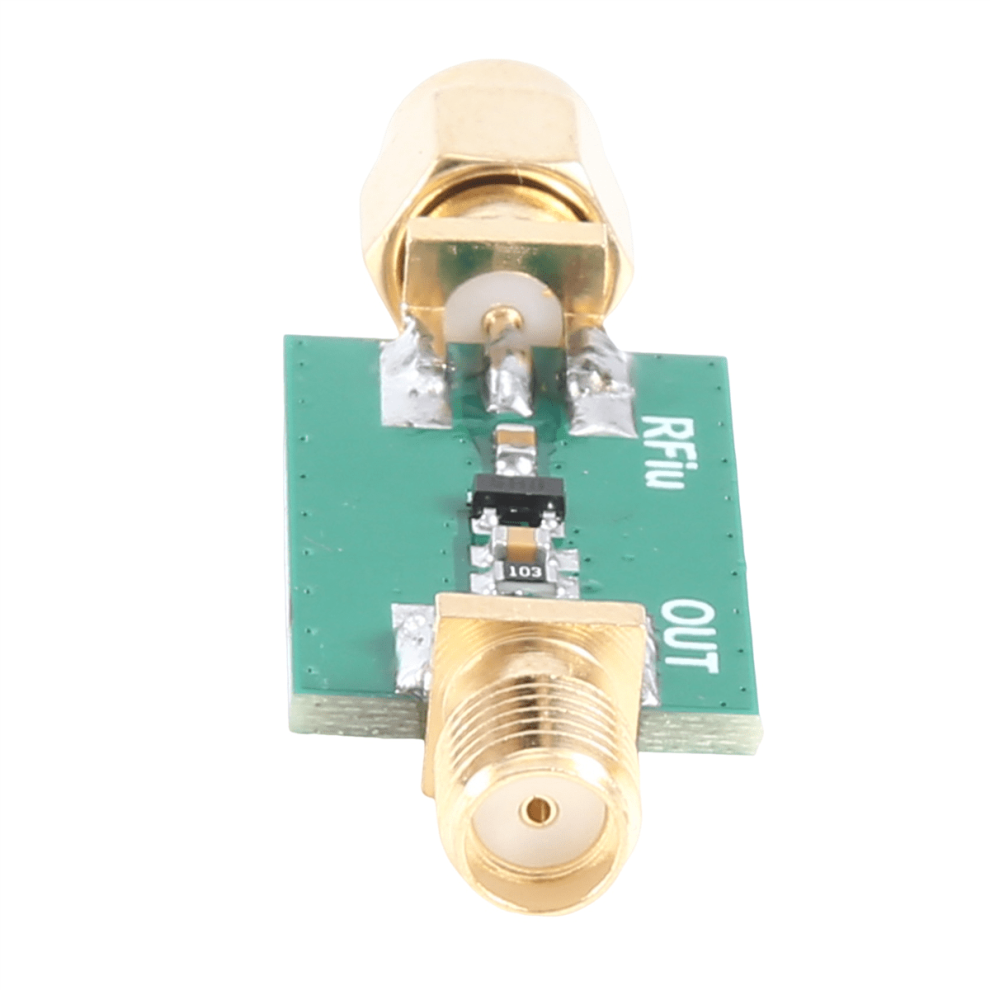

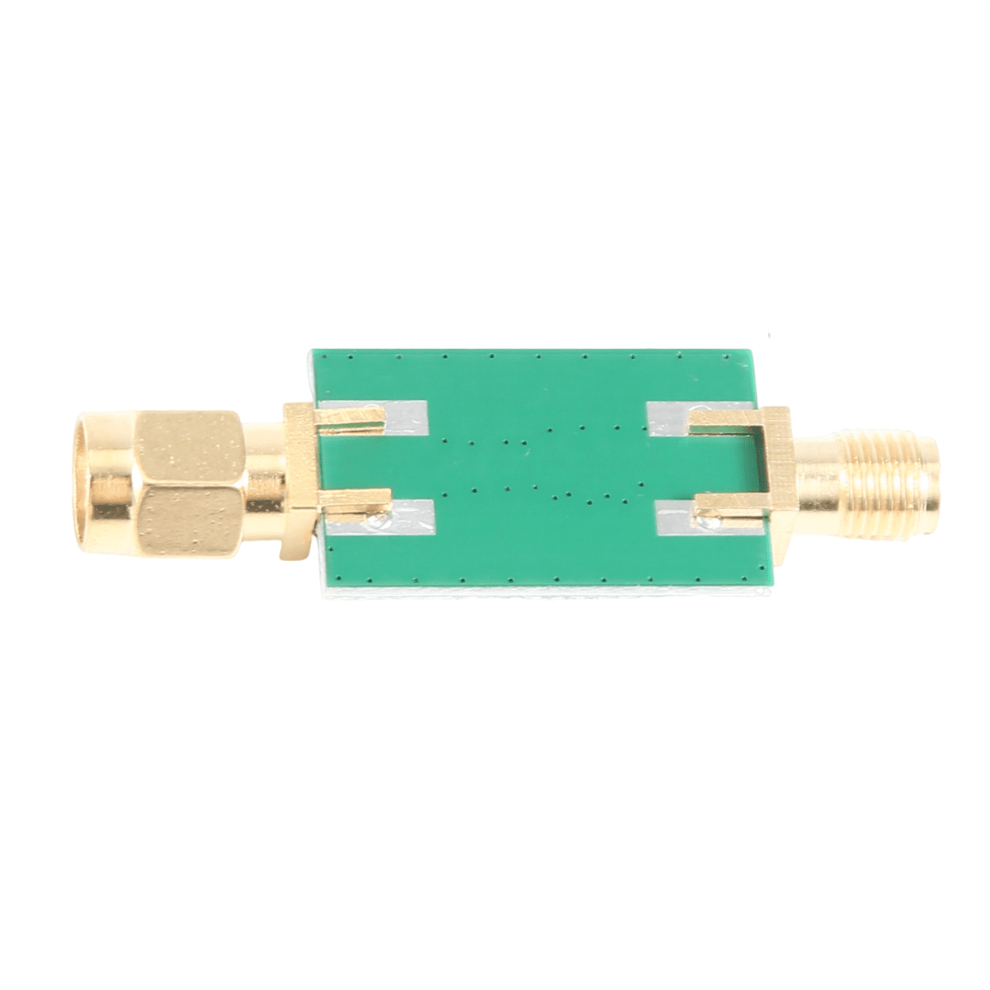

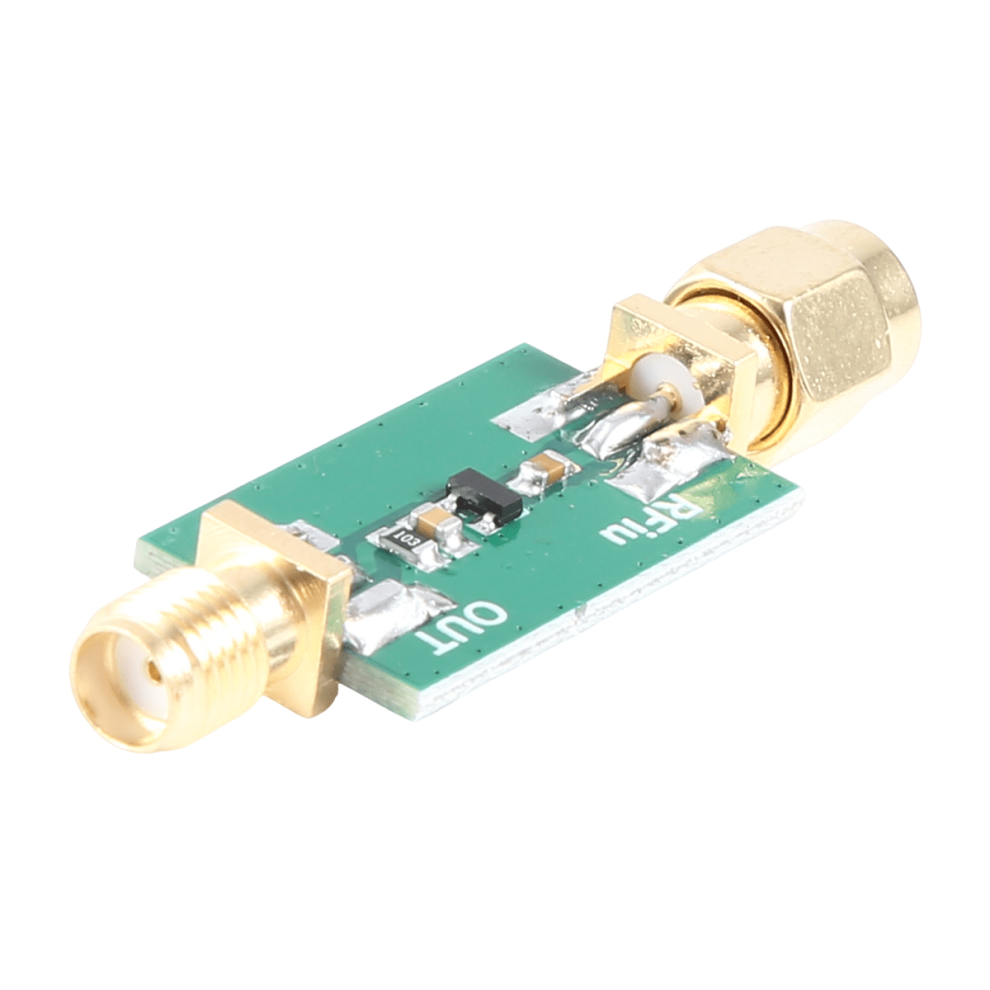

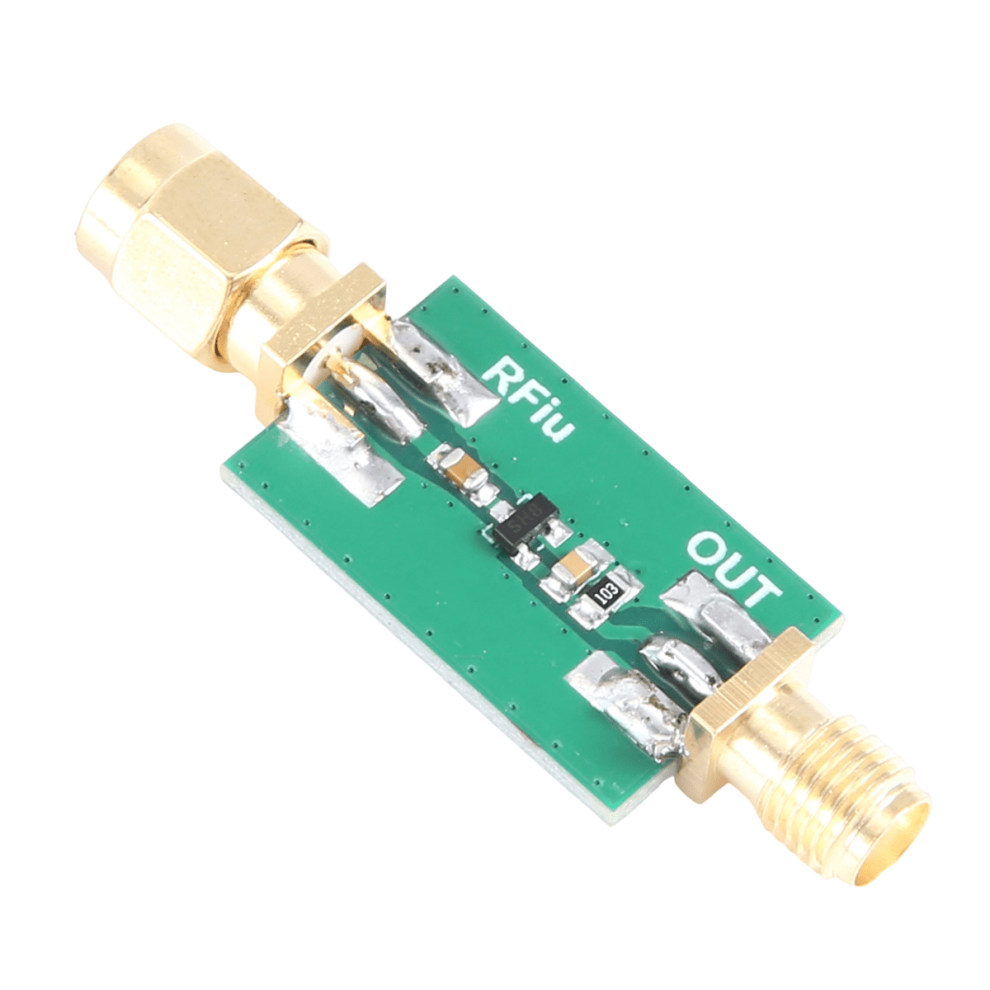

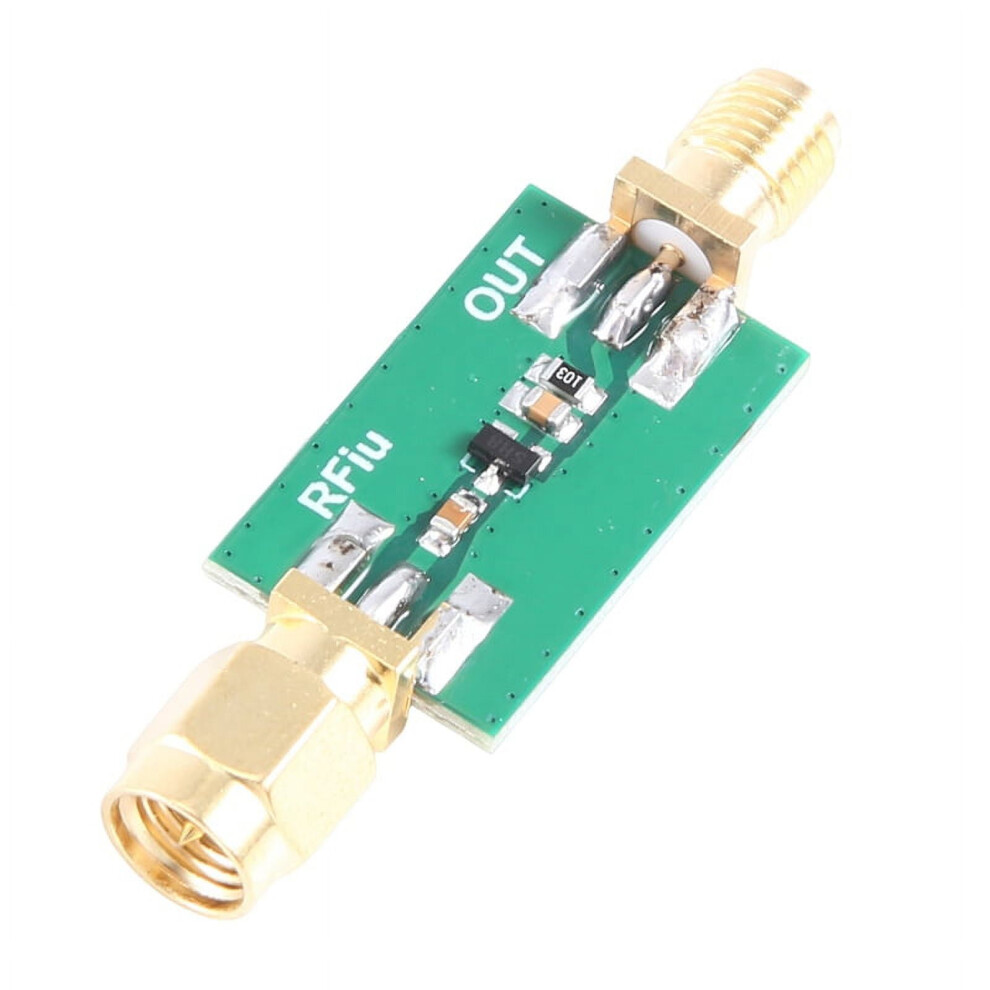

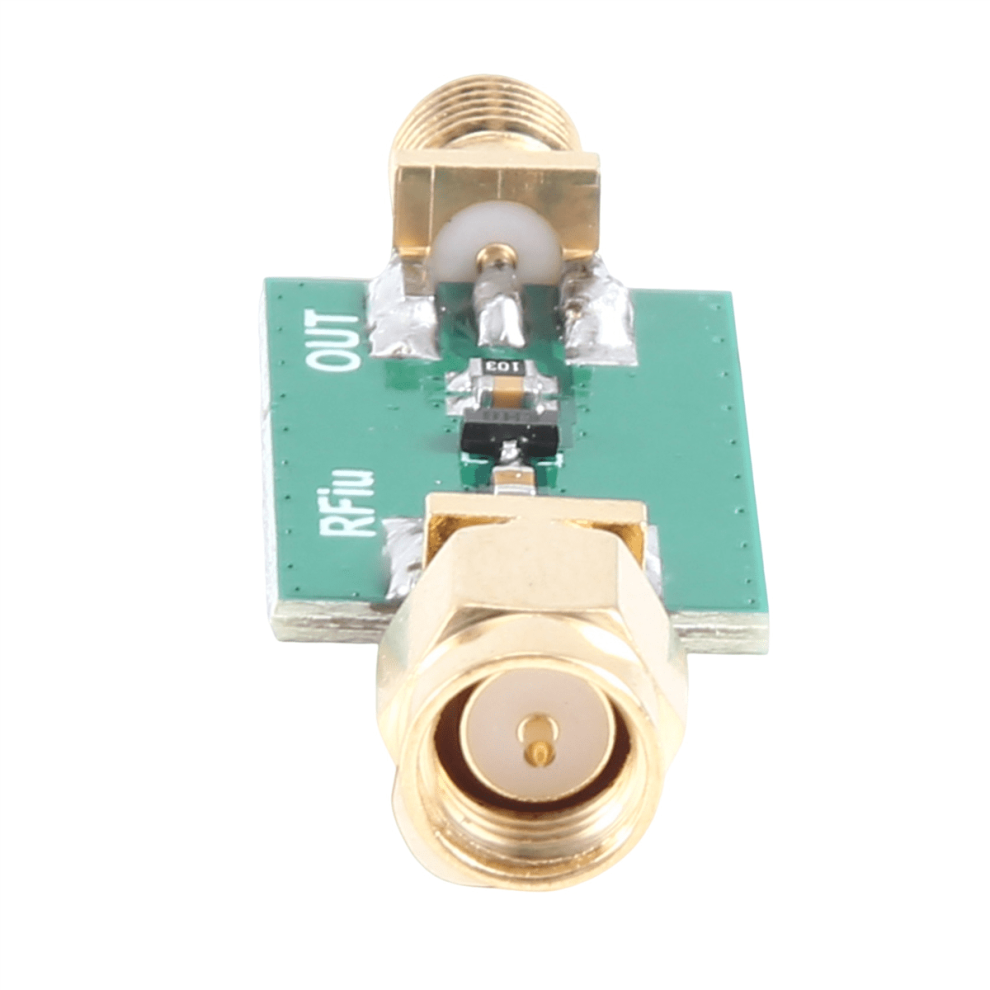

RF Envelope Detector Module 0.1–3200 MHz Portable

RF Envelope Detector Module 0.1–3200 MHz Portable Description

High Sensitivity: -30DBM--40DBM ( For Radio Production) Wide Frequency Range: Not Less Than 3200mhz (Discharge Signal Detection) Fast Response Speed: PS Level, (Pulse Detection) Component Power Detection If You Want A Lower Operating Frequency, You Can Increase The Output Capacitance. If You Want A Fast Response, You Need To Reduce The Capacitance. This Is A Contradiction And You Can Configure It According To Your Own Needs. Product Specifications 1. Maximum Input: 20Dbm (Burned Power) Linear Range Less than 10Dbm 2. Detection Output: The Default Is Positive (If You Need Negative Output, Please Contact The Store) 3. Working Frequency: 0.1--3200Mhz 4.Rc Filter: R=10K, C=1NF; (Two Parallel Components At The Output Port) Working Principle 1. This Product Uses A Voltage Doubler Detector (Composed Of Two Reverse Microwave Diodes), Which Is 6db More Sensitive Than A Single-Tube Detector. It Has Very High Sensitivity (Typically -30dbm, Even -40dbm), Which Is Not Ordinary. 2ap9 And 1n60 Are Comparable. 2. The Detector Adopts Microwave Diode Design And Has A Very High Operating Frequency (Not Less Than 3200mhz). It Can Be Used For High-Frequency And Radio Frequency Signal Detection, Such As Am Detection, 10.7mhz Am Detection, And Discharge Signal 300-1200mhz. Detection, Signal Detection Switching Circuit In Wifi 2.4G Amplifier, Radio Energy Collection In Free Space. Material: PCB Color as shown Package Contents: 1 x RF Detector Module Note: Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Will Not Affect The Use Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
