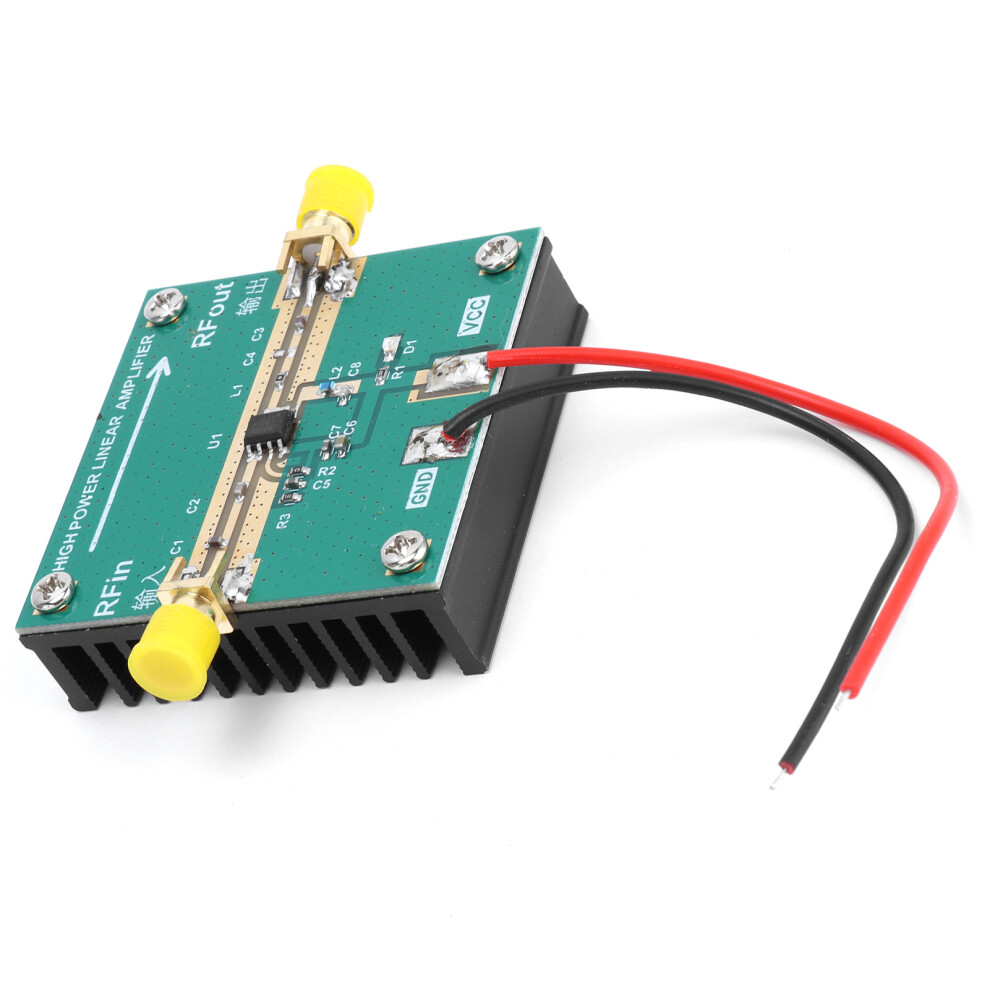

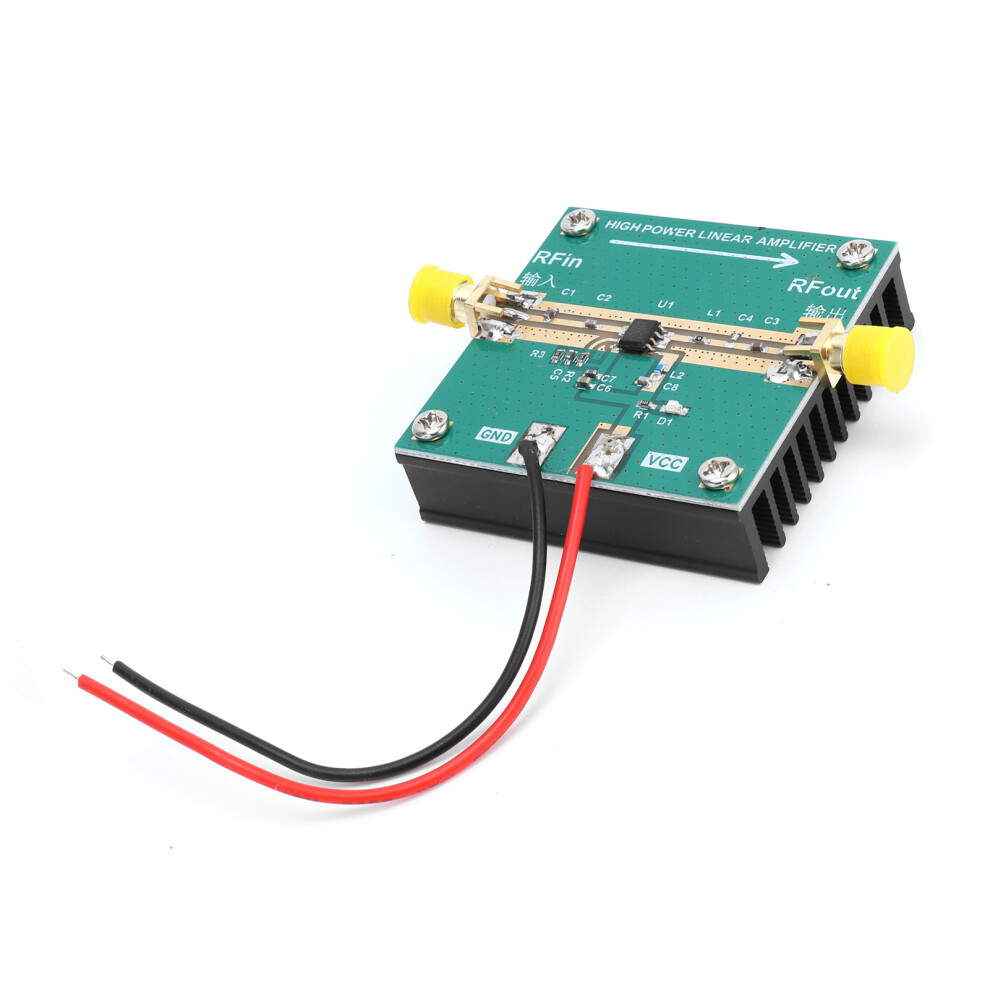

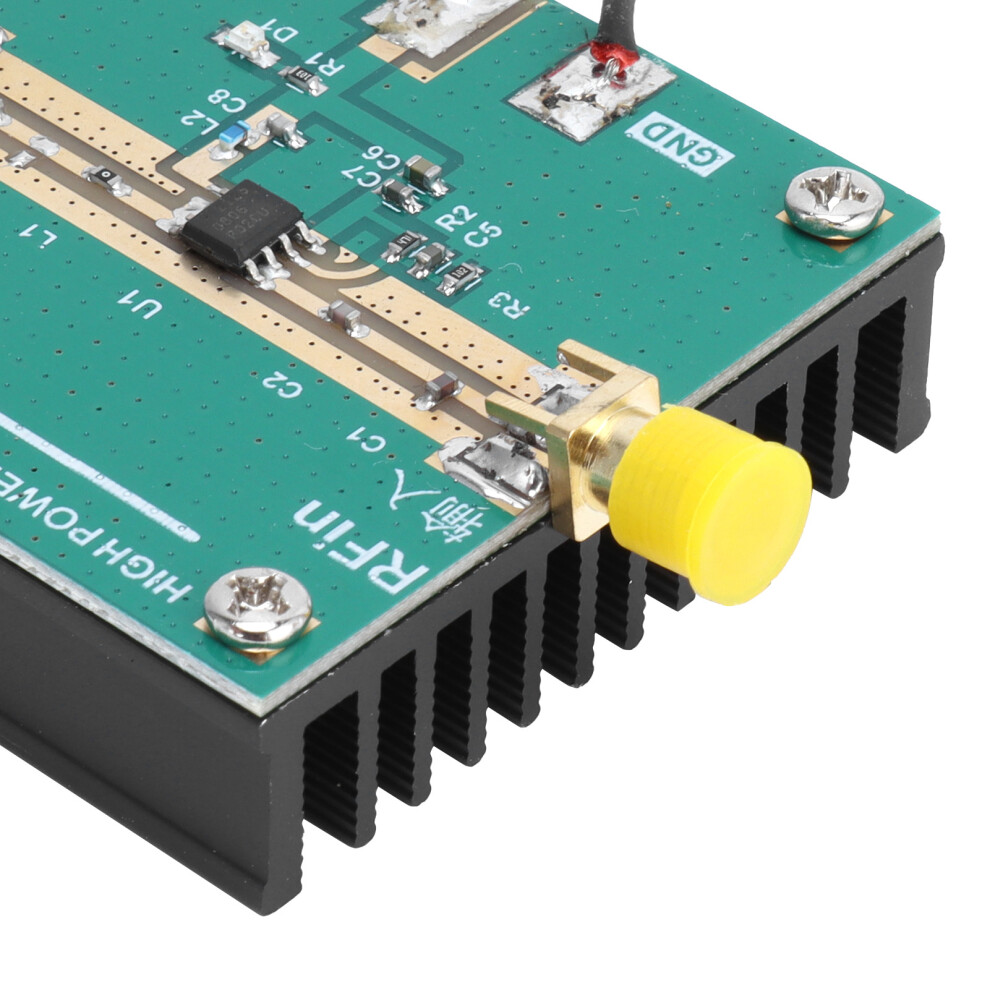

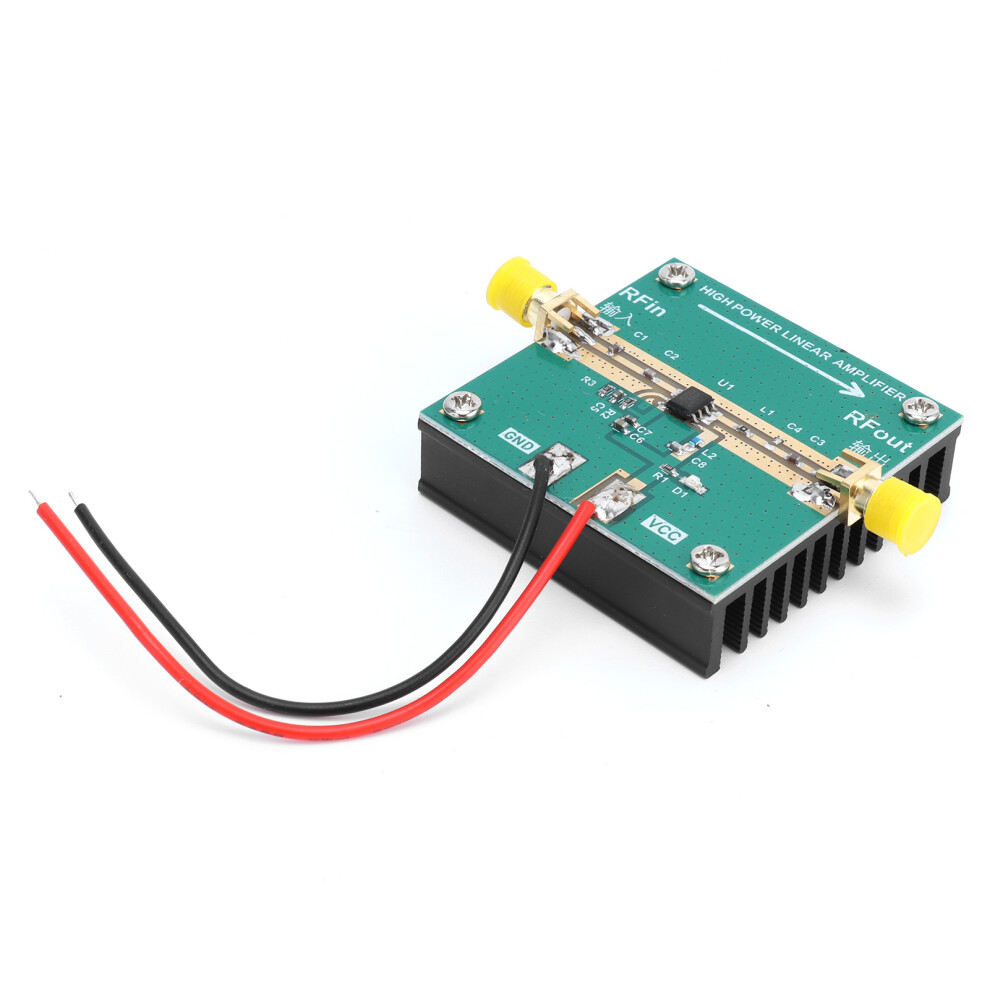

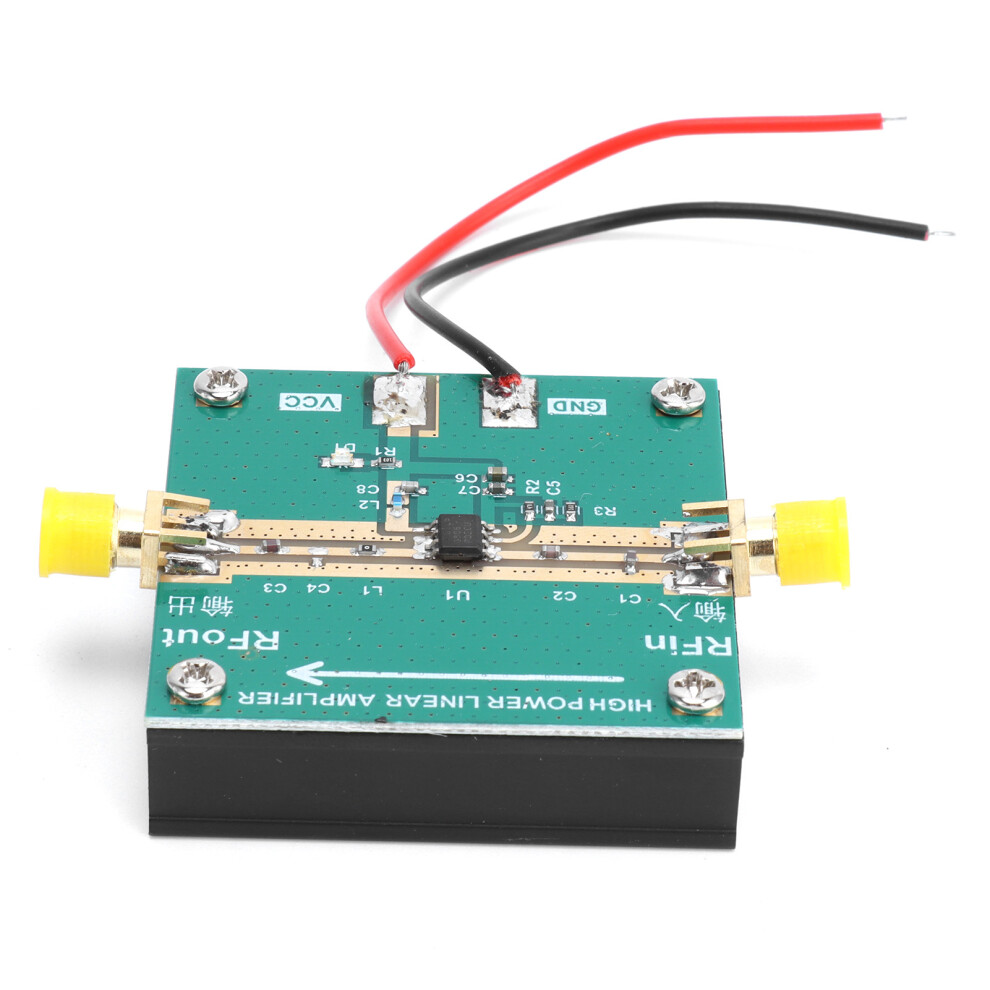

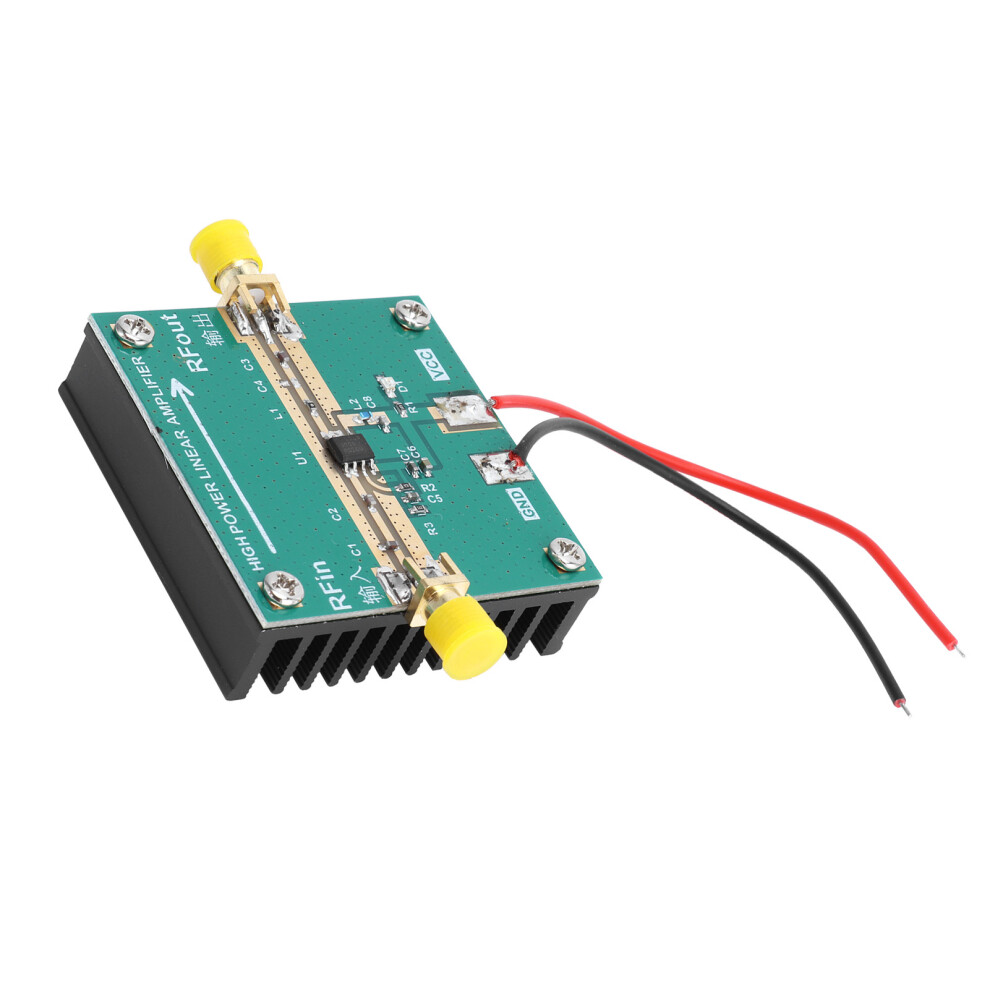

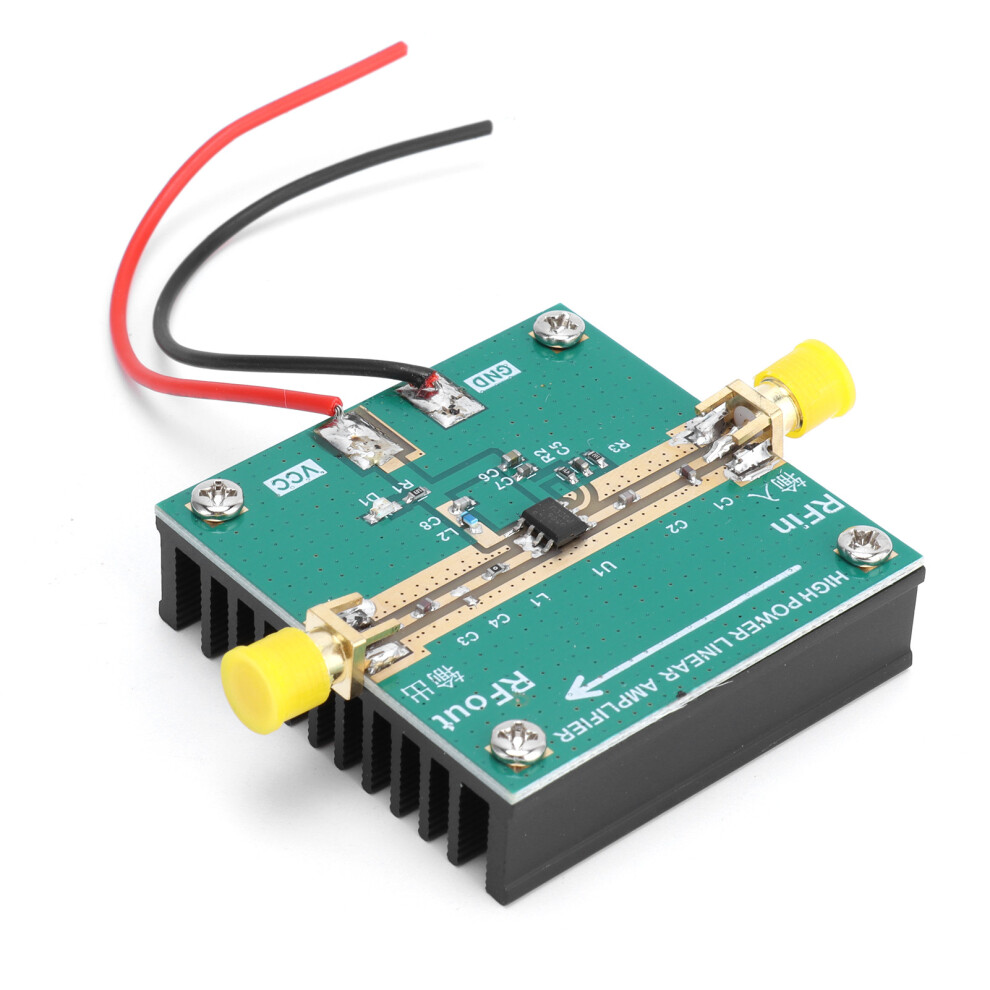

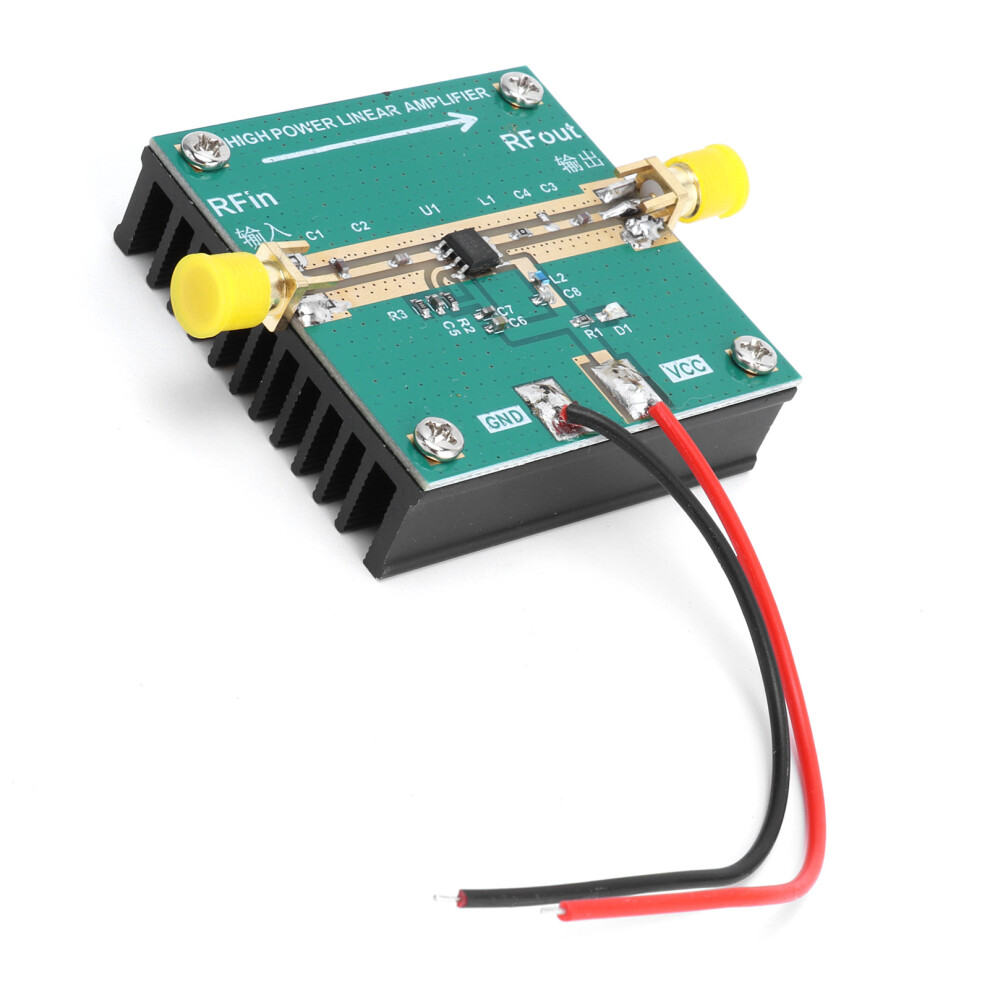

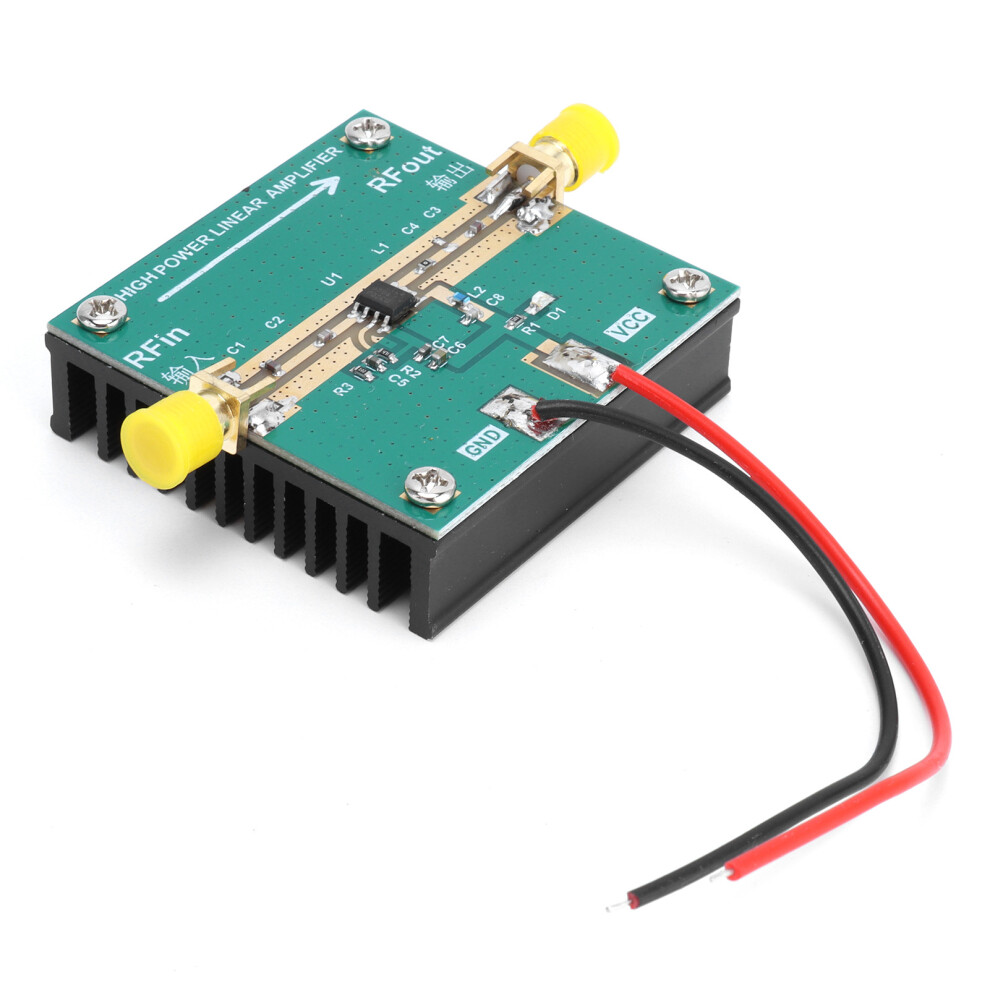

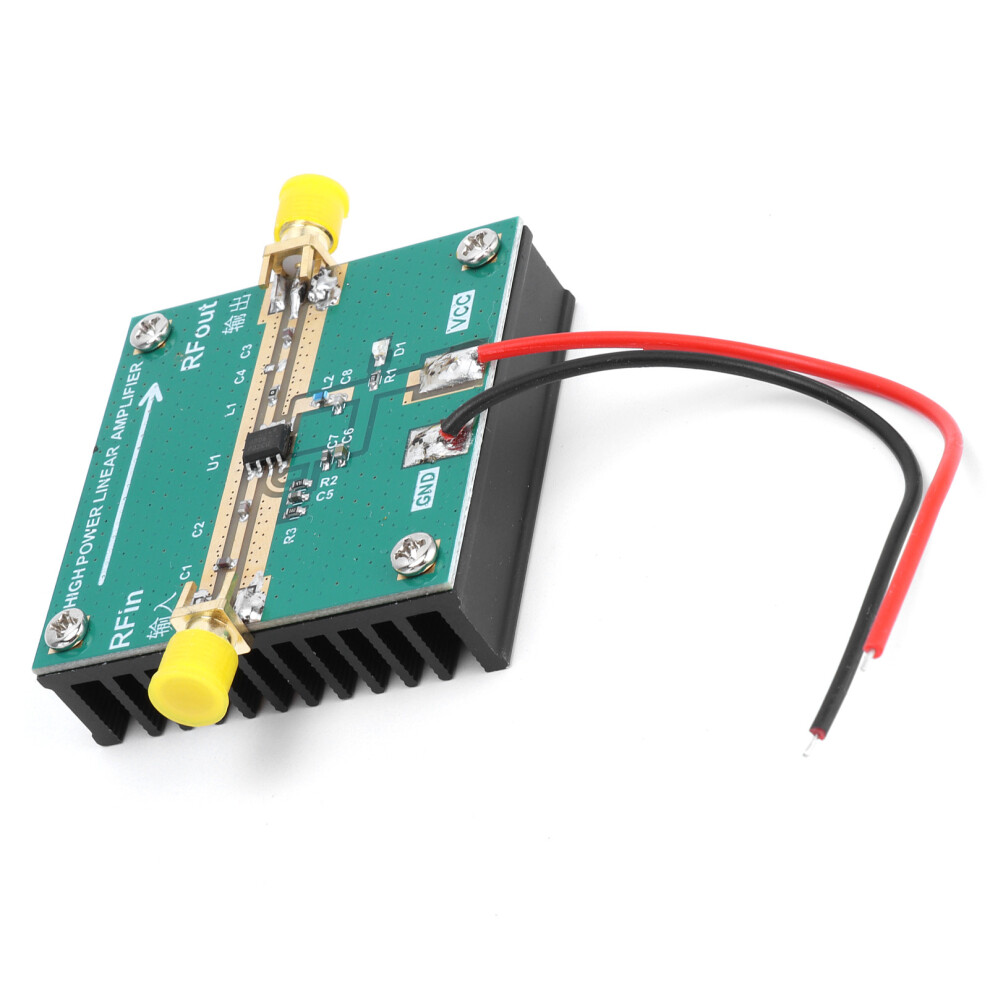

RF Power Amplifier High Power Linear PCB Module Board Electronic Accessory 2.4GHZ 1W RF2126 6V
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 129,000 Trustpilot reviews and an 'Excellent' rating
£13.98
£22.91
39% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Tue 28th - Thu 30th Jul
Sold by: Grarnstore, there are 2 other sellers
Returns: 30 days
180-day payment protection
Most Popular in Radio Power Supplies
Description & Details
Summary
- 1.6mm PCB thick double‑sided sheet, sturdy and durable, 1.5 oz copper thick, have a long service time.
- The whole process is sprayed with tin to ensure good current flow performance.
- Increased stability, the input and output use high frequency low resistance capacitance, greatly reduce the output ripple.

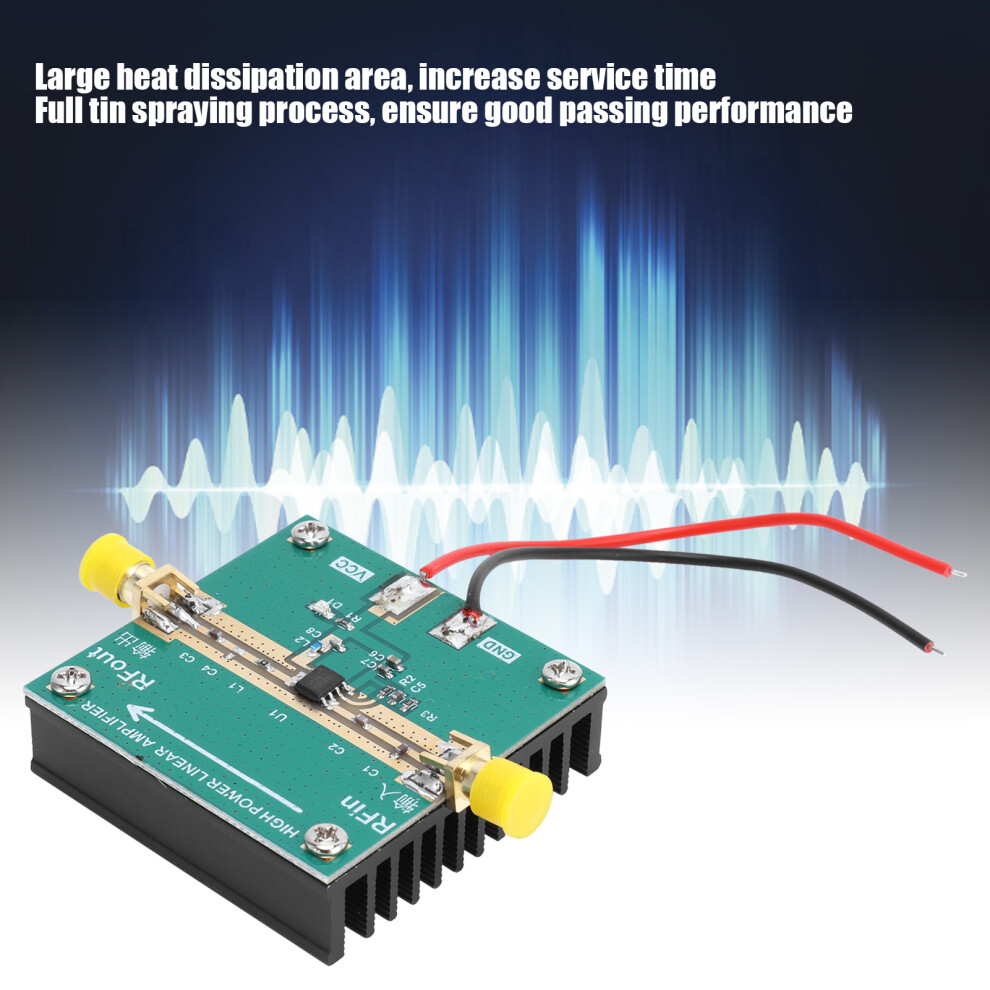

- The heat dissipation area is large, which can better maintain long‑term operation and is reliable in use.
- Small in size and light in weight, convenient to carry and use at any time, very convenient and practical.
RF Power Amplifier High Power Linear PCB Module Board Electronic Accessory 2.4GHZ 1W RF2126 6V Description
Compact Powerhouse for RF Applications
Robust, High-Performance Construction
Engineered for reliability and longevity. This RF power amplifier is built on a sturdy 1.6mm thick, double-sided PCB with 1.5 oz copper, ensuring excellent durability and thermal management. The entire board features a tin-sprayed finish for optimal current flow and solderability, guaranteeing stable performance over a long service life.
Enhanced Stability & Clean Output
Designed for precision. The amplifier utilizes high-frequency, low-resistance capacitors at its input and output stages, which significantly reduces output ripple and noise. This design choice enhances signal integrity and overall stability, making it ideal for applications requiring a clean, amplified RF signal.

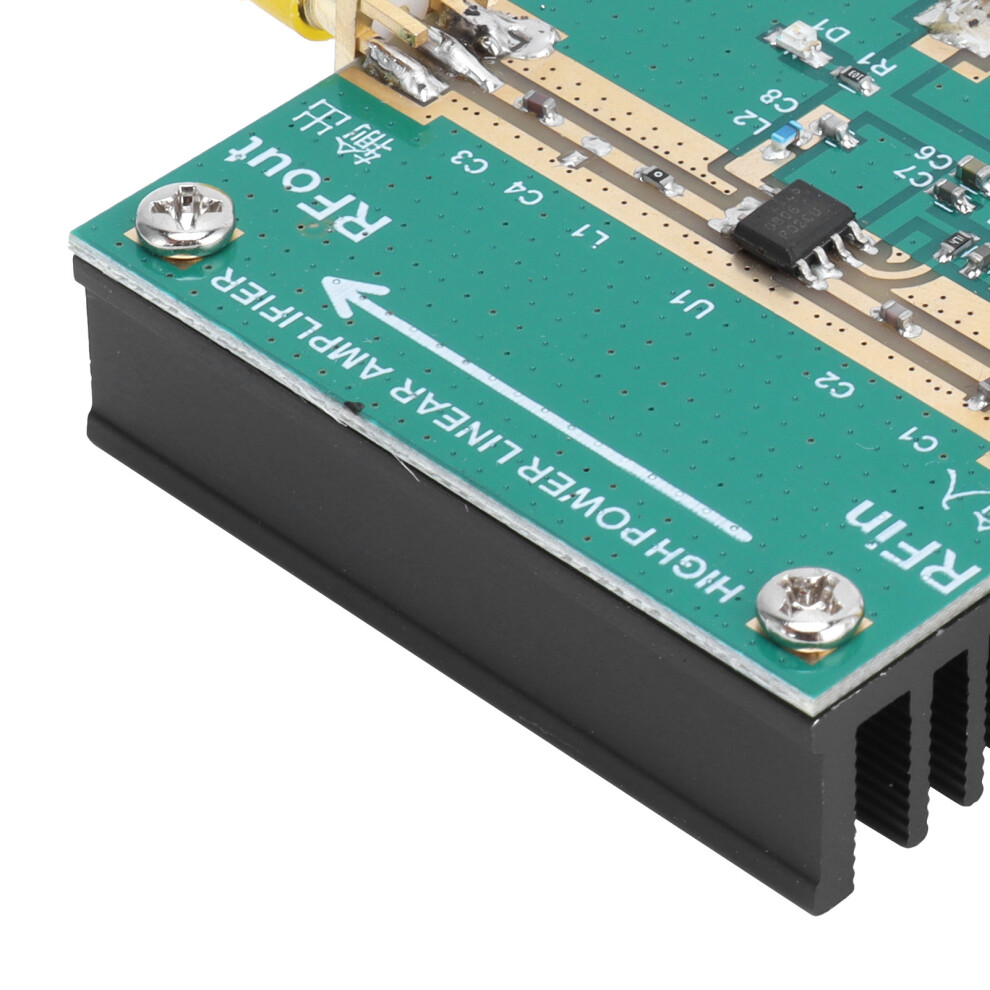

Efficient Heat Dissipation
Built to handle continuous operation. The module incorporates a large, effective heat dissipation area that efficiently manages thermal output. This design allows for better heat dissipation, maintaining component reliability and enabling sustained, long-term operation even under demanding conditions.
Portable & Versatile Design
Powerful performance in a tiny package. Despite its compact size and lightweight construction (approx. 50x50x22mm core), it delivers substantial gain. With a wide working frequency of 400-2700MHz, 12dB gain at 2450MHz, and a 1dB compression point (P1dB) of +30dBm (1W), it's a versatile and convenient tool for various RF projects, portable equipment, and testing setups.
Specification
Item Type: RF Power Amplifier

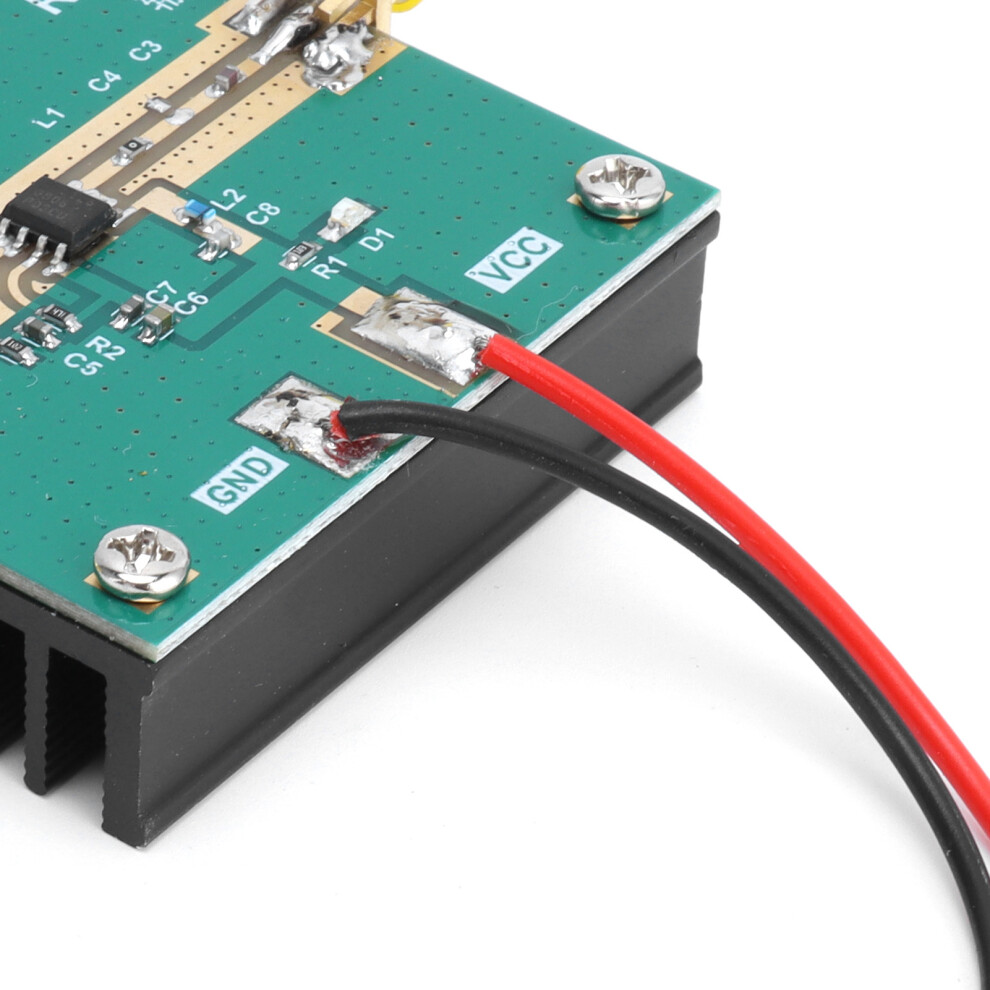

Power Supply: 6V (maximum power output at 500mA)
Gain: 12DB 2450MHz
Size:
Approx. 70 x 50 x 22mm / 2.8 x 2 x 0.9in(include protruding SMA interface)
Approx. 50 x 50 x 22mm / 2 x 2 x 0.9in( without SMA interface)
P1dB=30dB-1W at 2450MHz
Working Frequency: 400-2700MHz
Input and Output Impedance: 50Ω
Package List
1 x RF Power Amplifier
Note
RF2126 model, working frequency scope is 400‑2700MHz, 50Ω input and output impedance.
Details
| OPC | PJKMKWC |
|---|---|
| Codes | 4161340505672 (EAN) |
| Rank | #6 Radio Power Supplies |
| #323 Radio Communication |
