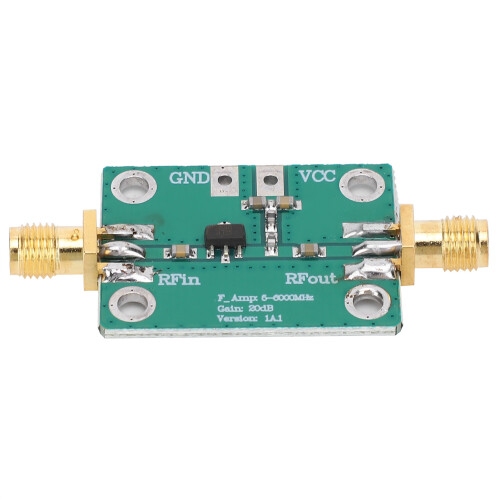

RF Power Amplifier Module 1-1000MHz 20dB Gain 50Ω Low Noise

New
£12.53

Similar Products we think you'll like

Industrial Microwaves
Hyundai 800W 20L Black Digital Microwave, Stainless Steel Interior, 11 Power Levels, Automatic Defrost, 6 Auto Cook Modes, Clock and Timer, DigitalHyundai 800W 20L Black Digital Microwave, Stainless Steel Interior, 11 Power Levels, Automatic Defrost, 6 Auto Cook Modes, Clock and Timer, Digital£139.00FREE Delivery
Russell Hobbs Digital Microwave 20L 800W in Cream with 5 Power Levels, Pull Handle Door & Button Control, Clock & Timer, Automatic Defrost, EasyRussell Hobbs Digital Microwave 20L 800W in Cream with 5 Power Levels, Pull Handle Door & Button Control, Clock & Timer, Automatic Defrost, Easy£127.54FREE Delivery
TOSHIBA 20 Liter 800W Digital Solo Small Microwave With 11 Power Levels, One-touch Express Cook with 6 Preset Recipe, Defrost, Digital Display,TOSHIBA 20 Liter 800W Digital Solo Small Microwave With 11 Power Levels, One-touch Express Cook with 6 Preset Recipe, Defrost, Digital Display,£98.80FREE Delivery
Russell Hobbs RHM2044C Retro 20 Litre Cream Digital Microwave, 800W, Mirror Finish, 8 Auto Cook Settings, 5 Power LevelsRussell Hobbs RHM2044C Retro 20 Litre Cream Digital Microwave, 800W, Mirror Finish, 8 Auto Cook Settings, 5 Power Levels£124.47FREE Delivery
Hyundai 800W 20L Black Digital Microwave, Stainless Steel Interior, 11 Power Levels, Automatic Defrost, 6 Auto Cook Modes, Clock and Timer, DigitalHyundai 800W 20L Black Digital Microwave, Stainless Steel Interior, 11 Power Levels, Automatic Defrost, 6 Auto Cook Modes, Clock and Timer, Digital£139.00FREE Delivery
Russell Hobbs Digital Microwave 20L 800W in Cream with 5 Power Levels, Pull Handle Door & Button Control, Clock & Timer, Automatic Defrost, EasyRussell Hobbs Digital Microwave 20L 800W in Cream with 5 Power Levels, Pull Handle Door & Button Control, Clock & Timer, Automatic Defrost, Easy£127.54FREE Delivery
TOSHIBA 20 Liter 800W Digital Solo Small Microwave With 11 Power Levels, One-touch Express Cook with 6 Preset Recipe, Defrost, Digital Display,TOSHIBA 20 Liter 800W Digital Solo Small Microwave With 11 Power Levels, One-touch Express Cook with 6 Preset Recipe, Defrost, Digital Display,£98.80FREE Delivery
Russell Hobbs RHM2044C Retro 20 Litre Cream Digital Microwave, 800W, Mirror Finish, 8 Auto Cook Settings, 5 Power LevelsRussell Hobbs RHM2044C Retro 20 Litre Cream Digital Microwave, 800W, Mirror Finish, 8 Auto Cook Settings, 5 Power Levels£124.47FREE Delivery
Add to Basket
Description & Details

Summary

  • Wide frequency range, stable gain and high amplifier output power +22dBm at1dBP.
  • Especially suitable for various RF output stage circuits, convenient to use and with good performance.
  • The power supply voltage of the module is DC 3.3-5.5V, and the system impedance is 50Ω.
  • High safety factor, with strict quality control and quality assurance, can be used with peace of mind.
  • Great workmanship, perfect replacement for the old one and has a long service life.

RF Power Amplifier Module 1-1000MHz 20dB Gain 50Ω Low Noise Description

RF Power Amplifier Module Low Noise Electronic Component Board HMC580 Vpp=5V 50Ω
Item Type: RF Power Amplifier ModuleAmplifier Parameter Index:
Working Frequency: 1-1000MHz
Amplification Gain: 20dB (typical value)
Noise Figure: 2.8dB (typical value)
Amplifier Gain: As shown in the figure below
F= 5MHz, gain=24dB
F= 30Mhz, gain=23dB
F= 100MHz, gain=23dB
F= 150Mhz, gain=23dB
F= 420MHz, gain=21dB
F= 750MHz, gain=19dB
F=1000MHz, gain=17dB
Large Output Power: +22dBm (170mW) at 1dB compression point
Working Current: 88mA (5V)
Power Supply Voltage: 3.3-5.5V (DC)
System Impedance: 50Ω

Details

OPC PMTPZGC
Codes 4321359381913 (EAN)

Product Images

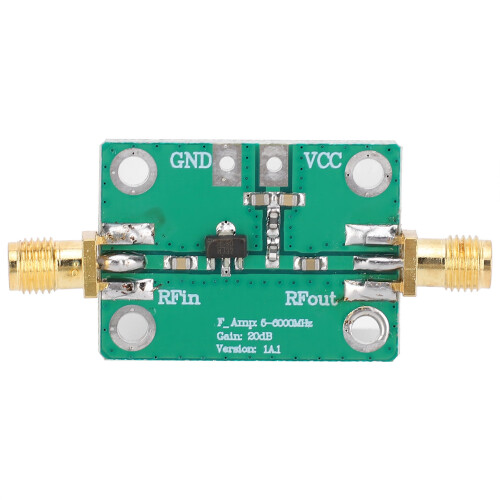

RF Power Amplifier Module 1-1000MHz 20dB Gain 50Ω Low Noise 1

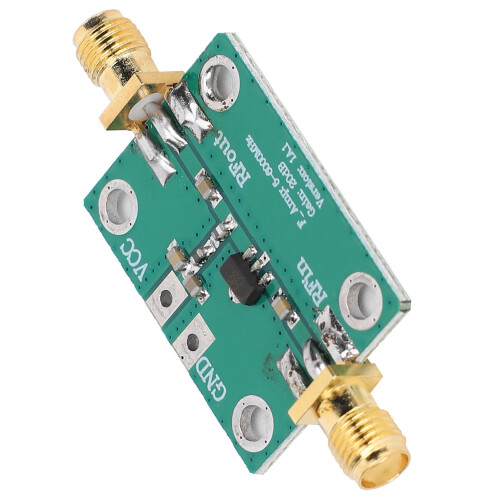

RF Power Amplifier Module 1-1000MHz 20dB Gain 50Ω Low Noise 2
