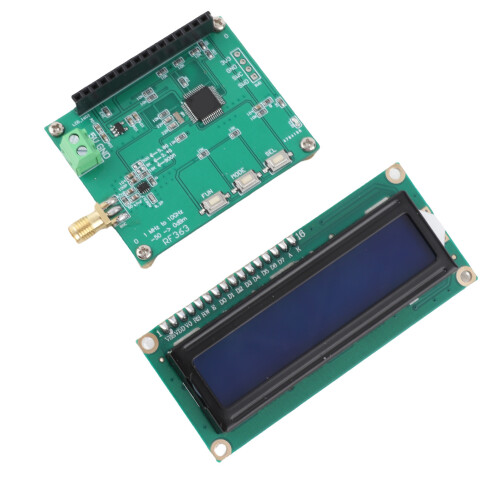

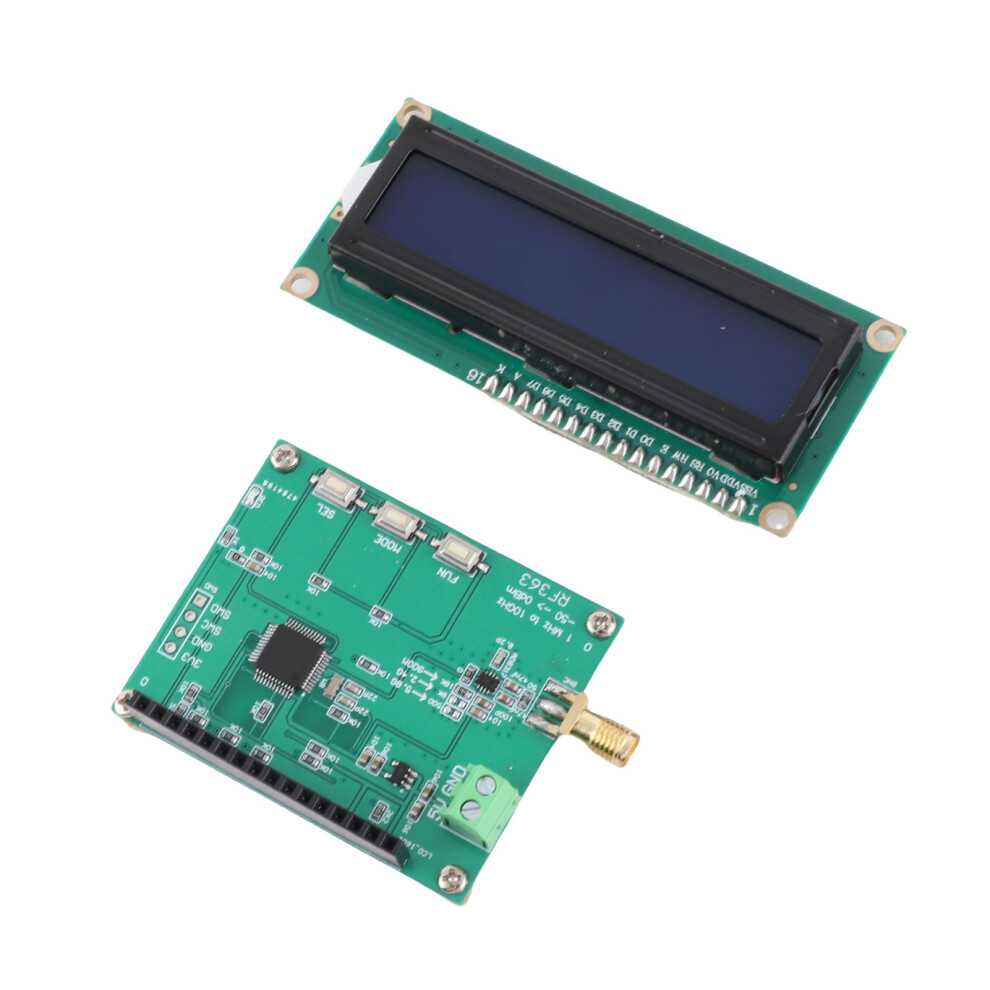

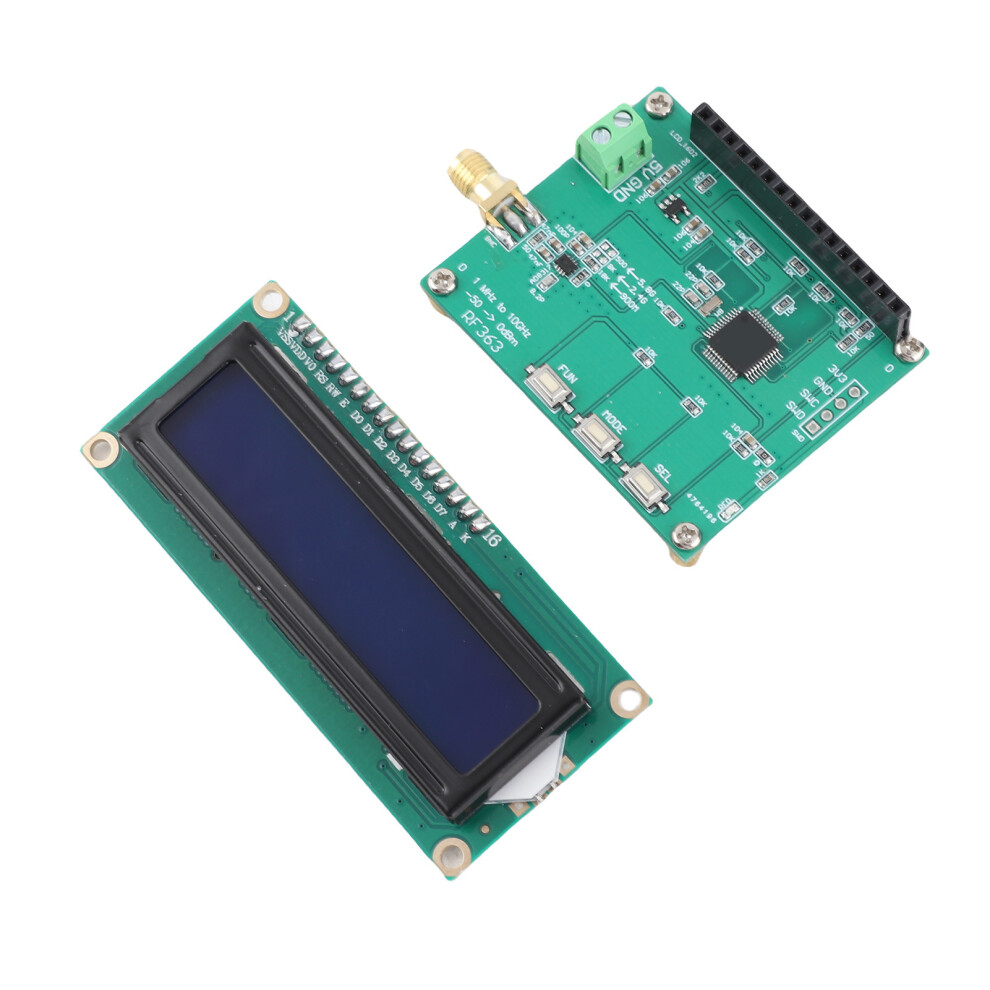

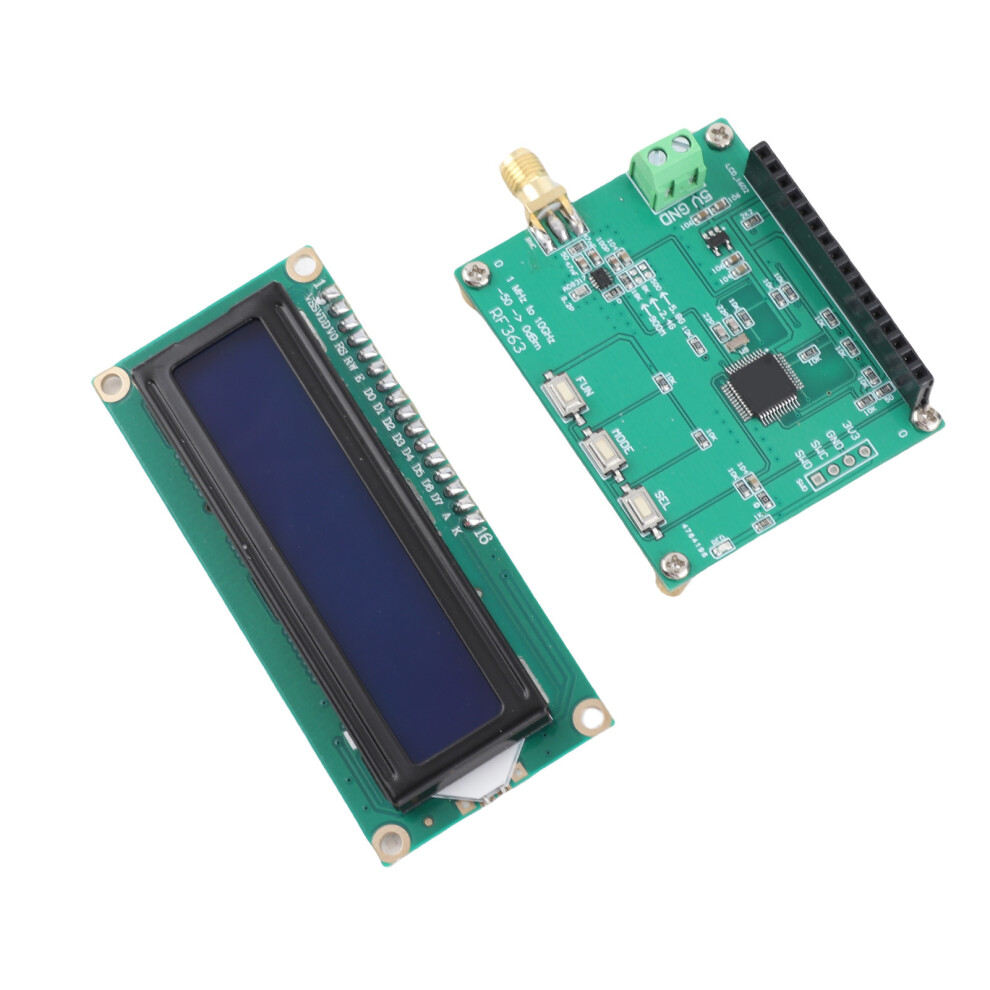

RF Power Meter 1MHz-10GHz Digital Test with 0.1 dBm Resolution

RF Power Meter 1MHz-10GHz Digital Test with 0.1 dBm Resolution Description

RF Power Meter 1MHz10GHz Power Test Meter RF Power Attenuation Value Measurement
Item Type: RF Power Meter
Material: PCB
Measuring Power Range: -50+0 dBm (External RF attenuator can be extended to 100dBm)
Measurement Power Resolution: 0.1 dBm
Measuring Frequency Range: 110000MHz
Measuring Power: 1nW1mW
Working Voltage: 712 VDC
Working Current: <50 mAh
Working Temperature: -4065
Storage Temperature: -4065
Interface Display and Operating Instructions:
(1) Unit Description: dBm;
(2) Key Description:
FUN: Function key; MODE: change interface; SEL: self-add key or self-decrease key;
4.1, display measurement data
Interface Display Font:
First Line "RF-POW -51.2 dBm"
Second Line "610uV 7nW"
Note: Display signal dBm value, input voltage value, and input power respectively.
4.2. Set RF power attenuation value
Interface display font:
First Line "RF Attenuator"
Second Line "SUB 000dB"
Key Operating:
FUN: Function key; (select direction of addition and subtraction) Display SUB for subtraction, display ADD for addition. (Long press FUN key to save set dB value)
SEL: Self-increasing key or self-decreasing key;
Note: Connect different RF power attenuators and set corresponding attenuation coefficient to read out the correct power parameters.
5. Wiring
P1 wiring definition:No. Sign  Meaning 1 VDD Module's positive power supply (7V~12V) 2 GND Negative pole of power supply of module
P2 wiring definition:No. Sign Meaning  1 FX Not used 2 RFRadio frequency signal input 3 GND Power negative
