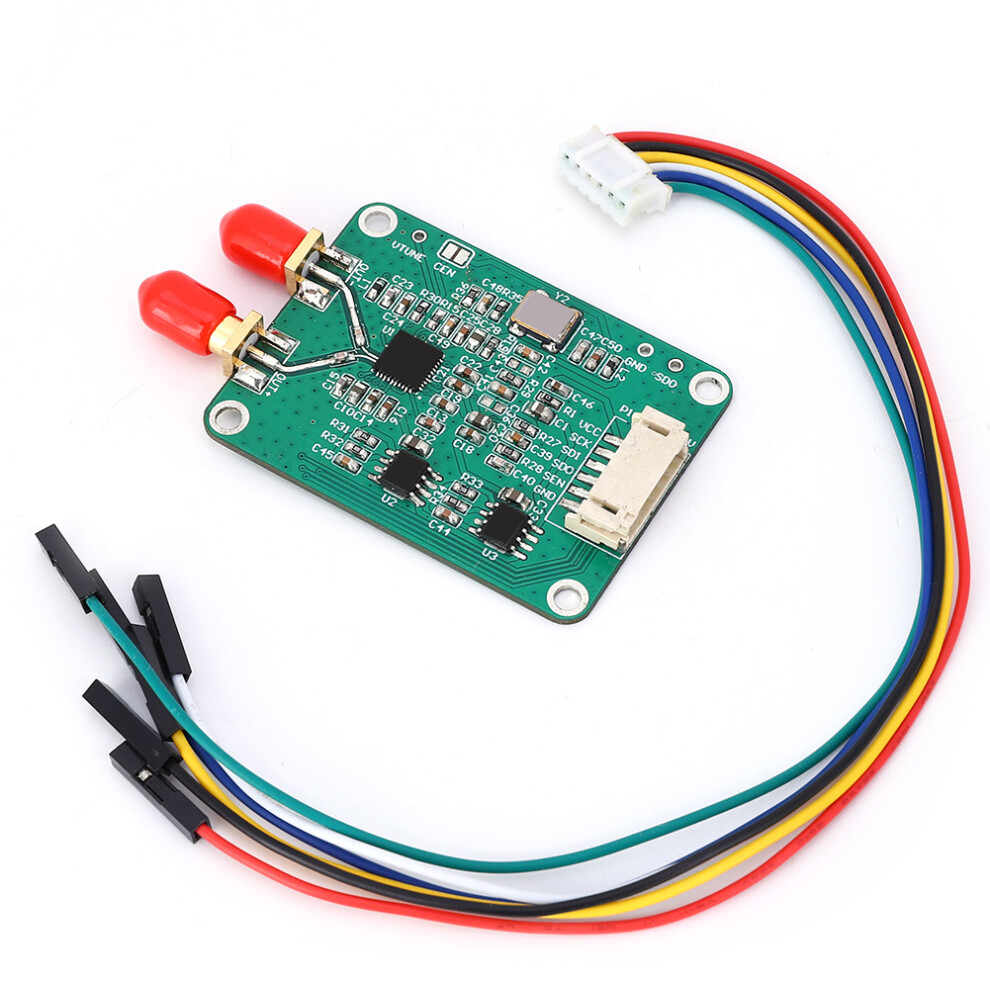

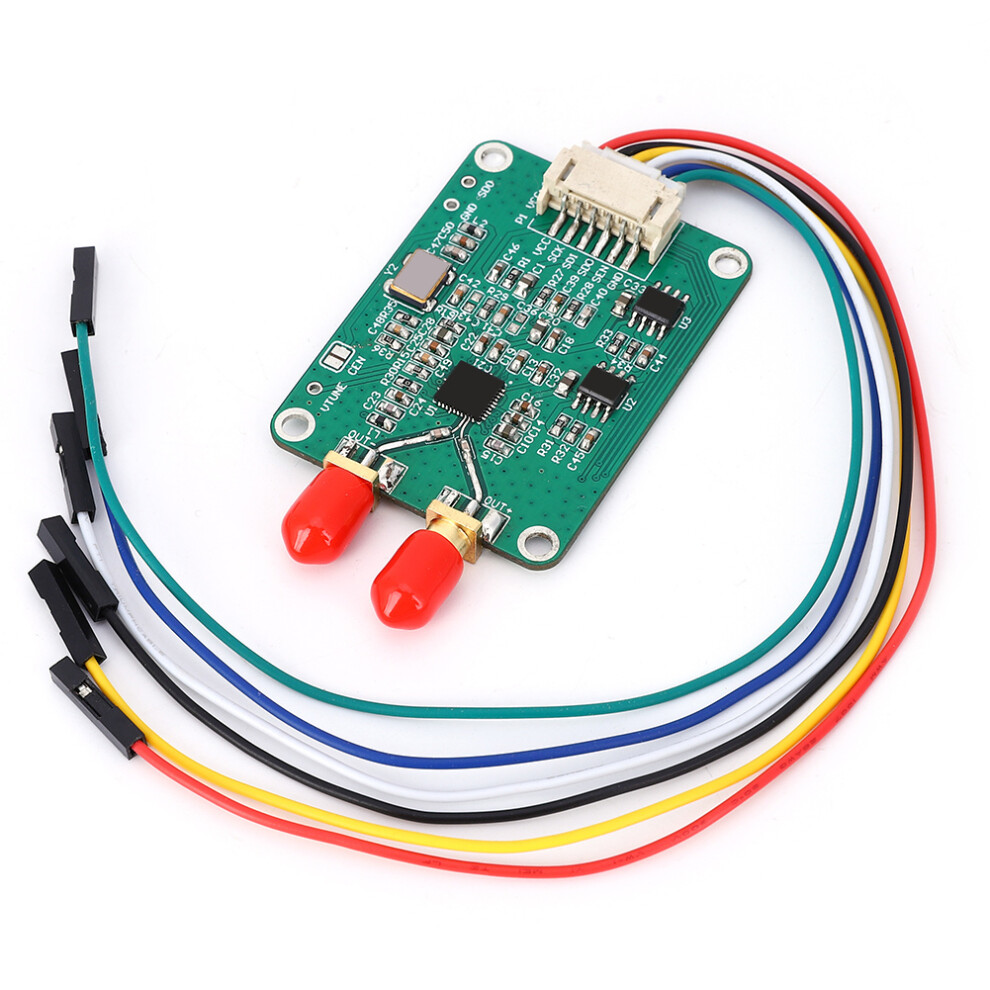

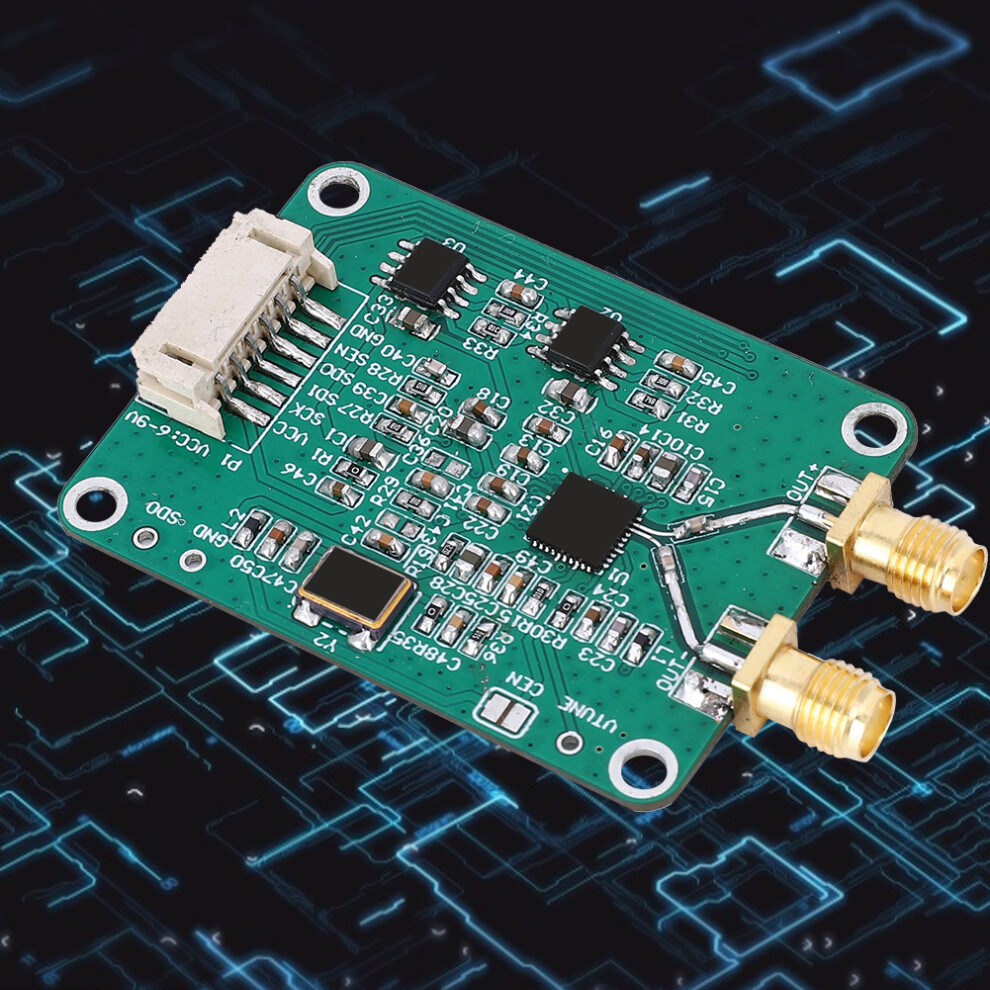

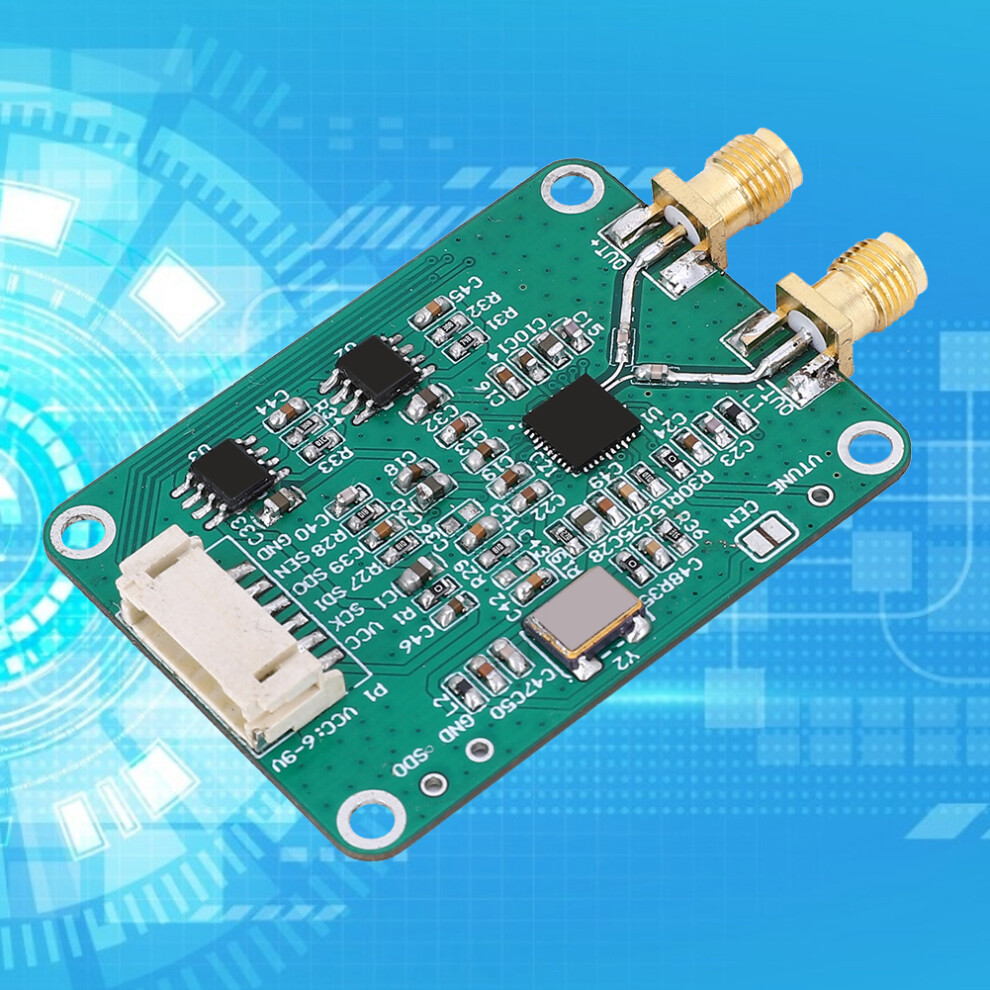

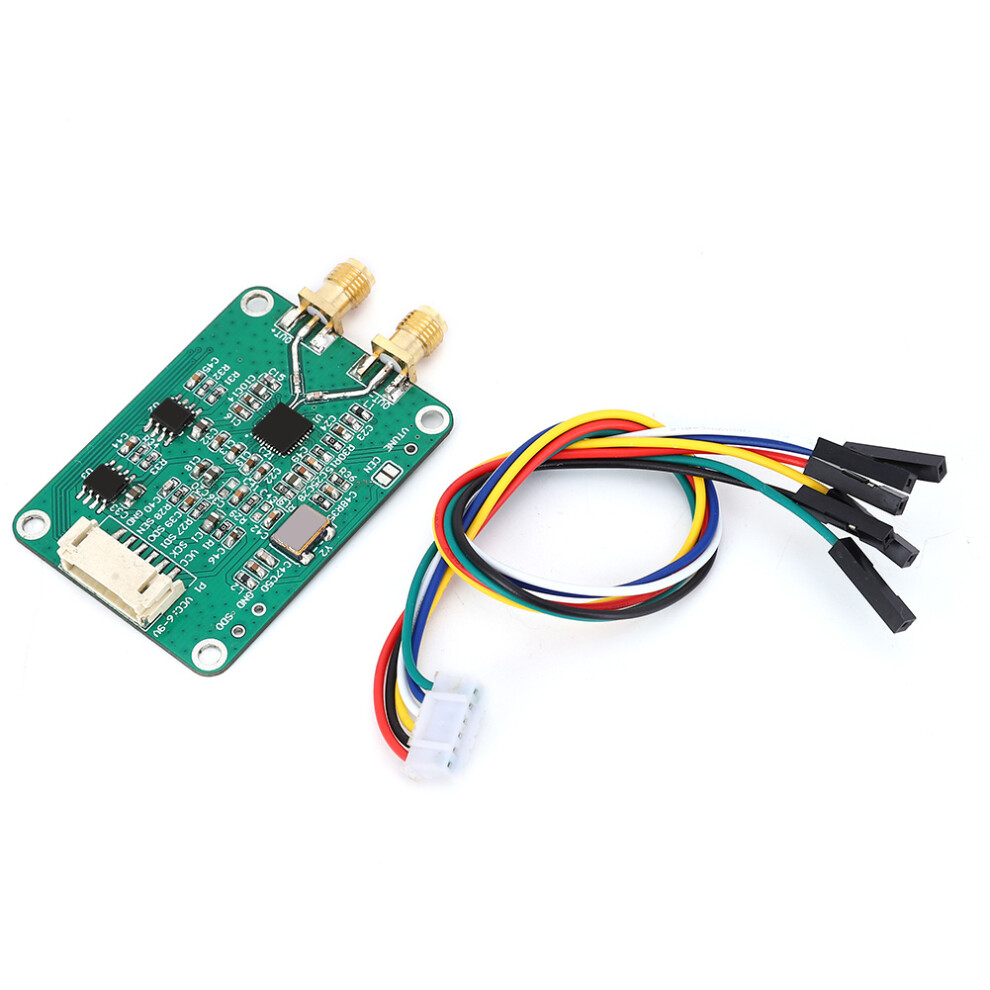

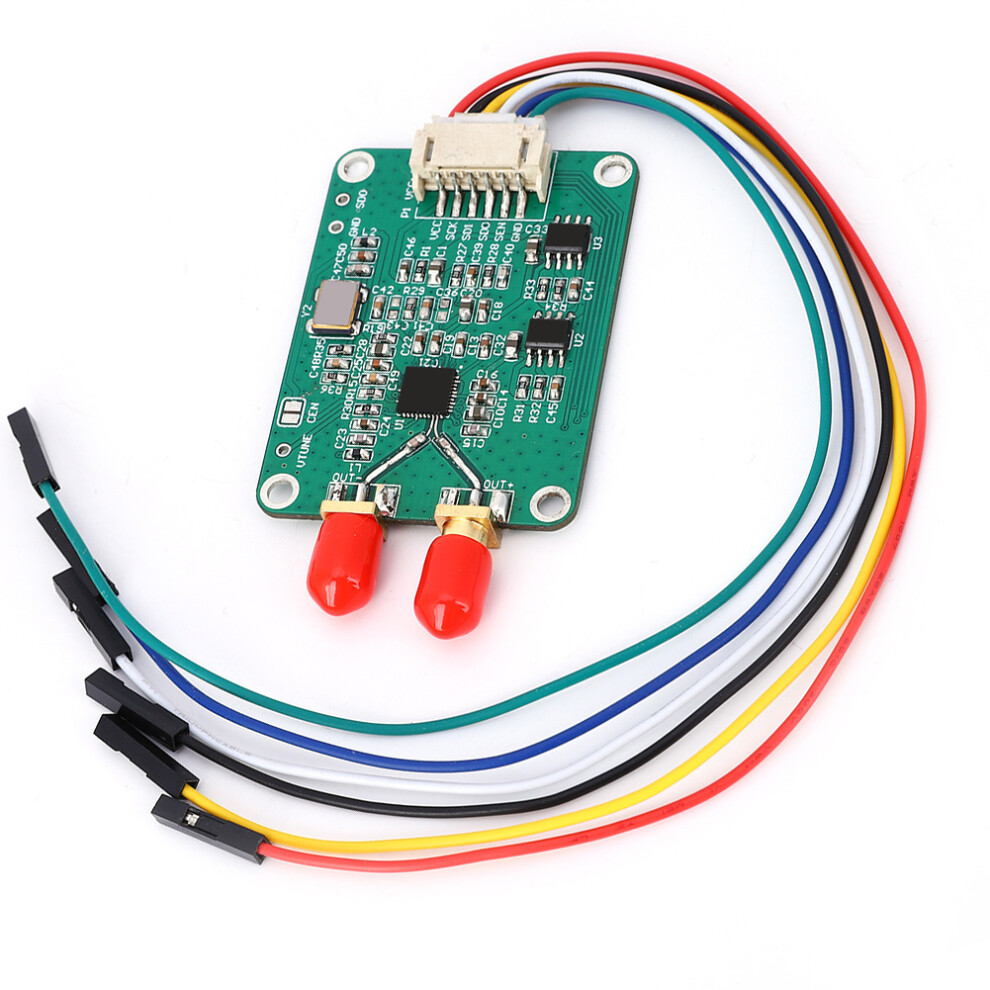

RF Signal Source Module 25MHz-3GHz Low Noise, 6x6mm
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 128,000 Trustpilot reviews and an 'Excellent' rating
£27.57
£38.29
28% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Mon 20th - Wed 22nd Jul
Sold by: EclipseBazaar
Returns: 30 days
180-day payment protection
Most Popular in Radio Oscillators
Description & Details
Summary

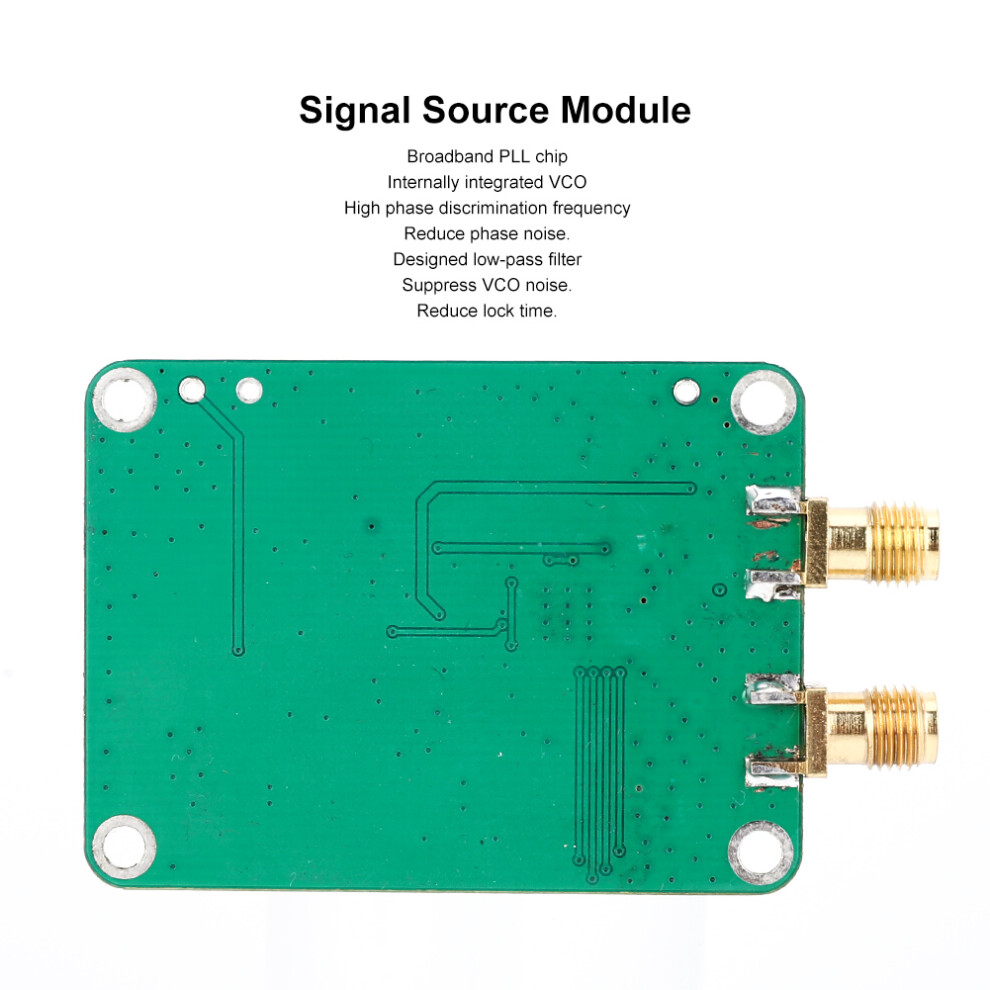

- A broadband phase-locked loop chip is with integrated VCO, which keeps higher performance.
- High phase discrimination frequency can reduce phase noise on the one hand, and low-pass filter can be designed on the other hand to suppress VCO noise and shorten lock time.
- The chip can work in integer frequency division mode and fractional frequency division mode, and the accurant frequency mode is introduced in the decimal frequency division mode, so that certain frequencies that meet specific conditions can be obtained accurately.
- Such phase-locked loop chip has industry-leading low phase noise and low spurs, and accurant frequency mode allows very small steps of the output frequency to achieve a frequency error of 0 Hz.
- With the best noise performance and spurs in the industry, signal module appear when you need good signal quality and signal-to-noise ratio.
RF Signal Source Module 25MHz-3GHz Low Noise, 6x6mm Description
Signal Source Module RF Low Noise Board Electrical Parts Programmable Frequency 25M-3G
Item Type: Signal source module
Phase Frequency of Internal Phase Detector: 125MHz
Output Frequency Range: 25MHz~3GHz
Quality Factor of HMC830 in Integer and Decimal States: -230/-227
Bilateral Band Root Mean Square Jitter: Less than 180fs
HMC830 Already in the Broadband Range: Matched to 50 ohms
Output Power Dynamic Range: 9dB (3dBstep)
Wake Up Time: 250 microseconds
Typical Output Power of Chip: 6dBm
Step Adjustment: 3dB step adjustment
Typical Phase Noise: -110dBc/Hz

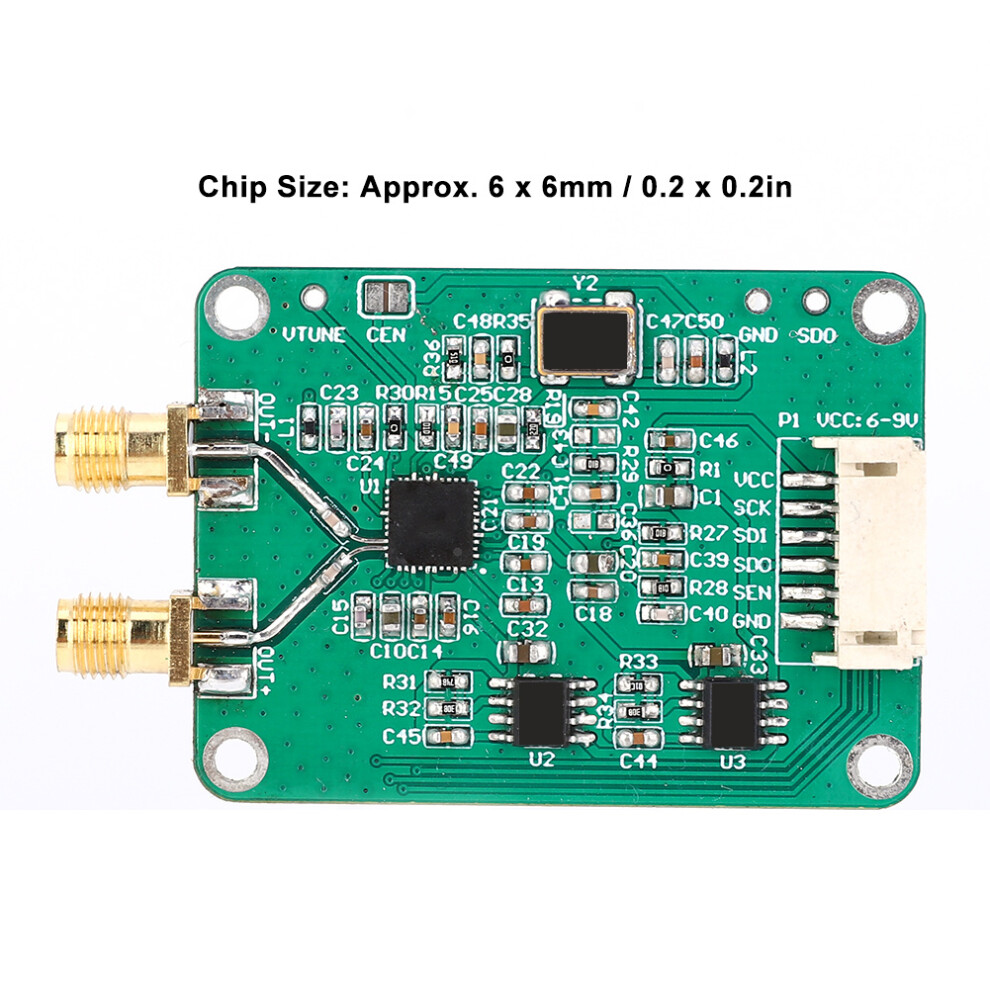

Chip Size: Approx. 6 x 6mm / 0.2 x 0.2in
Maintain Good Performance Temperature Range: -40~+85
Details
| OPC | PSWVS5P |
|---|---|
| Codes | 4361392439523 (EAN) |
