RF Switch Switch Microwave Electronic Switch SPDT One Off Two Way For 0.1-6GHz

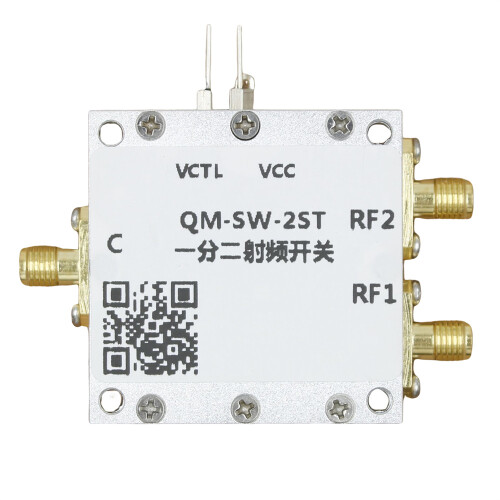

RF Switch Switch Microwave Electronic Switch SPDT One Off Two Way For 0.1-6GHz Description

Features:

Microwave switch, also known as RF switch, achieves the role of controlling the microwave signal channel conversion,

This module adopts SPDT single-pole, double-throw mode to achieve the switching of the two signals, because of its low insertion loss, wide bandwidth,

High isolation, widely used in communication system equipment, the module CNC shell package with good electromagnetic shielding performance;

Specification:

Model: QM-SW-2ST.

Working Frequency: 0.1-6G.

Operating mode: single-pole double-throw;

Typical insertion loss: 0.8dB (typical);

Port isolation: 60dB (typical);.

Impedance: 50??;

Power supply: +3.3 to +5V;

Input and output interface: SMA (external screw and internal hole);

Module size: 40*40*14mm (without connector);

With mounting positioning holes;

Weight: 80g;.

Control mode:

VCTL:H RF output to RF1.

VCTL:L RF output to RF2.

(external voltage control, H:3.3-5V,L:0V or ground)

Package Includes:

1*RF Switch
