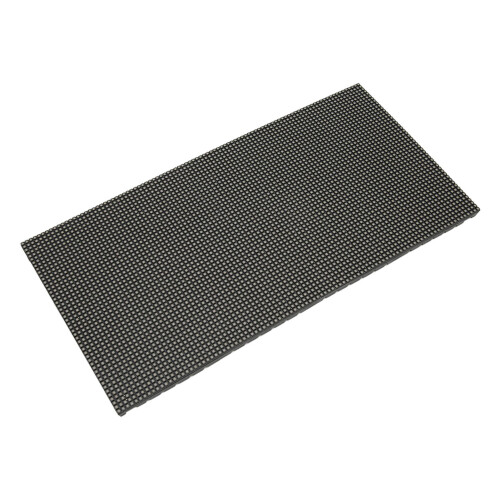

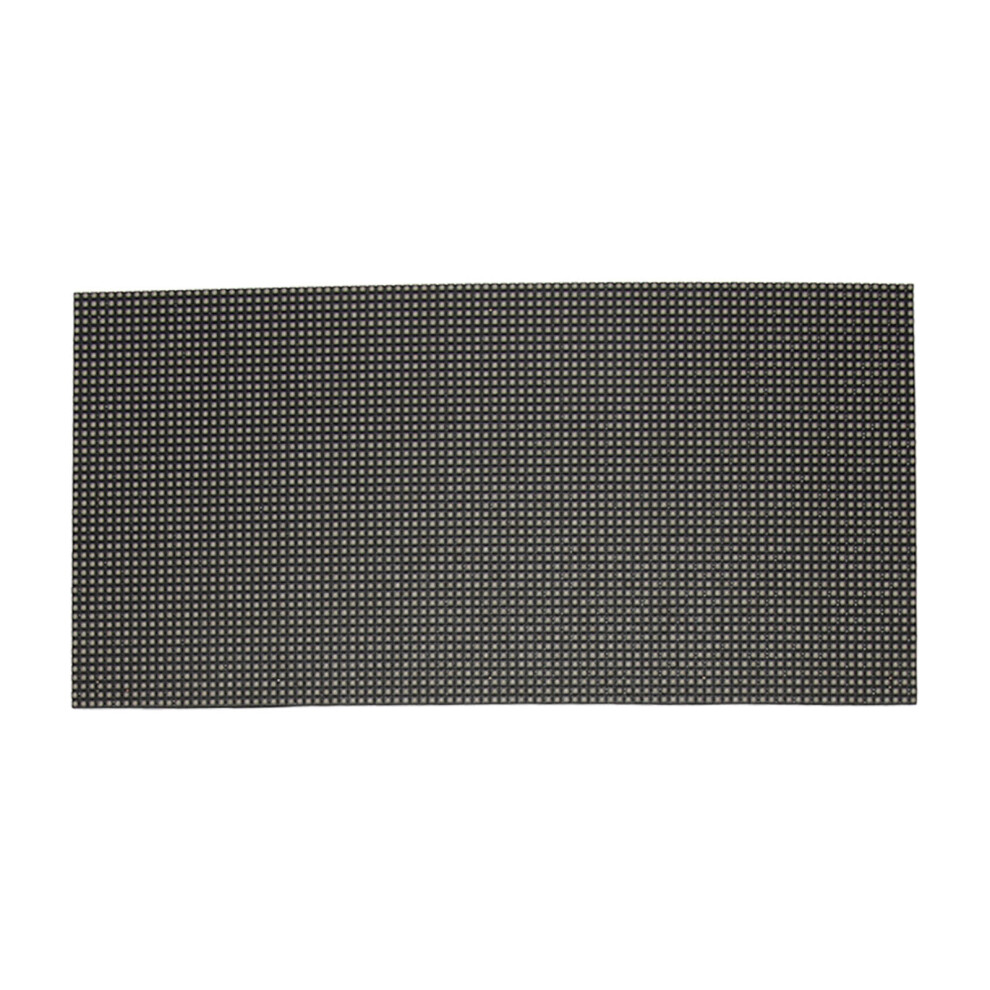

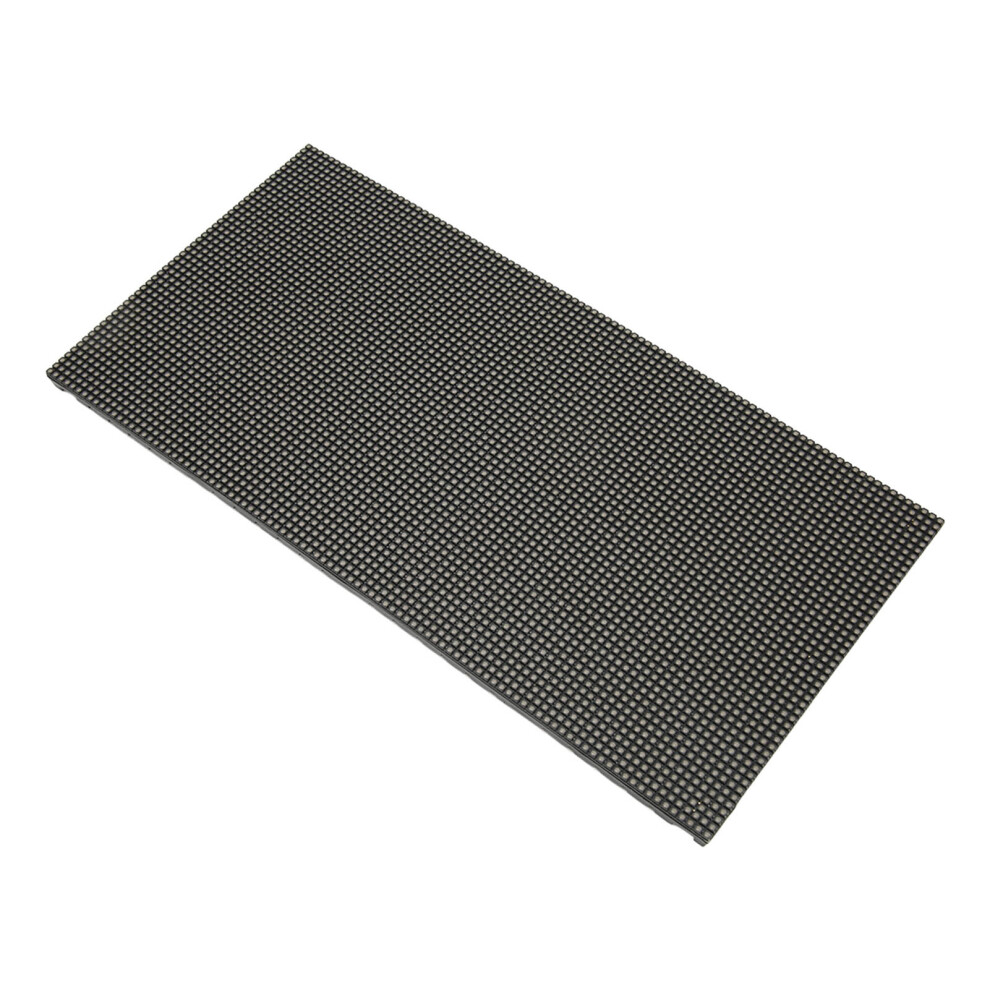

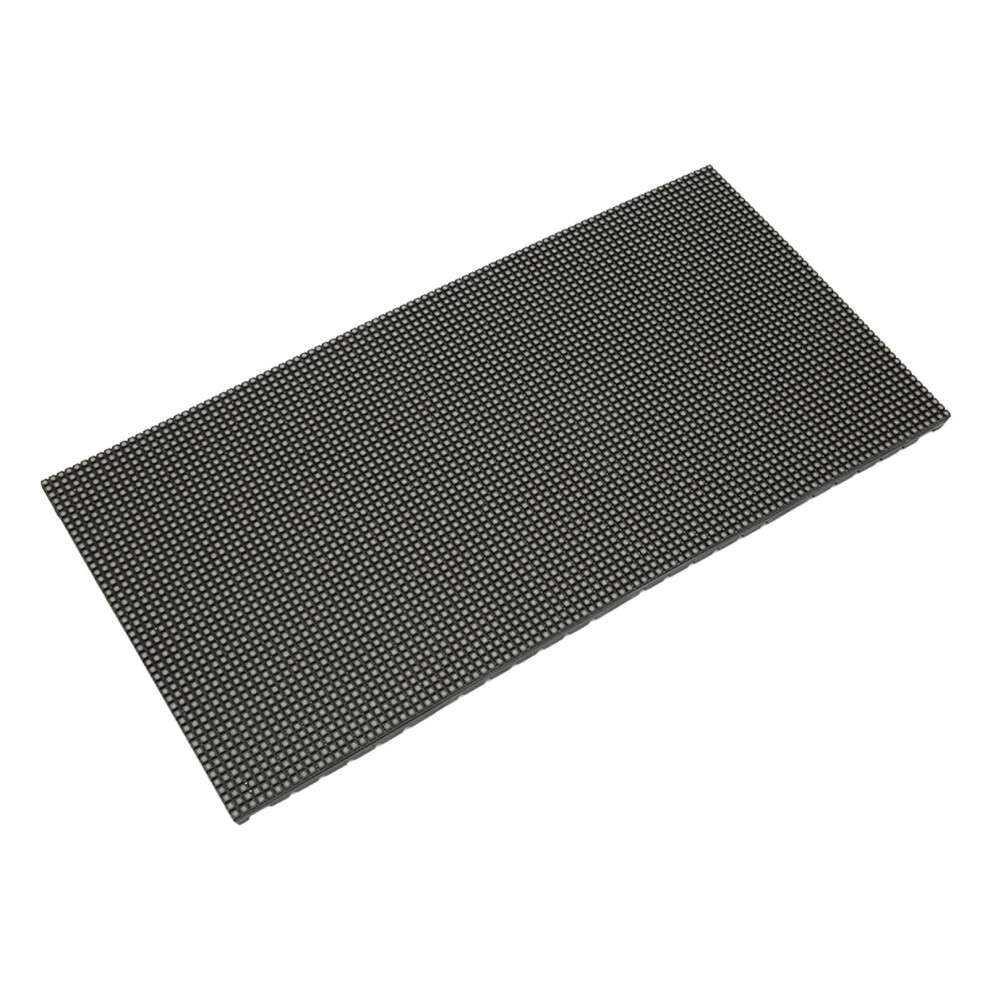

RGB LED Matrix 96x48 5V 4A Adjustable Brightness for Raspberry Pi Pico

RGB LED Matrix 96x48 5V 4A Adjustable Brightness for Raspberry Pi Pico Description

1、96x48 Display Resolution: LED matrix panel display resolution is 96x48, dot pitch is 2.5mm, can display text, color graphics or animation. 2、Brightness Adjustable: LED matrix display display uses 4608 RGB LEDs, full color display, brightness adjustable. 3、Two HUB75 Interface: LED matrix display display on board two HUB75 interface, one input, used to access the controller, an output, can cascade multiple screens. 4、Flexible Material: LED matrix display is made of flexible material, which can be bent appropriately and applied to some cylinders, spheres and other curved surfaces. 5、Size: ABS LED matrix display size of 240x120mm, moderate size, suitable for DIY some desktop or wall display applications.
Item Type: LED Matrix Panel 96x48
Material: ABS
Product Size: Approx. 240 x 120mm / 9.5 x 4.7in
Resolution: 96x48=4608 DOTS
PX Pitch: Approx. 2.5mm / 0.1in
PX Composition:1R1G1B
Viewable Angle140
Control Mode: Synchronous Control
Drive Mode: 1/24 Sweep
Interface Type: HUB75
Power Supply Voltage: 5V/4A (H4 Socket Input)
Power: 12W
1 x
LED Matrix Panel 96x48
1 x Adaptor
1 x Cable
1 x 4pin Cable
1 x 16pin Cable
