RGB LED Matrix Panel 64x32 2.5mm Pitch 6.3x3.1in Dimmable

RGB LED Matrix Panel 64x32 2.5mm Pitch 6.3x3.1in Dimmable Description

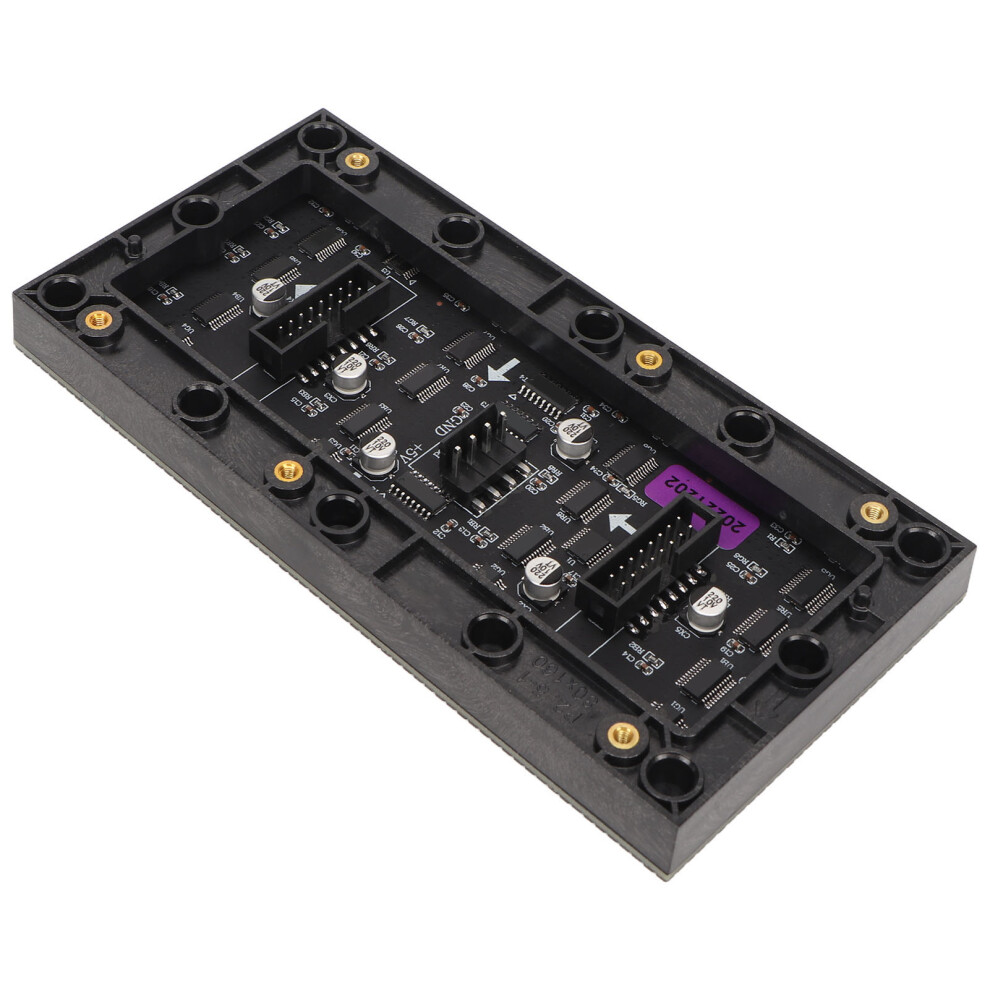

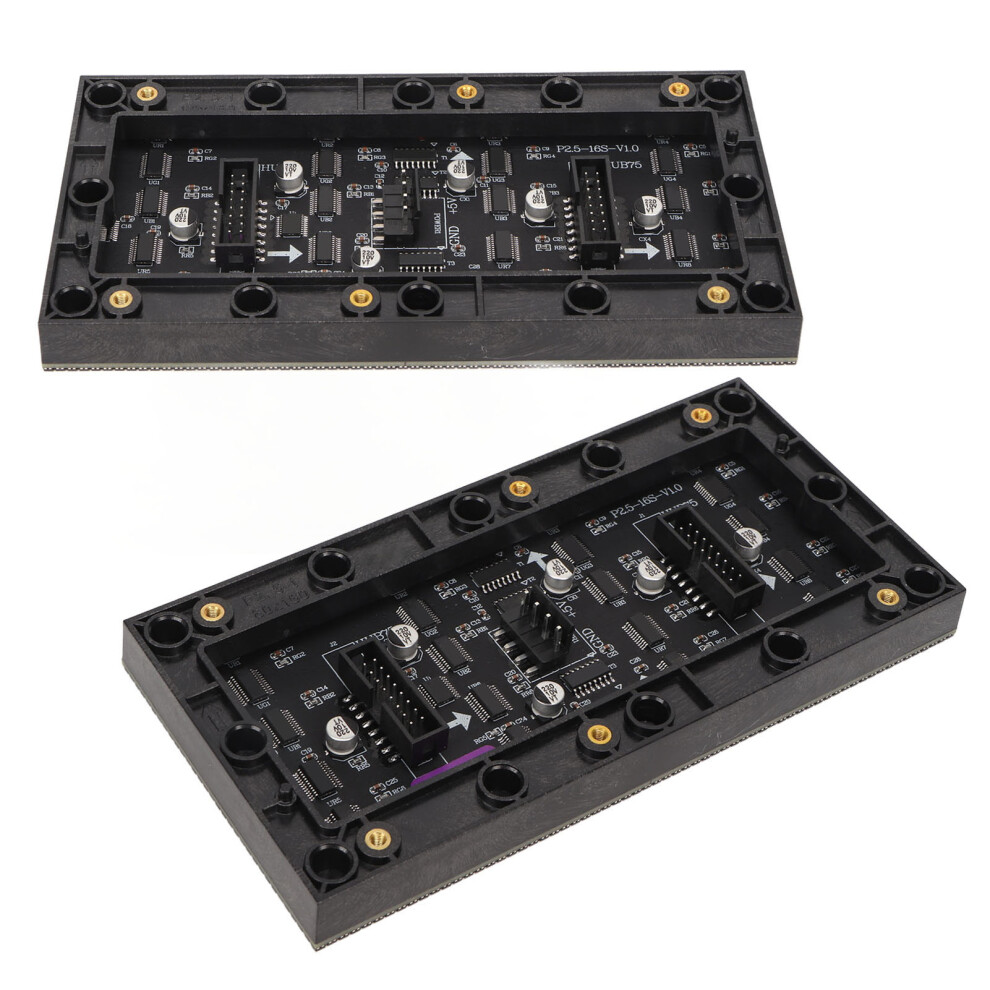

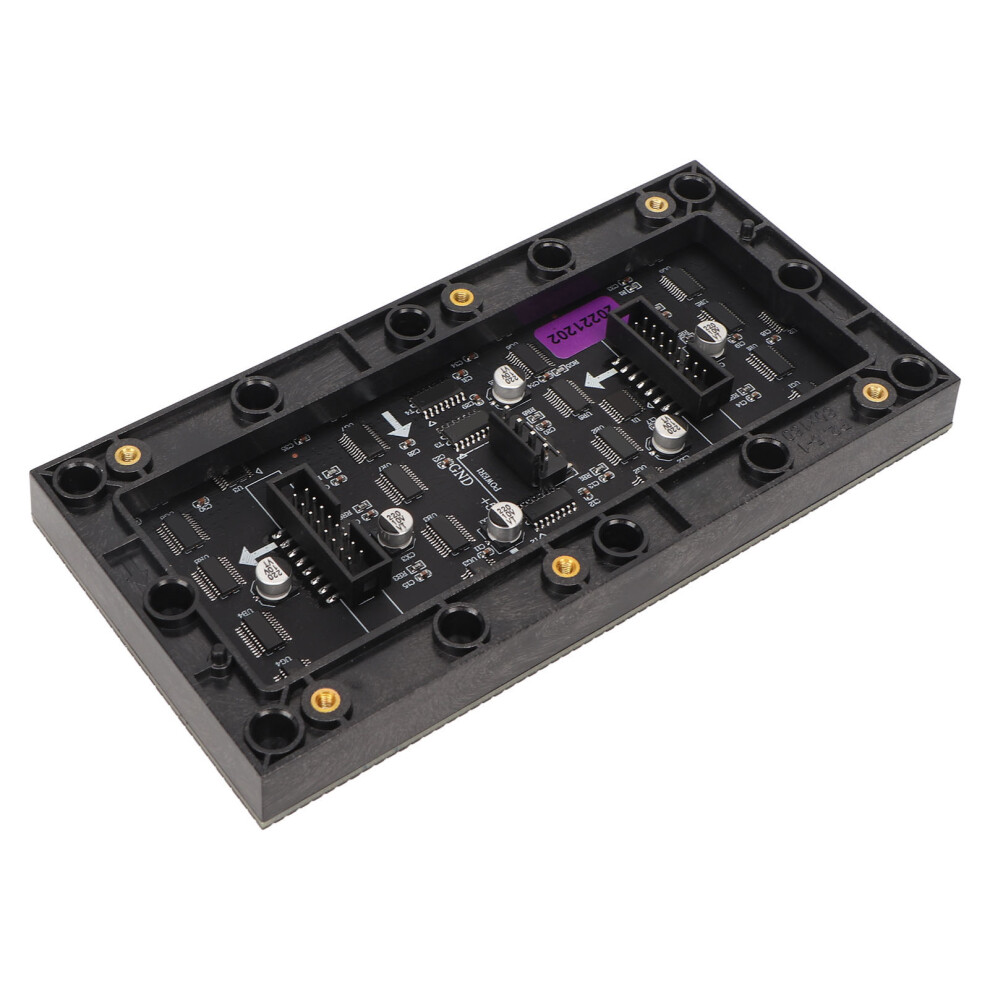

1、Full Color Display: This RGB LED matrix panel adopts 2048 pieces of RGB LED and full color display, the brightness is adjustable. 2、2.5mm Pitch: This digital LED module adopts the resolution of 64x32 and 2.5mm pitch, which can display text, colorful image and animation. 3、Proper Size: This RGB LED board is approximately 6.4 inches long and 3.1 inches wide, suitable for DIY desktop display or wall mount display. 4、HUB75 Header: This RGB full color panel has onboard two HUB75 header, one for controller data input, one for output, chain supported. 5、Wide Application: This RGB LED panel is suitable for RasPi, for Pico, for ESP32, etc. Ideal for DIY desktop or wall mount display, signboard, environment monitor,etc. Item Type: RGB LED Matrix Panel Material: ABS Resolution :64x32=2048 Dots PX Pitch: 2.5mm PX Form: 1R1G1B Visual Angle 140 Degrees Control Mode: Synchronization Drive Mode: 1/16 Scan Interface Type: HUB75 Power Supply Voltage: 5V/2.5A(H4 Header Input) Power 12W Product Size: Approx. 160 x 80mm / 6.3 x 3.1in ( Manual Measurement, Slight Error May Exist ) 1 x RGB LED Matrix Panel\ 1 x Adapter 1 x Line 4 x Screw 1 x 4Pin Cable 1 x 16Pin Cable
