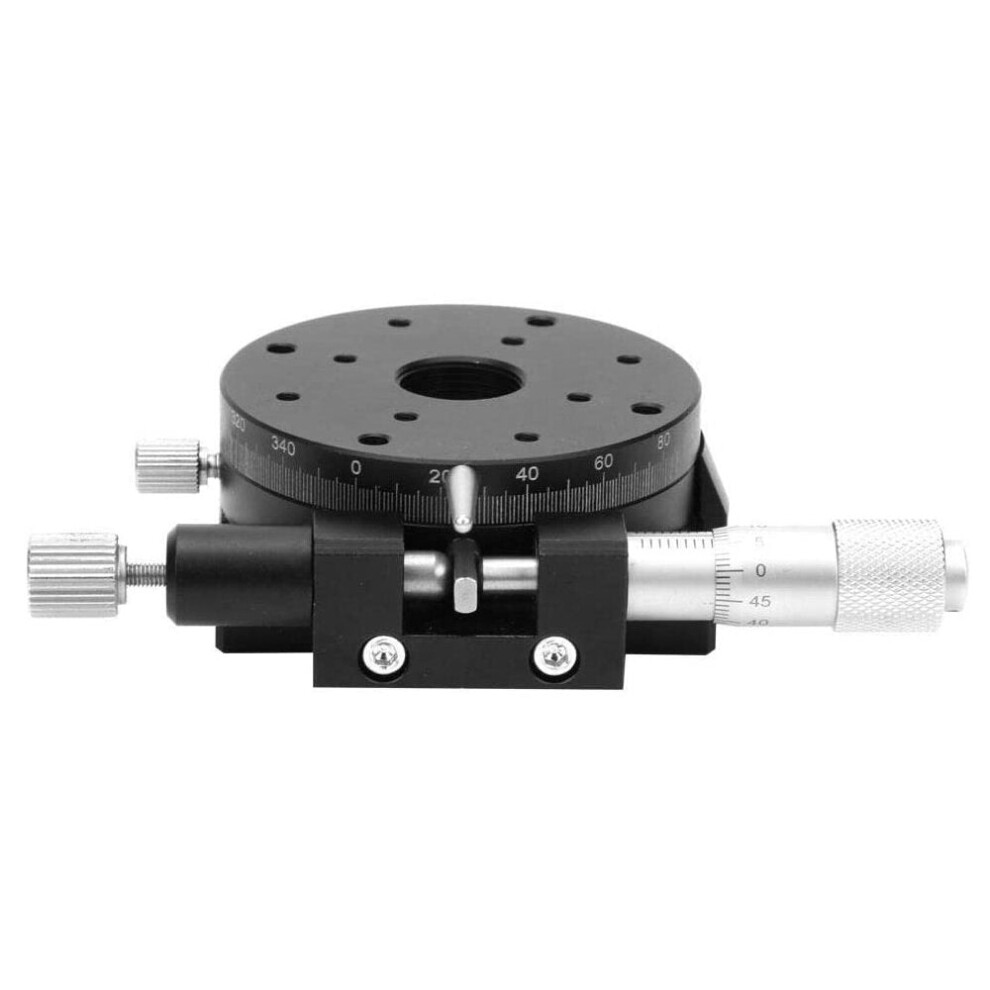

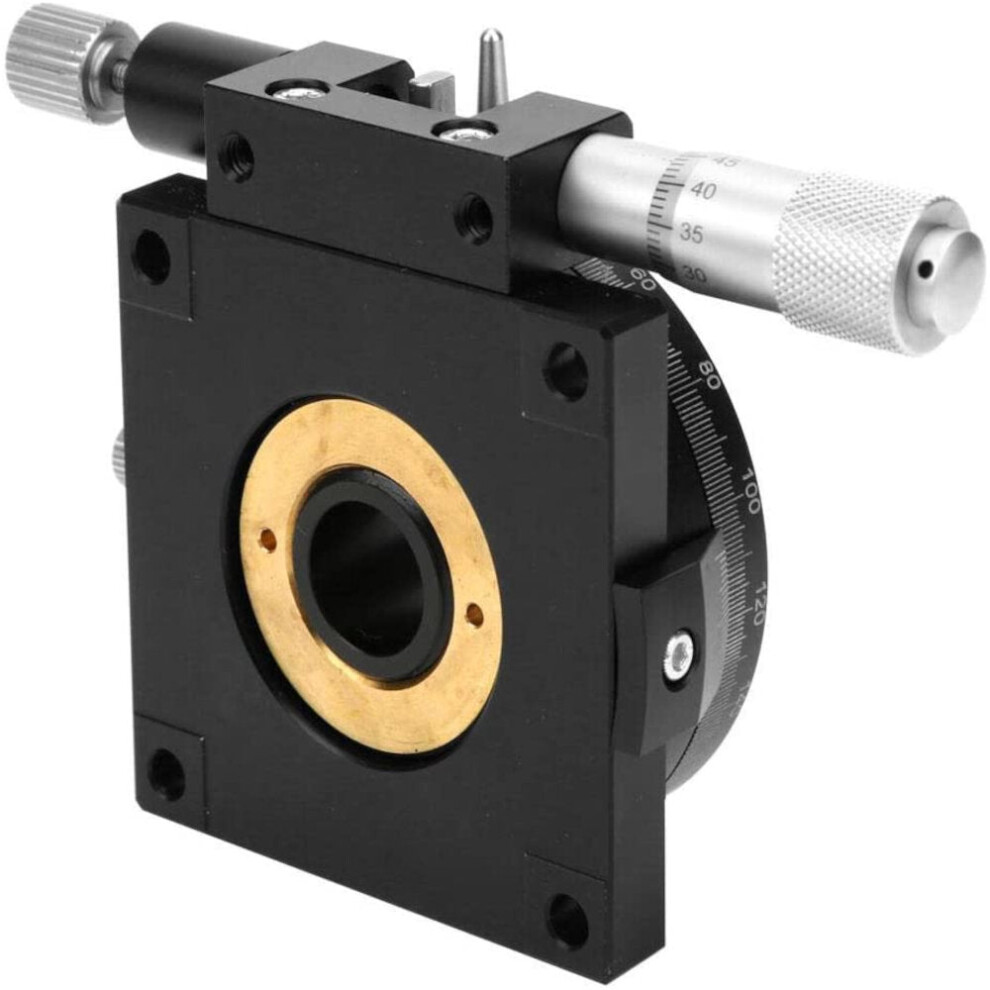

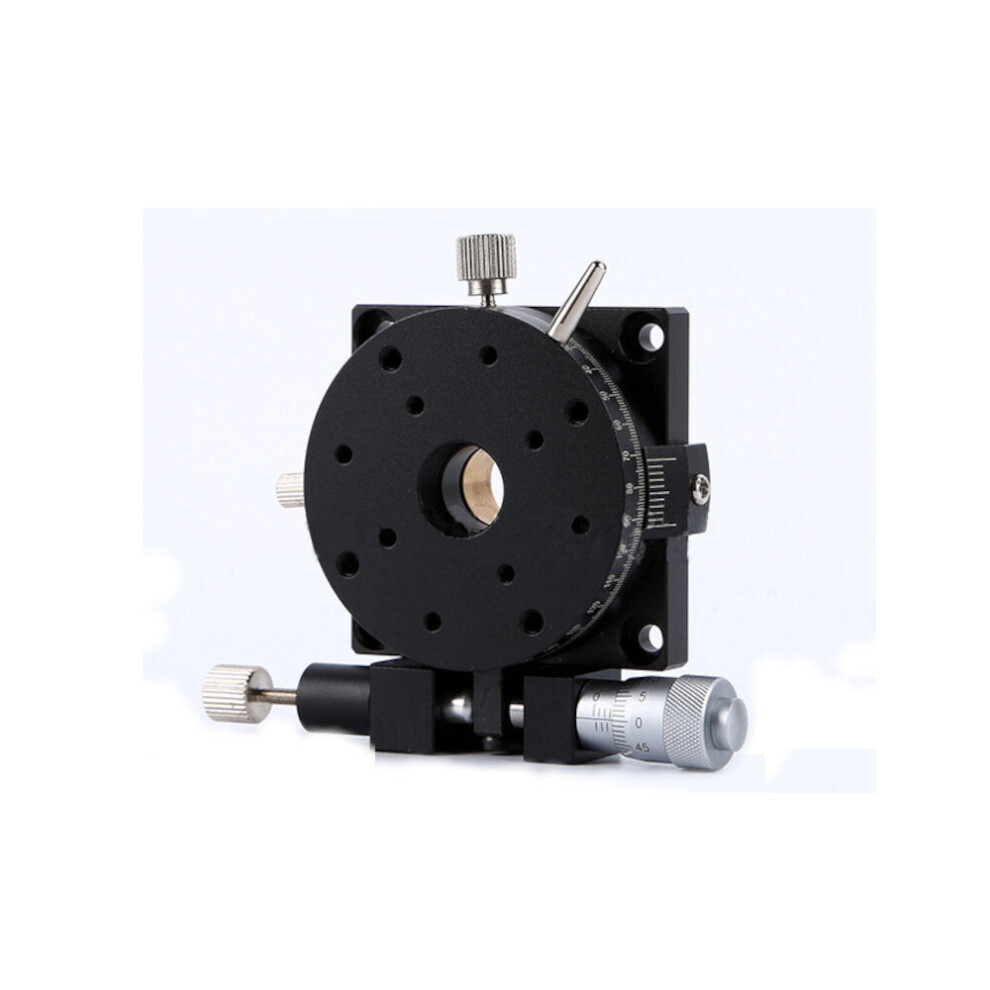

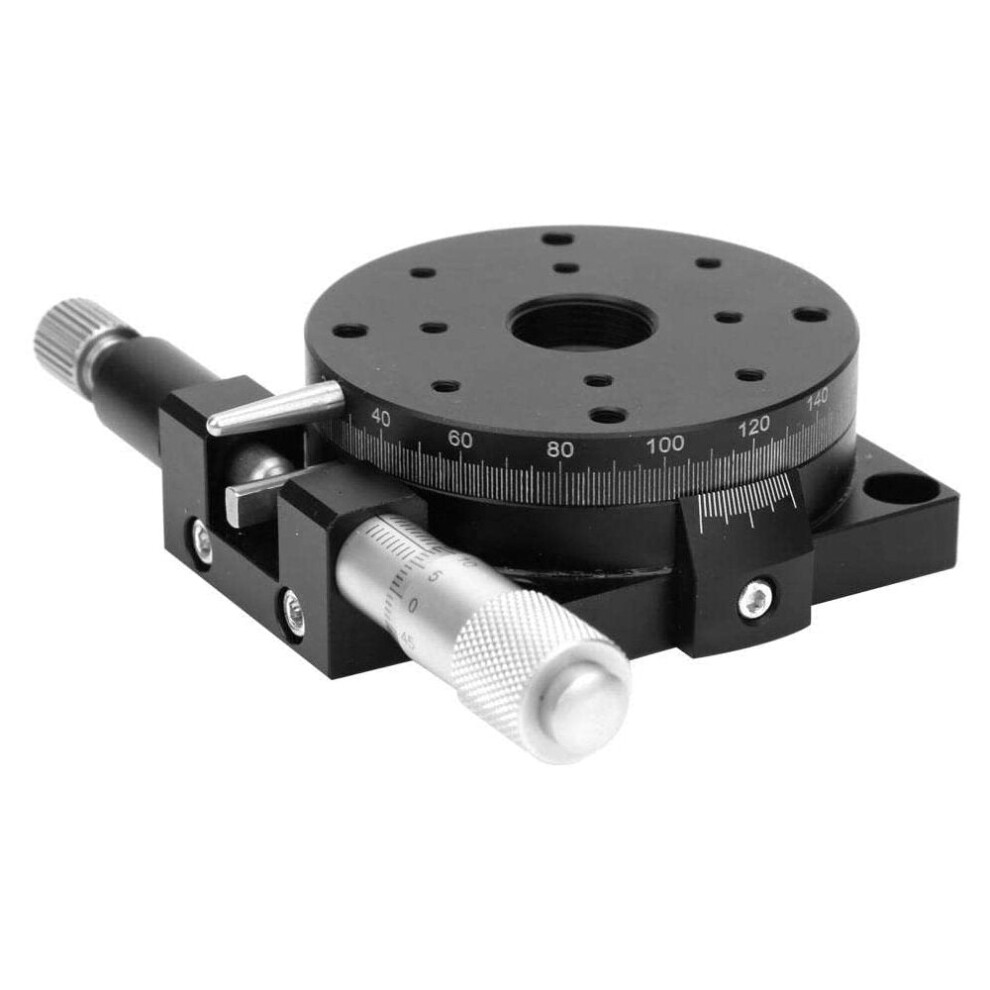

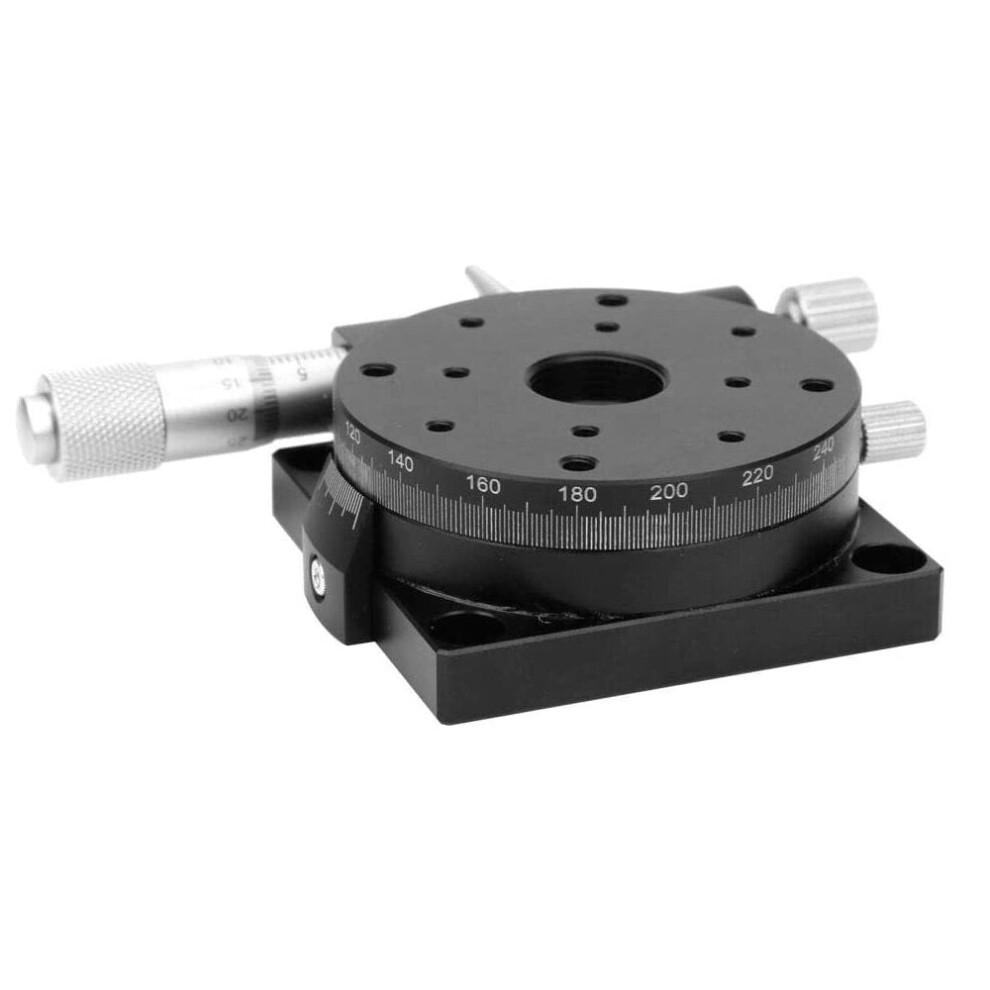

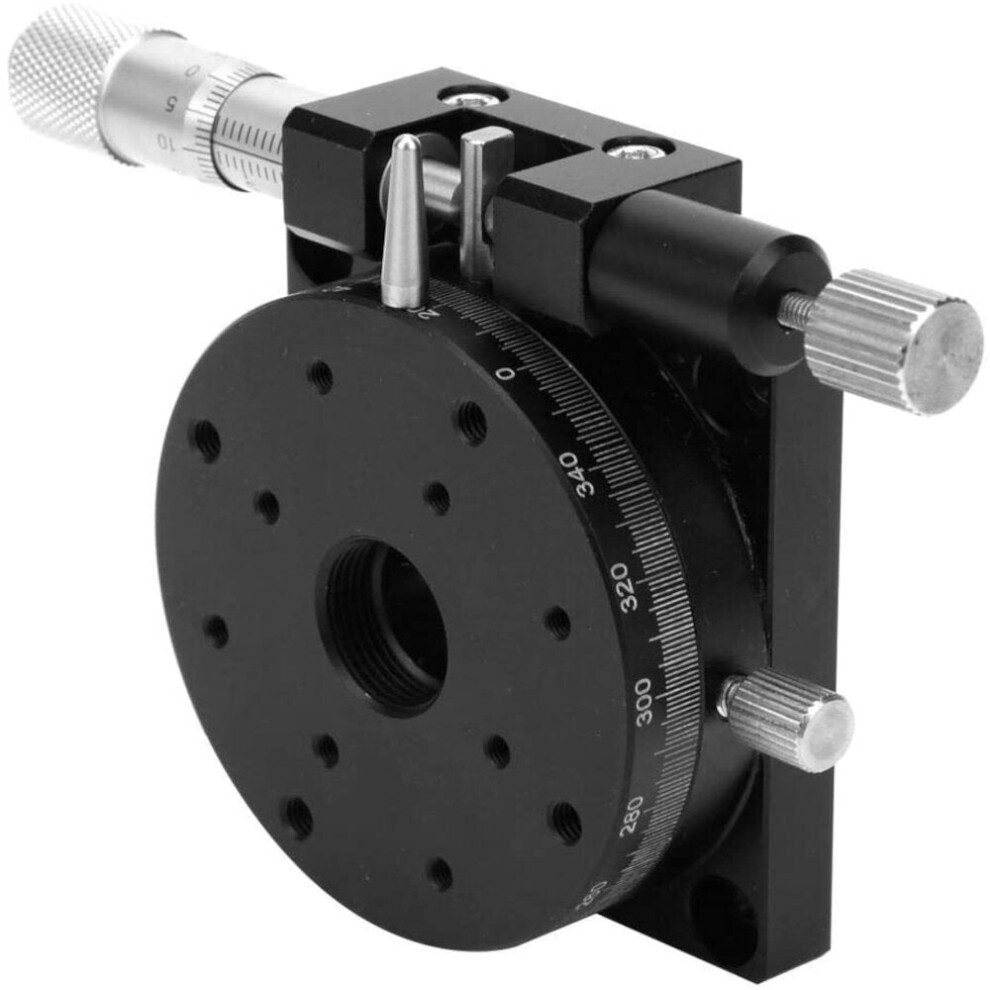

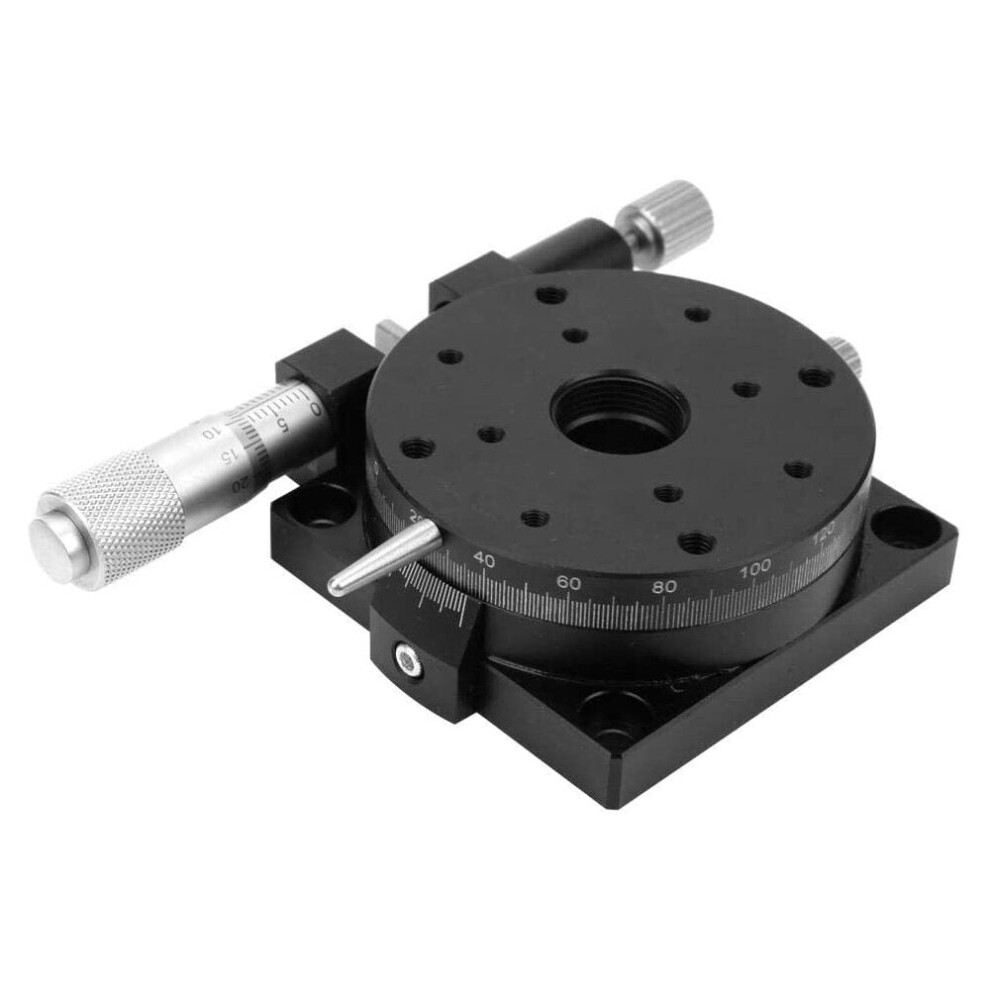

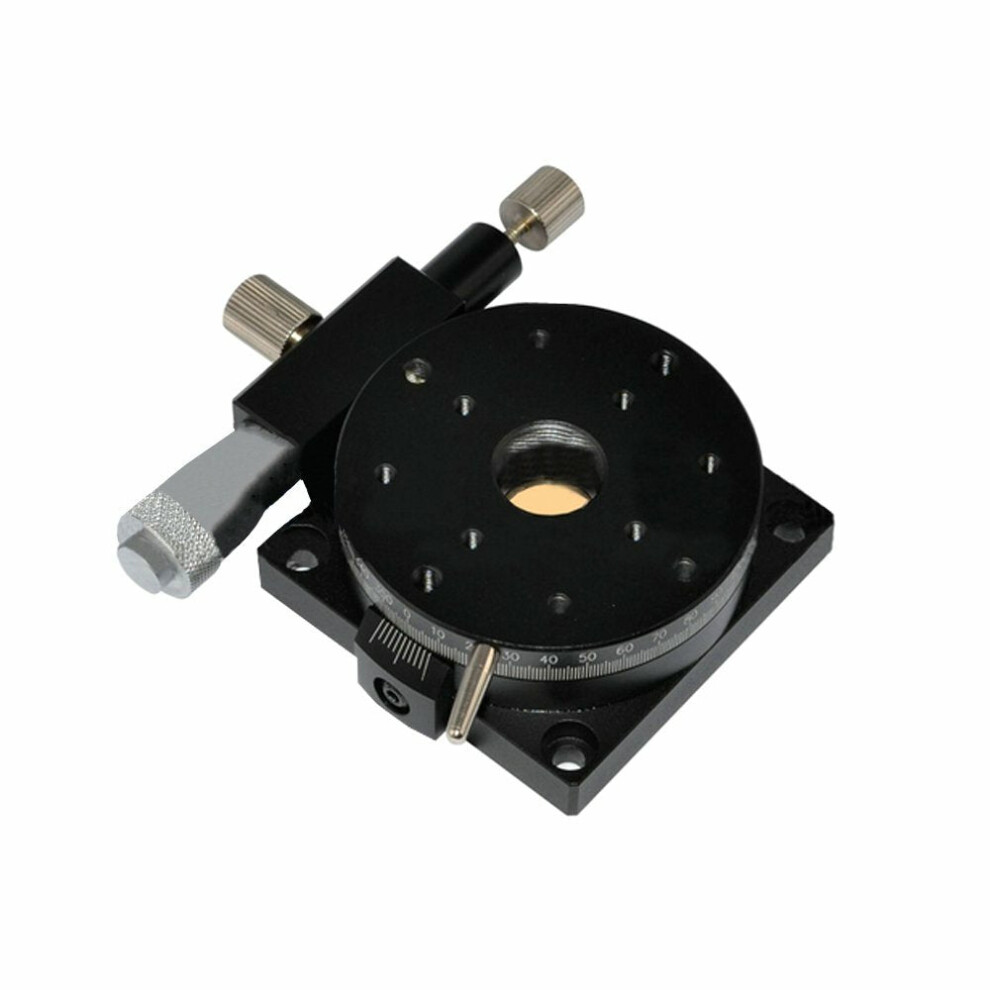

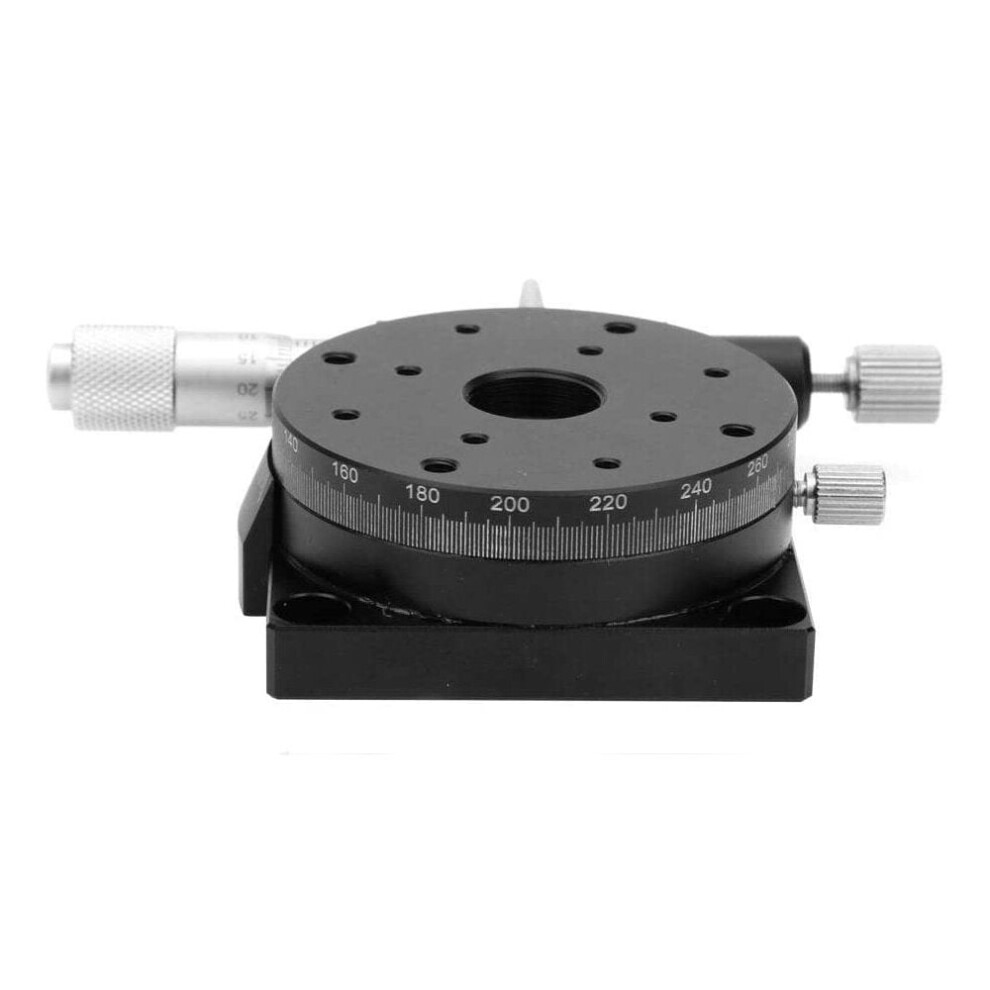

(Right) R Axis 60mm Sliding Table Micrometer Precision Adjust Angle Manual Platform Sliding Stage

(Right) R Axis 60mm Sliding Table Micrometer Precision Adjust Angle Manual Platform Sliding Stage Description

Description:
Axis 60mm Sliding Table Micrometer Precision Adjust Angle Manual Platform Sliding Stage.

Specifications:
Product Name: R Axis Sliding Stage:
Type: RSP60-L RSP60-R.
Direction of Movement: axis in one direction.
Direction of Rotation: R axis of rotation.
Material: Aluminum.
Table Size: 60mm.
Stroke: 360 (coarse), 5 deg; (fine-tuning).
Load: 29.4N (3kgf).
Minimum Reading for Nonius: Nonius scale 0.1 mm.
Roundness: 0.03mm.
Parallelism: 0.03mm.
Drive Mode: Differential head.
Table Thickness: 15mm.
Differential Head: 0.96'.
Quantity: 1 Pc R Axis Sliding Stage.

Features:
- Rotating platform enables fine adjustment of the angle of the platform to the approximate location, using the thickness adjusting switch screws, can be fine-tuned using a micrometer.
- High quality material: The main body is made of aluminium alloy plate of equal density, the surface is hard black anodized, durable, scratch resistant, fall and corrosion resistant.
- Adjustment Buttons: Nickel plated locking screws and nickel-plated coarse and fine adjustment knobs, carbide side heads, more secure locking.
- Adjustment angle: Manually powered with a micrometer, can be achieved a coarse adjustment of 360 degrees and a fine adjustment of the rotation by 5.
- Rustproof guide rail: The surface of the guide rail is galvanically treated to use it in a complex environment that is corrosion resistant and non-rusting.
- SUITABLE: Widely used for production machines, test equipment, optical test measurements, fine adjustment of displacement, accurate positioning, quantitative movement, etc.

Package Included:
1 x R Axis Sliding Stage (RSP60-L/ RSP60-R)
