ROUND LED Plinth Light Kit 10x COOL WHITE Spotlight Kitchen Bathroom Floor Panel

ROUND LED Plinth Light Kit 10x COOL WHITE Spotlight Kitchen Bathroom Floor Panel Description

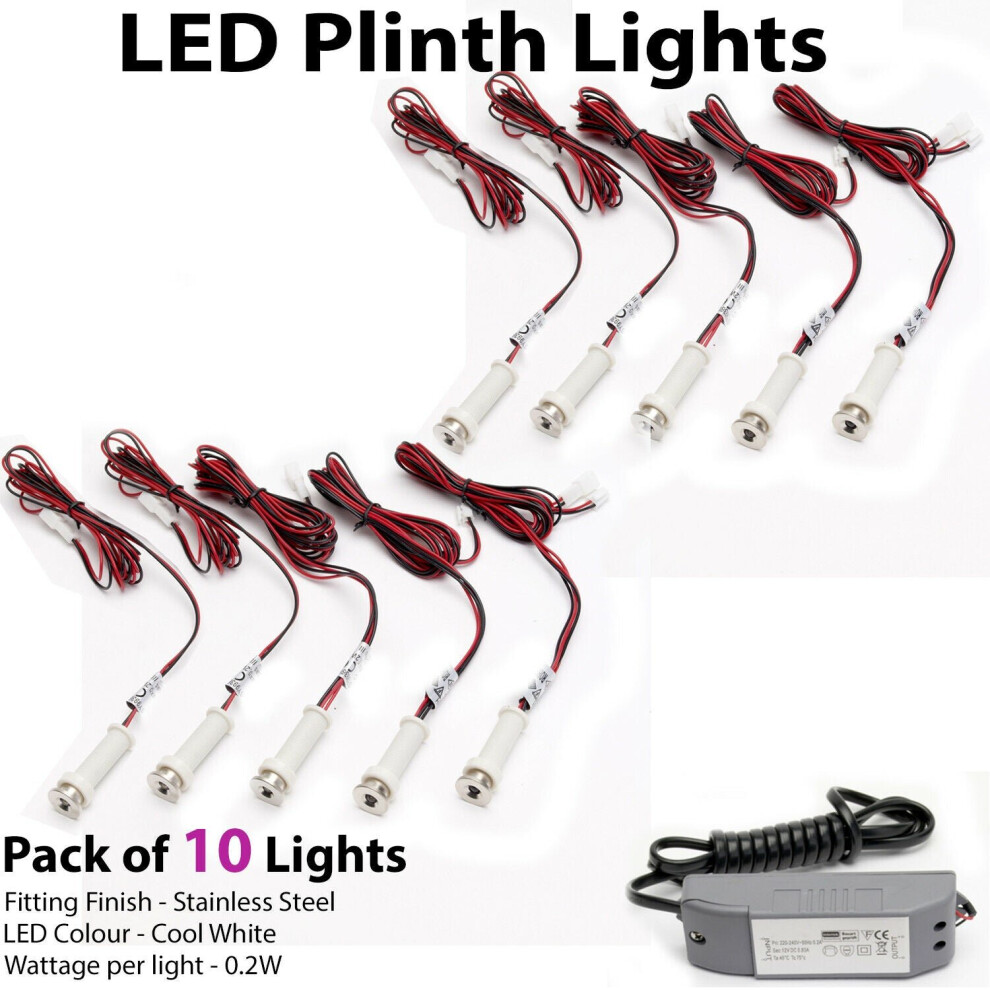

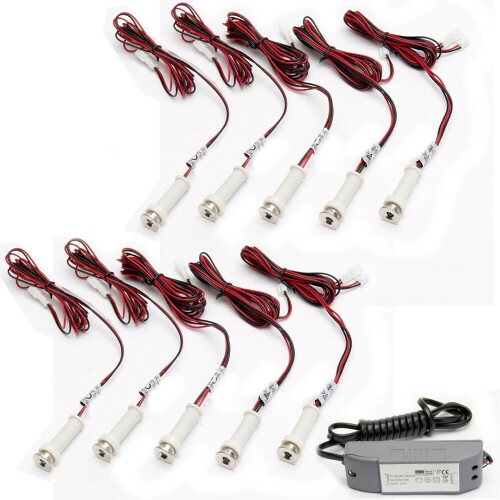

LED Plinth Lighting Kit

What is included:

10x Round Plinth Lights
1x Driver â" Converts mains into 12Vdc

The driver supplied with this kit can run a maximum of 10 lights.

Technical Specification:

Light Colour Appearance â" Cool White
Colour Temperature â" 5000÷600 Kelvin

Power Supply â" 12Vdc
Wattage (per light) â" 0.2W
Cable Length 1.5m
Number of Hours â" 30,000
IP67 â" Waterproof â" Could be installed outdoors in decking for example (driver not outdoor safe)

What is a Driver?

A driver converts mains voltage (240V AC) to 12V DC. Our range of efficient kitchen lights run on a low voltage, this conserves energy without compromising on luminosity. Every light that we sell has a wattage rating. For example, if you have a light rated at 2.6W and you have 3 of them, your total wattage consumption would be 7.8W. To put this simply, your driverâs wattage rating must be equal to or greater than 7.8W in order for this to work (pulling through more watts than a driver is rated to will cause the driver to blow).

We know that this can sound a little tricky so in order to save you the hassle of working this out, all our light kits include a driver that is specifically designed to work safely and efficiently with your chosen lights.

Overview:

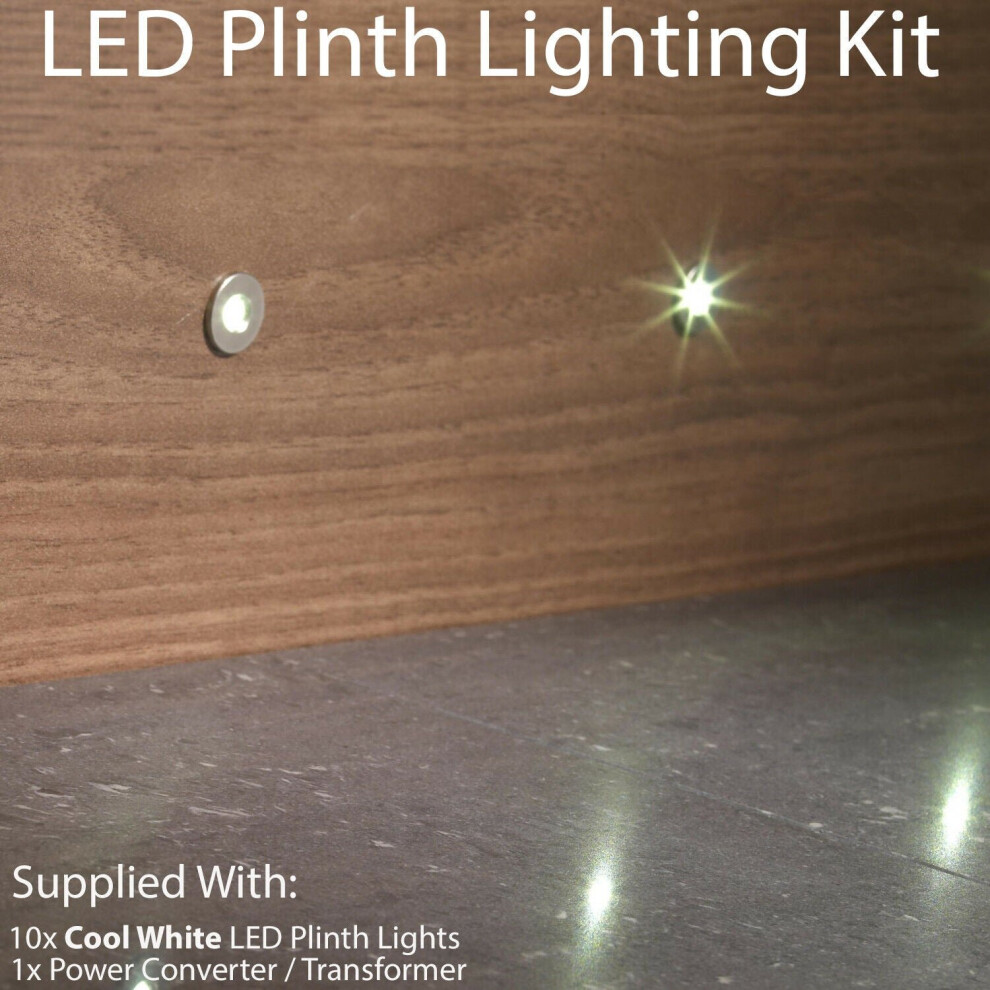

Our LED plinth lights are perfect for modernising any kitchen, bathroom or any other rooms. They are ideal for skirting boards, kick boards and panels, they create a unique form of lighting. They are ideal for use in bathrooms & kitchens due to them being IP44 rated, meaning they are splash proof.

This plinth kit is finished in stainless steel giving a stylish edge to any room & produce natural white light beam.

These LEDâs will last over 30,000 hours, on average they will last 16 years. After this time the bulbs will only reduce in brightness (to 70% of their original luminosity), meaning they will still work. Making this set of LED's environmentally friendly and cost effective.

How to mount:

These lights can be either surfaced or recessed mounted. To recess mount a 28mm cut out is required, it will be 10mm deep into your plinth board. Each light has a 2m length of cable attached, this plugs straight into your driver (which is supplied). Each light has 2 metal spring hooks, these squeeze together whilst pushing the light into the cut out, one they have been put into the hole they will open and grip the plinth board. This then creates a sturdy hold with little tools needed.

The power converter (driver) can be connected straight to the mains and controlled via a light switch. It is incredibly simple to install and the unit is supplied with a full set of instructions. If you are not confident enough to do this yourself, please refer to an electrician for advice.

Further information:

We sell various plinth lights, please search our shop. If you require any further help or advice in relation to our LED plinth lights please feel free to get in touch.
