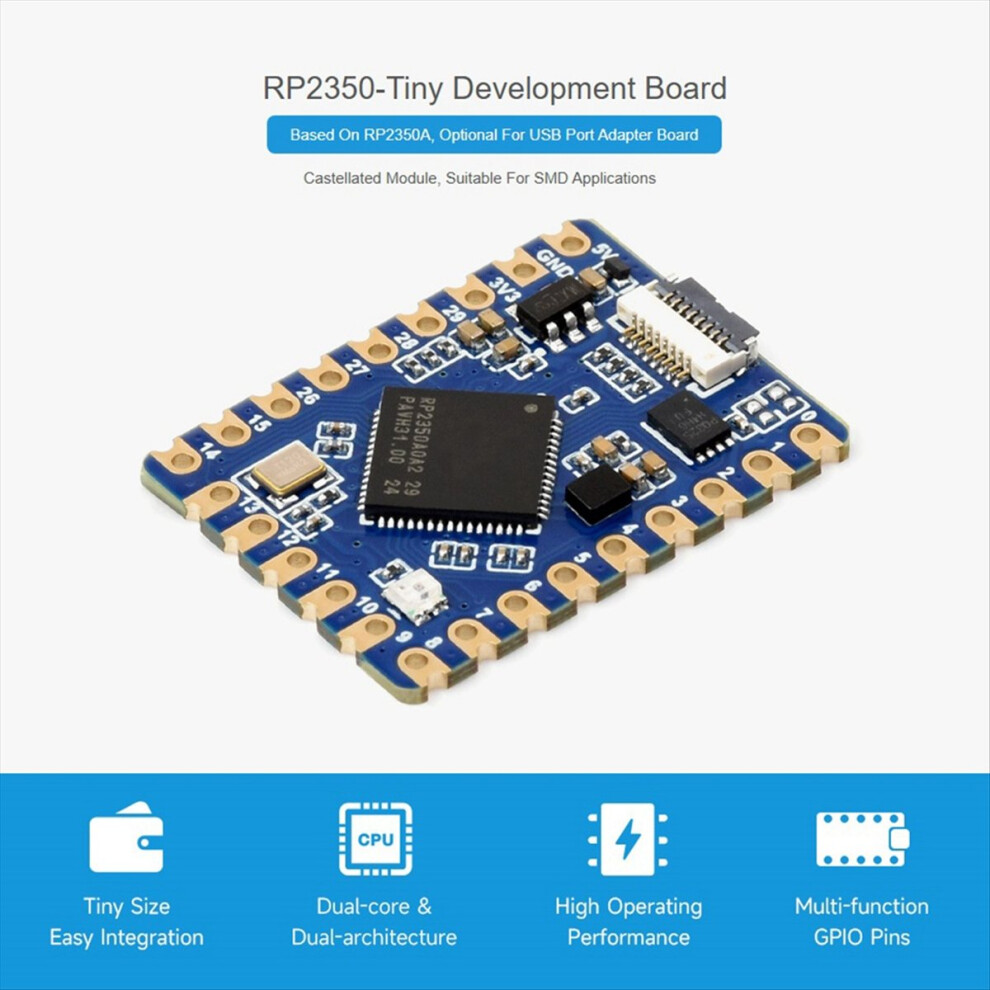

RP2350-Tiny Kit Development Board for USB Type C Interface 520KB 2MB Flash RP2350-Tiny-Kit

RP2350-Tiny Kit Development Board for USB Type C Interface 520KB 2MB Flash RP2350-Tiny-Kit Description

dual-core, dual-architecture, equipped with dual-core ARM -M3 processor and dual-core Hazard 3 RISC-V core processor, clock running frequency up to 150MHZ.
Built-in 520KB and 4MB on-chip Flash.

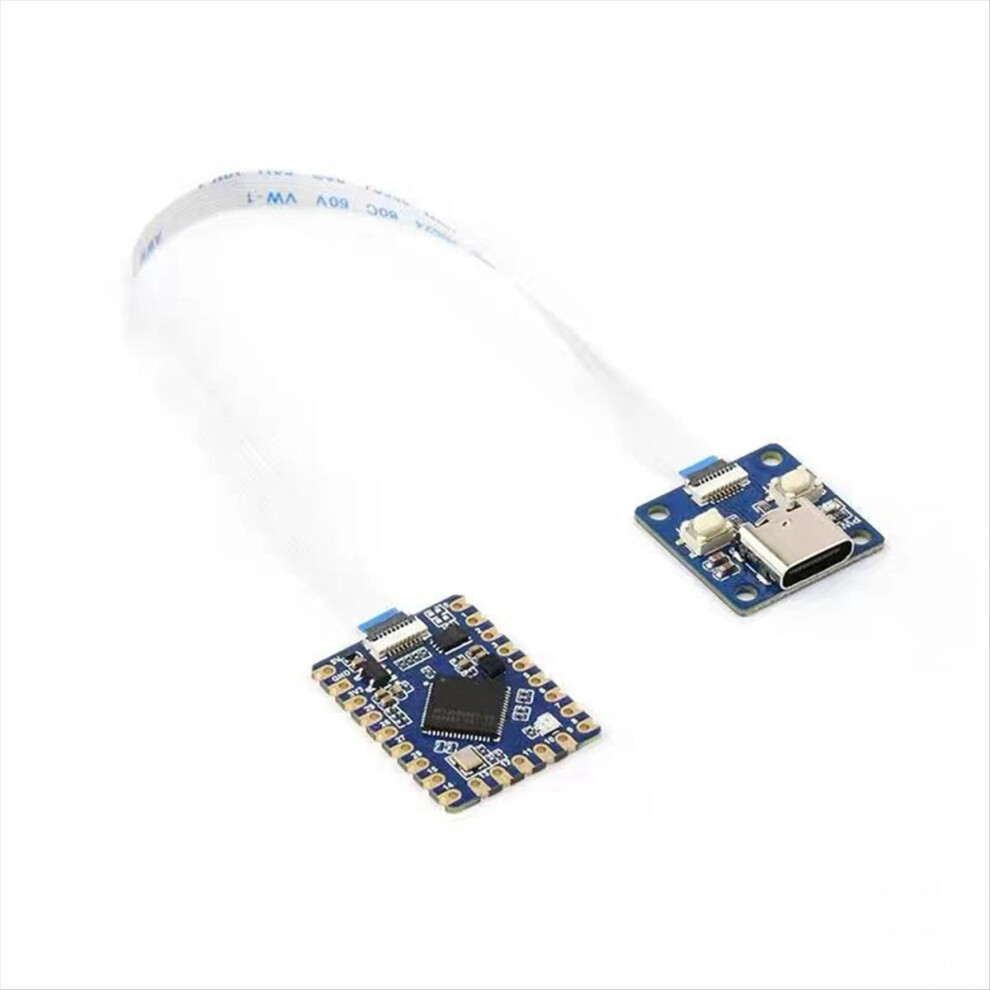

Onboard FPC 8PIN interface, USB Type-C interface can be brought out through the adapter board.

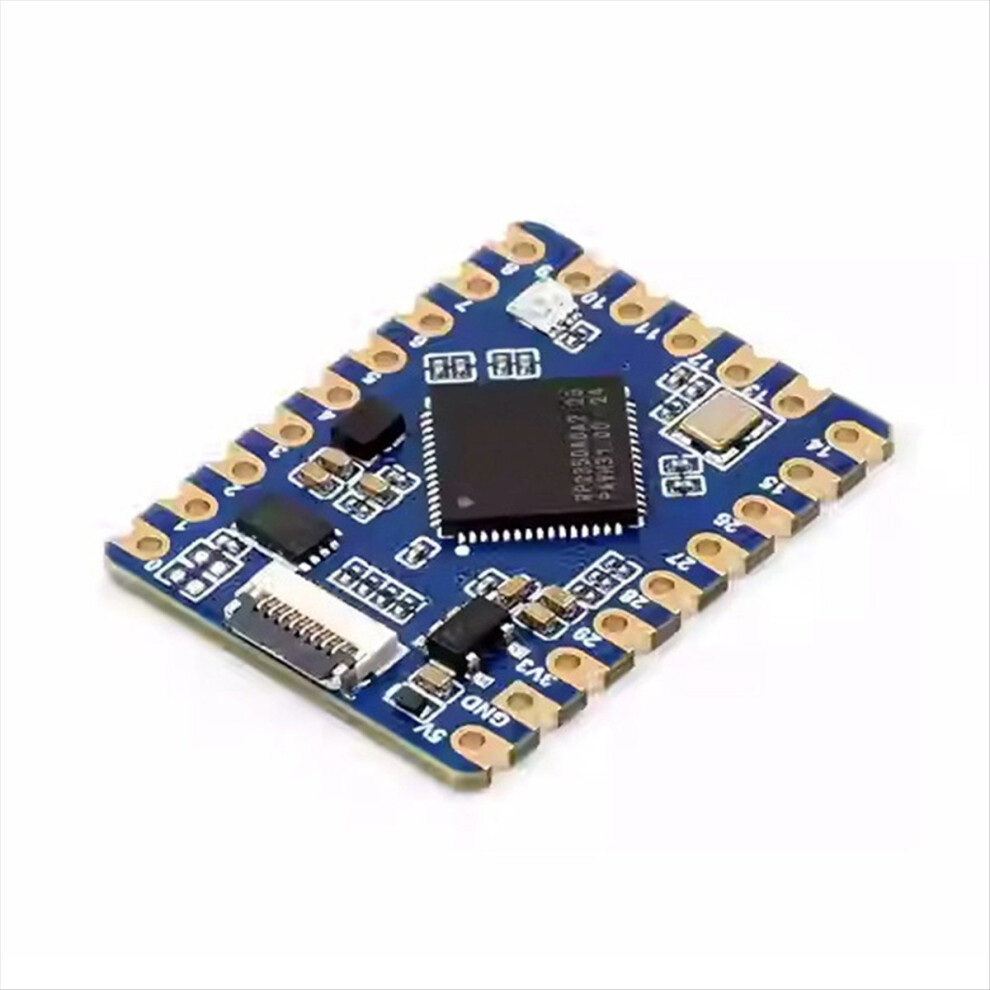

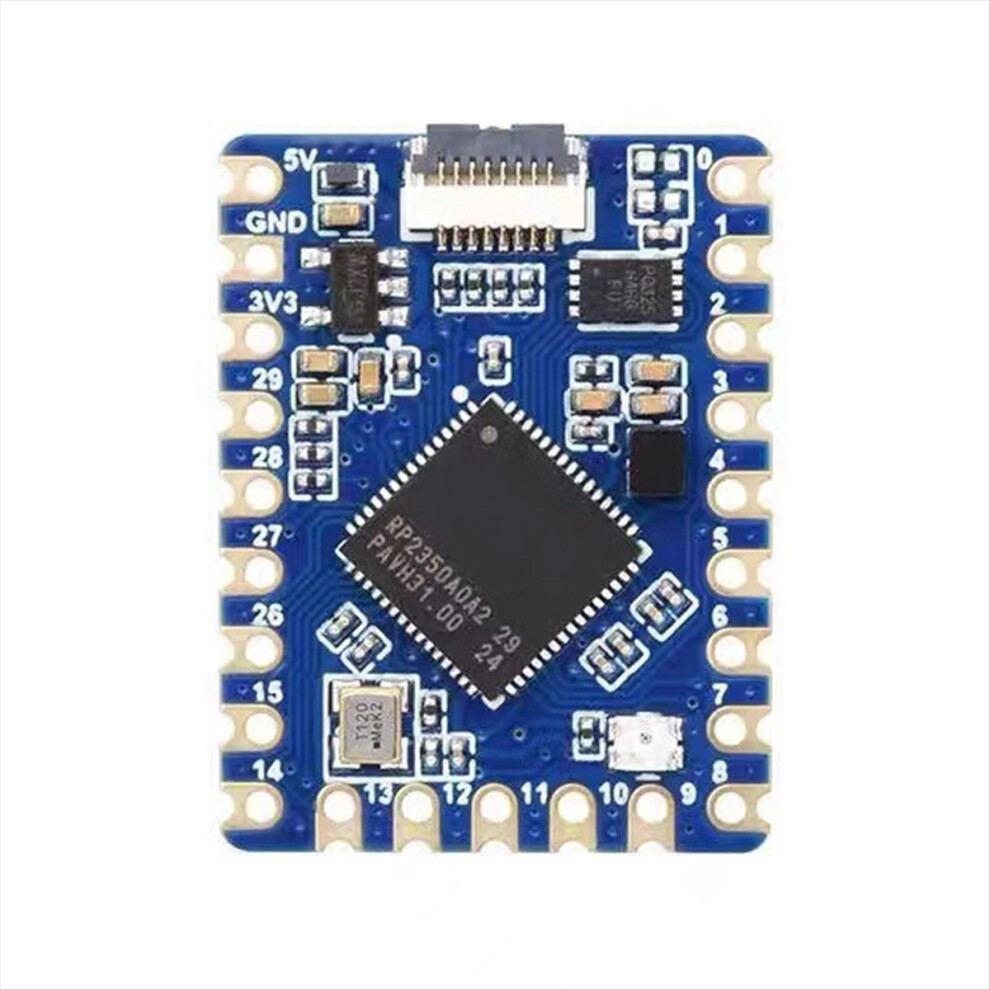

Stamp hole design, can be directly soldered and integrated into the user's self-designed baseboard.
USB 1.1 host and device support.

Support low-power sleep and hibernation modes.
Can be identified as a large-capacity storage through USB for drag-and-drop download of programs.

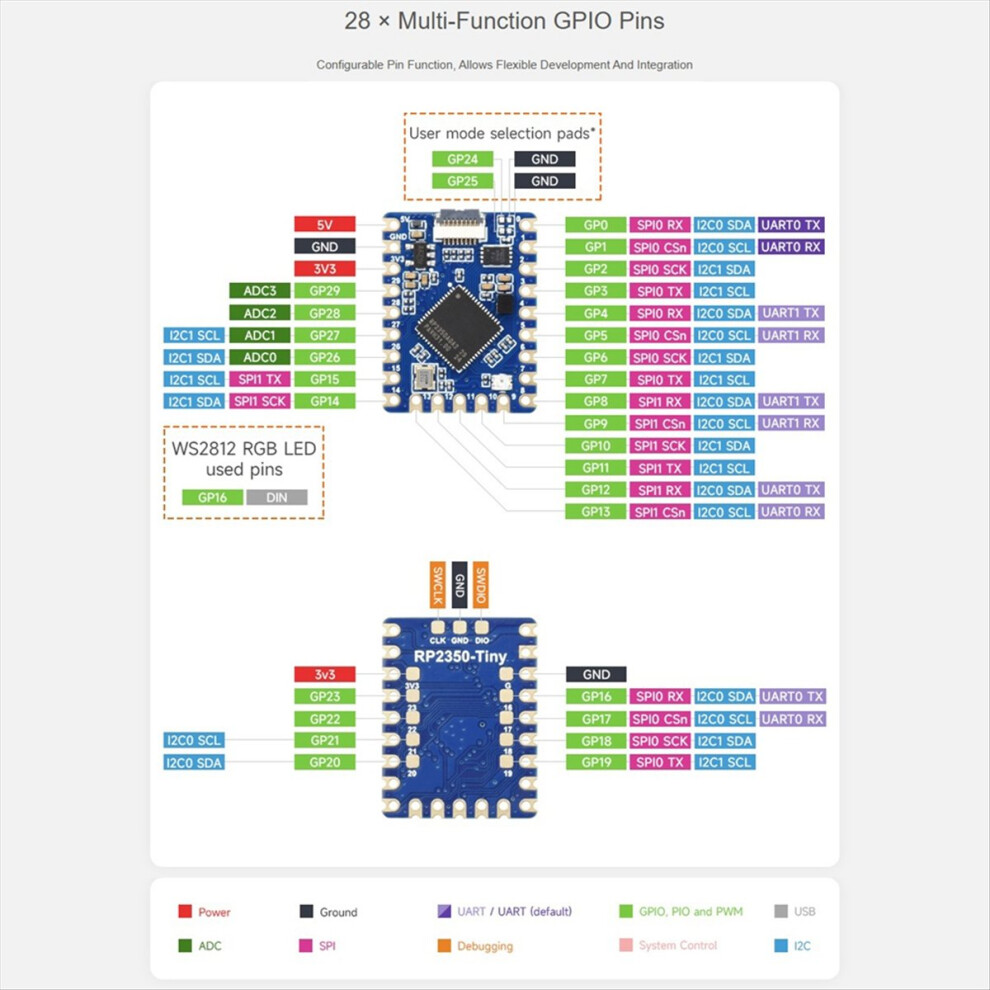

Lead out 28 multi-function GPI0 pins (20 can be brought out through pin headers, and the rest can only be soldered
lead out.
2 SPI, 2 , 2 UART, 4 12-bit ADC, 16 controllable PWM channels.
Accurate on-chip clock and timer.
Temperature sensor.
On-chip accelerated floating-point library.
12 programmable IO (PIO) state machines for custom peripheral support.
Colour:blue
Material:PCB
The actual product may have slight color difference or difference, which not affect the use

Package Contents:
1 * Mini Development Board

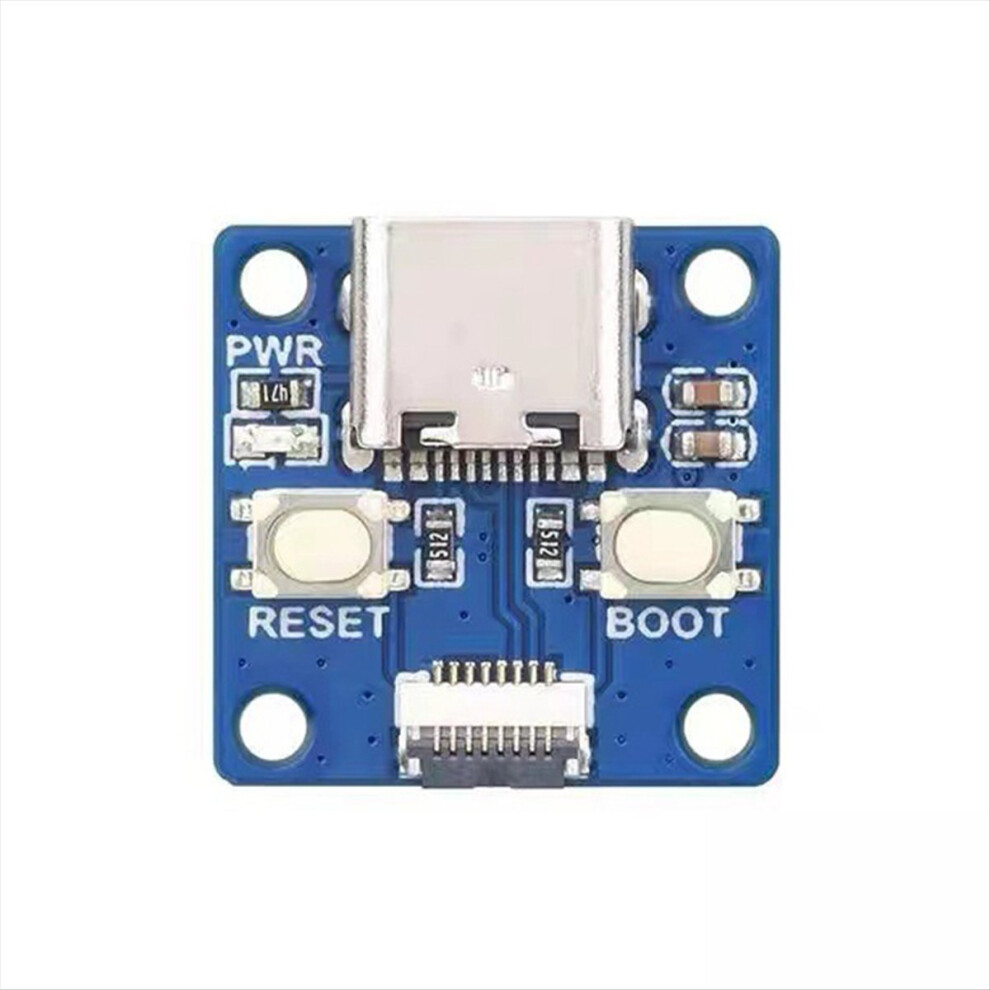

1 * adapter board

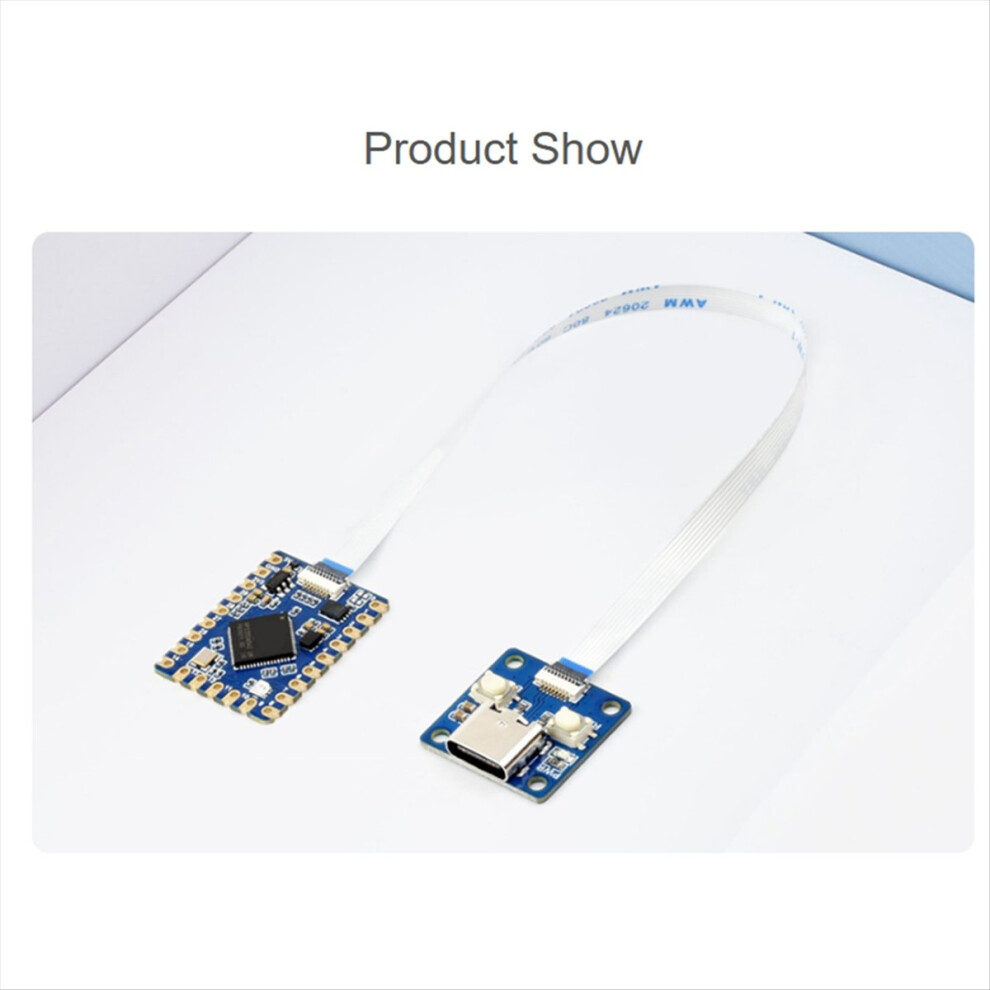

1 * FPC line

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
