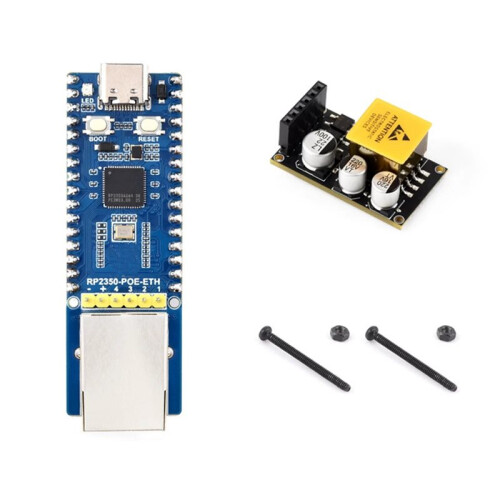

RP2350A POE-ETH Development Board with PoE Module Dual-Core Dual-Architecture W6300 Microcontroller Development Board

RP2350A POE-ETH Development Board with PoE Module Dual-Core Dual-Architecture W6300 Microcontroller Development Board Description

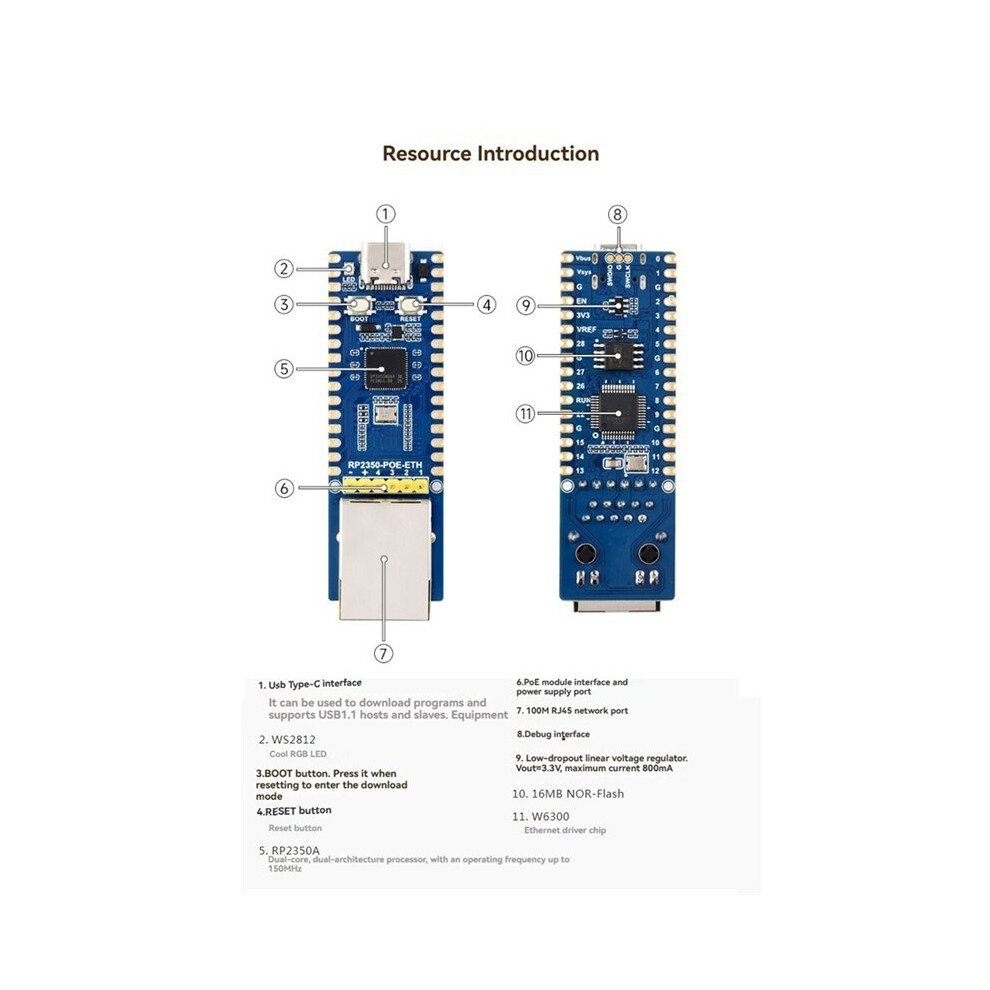

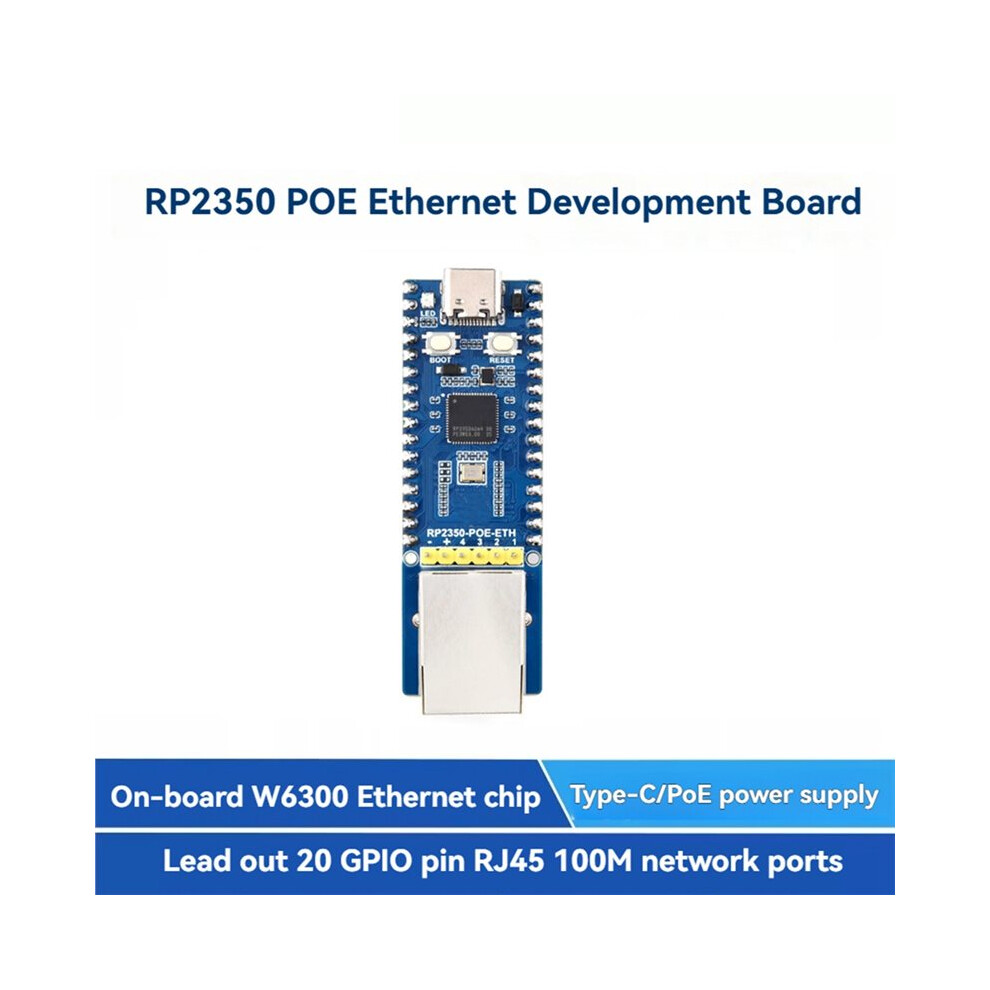

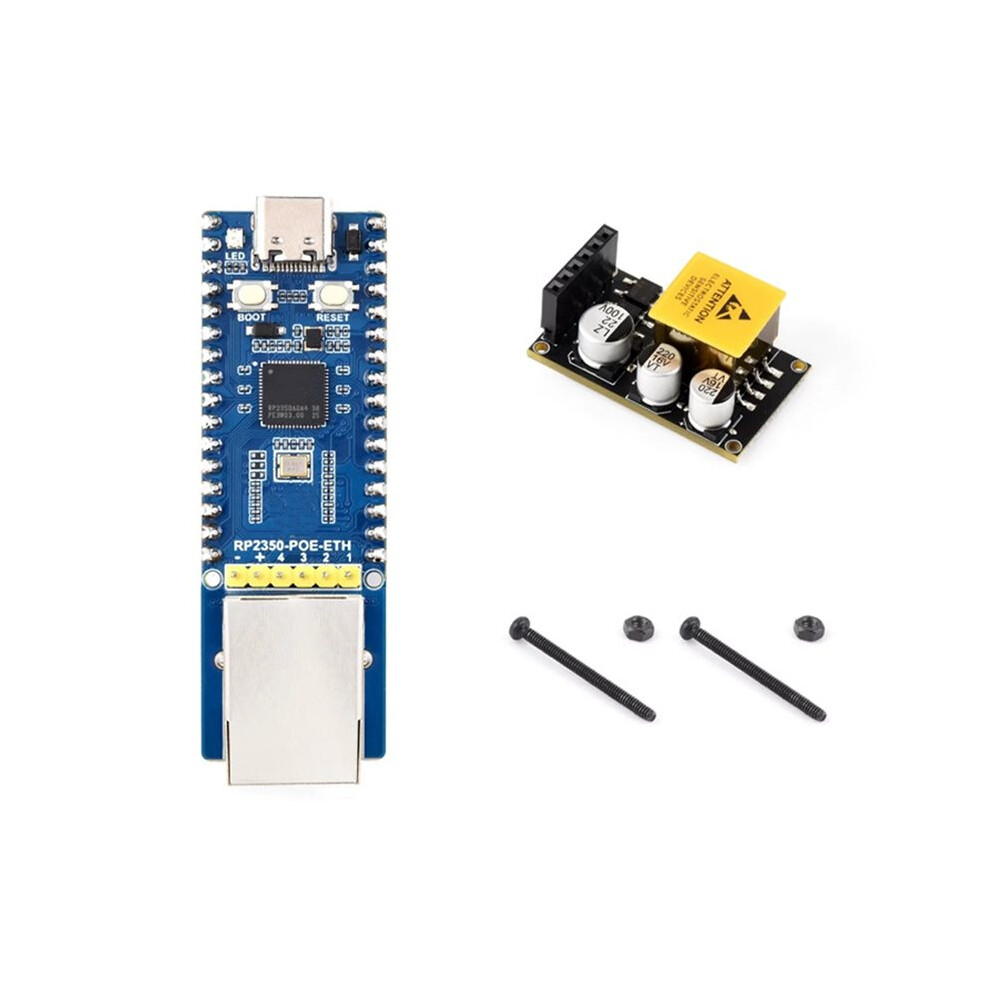

This high-performance embedded development board features an RP2350A main controller and 16MB NOR Flash. It includes an onboard W6300 Ethernet chip, supporting Type-C power supply and also allowing for independent power supply via an external PoE module.

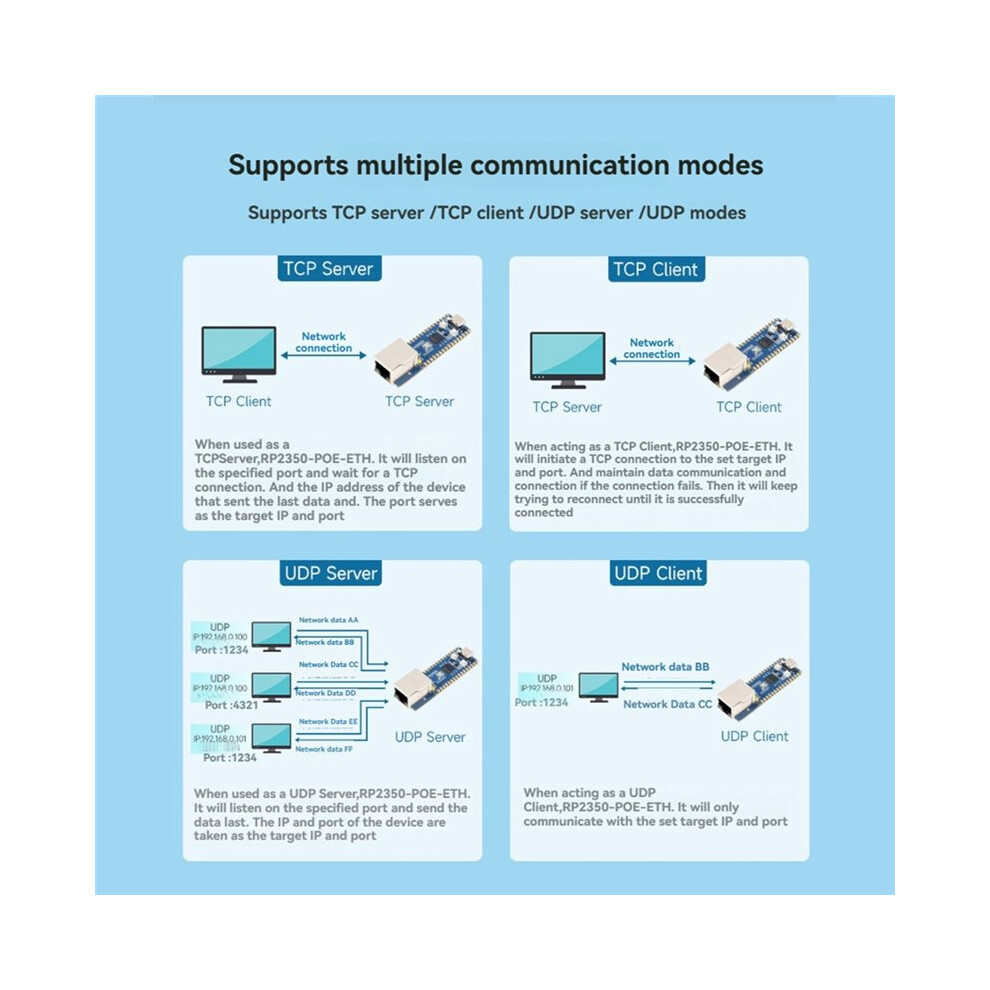

It supports multiple communication modes, including TCP server/TCP client/UDP server/UDP mode.

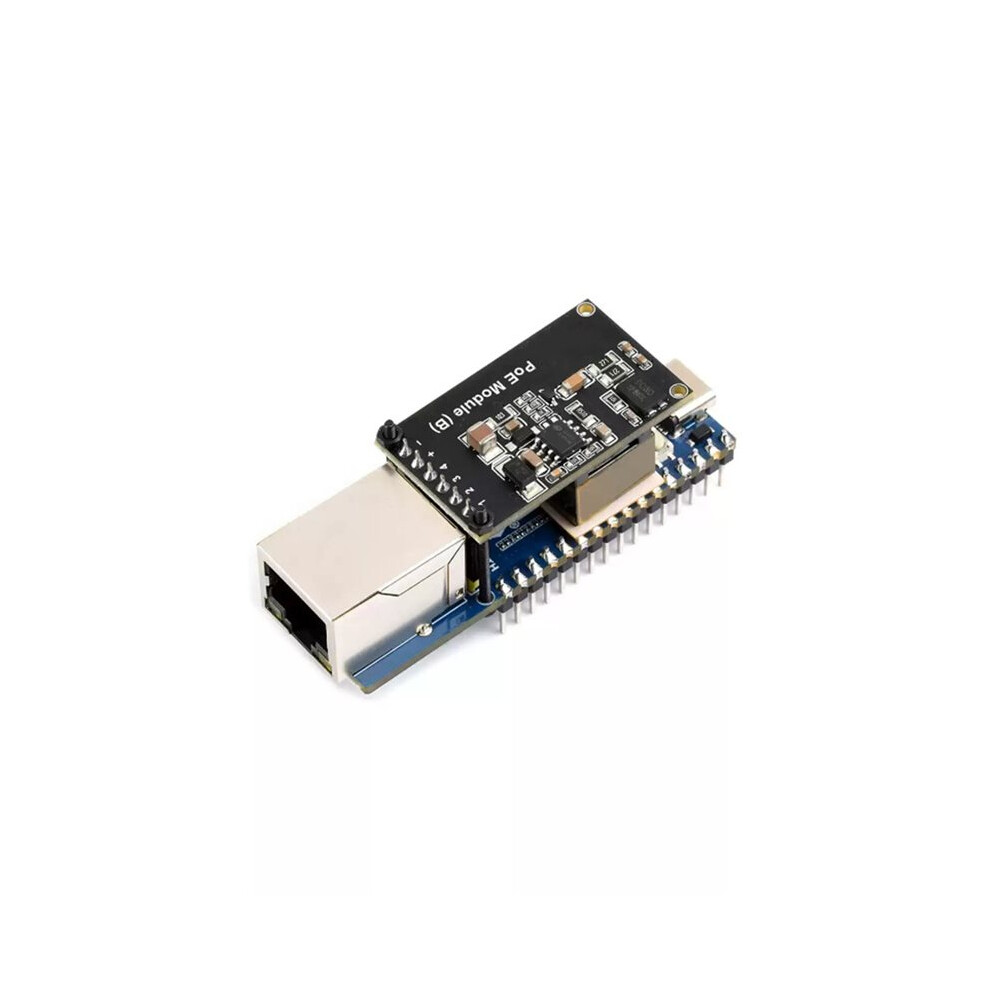

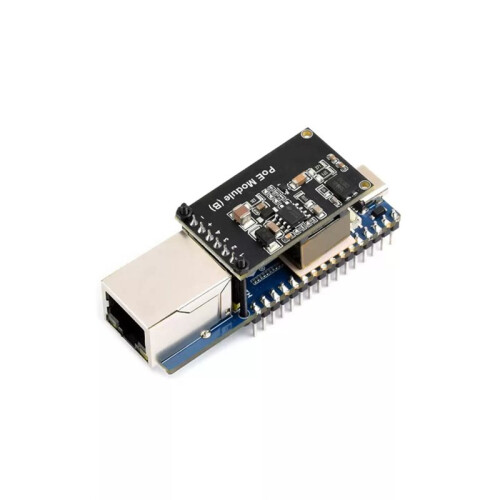

It supports PoE module connection; a single network cable is sufficient for both networking and power supply to PoE devices.

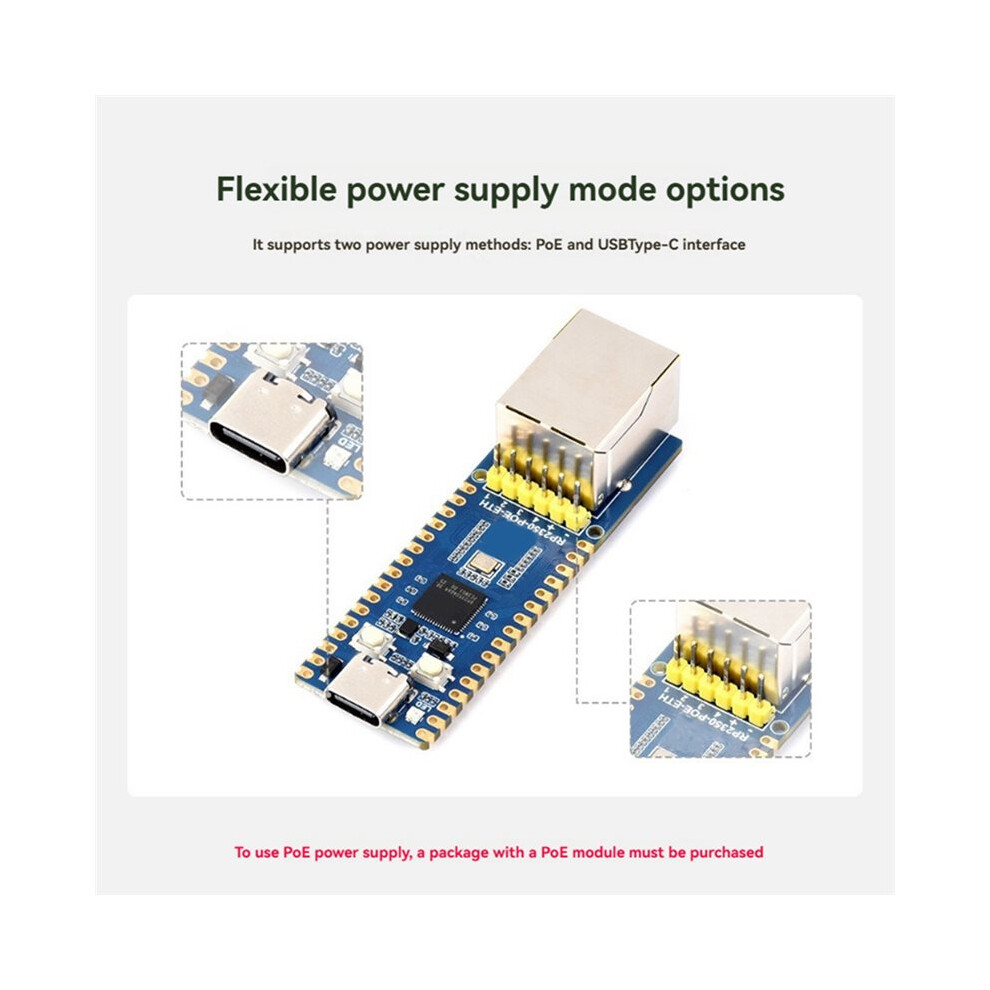

It offers flexible power supply options, supporting both PoE and USB Type-C interfaces.
It features a dual-core, dual-architecture processor, with an onboard dual-core ARM Cortex-M33 + dual-core Hazard3 RISC-V processor operating at frequencies to 150MHz.

• Employs the RP2350A microcontroller chip developed for Raspberry Pi.
• Unique dual-core, dual-architecture design, featuring a dual-core ARM Cortex-M33 processor and a dual-core Hazard 3 RISC-V processor, with a clock frequency to 150MHz, allowing users to flexibly between the two architectures.
• Built-in 520KB and 16MB -chip Flash.
• Uses a Type-C interface, keeping with modern technology and eliminating the hassle of reversible insertion.
• Onboard W6300, integrating the TCP/IP protocol stack.
• Supports USB 1.1 hosts and devices.
• Stamp hole design, allowing direct soldering to user-designed baseboards.
• Can be recognized as a mass storage device via USB for drag-and-drop downloading.

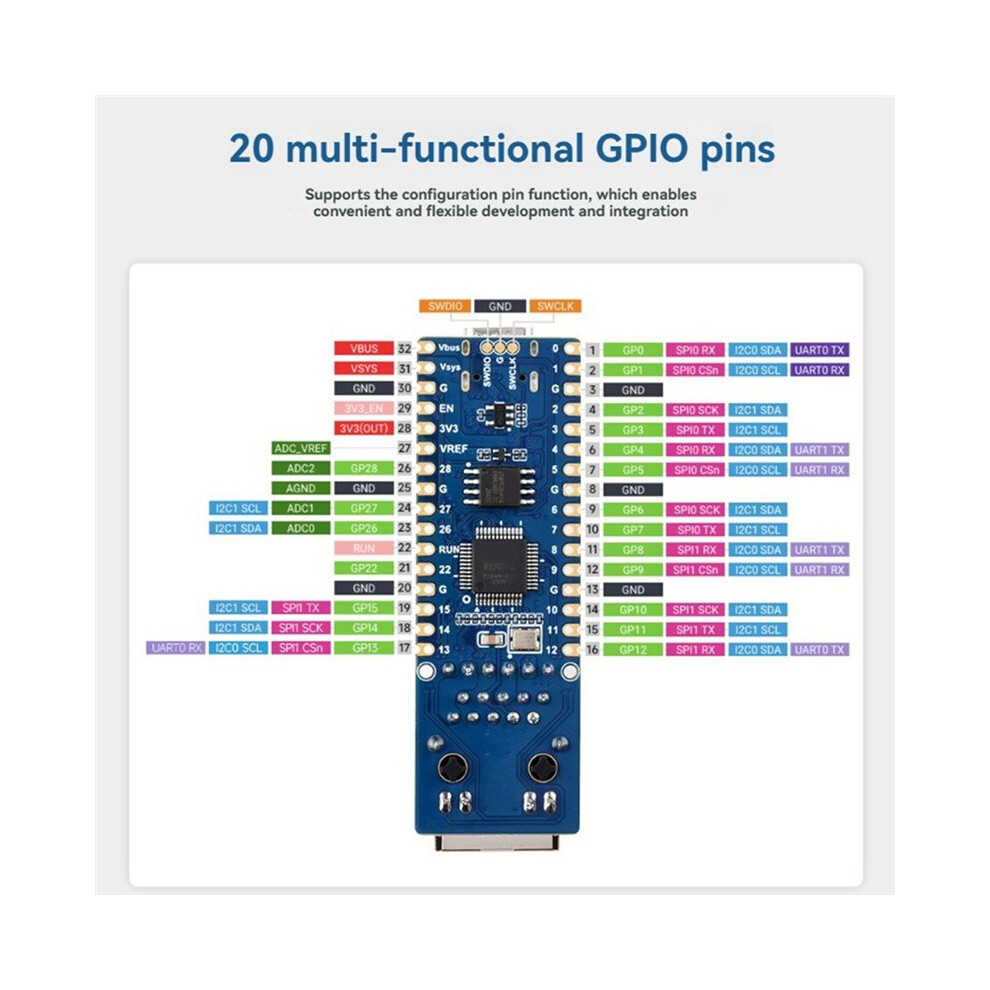

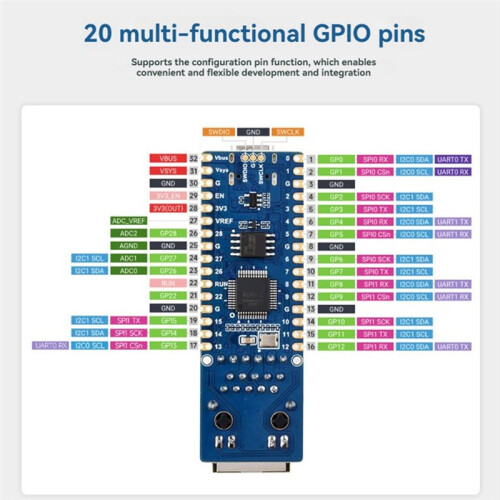

• 20 GPIO pins, compatible with some expansion boards.
• Precise -chip clock and timers.
• Built-in temperature sensor for real- chip temperature monitoring.
• 12 programmable I/O (PIO) state machines for custom peripheral support.
(The product printed words may vary depending the batch, but this does not affect use)
Color: As Shown
