RPi PilotPi Shield Flight Control PX4 Firmware Sensor & Power for 32 Bit Autopilot Copter Plane

RPi PilotPi Shield Flight Control PX4 Firmware Sensor & Power for 32 Bit Autopilot Copter Plane Description

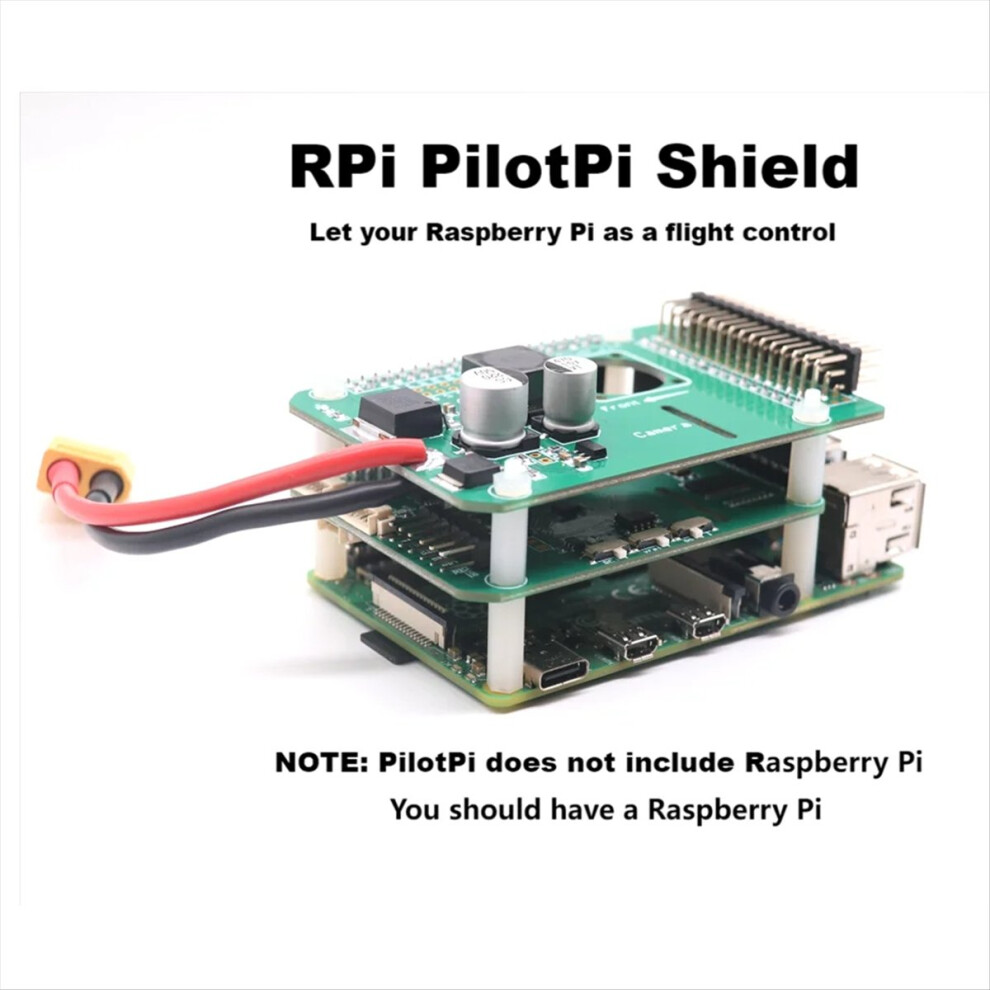

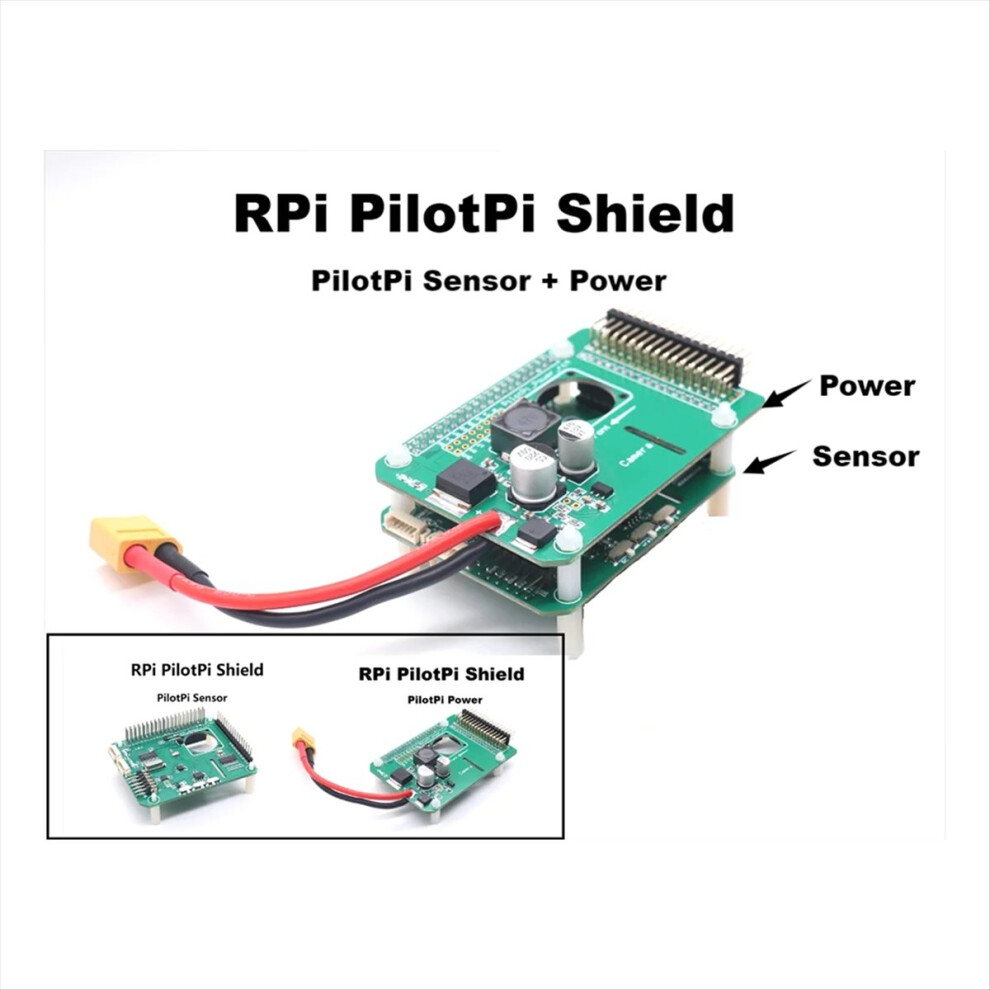

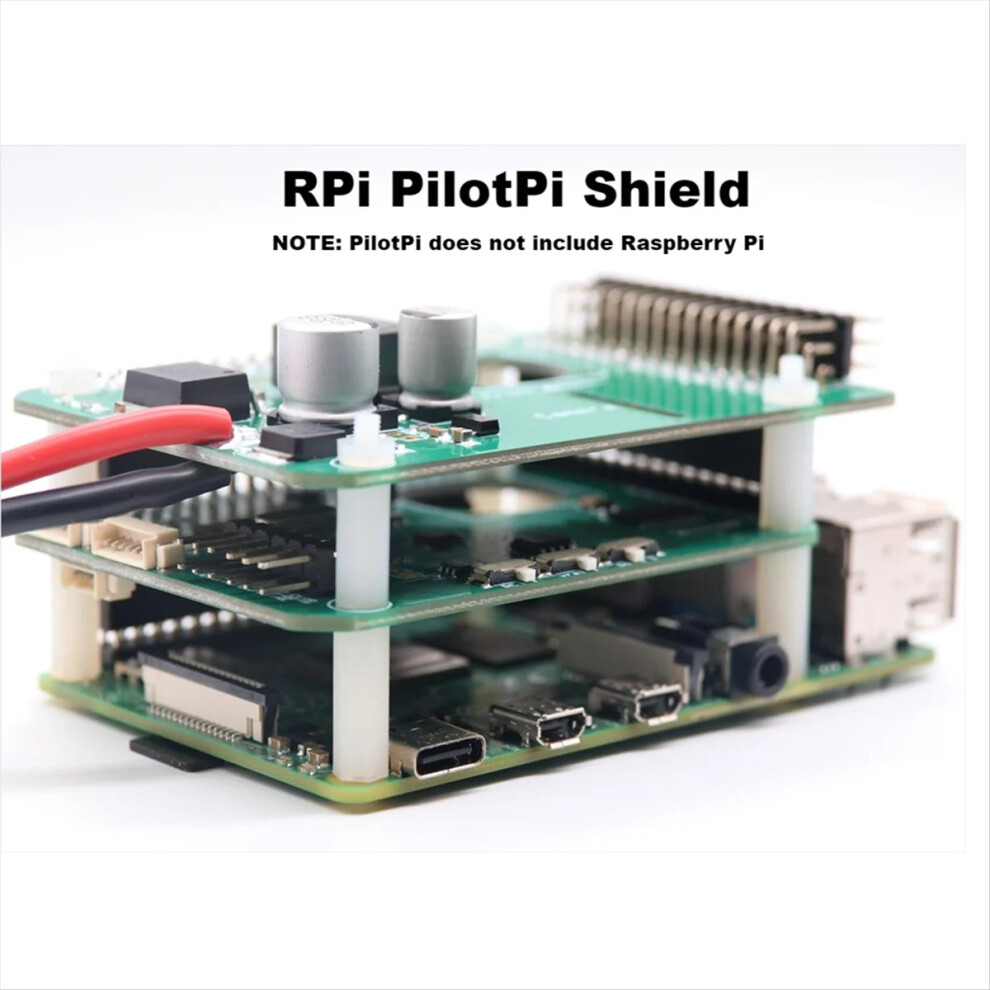

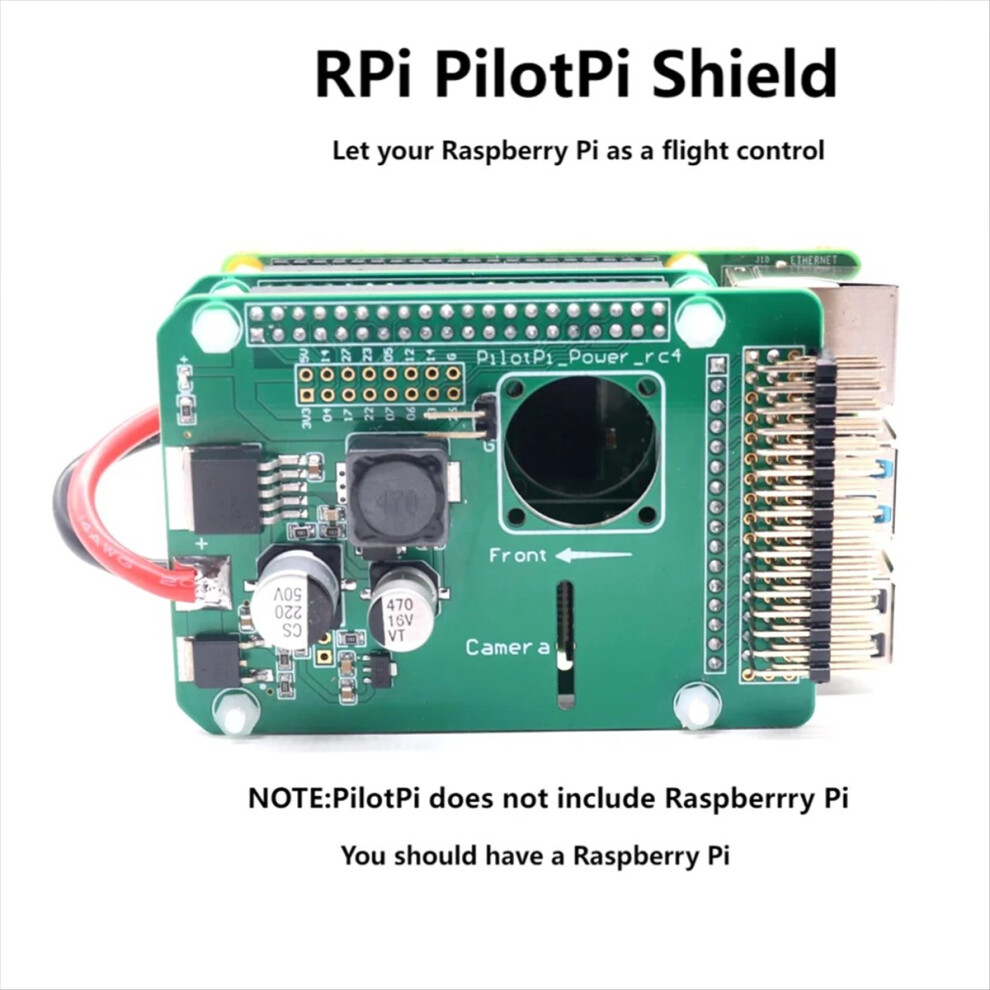

The PilotPi shield is a fully functional solution to run PX4 autopilot directly on for . It is designed to be a low-cost but highly scalability platform with continuous updates from both Linux and PX4 sides. No proprietary driver is required, as all components have upstream support from RPi and PX4 community. PCB and schematic are open source as well.
Supported RPi boards: for 2B/3B/3B+/4B
Supported OS: for OS for Server (armhf/arm64)

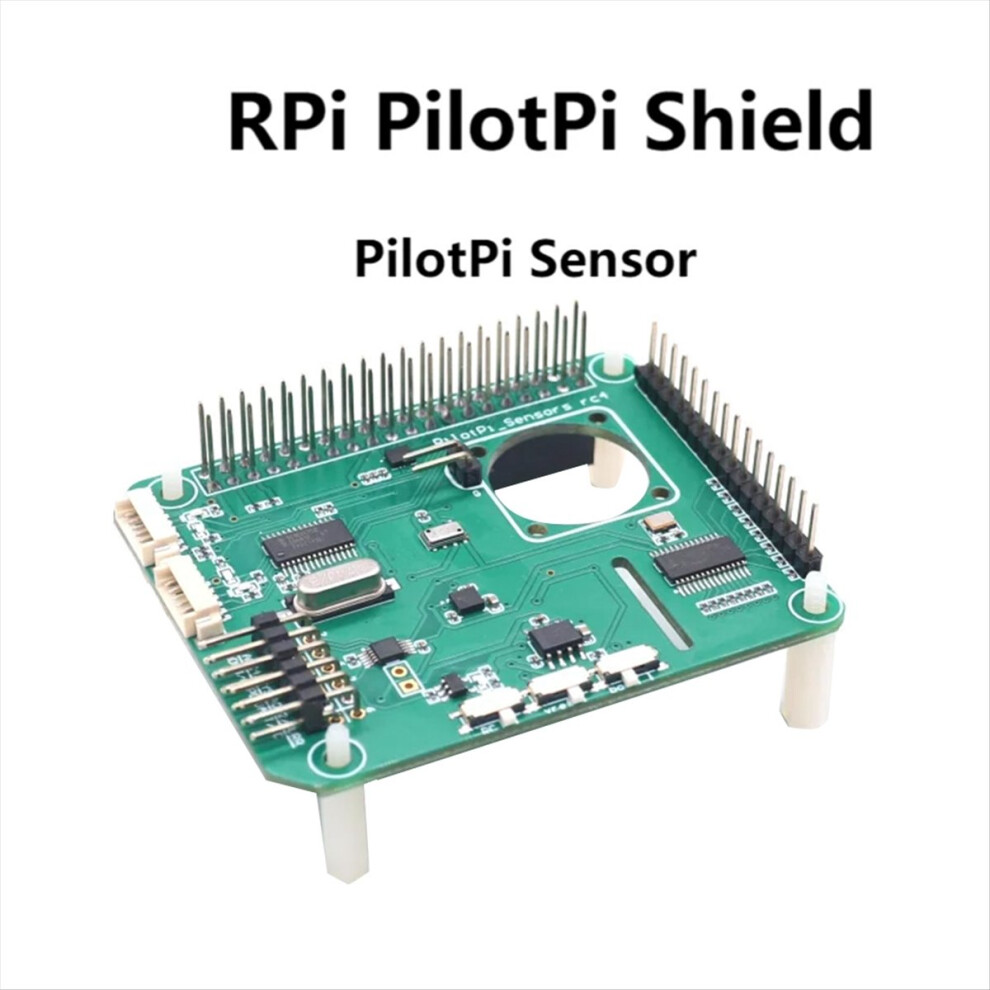

Accelerometer / Gyro:ICM42688P

Magnetometer:IST8310
Barometer:MS5611
PWM:PCA9685
ADC:

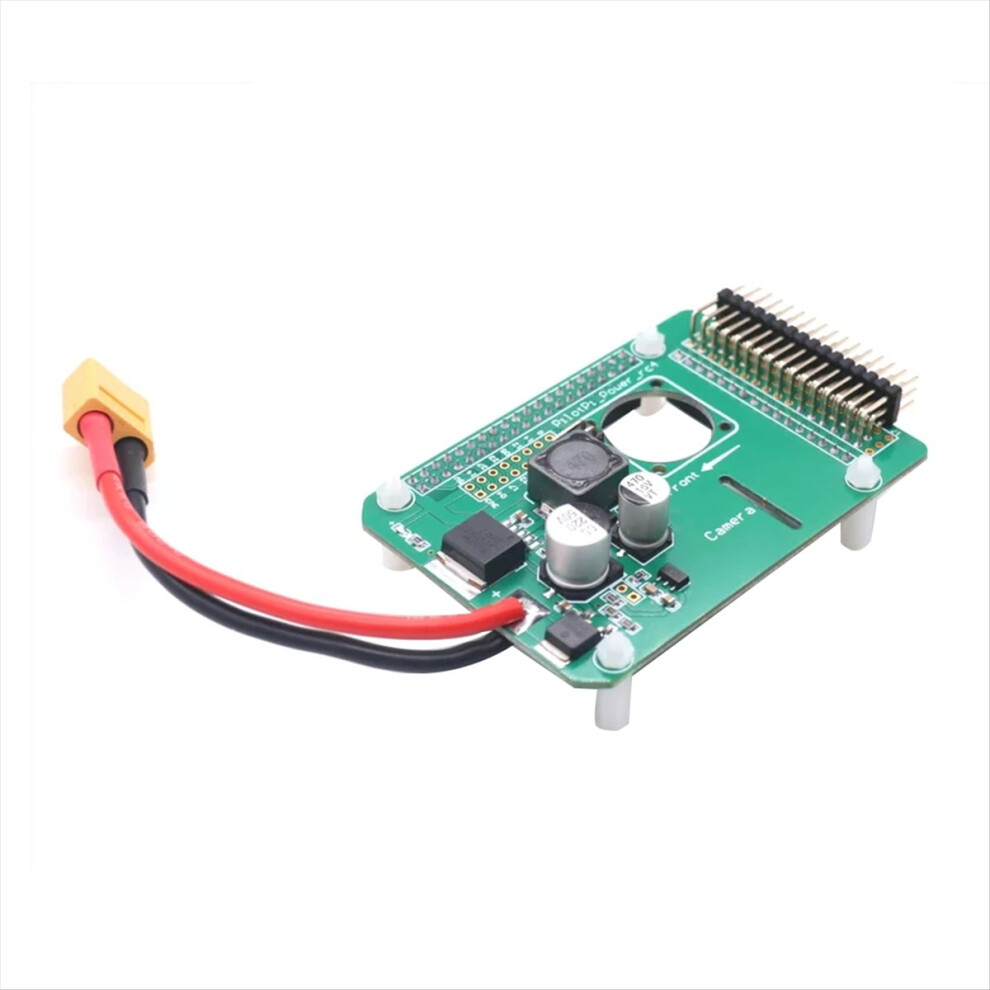

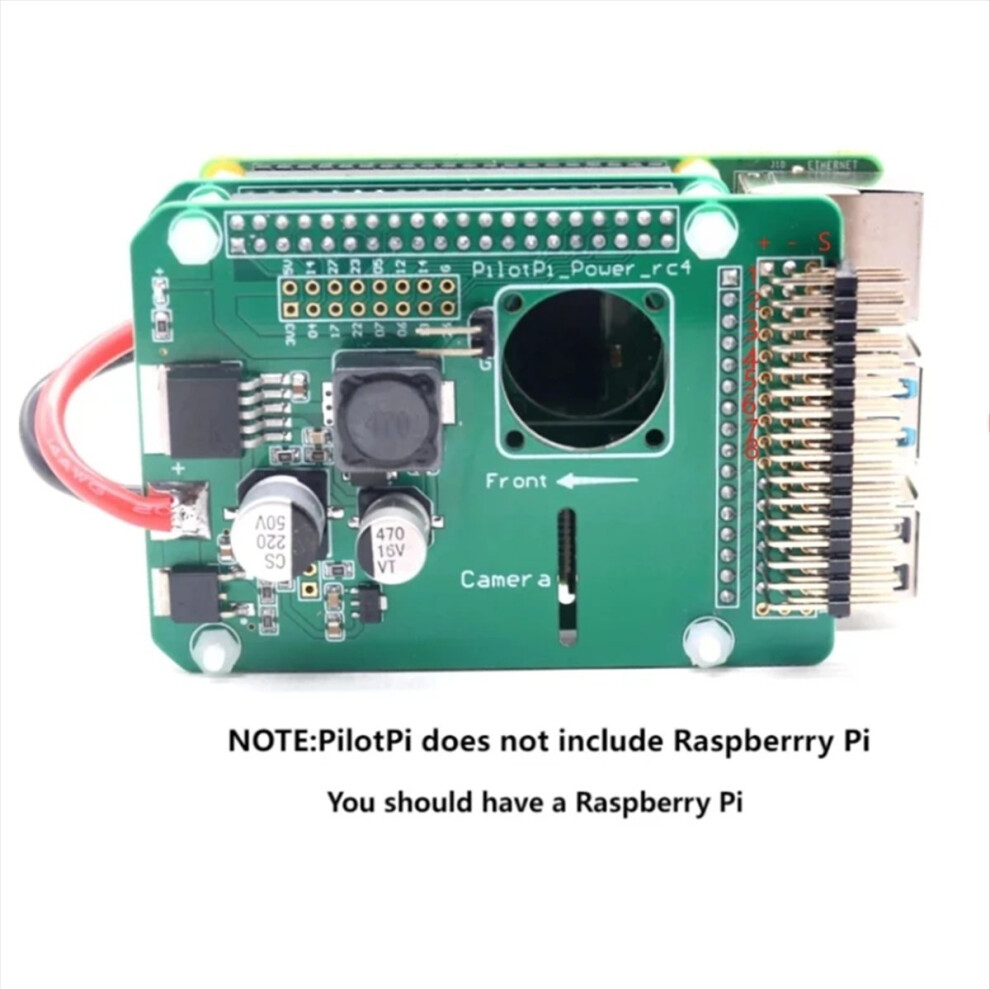

Power:3~6S battery with built-in voltage sensing.
Power the Pi through USB cable
Connectivity

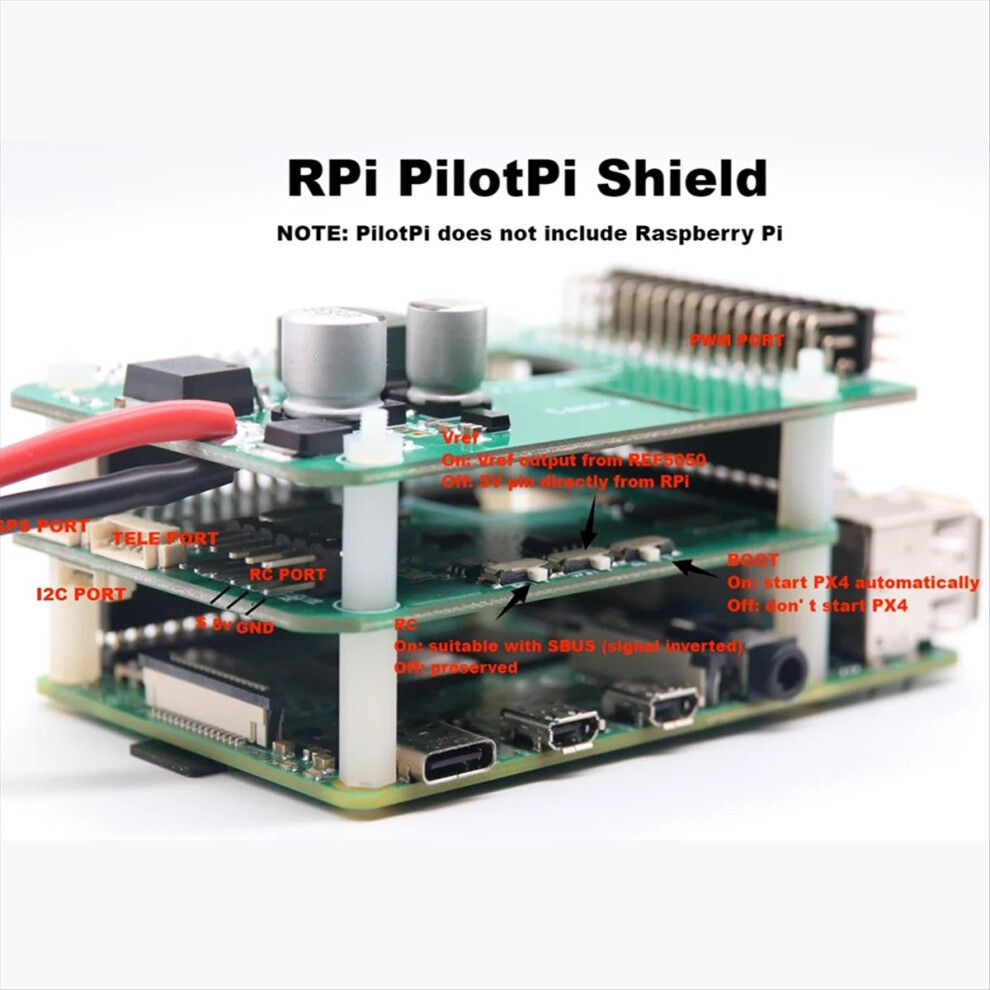

Shield provides:
16x PWM outputting channels
GPS connector
Telemetry connector
External bus connector (Note: conflicts with camera)
RC input port (SBUS)
3x ADC channels range 0~5V
2*8 2.54mm unused GPIO connector
Direct accessible from RPi:4x USB connector
connector(Note: with external bus) etc.
for not included
Colour:Green
Material:Composite Materials

Package Contents:
1 x RPi PilotPi Shield Flight Control

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
