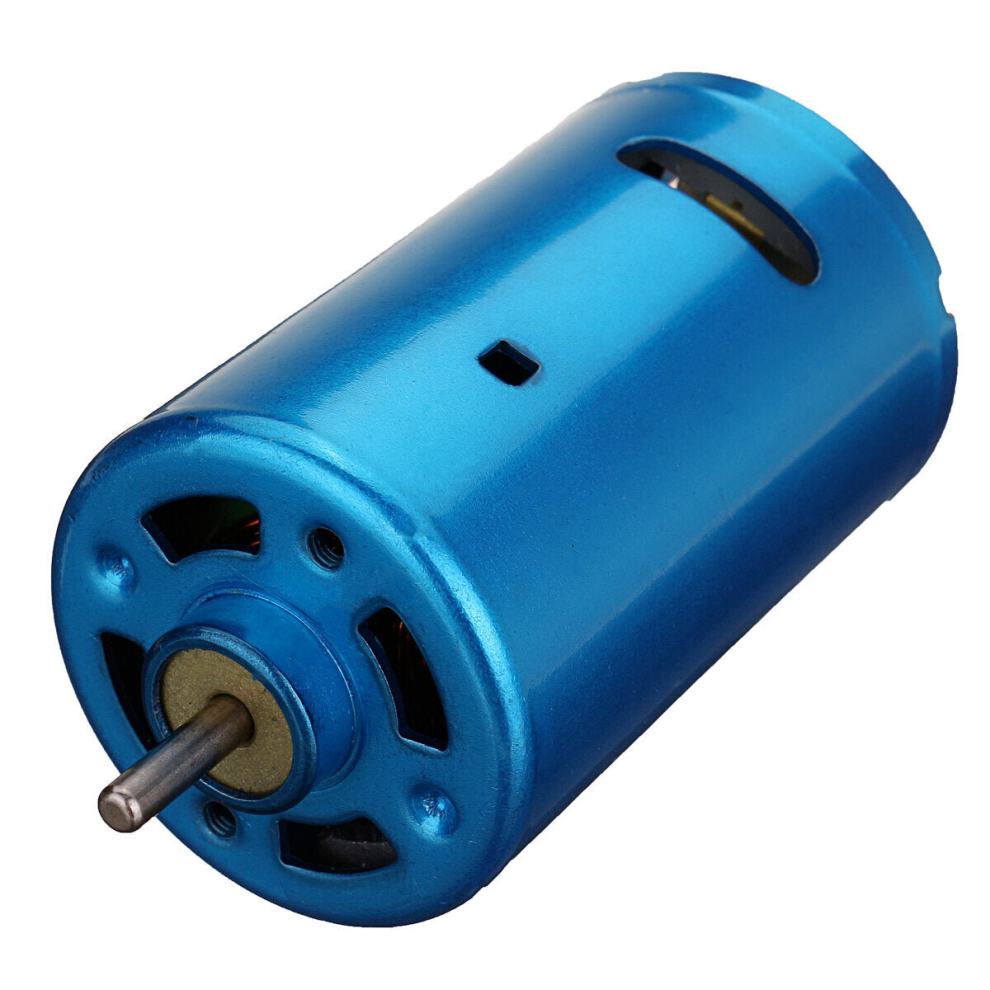

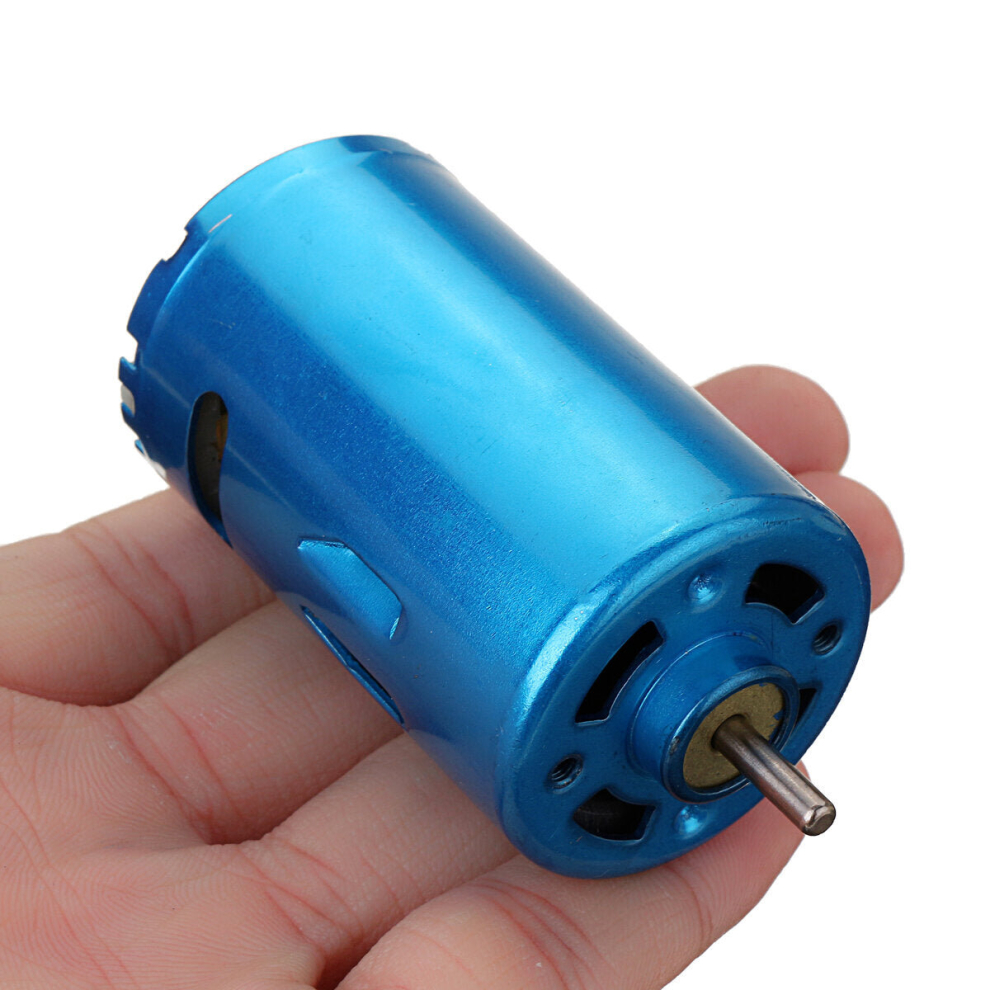

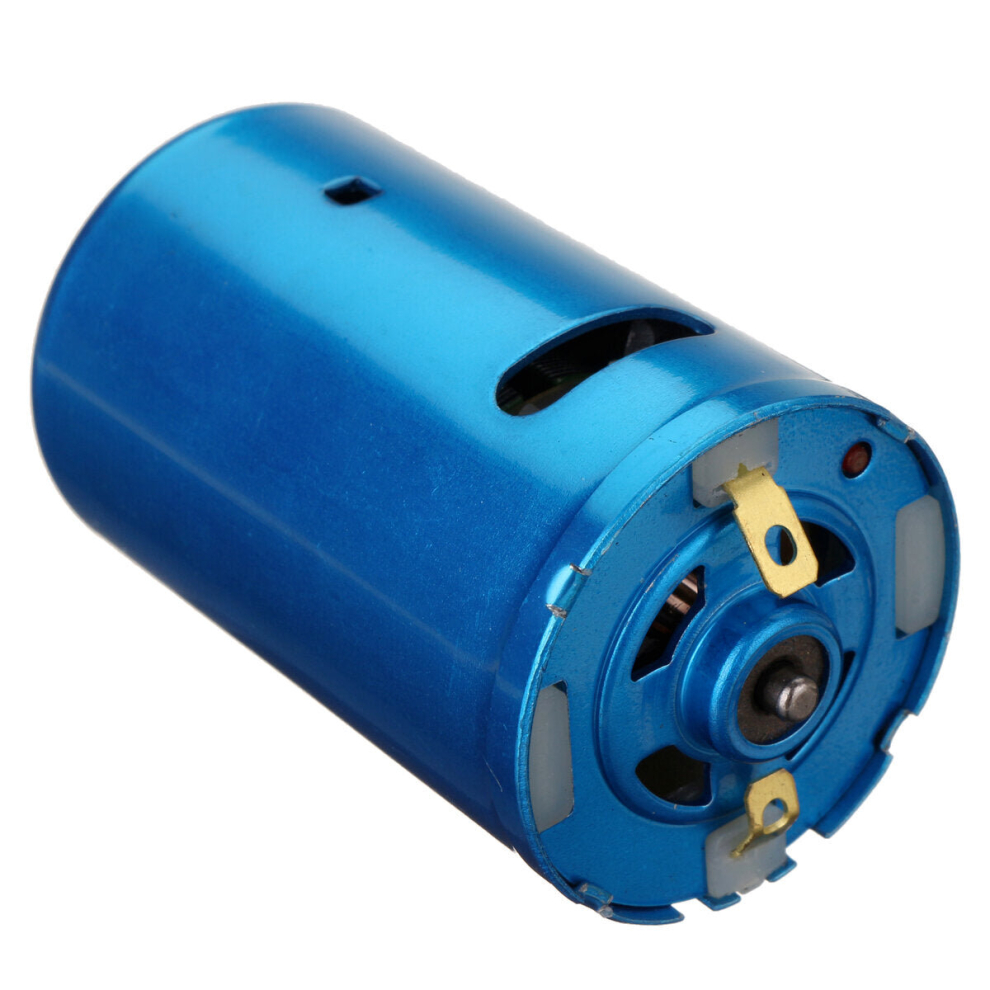

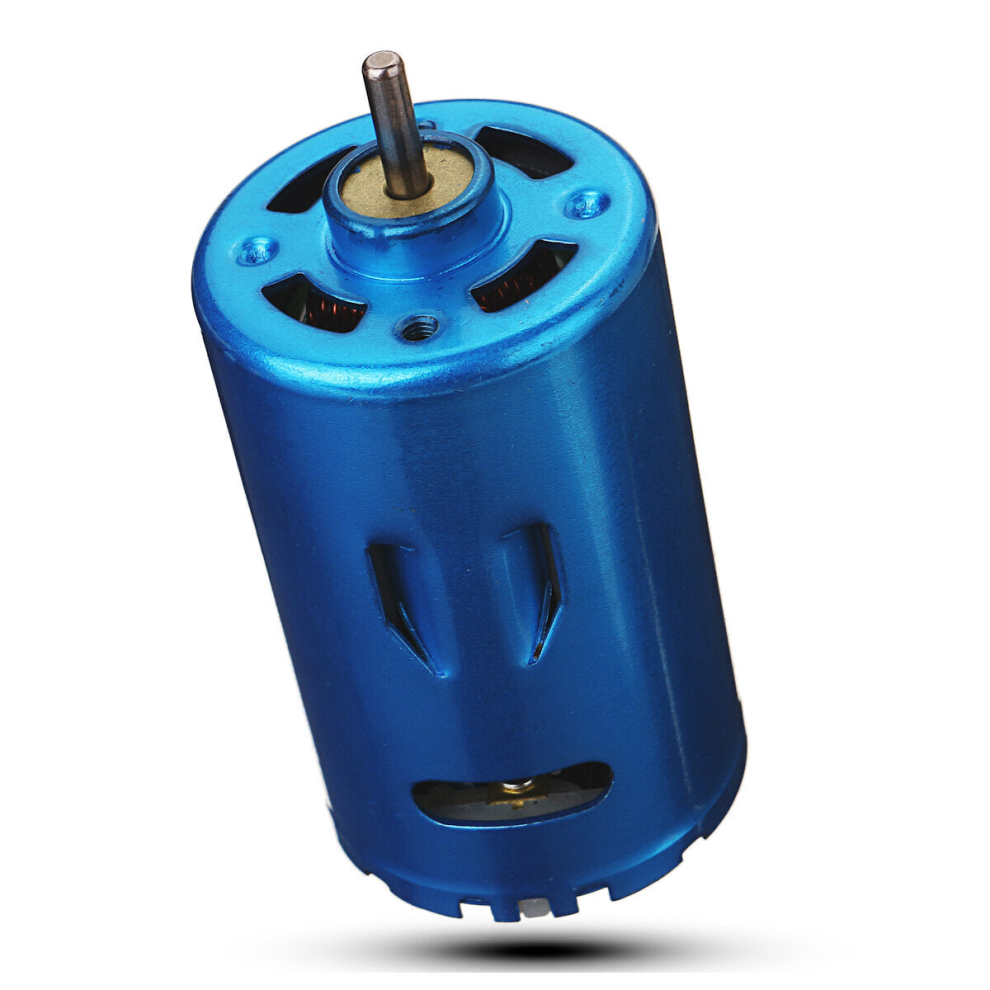

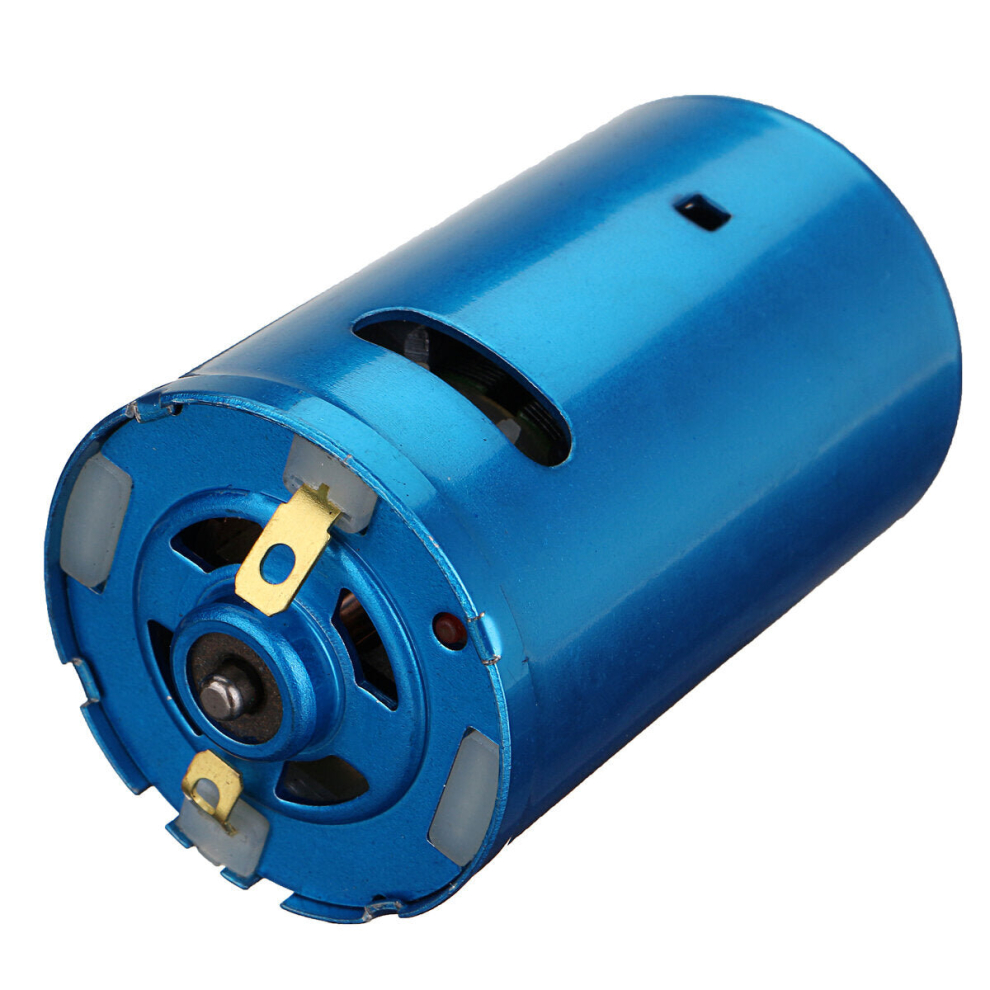

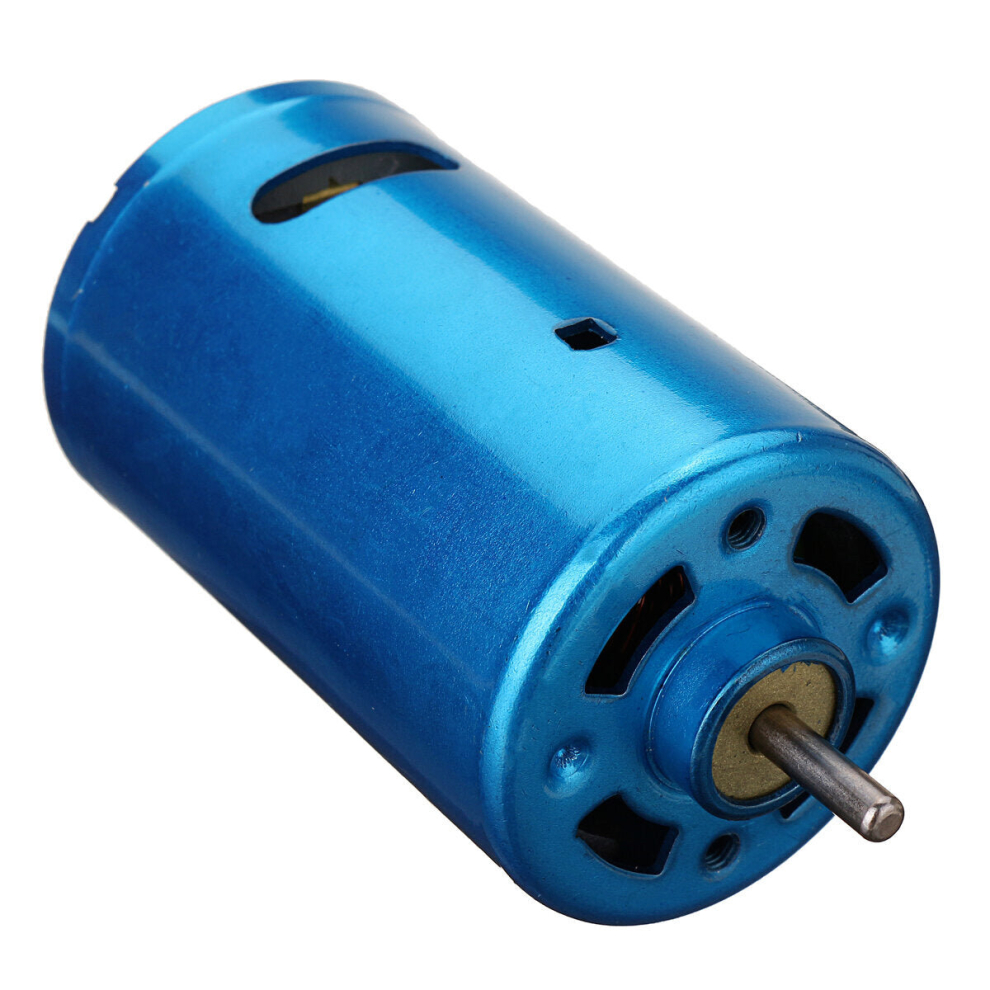

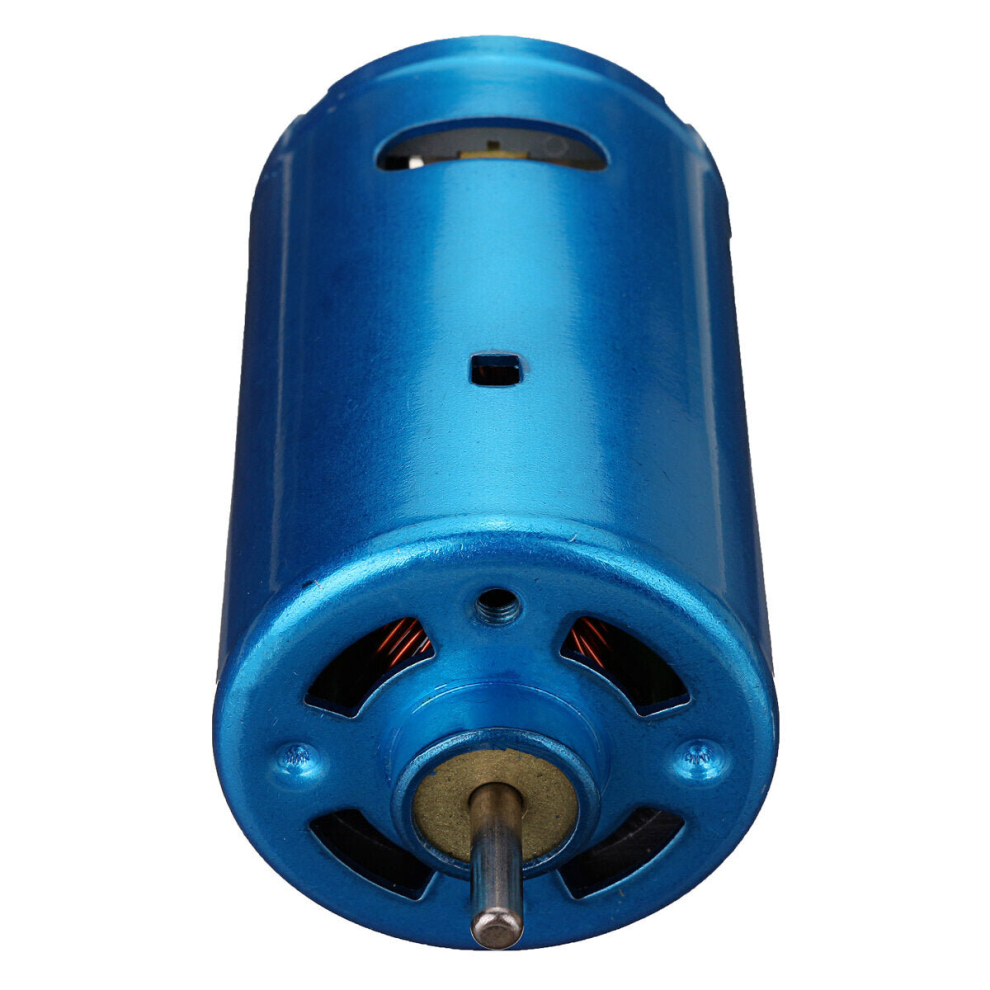

RS-550 Motor DC 6-24V High Speed Large Torque Motor

RS-550 Motor DC 6-24V High Speed Large Torque Motor Description

Description:
RS-550 Motor DC 6-24V High Speed Large Torque RS-550 Motor.

Specifications:
Voltage range: DC 6V-24V.

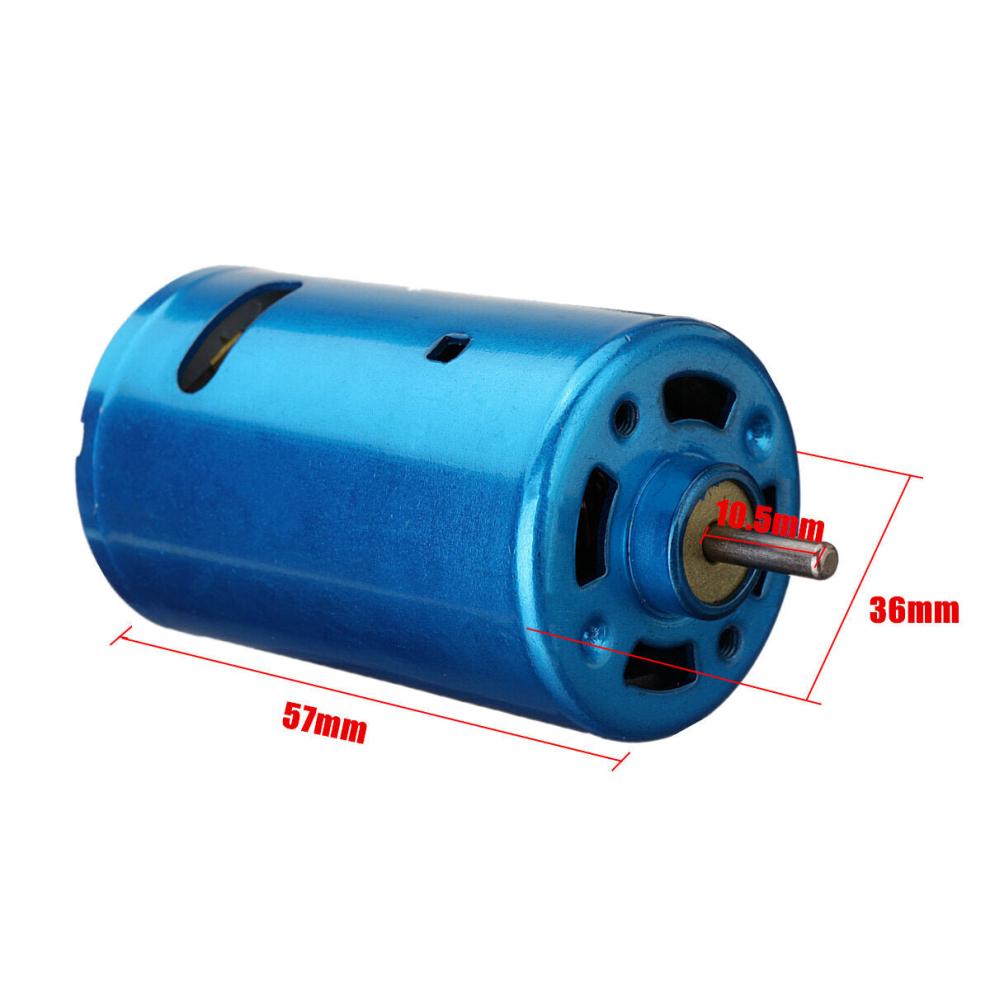

Output shaft diameter: 3.17mm (Round shaft).
Output shaft length: 10.5mm.
Motor diameter: 36mm.
Motor length: 57mm.
Step height: 4mm.
Screw hole diameter: M3.
Screw hole distance: 25mm.
Quantity: 1pc.
Test data:
Voltage: Current, Speed.
7.4V: 1.10A, 10000RPM.
12V: 1.27A, 15000RPM.
24V: 2.55A, 30000RPM.

Features:
- Good wear resistance and strength.
- High accuracy, hard to rust.
- Has good performances.
- High torque and low noise.
- This motor is mostly used for car model and ship model.

Application:
Replacements and give your electrical and testing equipment a new lease of life.

Package included:
1pc x RS-550 Motor.

Notice:
1. Please allow a bit error due to manual measurement. please make sure you do not mind before you bid.
2. The color may have different as the difference display, pls understand.
