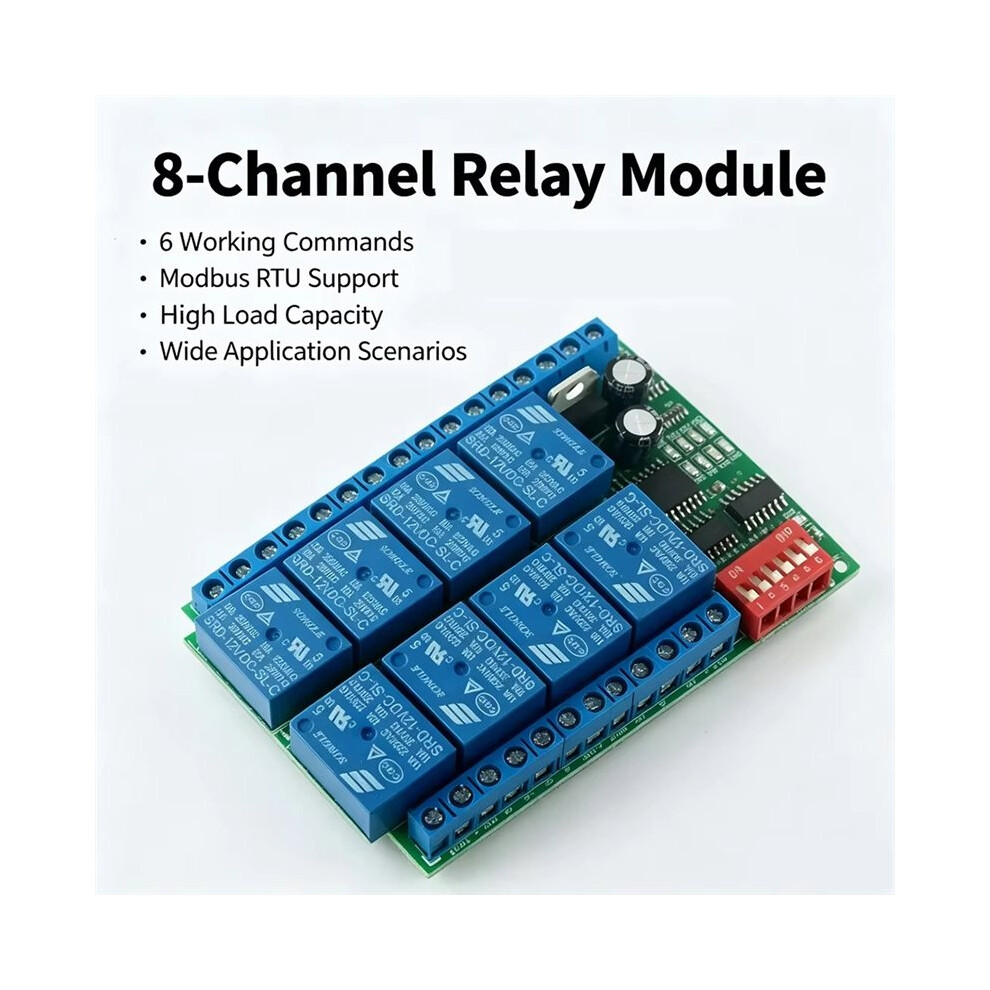

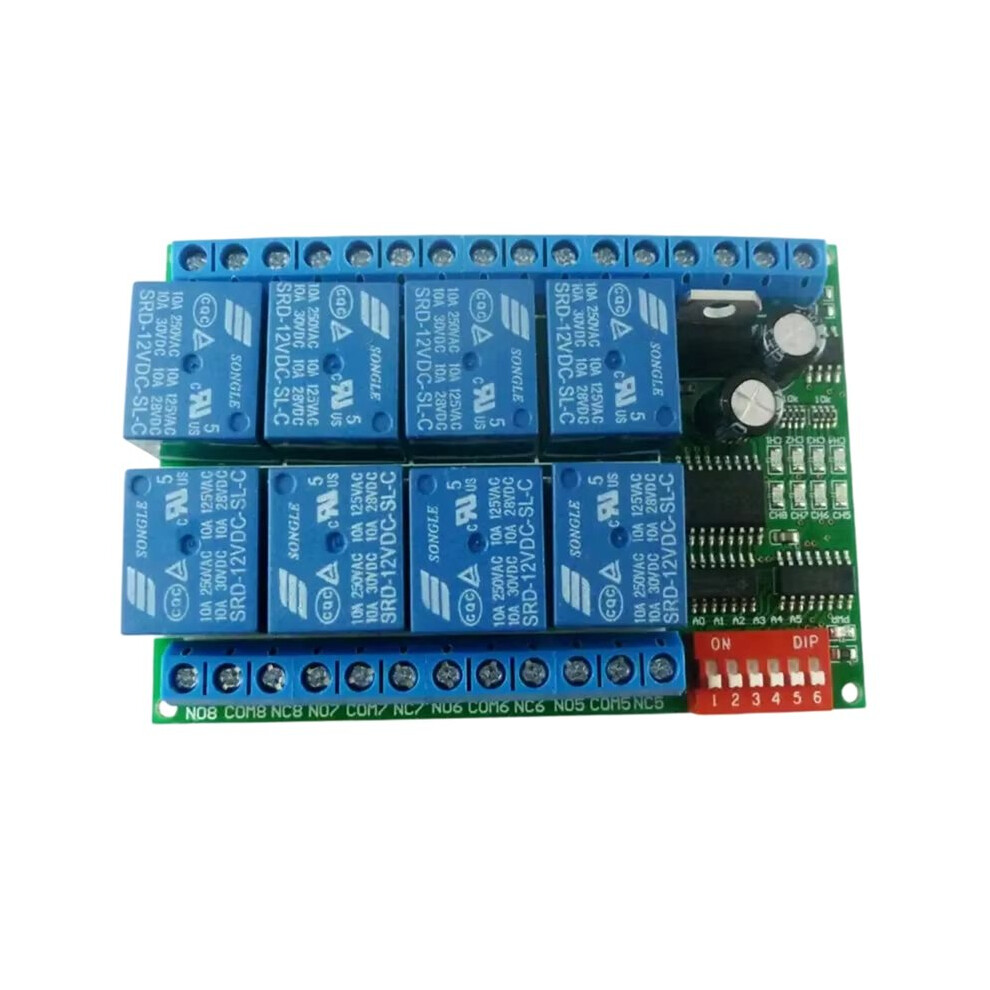

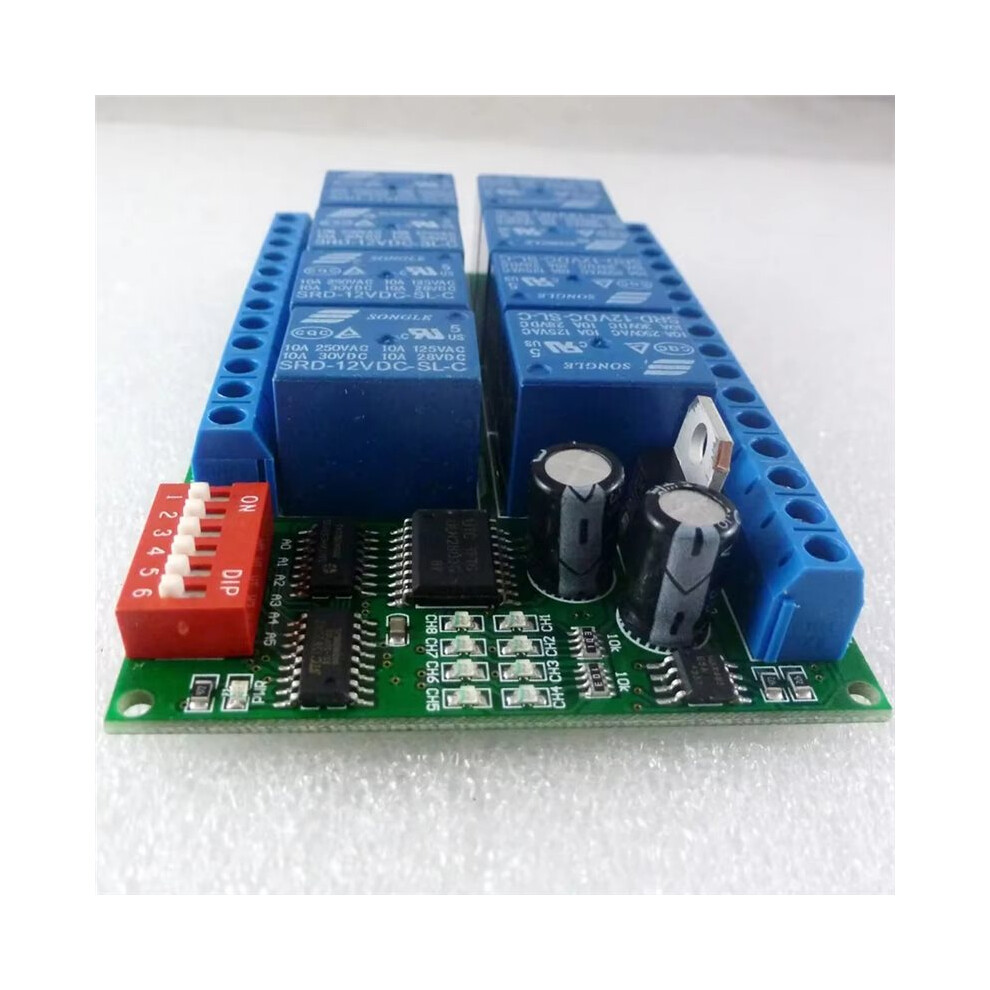

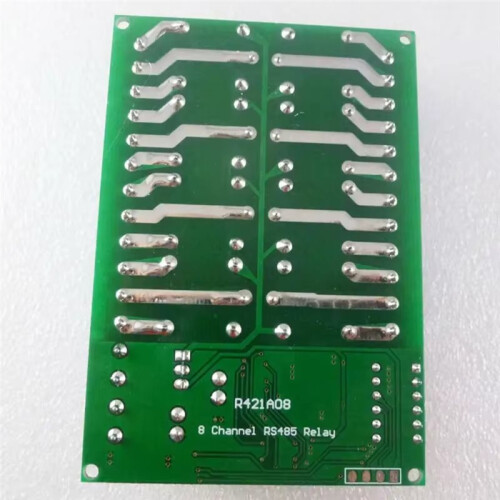

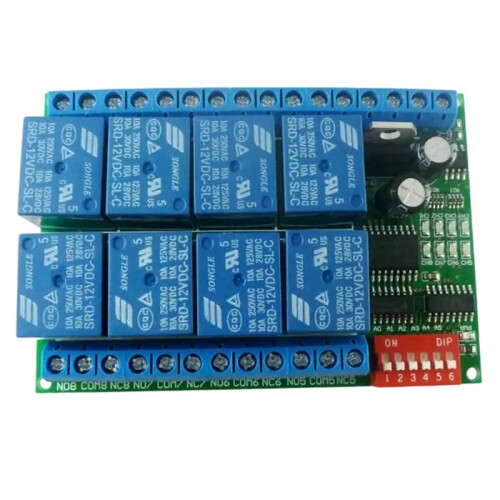

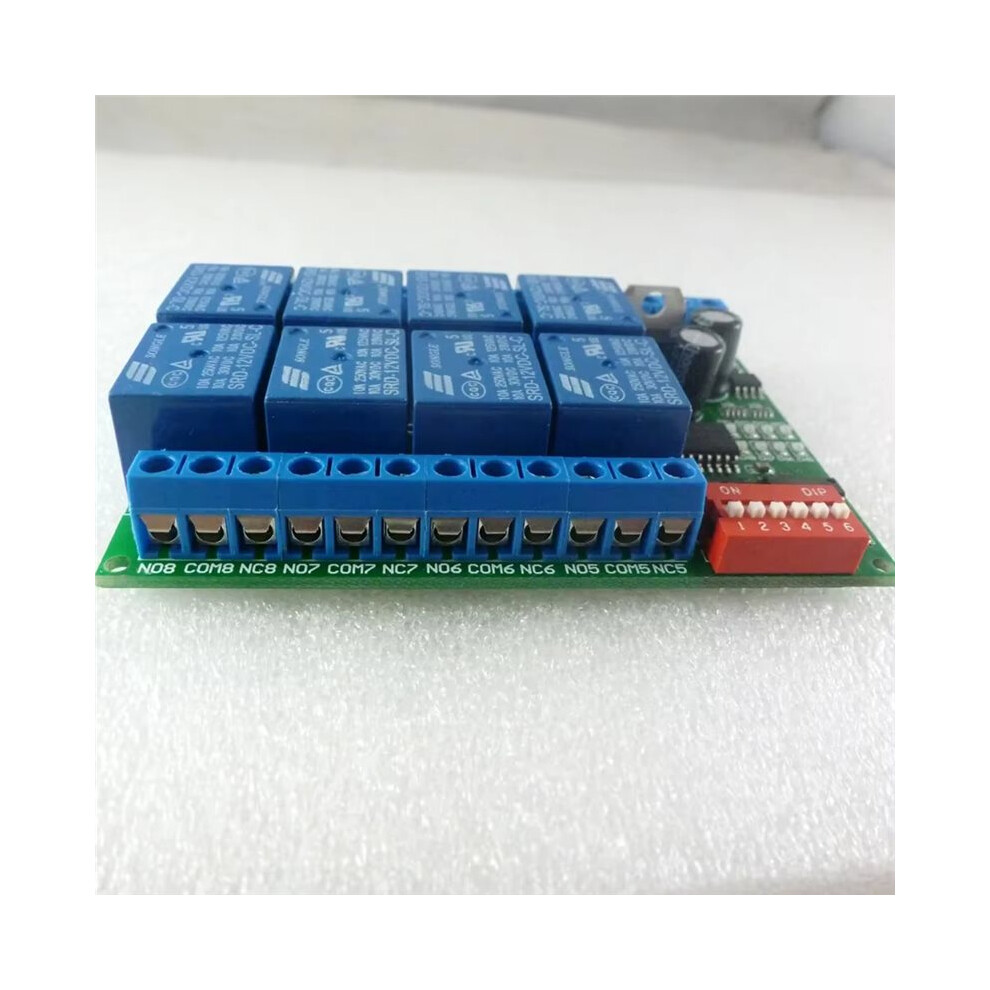

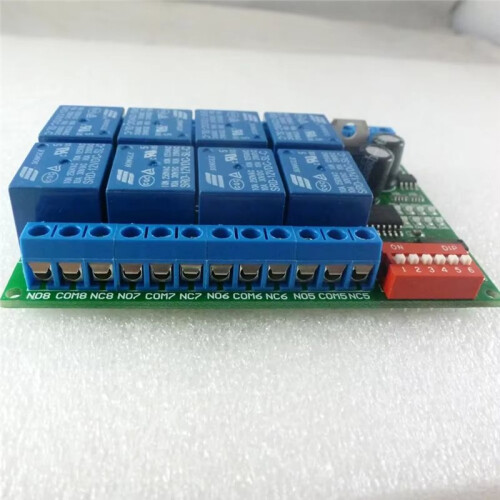

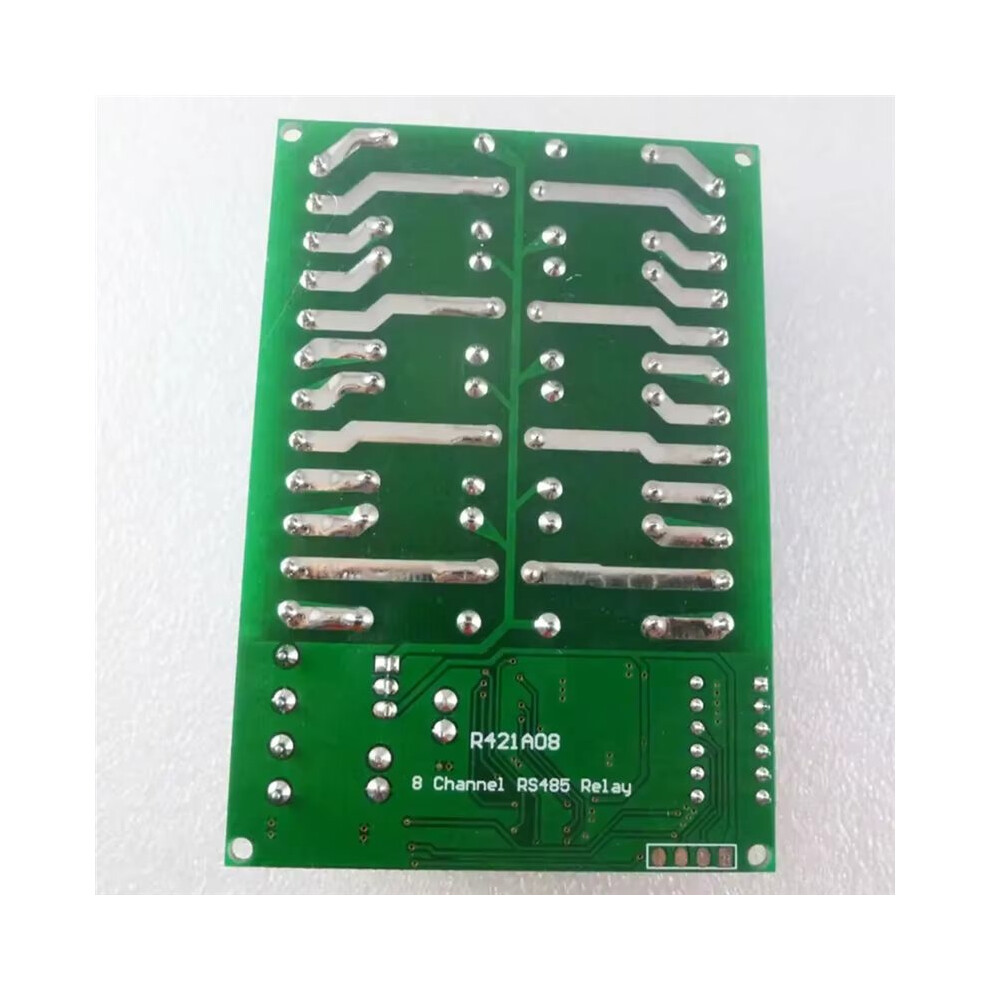

RS485 8-Channel 12V Relay Module - Modbus RTU Protocol Serial Remote Control / PLC Control Board

RS485 8-Channel 12V Relay Module - Modbus RTU Protocol Serial Remote Control / PLC Control Board Description

1: 12V power supply (voltage range 9-13V )



2: Standby current (all relays closed) 12MA, 1 relay open 40MA, 2 relays open 67MA, 3 relays open 95MA,4 relays open 121MA,5 relays open 147MA,6 relays open 173MA, 7 relays open 198MA,8 relays open 223MA

3: ''open'' ''close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' 6 Commands

4: MODBUS RTU command

5: Under the ''Delay'' command ,the maximum delay is 255 seconds

6 MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll'' Enter.

7 Under the MODBUS command mode, it can support to 64 devices in parallel

8 Size: 90 * 62 * 19.5mm

9 Weight: 115 g

10 Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC

For more information, please contact me

Application

Automated industry PLC

Home,Home Automation ,Wiser Home;

PTC Camera

Security Monitoring
Identification system;

Motor FW & BW
Color: Green
Material: PCB

Package Contents:
1*8CH Relay Module Modbus
