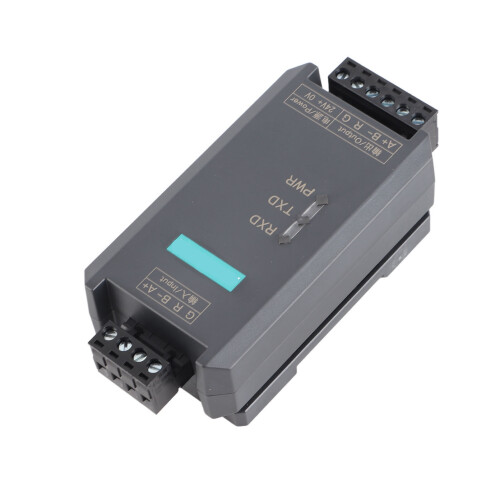

RS485 Repeater Signal Amplifier, Extends 1200m, DIN Rail Mount
Similar Products we think you'll like
Would you like us to let you know when it's back?
Summary
- Designed for industrial automation communication, it is used to extend the distance of RS485 communication equipment in complex and harsh industrial scenes.
- 1 way RS485 to 1 way RS485, asynchronous half‑duplex, two‑way communication, data transmission is completely transparent.
- Built‑in DC‑DC power isolation module, isolation voltage 1500V.
- The optocoupler isolates the RS485 master‑slave network to assure that the data communication is not affected by the ground loop and the common mode voltage difference.
- Increase the original communication distance by 1200m (at 9600bps).
RS485 Repeater Signal Amplifier, Extends 1200m, DIN Rail Mount Description
Professional RS485 to RS485 Repeater Signal Repeater Amplifier Distance Extender
Condition:
Item Type: RS485 Repeater
Material: Plastic
Model: RS485 repeater
Interface Standard: RS485 terminal block compatible with EIA/TIA
Baud Rate: 0~115200bps (adaptive)
Communication Protocol: Not restricted by software protocol
Communication Distance: Only one repeater is used to extend 1200 (at 9600bps)
Cascade: RS485 interface supports a maximum of 32 nodes (the distance between nodes must be 10m)
Static Power Consumption: 0.6W
Working Temperature: -20~+70
Storage Temperature: -40~+85
Relative Humidity: 5%~95%
Transmission Medium: Twisted pair or shielded wire
Installation Method: 35mmDIN rail
Application Scenario: RS485 to RS485 repeater is suitable for: industrial automation, power acquisition, security monitoring, building intercom, high-speed toll collection, card access control, PLC, parking lot system, and other scenarios that need to extend the communication distance under the 485 bus protocol.
Size: As Shown in the Pictures
Details
| OPC | PSG282Q |
|---|---|
| Codes | 7901388324784 (EAN) |
