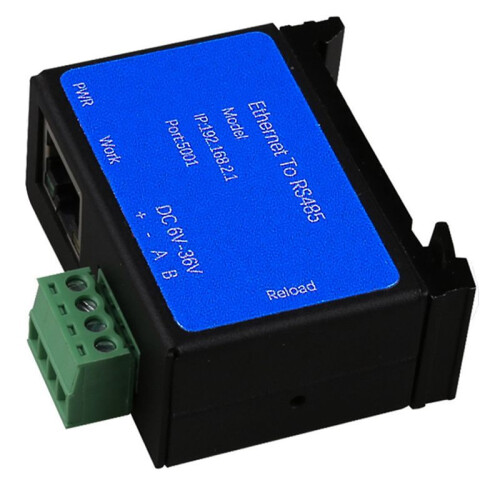

RS485 to Ethernet Serial Port Server Modbus TCP/IP 600bps-921600bps Industrial IoT Communication Server

RS485 to Ethernet Serial Port Server Modbus TCP/IP 600bps-921600bps Industrial IoT Communication Server Description

ARM Cortex-M4 CPU, stable and reliable
Adaptive 10/100Mbps network port, supports TCP server, TCP client, UDP, UDP multicast, Modbus TCP/IP server, Modbus TCP/IP client working mode
Built-in web page, parameter setting through the web page
Equipped with virtual serial port setting software (VCOM)
Supports custom registration package, supports Reload button, hardware can restore factory settings

Network standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Network transmission rate: 10/100Mbps (full duplex/half duplex)
Interface: RS485
UART working mode: TCP server, TCP client, UDP, UDP multicast, Modbus TCP/IP server, Modbus TCP/IP client
Baud rate: 600bps-921600bps
Data bit: 8.9
Check mode: no check/odd check/even check
Stop bit: 0.5,1,1.5,2
Indicator: power, Link/act
Power supply: DC6V-36V
Power consumption: Less than 0.6W
Working temperature: -10-60
Storage temperature: -20-70
Colour:As Shown
Material:ABS

Package Contents:
1 x RS485 to Ethernet Converter

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
