RTL8720DN Dual-Band WiFi Bluetooth Module NICEMCU, Unwelded

RTL8720DN Dual-Band WiFi Bluetooth Module NICEMCU, Unwelded Description

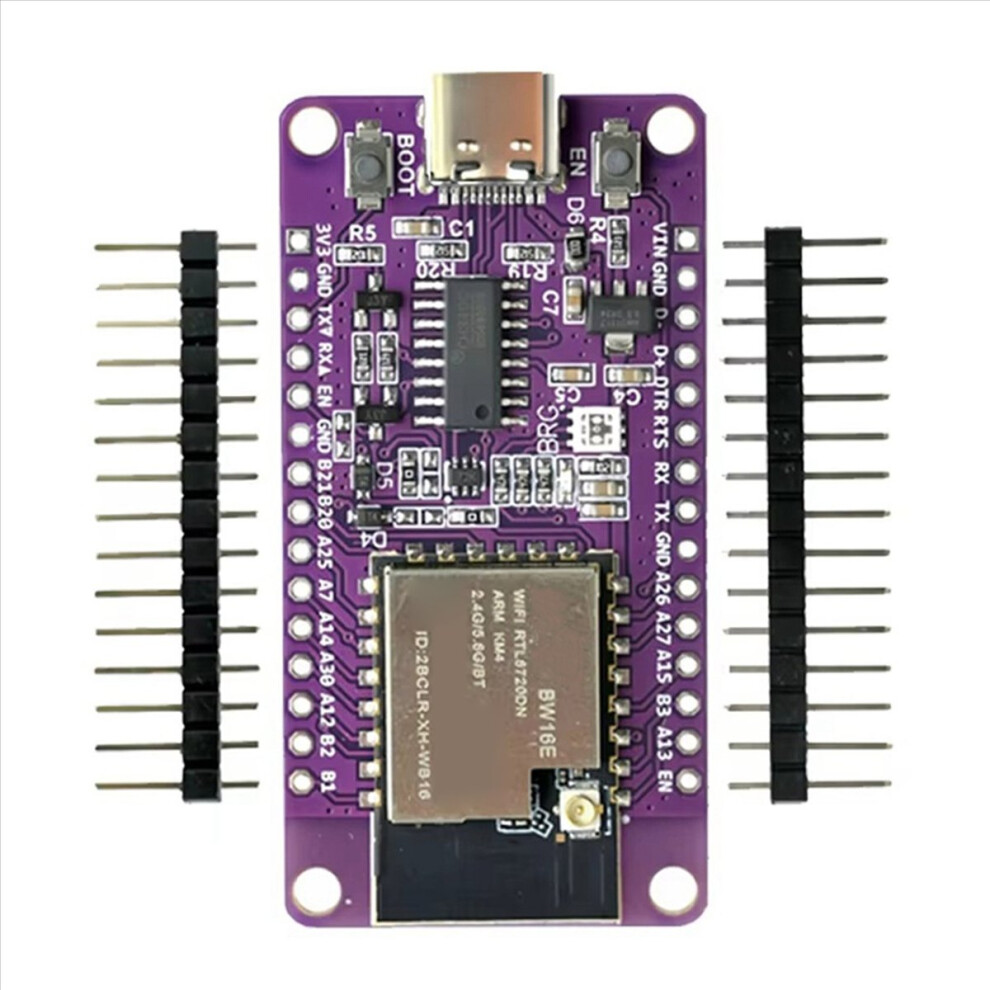

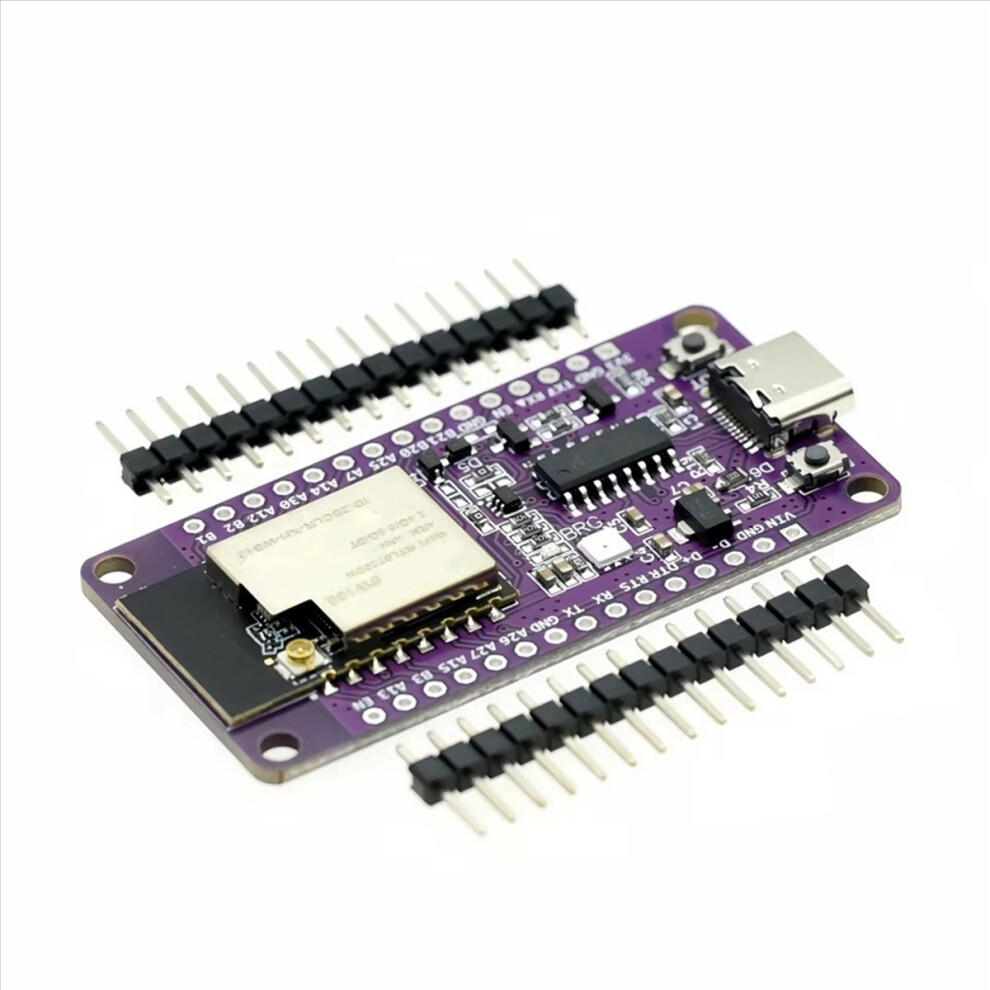

NICEMCU BW16 development board is a core development board designed for BW16 module, the development board continues the classic design of NodeMCU development board, leading to all 1/O to of pins on both sides, on-board RGB seven color lights, developers can also connect peripherals according to their own needs.
BW16 is a dual-band Wi-Fi+ Bluetooth SoC module based on RTL8720DN chip. It supports dual-band (2.4GHz or 5GHz)WLAN and Bluetooth Low Energy 5.0.
It integrates ARM V8(compatible with for -M4F) high-performance MCUS, ARM V8M(compatible with for -MO) low-power MCUS, WLAN(802.11a/b/g), , Bluetooth baseband and baseband, and also provides a set of configurable GPIO ports. For the control of different peripheral devices.

Development board model: NICEMCU BW16
Suitable for module: BW16
Encapsulation: DIP-30(2.54 pitch standard pin)
Antenna form: Onboard antenna
Spectrum range: 2400-2483.5MHz or 5180-5825MHz
WiFi: Support 802.1lavB/g
Bluetooth: BLE5.0
Working environment: -40C-85C
Storage Environment: -40C-125C,Less than 90%RH
Power supply range: Supply voltage 5V, current 500mA
Support Interface: UART/GPIO/ADC/PWM//SPI/SWD
Number of 10 ports: 15 GPlOs including (TXO/RX0 and TX1/RX1)
Security: /DES/SHA
Flash: Default 4MB
Specification:Unwelded
Colour:
Material:PCB
There may be differences in printing/appearance due to different batches, which not affect the use; there may be color differences in the actual product due to different lighting or monitors.

Package Contents:
3 x NICEMCU BW16 Development Board

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
