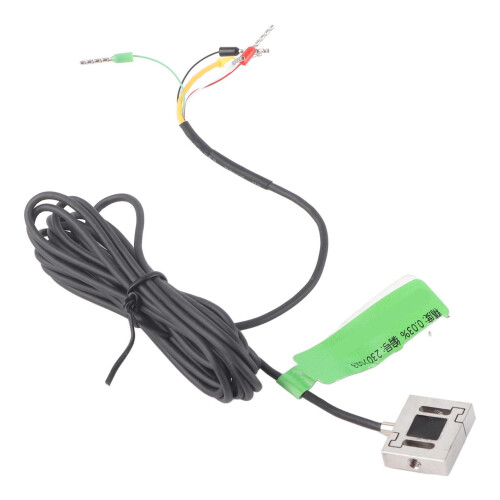

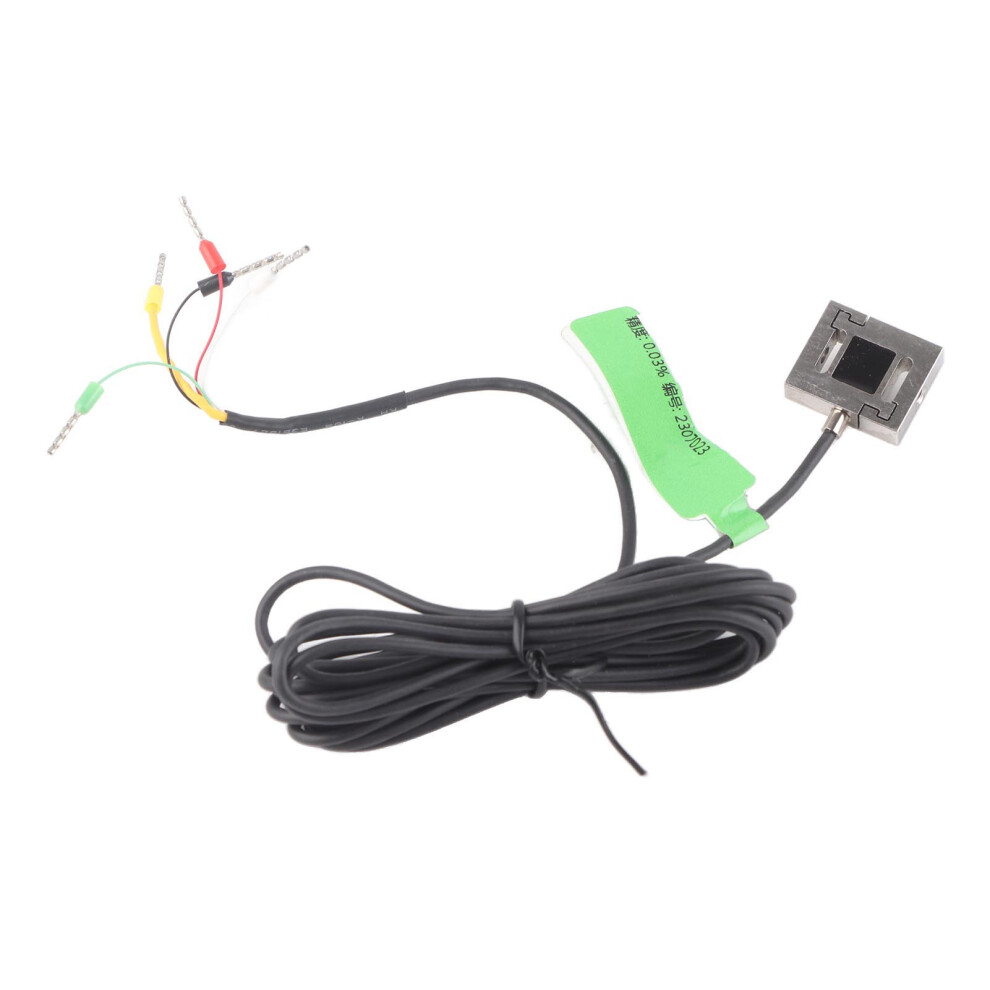

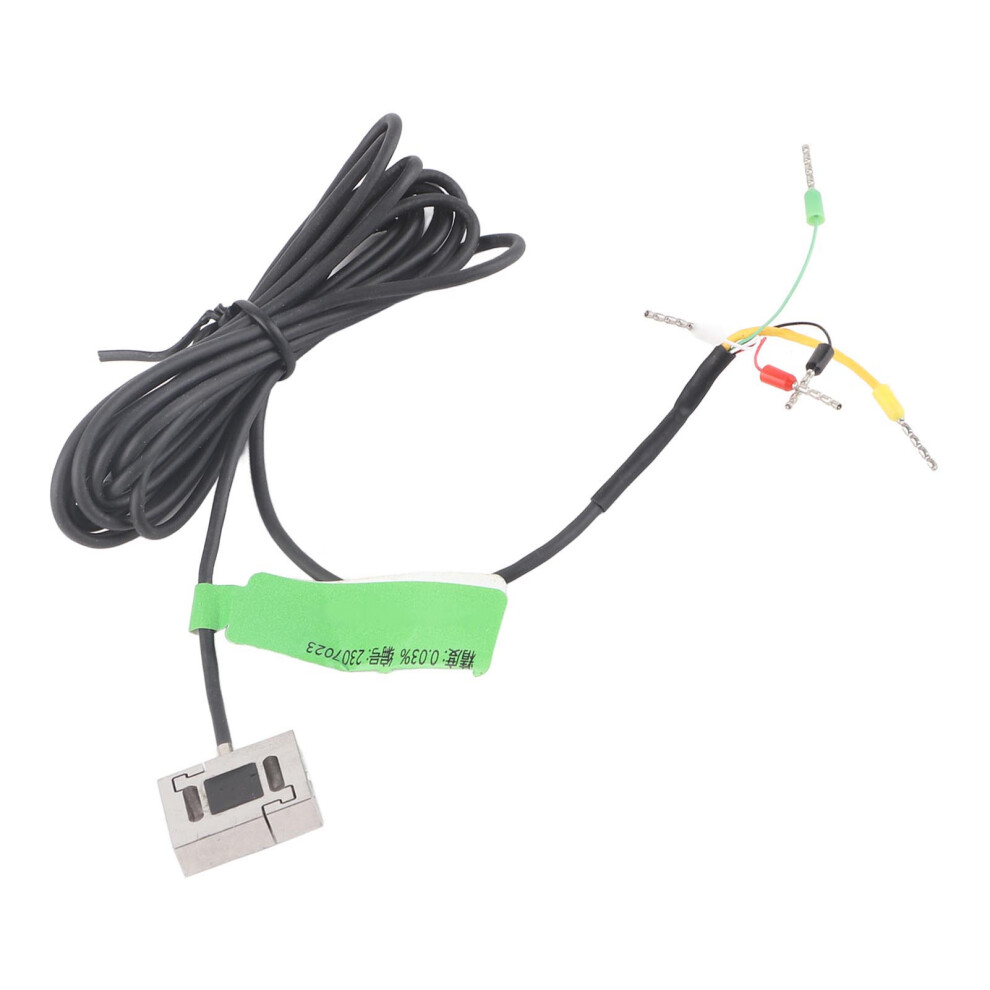

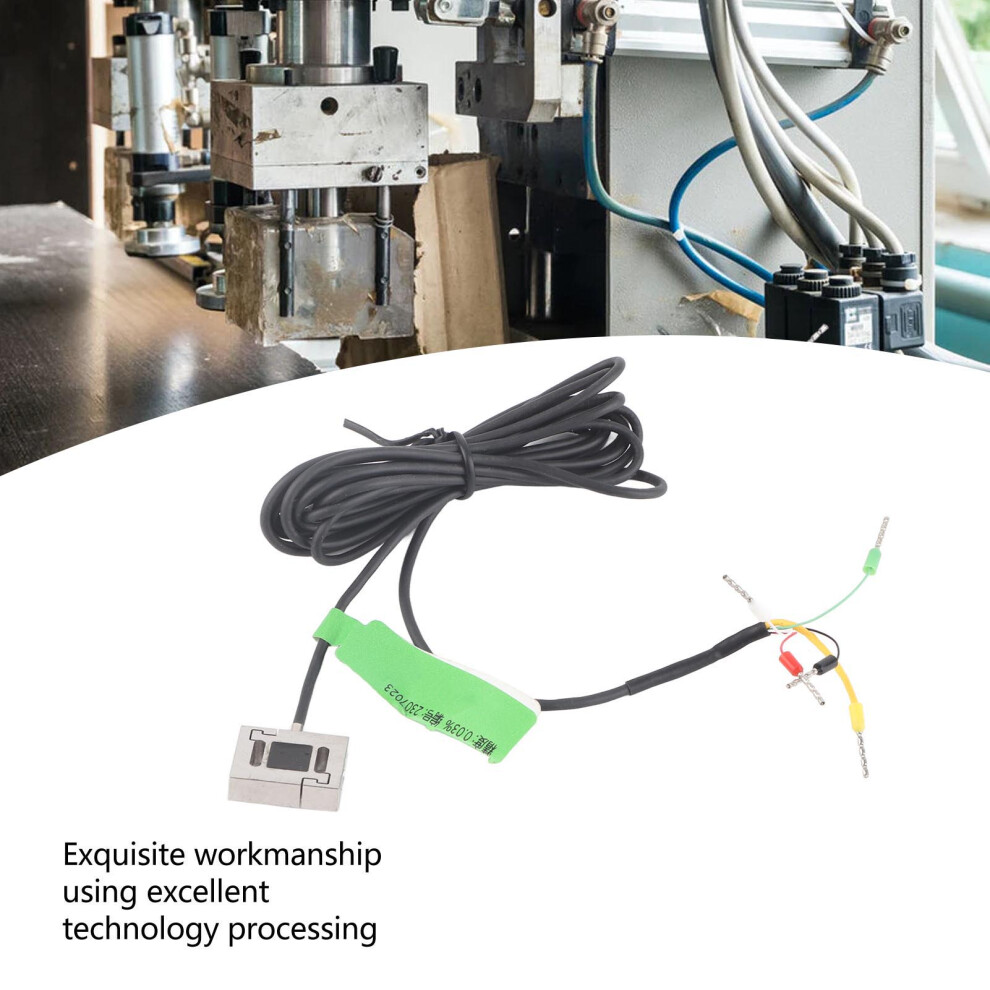

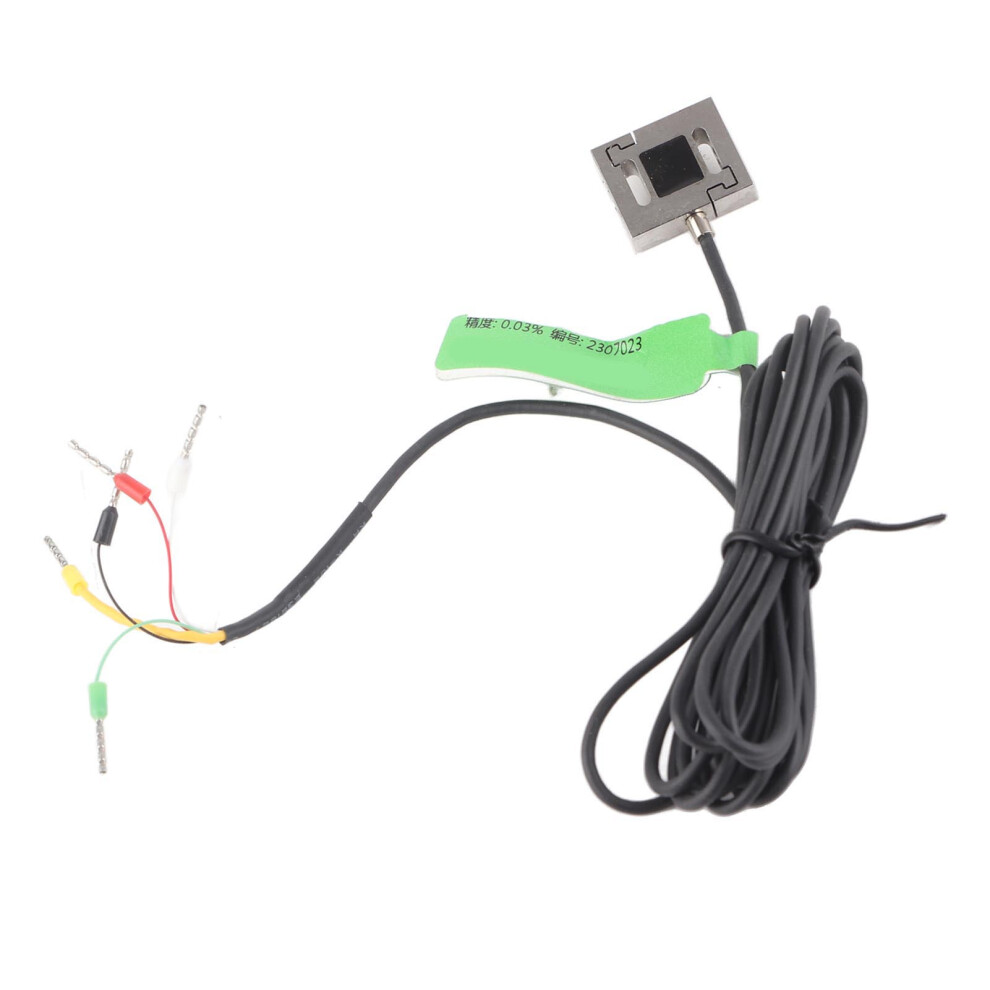

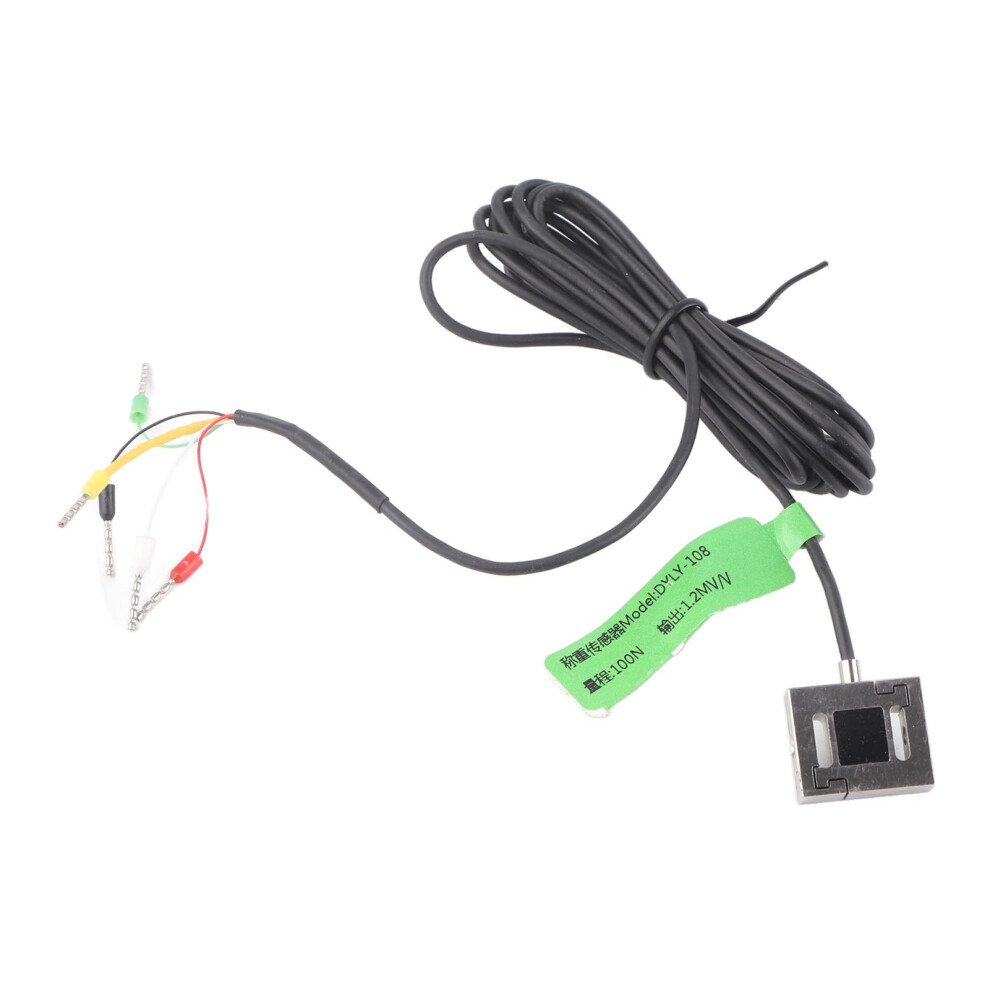

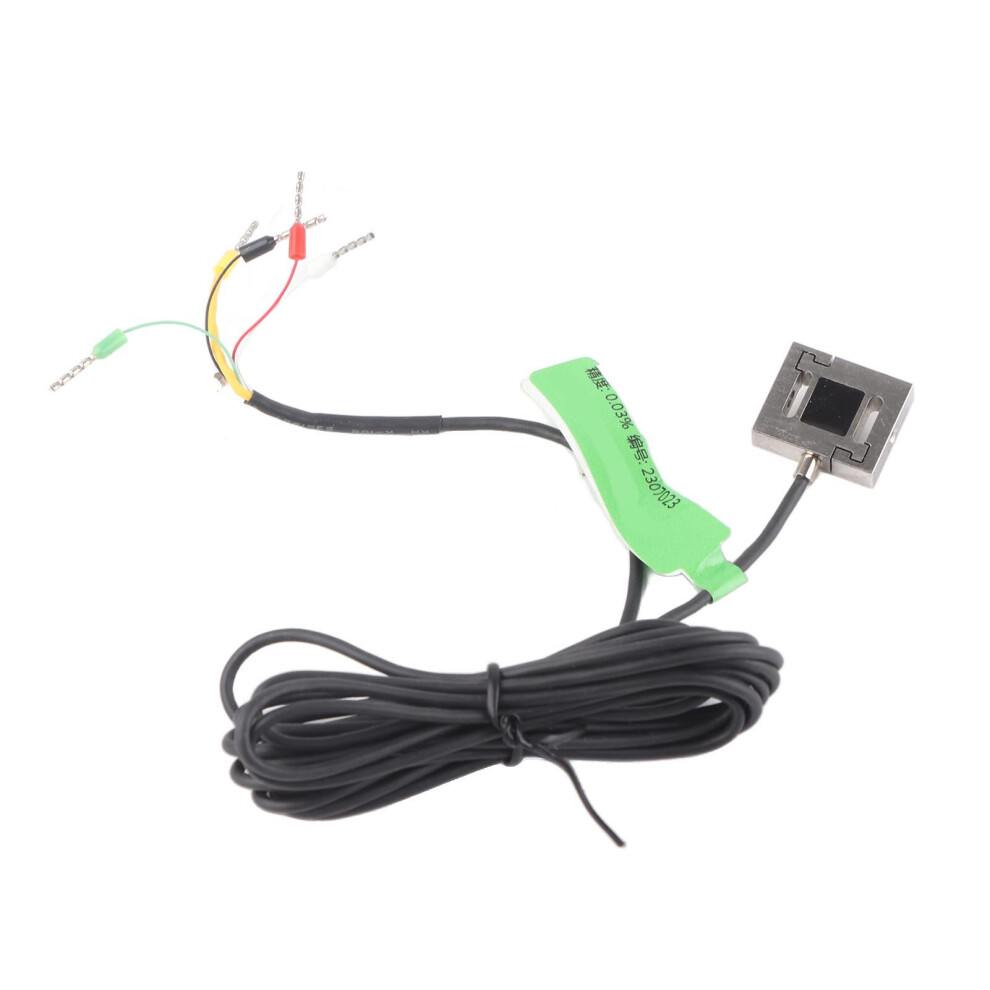

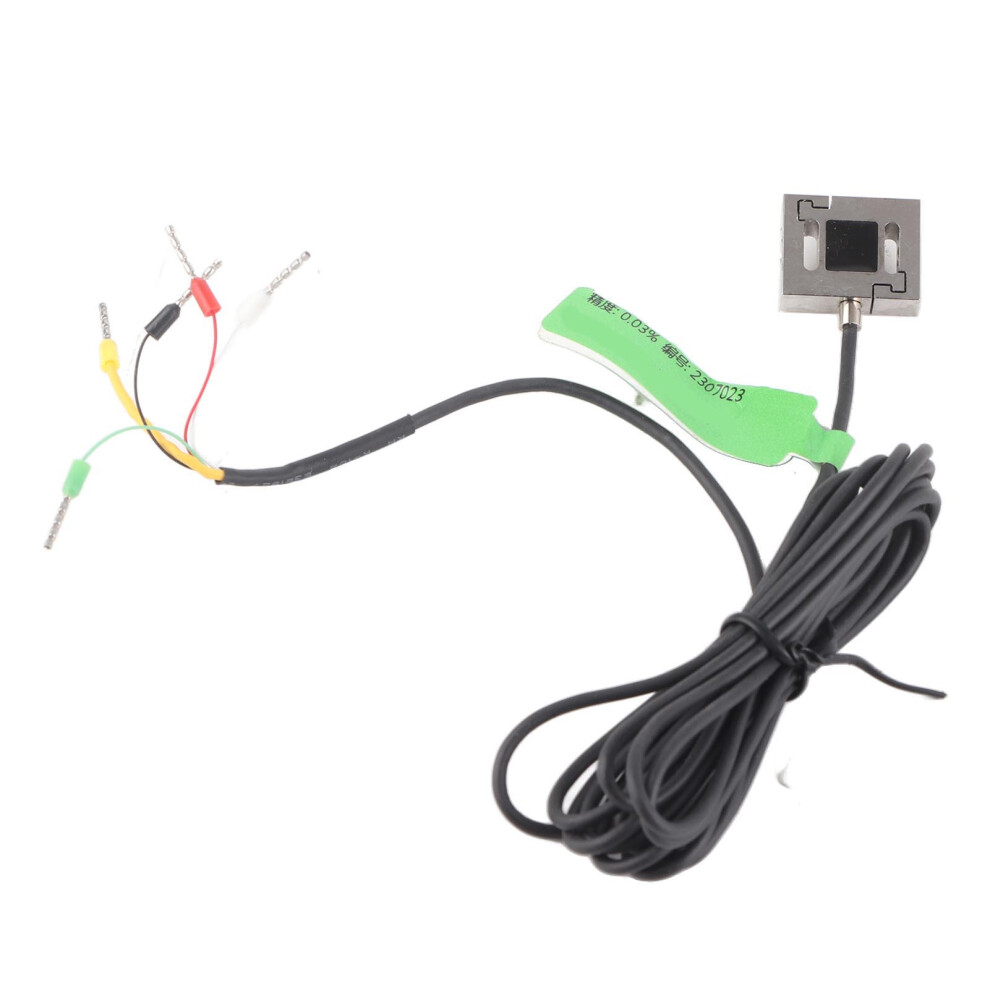

S Beam Load Cell Sensor Scale 100N Tension Compression Force Test
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 129,000 Trustpilot reviews and an 'Excellent' rating
£44.77
£67.16
33% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Wed 22nd - Fri 24th Jul
Returns: 30 days
180-day payment protection
Most Popular in Scales
Description & Details
Summary

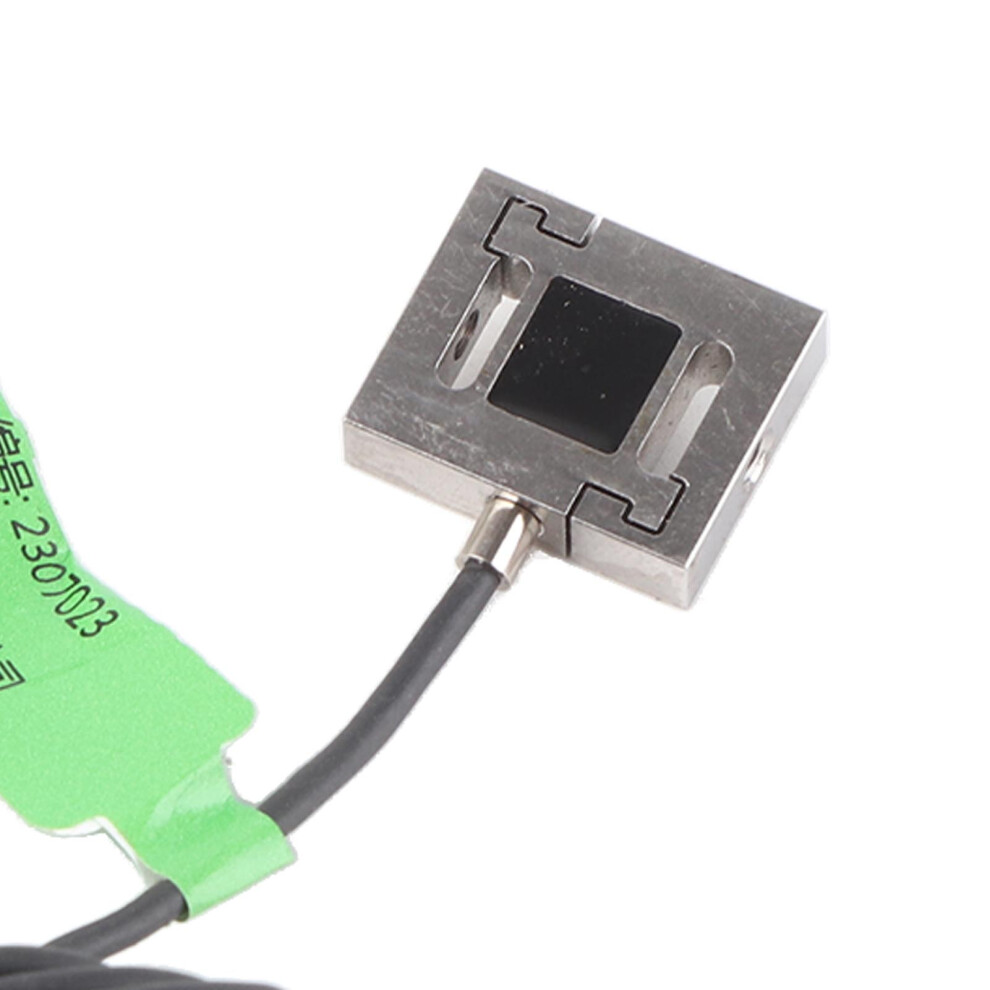

- COMPACT AND LIGHTWEIGHT: The elastomer adopt S beam structure, has a compact shape, and the screw thread design at both ends is easy to install

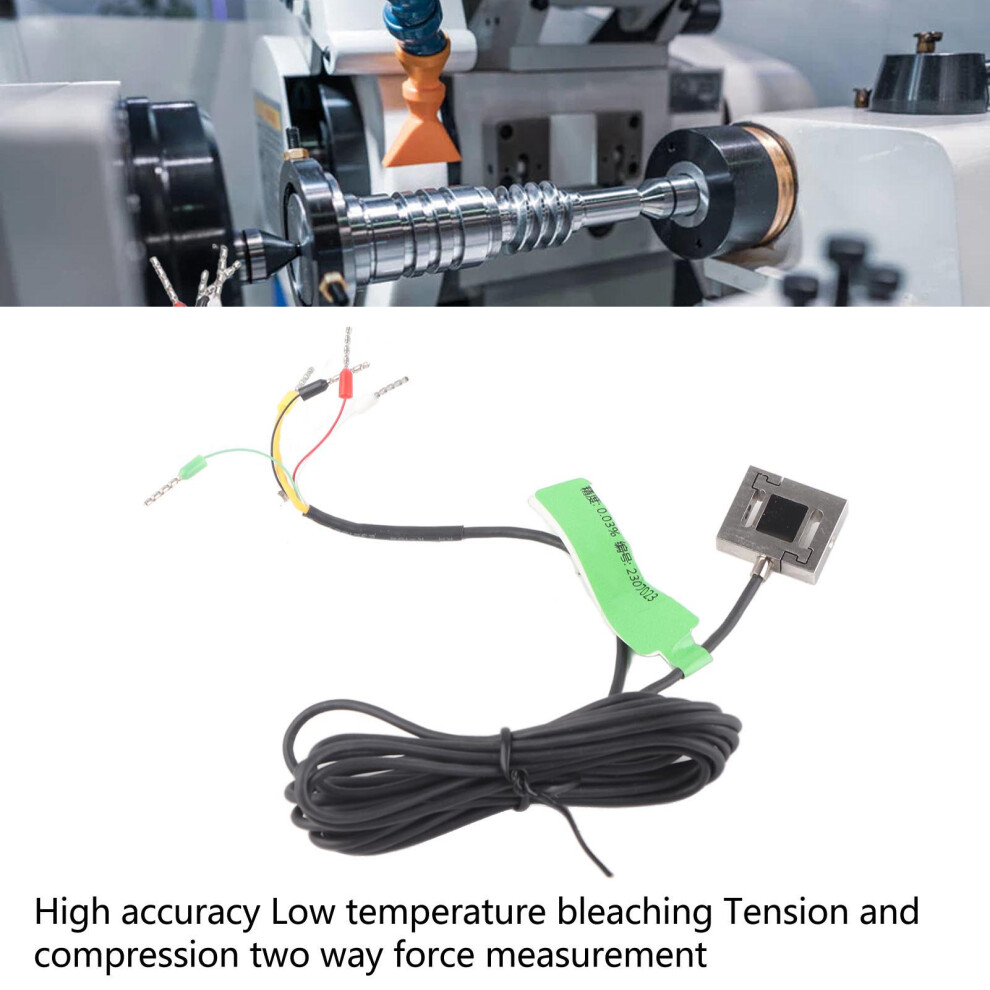

- ACCURATE MEASUREMENT: The weighing cell sensor has high accuracy to measure force in most situations

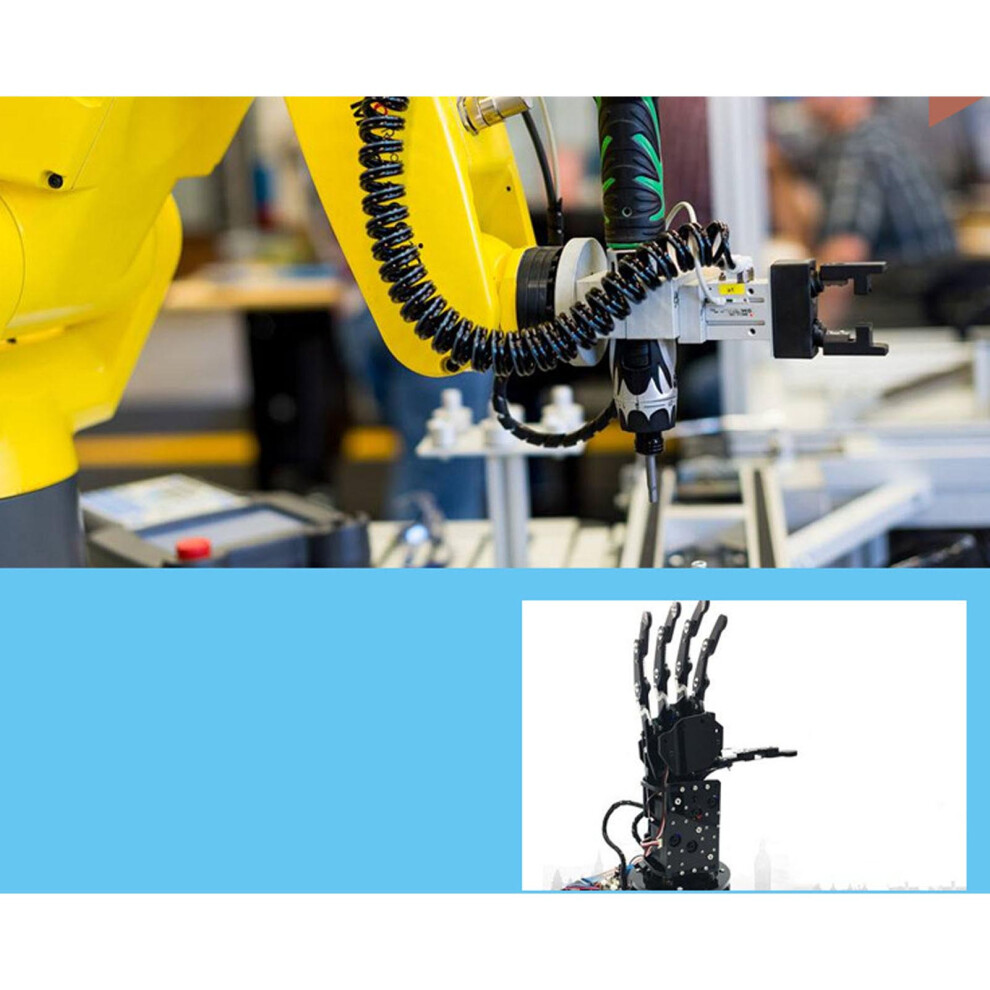

- APPLICATION FIELDS: Load cell sensor is mainly used in hand car press assembly, automatic assembly, 3C product testing, robot hand grip, keyboard feel test, etc.

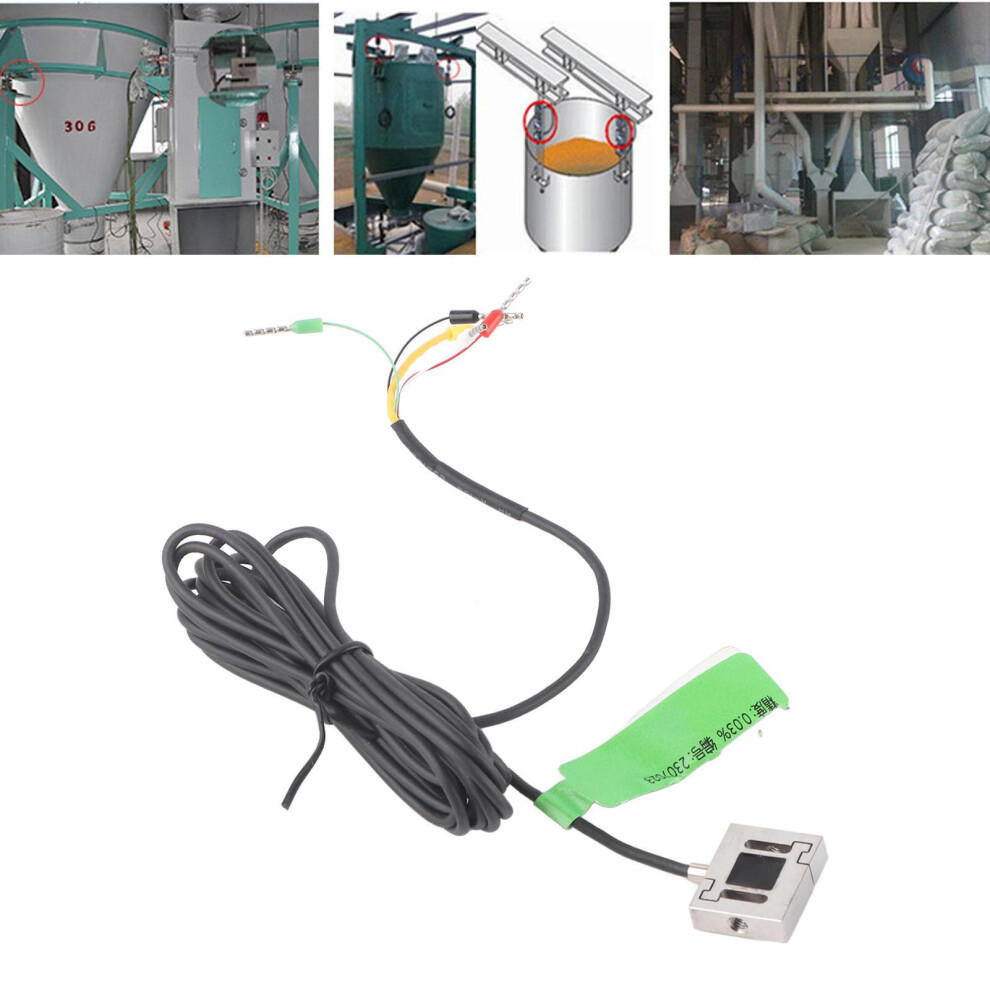

- WIDE APPLICATION: S beam load cell sensor is widely used in the measurement of force in industrial systems, mainly used in the measurement of tensile pressure and other weighing, force measurement of industrial automation measurement control system
- DURABLE MATERIAL: The load cell weighing sensor is made of excellent stainless steel, which is rust proof and corrosion resistant for more durability
S Beam Load Cell Sensor Scale 100N Tension Compression Force Test Description
S Beam Load Cell Sensor Scale Weighing Pull Pressure Compression Tension Force Test 100N
Item Type: S Beam Load Cell Sensor
Output Sensitivity: 1.0-2.0mV/V
Zero Output: 2%F.S
Nonlinearity: 0.1%F.S
Lag: 0.05%F.S
Repeatability: 0.05%F.S
Creep(30 minutes): 0.05%F.S
Temperature Sensitivity Drift: 0.05%F.S/10
Zero Temperature Drift: 0.05%F.S/10
Response Frequency: 10kHz
Material: Stainless steel
Impedance: 350Ω
Insulation Resistance: 5000MΩ/100VDC
Operating Voltage: 5-15V
Operating Temperature Range: -20-80
Safe Overload: 150%
Limit Overload: 200%

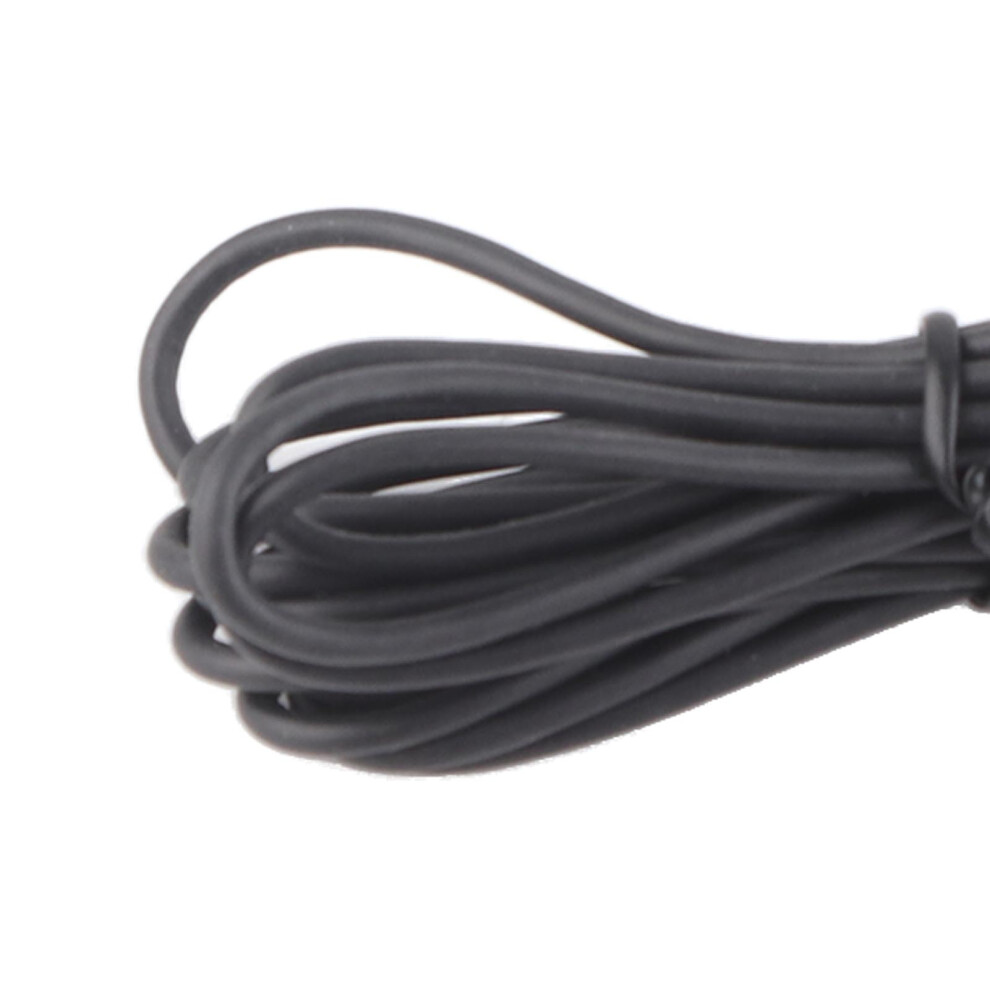

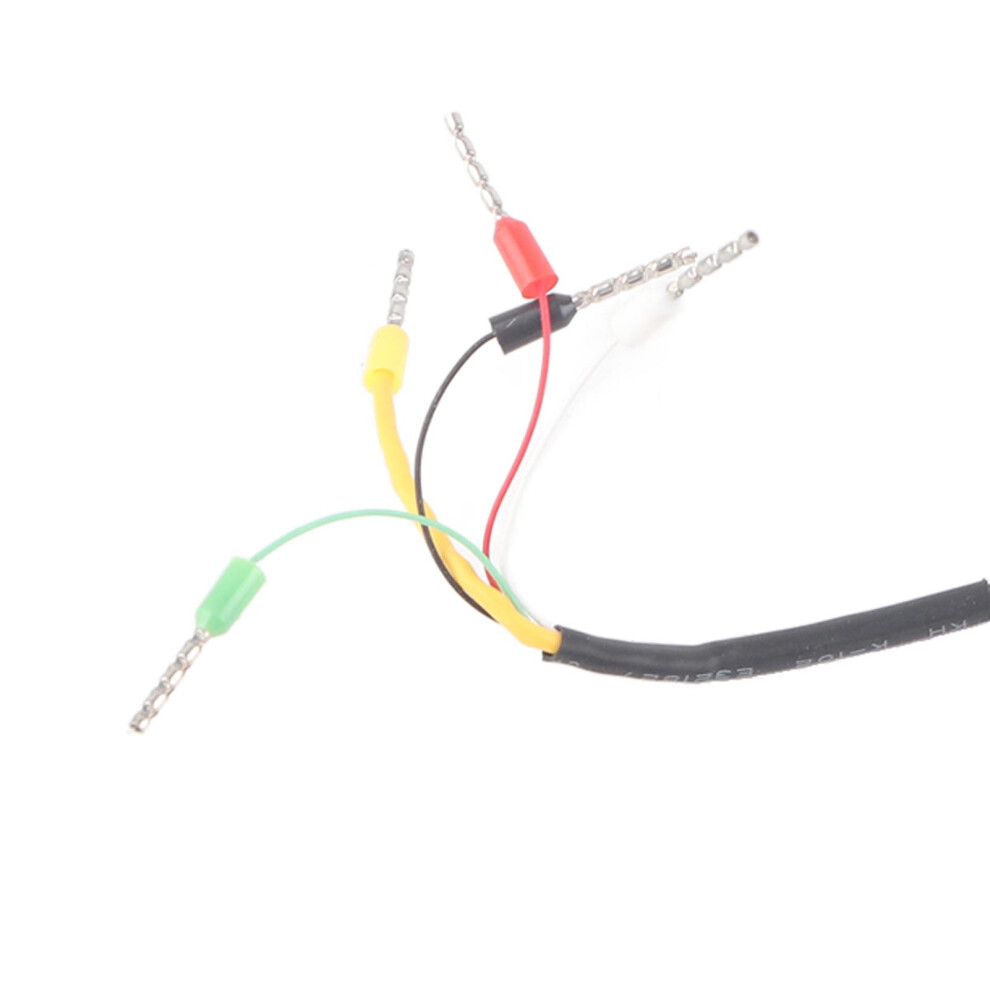

Cable Specification: <100kg: Dia2x1meter; >100kg: Dia3x2meter
Cable Tension Limit: 10kg
Details
| OPC | PPCDQ5F |
|---|---|
| Codes | 9311369817231 (EAN) |
