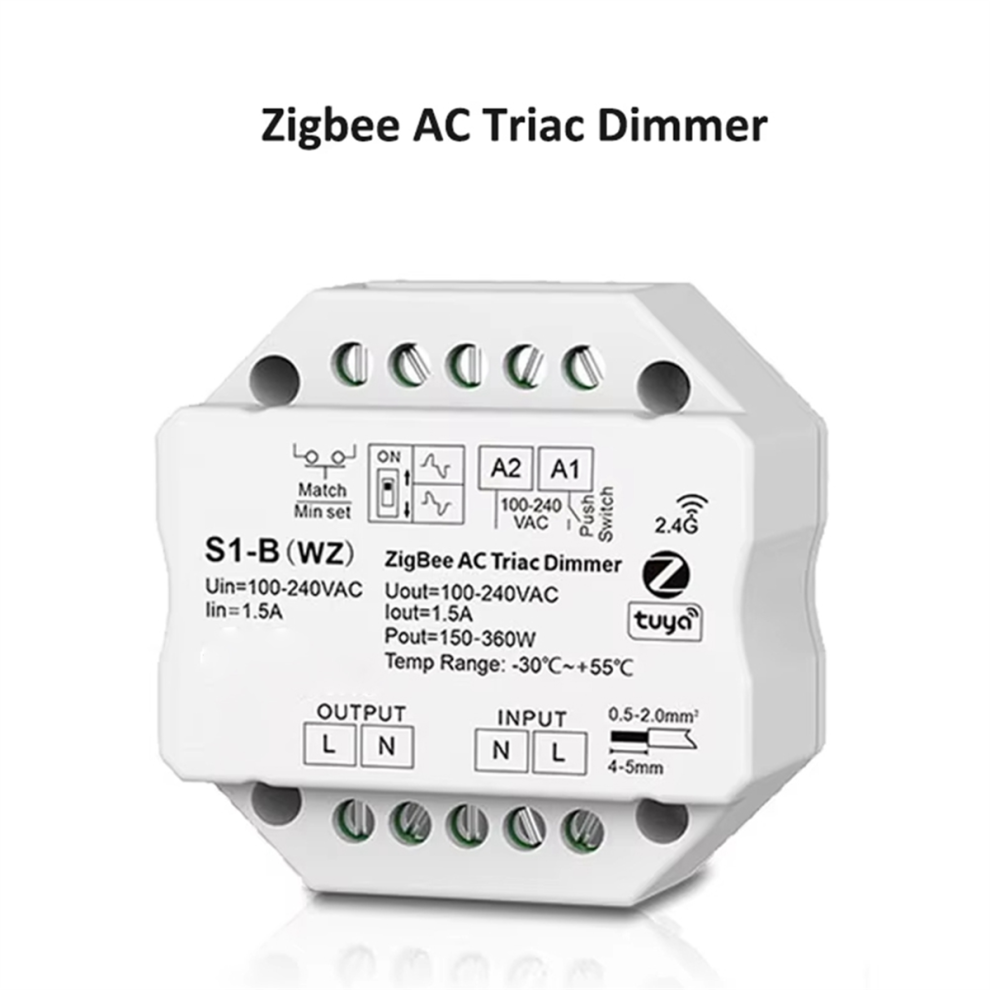

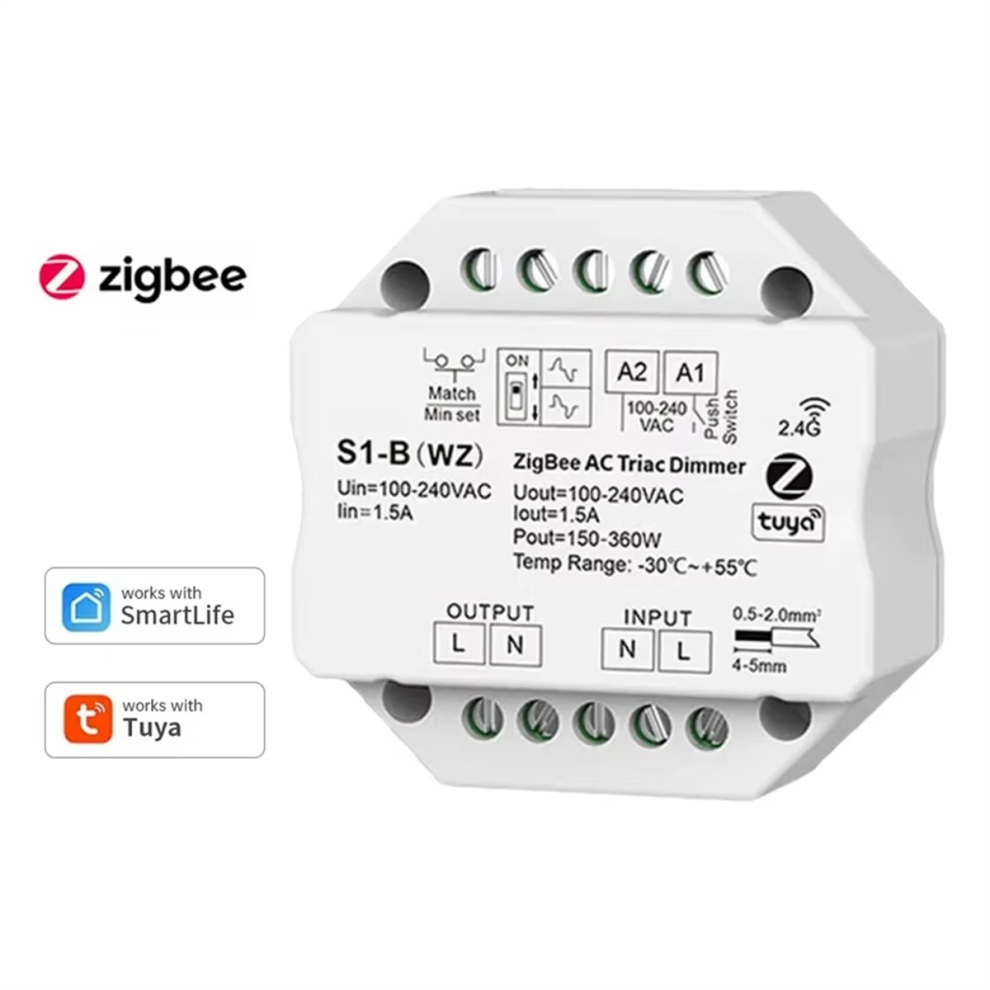

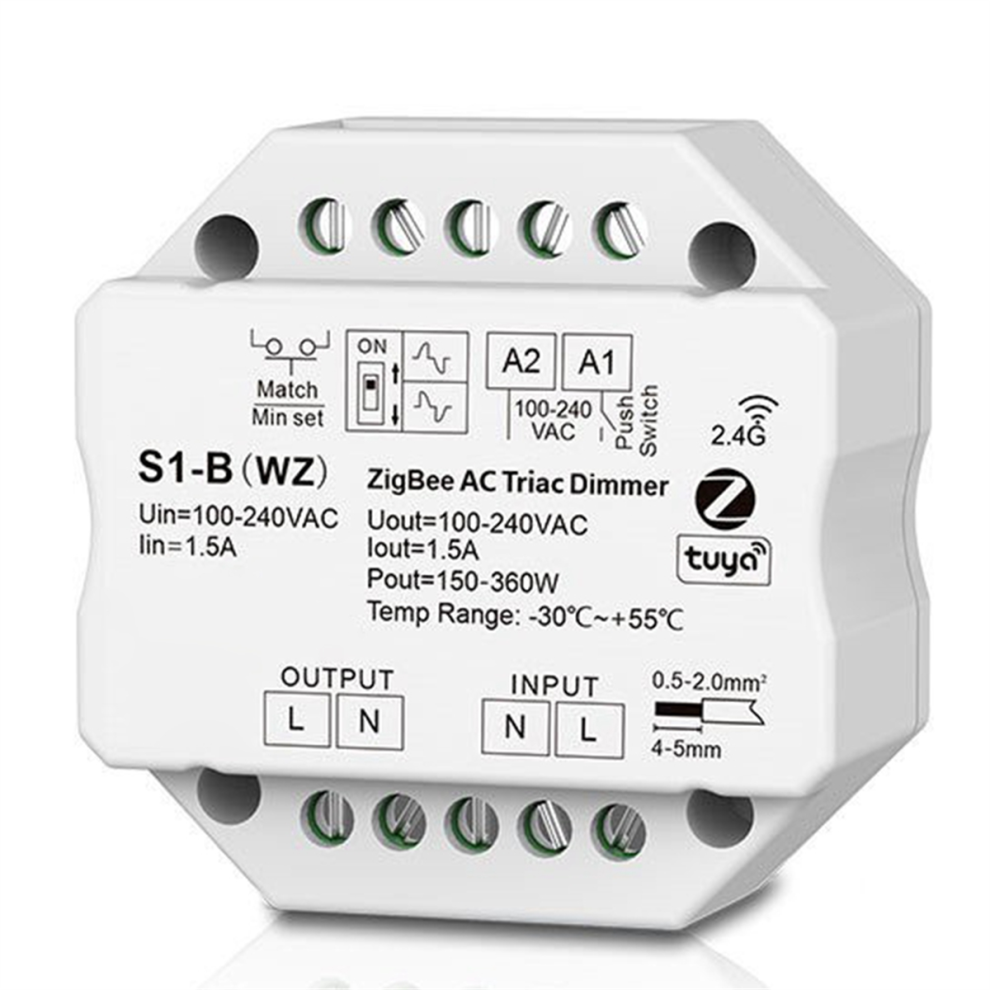

S1-B Tuya Zigbee AC Triac Dimmer LED Controller Push Switch Control 110V 220V 230V Smart Life APP for Assistant

S1-B Tuya Zigbee AC Triac Dimmer LED Controller Push Switch Control 110V 220V 230V Smart Life APP for Assistant Description

You must need zigbee center
S1-B (WZ): ZigBee + + Promoting AC phase cutting light, 1 channel output.
D dark and switching monochrome adjustable lights, traditional incandescent lights and halogen lamps.

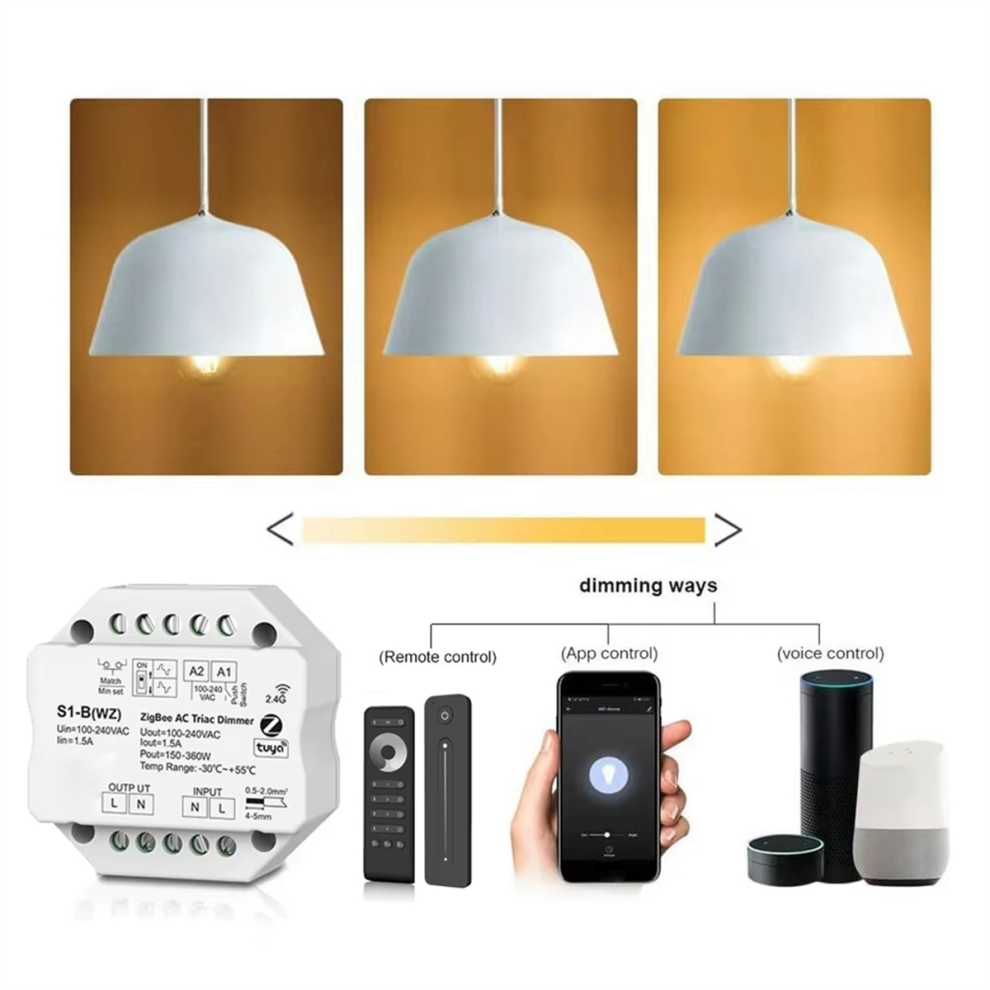

Tuya application cloud control, support opening/off, brightness adjustment, delay opening/turn off the lights, timer operation, scene function.
Mourage control, supports for and for TmallGenie smart speakers.

256 levels of 0-100 % smoothly dimmed without any flash.

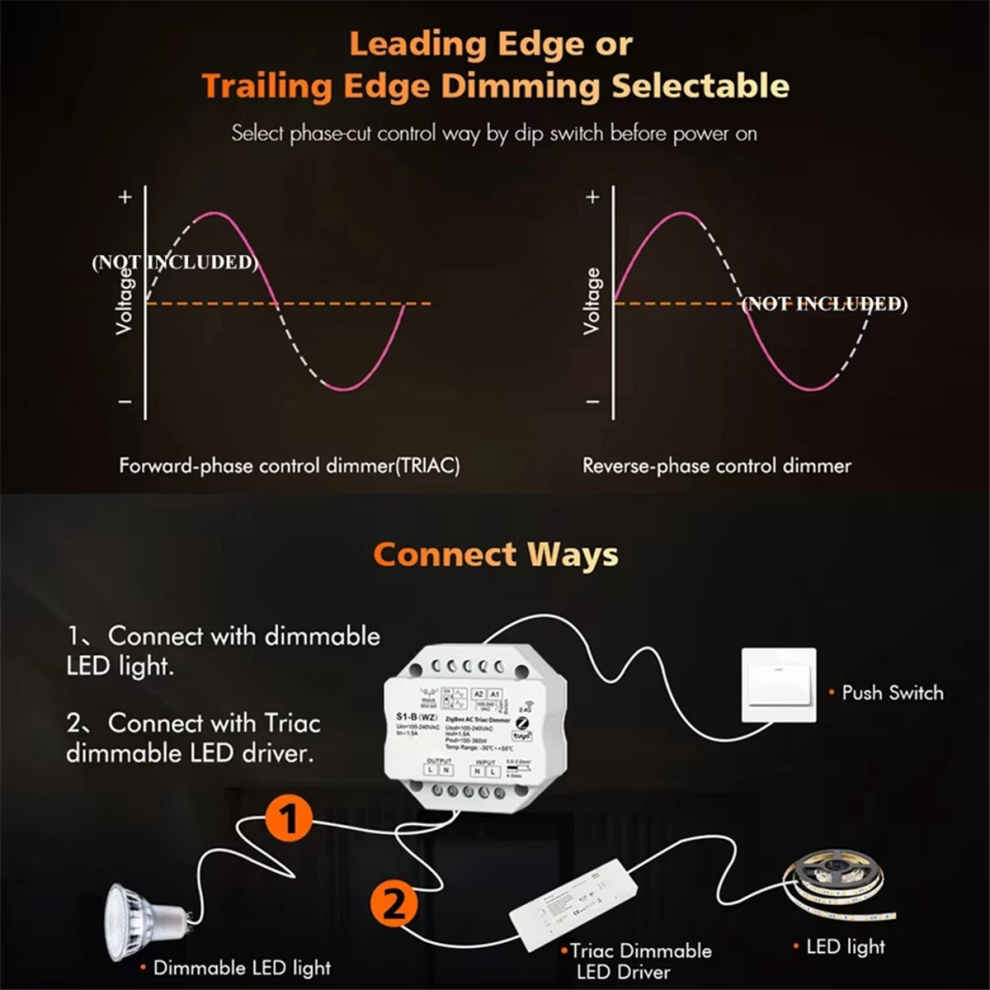

State -up lighting or tail edge is set through the DIP switch.
The minimum brightness can be set through key settings.
The compatibility with for 2.4G single or multiple regions (if necessary, please contact us) compatibility)
each LED controller can also be used as a converter, and then use Tuya applications to control one or more lighting controller or driver.

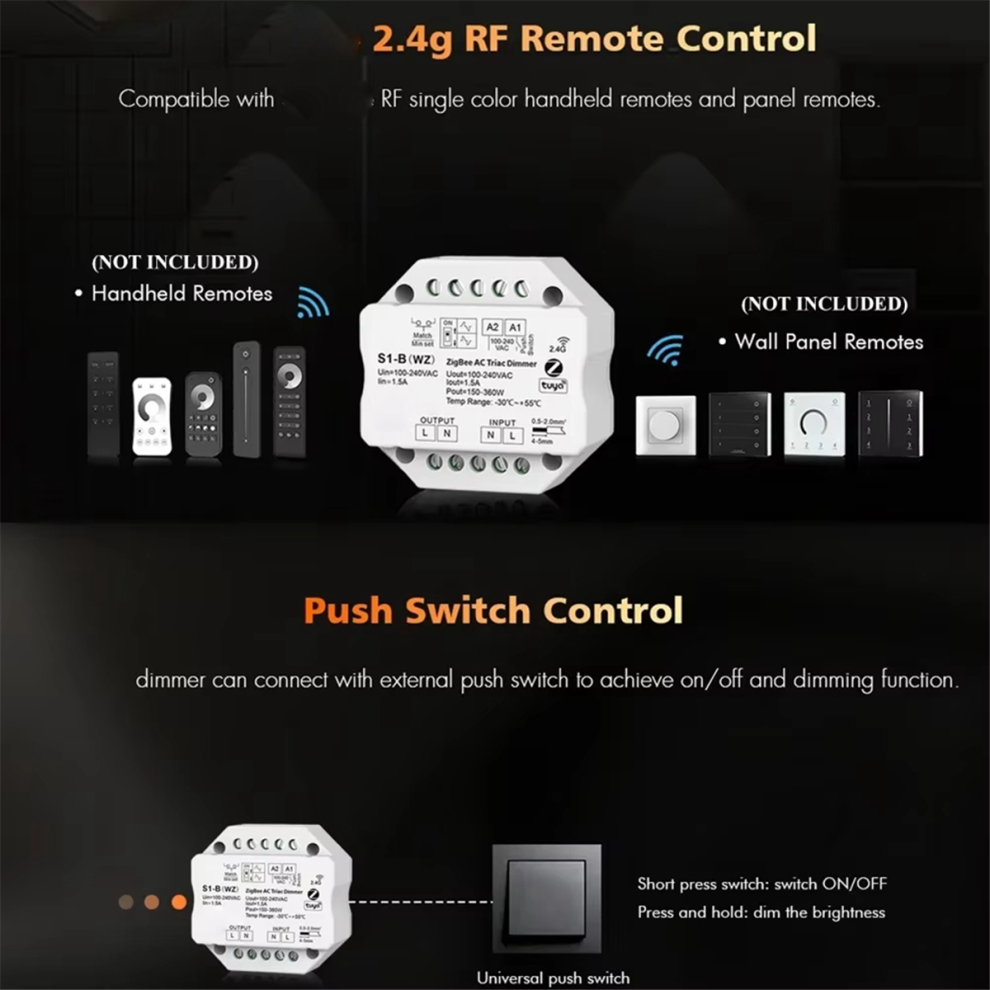

Cap to the external promotion switch to achieve/off and 0-100 % dimming function.

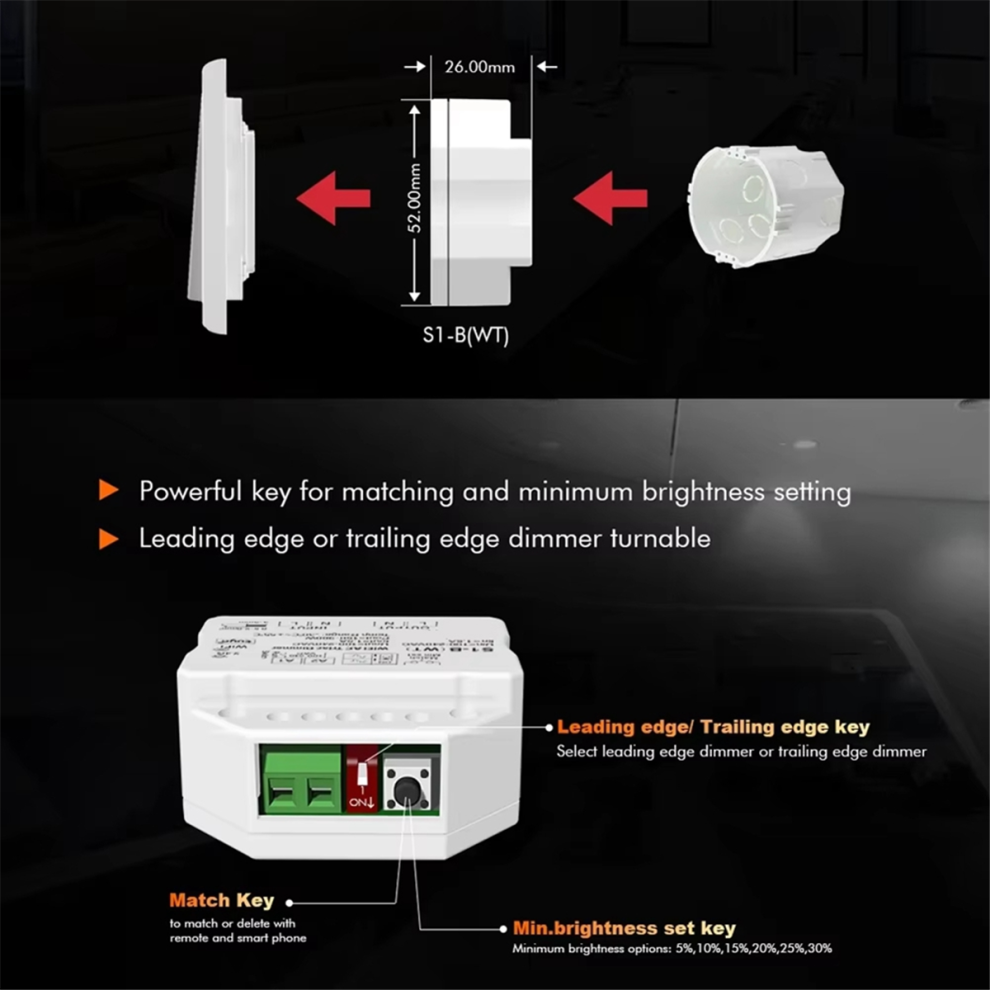

It is easy to place it in the standard wall box box behind the push.
The overcades /overload protection, automatically recovery.
S1-B (WZ) needs to be connected to the ZigBee hub
Technical parameter
Input voltage: 100-240V AC
Output voltage: 100-240V AC
Output current: 1.0A
Output power: 100-240W
Smart Family Communication Agreement: ZigBee
Application: Tuya / Smart Life application
Remote: 30M
Work temperature: -30 - 55
Colour:White
Material:ABS

Package Contents:
1 x ZigBee- Lights Moder

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
