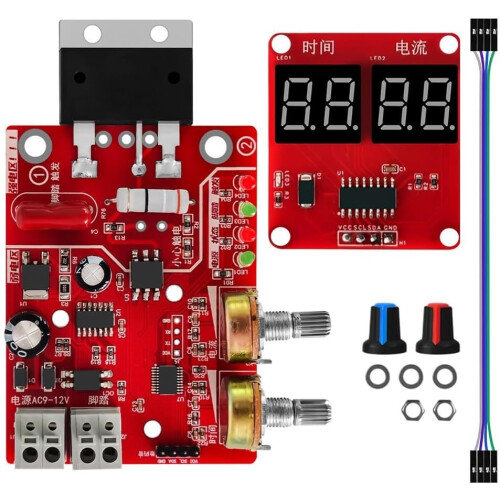

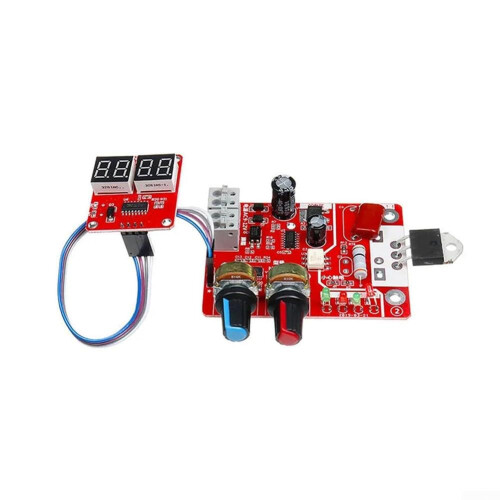

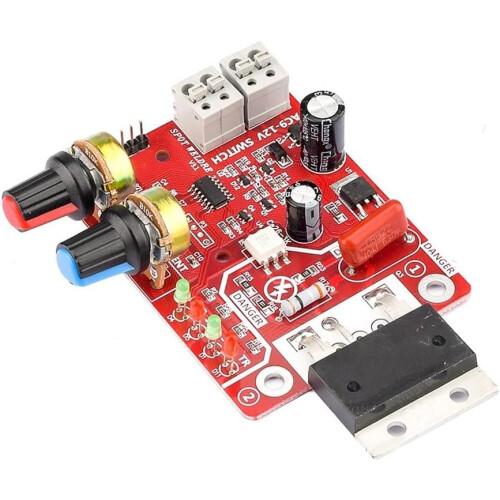

SCR Compatible 40100A Spot Welder Controller Panel Featuring Crossing Detection Circuit (40A) Industrial Controller

SCR Compatible 40100A Spot Welder Controller Panel Featuring Crossing Detection Circuit (40A) Industrial Controller Description

DIGITAL CONTROL COMPATIBILITY This control board is designed for 100A SCR spot welding systems. It provides a digital interface that clearly displays weld time settings and current levels for precise monitoring and adjustment. ACCURATE PHASE SHIFTING TECHNOLOGY Features a robust crossing detection circuit that ensures reliable thyristor phase shifting, contributing to consistent welding performance and repeatable results. SAFETY THROUGH ISOLATION Optocouplers separate strong power currents from control signals, securing operation across projects and protecting operators and equipment. QUICK CONNECTION SYSTEMS Power cord and foot switch connect via screwless quick connection terminals for fast, secure assembly and dependable connectivity. Use cases and applications Upgrading an existing 100A SCR spot welder in a or fabrication cell to enable digital control and current monitoring. Welding thin sheet metal, battery tabs, or electronics enclosures in automotive or electronics manufacturing, where precise timing and current control improve weld quality and consistency. Service, testing, or training environments where isolating control circuits from power circuits reduces risk during setup and troubleshooting.
