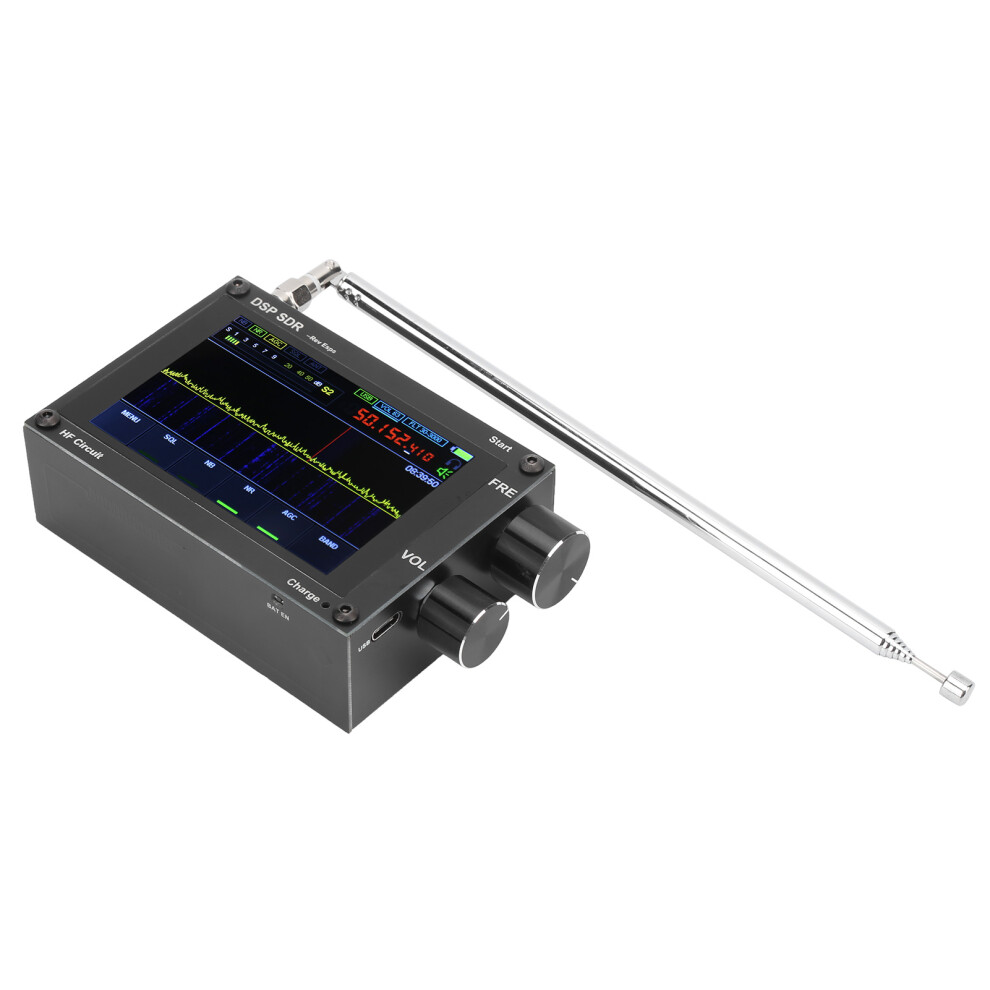

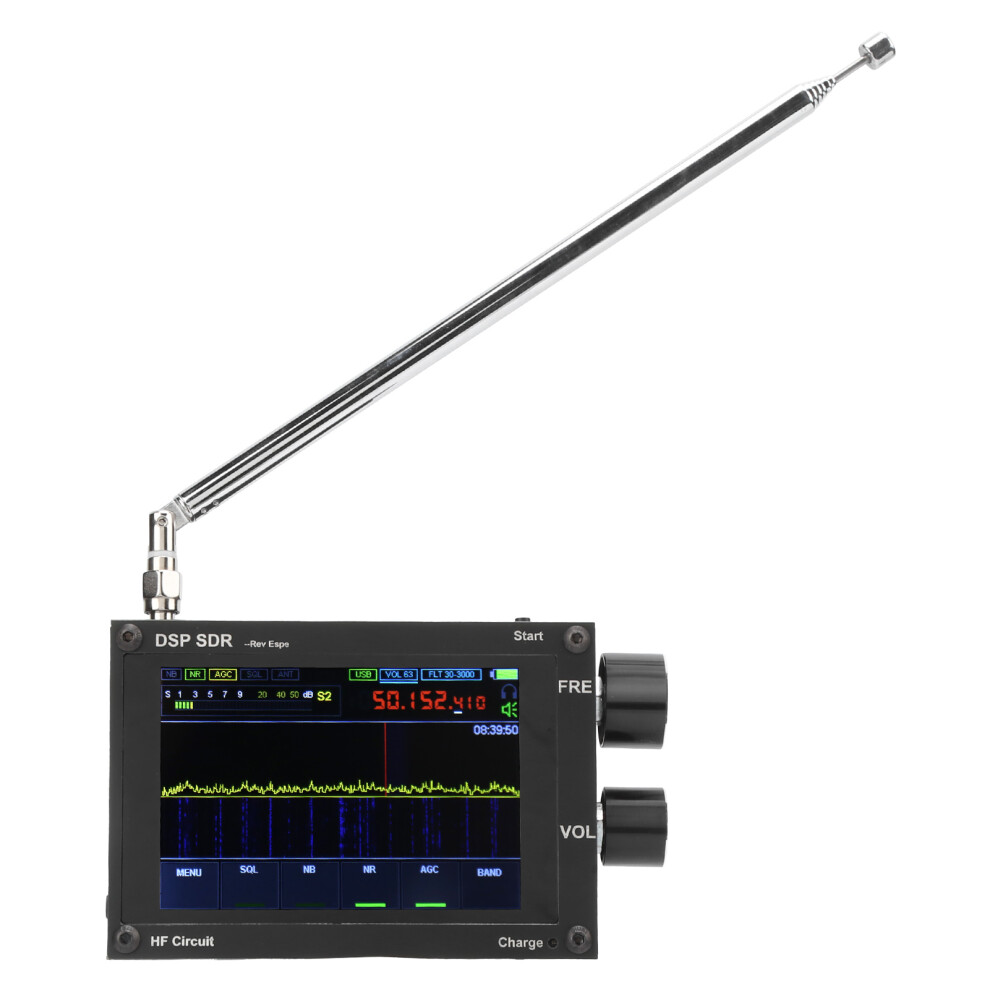

SDR Receiver Handheld Radio Signal Analyzer Full Frequency DSP

SDR Receiver Handheld Radio Signal Analyzer Full Frequency DSP Description

1、Strictly abide by the design rules of high-frequency electronic circuits in PCB design, realize digital and analog separate 2、With independent power layer, impedance matching in the circuit, after actual effect test, static background noise is extremely low, and can effectively shield itself from interference without sacrificing the sensitivity of the machine 3、Adopt ultra-wide viewing angle IPS LCD capacitive touch screen, the viewing angle is not less than 155 degrees, the color is bright, the UI is clear, the side is not white and the screen is not dark 4、The sound cavity speaker with customized bass diaphragm is used inside the machine, with clear midrange, heavy bass and excellent sound quality 5、Adopt four-layer PCB process, thicker, more stable structure, stronger performance
Item Type: SDR Receiver
Material: ABS
Frequency Range: 200MHz, 400kHZ-2GHz
Demodulation Mode: AM, SSB, WFM, CW
Working Current: 300mA
Sensitivity: 0.3u(at 200MHz)
3.5in SPI touch screen
Dynamic Blocking Range: About 85dB
Screen Display Bandwidth: 60kHz scalable
Power Supply Mode: Built-in battery power supply and USB power supply
Motherboard: Four-layer PCB process
Antenna: SMA type antenna socket
Screen Backlight: Controllable
UHF band support
Battery Model: Lithium battery(shipped with built-in battery)
Battery Capacity: 600mA
1 x Receiver
1 x Antenna
1 x User Manual
