Description & Details
Summary
- Work Assistant: Round jaw (clamping size: 1.49-2.99 in) and interchangeable jaws of the big round jaw (clamping size: 2.75-4.25 in), pin jaw (clamping size: 0.19-1.69 in), and step jaw (clamping size: 0.19-1.69 in) handle a wide range of clamping types and diameters to meet your work requirements.
- Powerful Grip: The chuck provides an incredible grip when manually locked and won't come loose easily, giving you more confidence in your use.
- Engineered for Simplicity: The T-wrench allows you to steady and align workpieces with one hand while adjusting the clamping jaws with the other. This ergonomic approach differs from traditional chucks that use metal rods to control jaw tension, resulting in a more straightforward and easy user experience.
- Thoughtful Design: The chuck is self-centered so that each jaw can be adjusted to the center position. When the knurled ring is rotated, the jaws move together so that the workpiece can be quickly clamped in place, enabling the clamping of most shapes of workpieces.
- Good Adaptability: A 4" chuck body with M33 standard thread, and a 3/4 "x16Tpi adapter provide great convenience.
Self-Centering Lathe Chuck Set (3/4 "x16Tpi Adapter) Description
Application
This product can be applied to medium-sized or miniature lathe work, firewood turning, making bowls, woodworking, pens, and other clamping tools.
Specifications
Style: Modern
Color: Silver, Black
Material: S45C High-carbon Steel
Surface Treatment: Tempering Treatment
Assembly Required: No
Adapter: 3/4 "x16Tpi Adapter
Chuck: 4" Chuck Body with M33 Thread
Round Jaw Clamping Size: 38-76 mm/ 1.49-2.99 in
Round Jaw Support Size: 48- 86 mm/ 1.89-3.38 in
Round Jaw Jaw Height: 20 mm/ 0.78 in
Step Jaw Clamping Size: 5-43mm/ 0.19-1.69 in
Step Jaw Support Size: 20-78 mm/ 0.79-3.07 in
Step Jaw Jaw Height: 25 mm / 0.98 in
Big Round Jaw Clamping Size: 70-108 mm/ 2.75-4.25 in
Big Round Jaw Support Size: 80-118 mm/ 3.15-4.64 in
Big Round Jaw Jaw Height: 12 mm/ 0.47 in
Pin Jaw Clamping Size: 5-43 mm/ 0.19-1.69 in
Pin Jaw Support Size: 22-60 mm/ 0.86-2.36 in
Pin Jaw Jaw Height: 25 mm/ 0.98 in
Gross Weight: 3.85kg/ 8.48 lbs
Net Weight: 3.5kg/ 7.72 lbs
Product Size: 35*29*8 cm/13.78*11.42*3.15 in
Package Size: 37*31*9.5cm/ 14.56*12.20*3.74 in

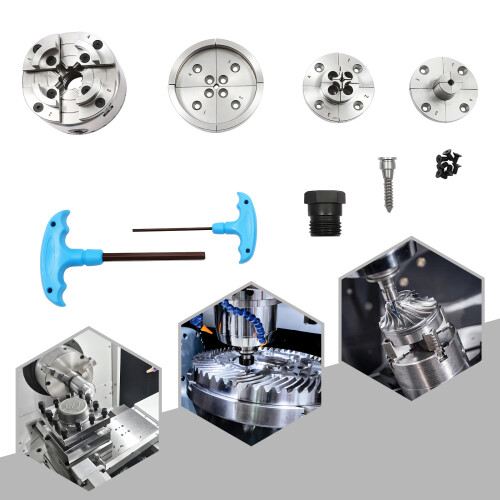

Package Included
1* Round Jaw
1* Step Jaw
1* Big Round Jaw
1* Pin Jaw
2* T-type Wrenchs
1* Lathe Chuck Adapter
7* Screws
1* Thread
1* Organizer
Notes
Please note that goggles and protective gloves (both not included) are to be worn if necessary for use.
Please note that ensure that the wood is clamped when in use.
Please always know the position of the emergency stop before operating the lathe.
Please always stop the lathe before making adjustments or measurements.
It is recommended that you please roll up your sleeves above the elbow and remove all jewelry from your hands and wrists when in use.
Note: The chuck body has an M33 thread size. If the chuck size and thread are not consistent, it will result in the inability to use the built-in 3/4 ''conversion sleeve. The buyer needs to purchase other adapters/conversion sleeves to adapt to use.
Details
| OPC | PXGHQGZ |
|---|---|
| Codes | 743169280516 (UPC) |
Detailed Product Information
| Colour | Silver, Black |
|---|---|
| Material | S45C High-carbon Steel |
| Weight | 3.85kg |
| Height | 8cm |
| Length | 35cm |
| Width | 29cm |
| Colour | Silver, Black |
| Material | S45C High-carbon Steel |
| Weight | 3.85kg |
| Height | 8cm |
| Length | 35cm |
| Width | 29cm |
