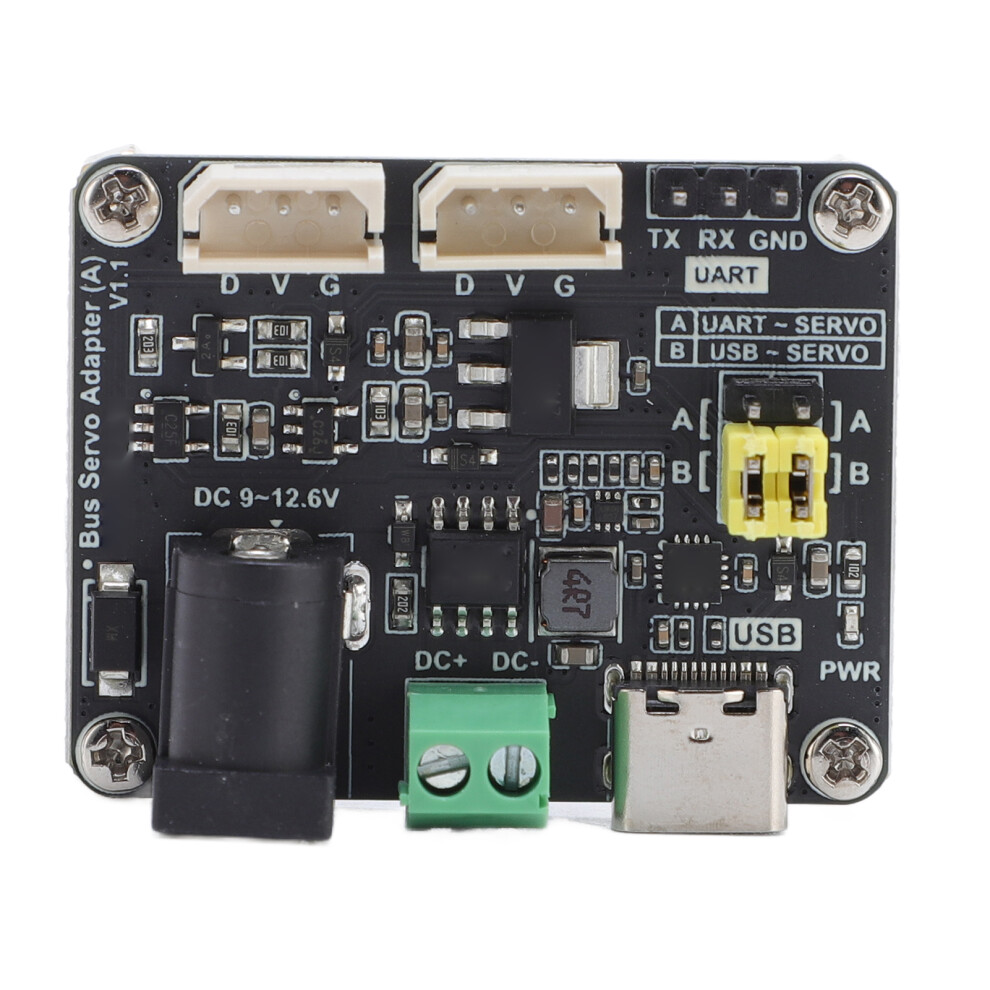

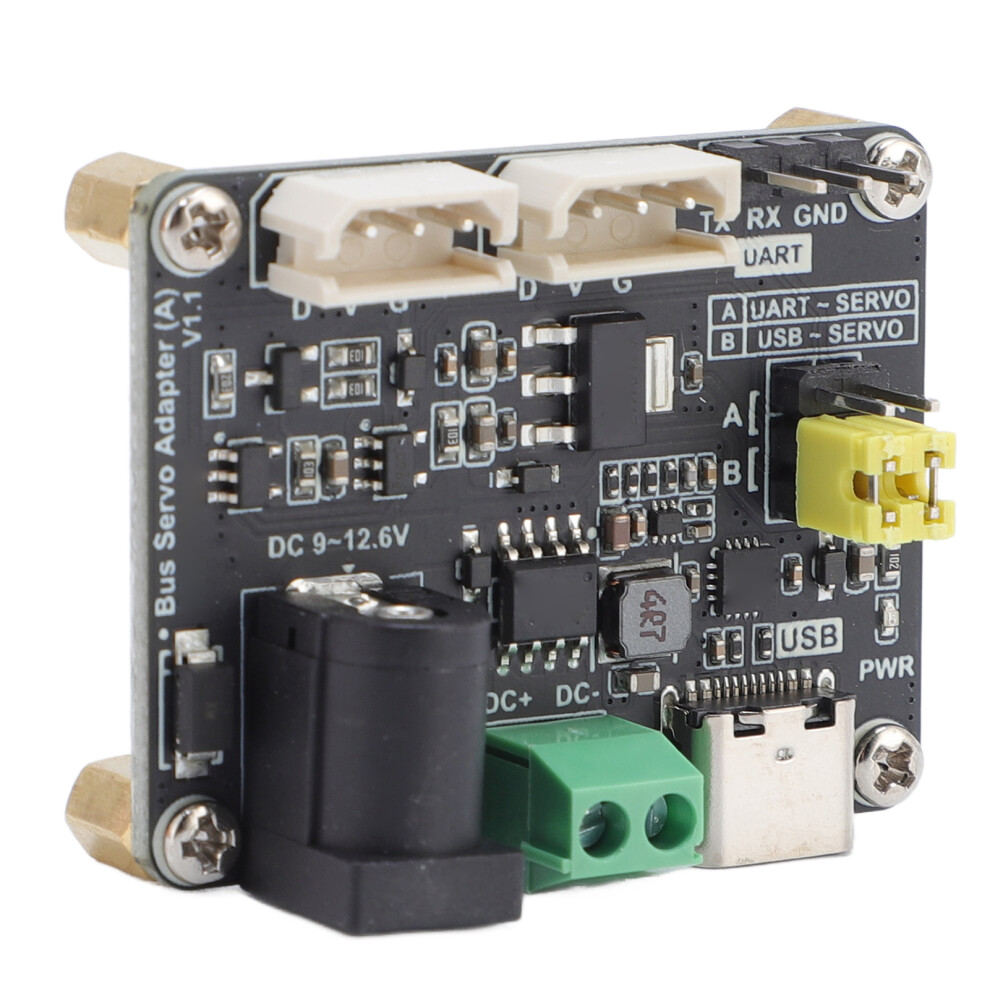

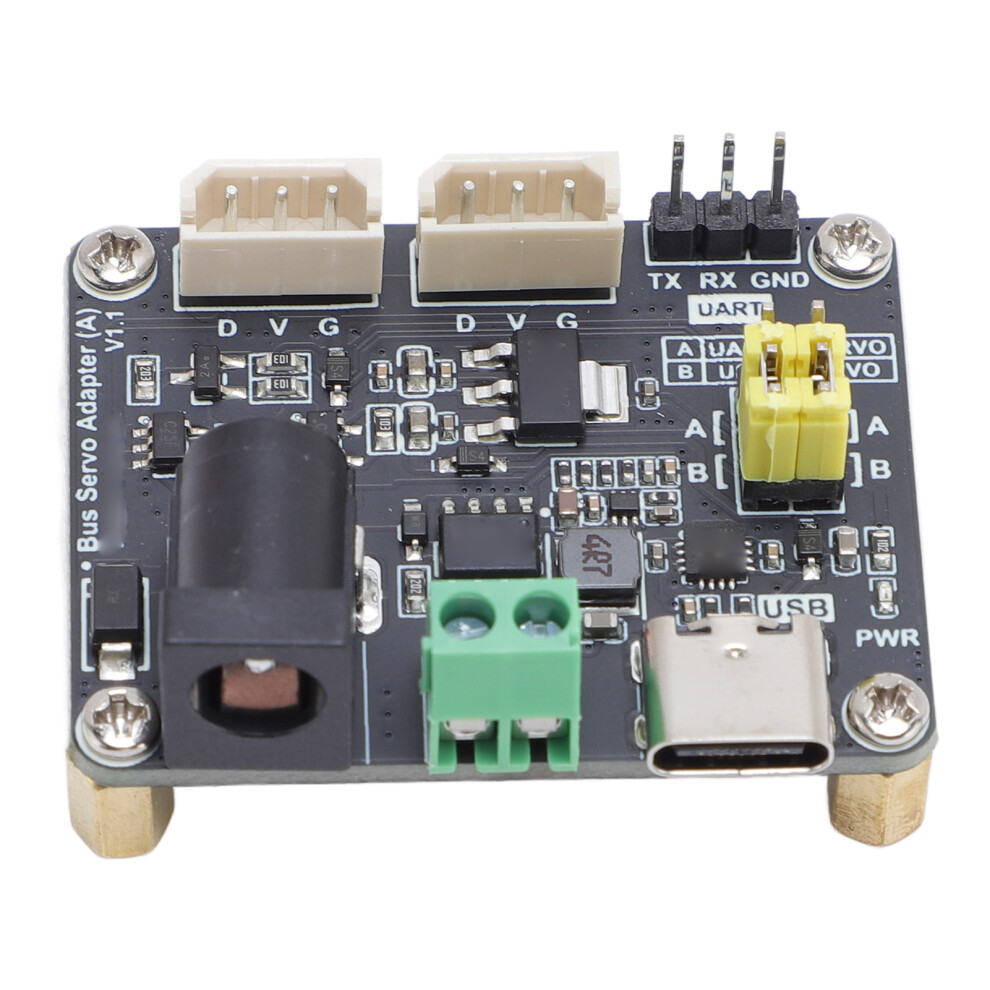

Serial Bus Servo Driver Board for ST SC Series UART USB RPi ESP32

Serial Bus Servo Driver Board for ST SC Series UART USB RPi ESP32 Description

1、INTEGRATED POWER AND CONTROL: Specifically designed for serial bus servos, this driver board integrates both power supply and control circuit functions, making it ideal for a wide range of robotic projects 2、SIMULTANEOUS CONTROL OF 253 SERVOS: Capable of controlling up to 253 ST/SC series serial bus servos simultaneously, this board supports feedback on various parameters such as position and speed 3、STABLE CONTROL CIRCUIT: The driver's stable control circuit ensures servo use, making it suitable for advanced closed loop automatic control projects 4、COMPACT AND SPACE SAVING DESIGN: Its small and compact design conserves space, making it ideal for embedding in projects with high space constraints 5、VERSATILE POWER INPUT OPTIONS: Featuring multiple power input interfaces, this module is easy to integrate into existing projects, supporting power voltages from direct current 9-12.6V for ST series servos
Item Type: Serial Bus Servo Driver Board
Material: PCB
Power Supply Voltage: direct current 9-12.6V (ST series servo)
Power Supply Interface: 5.5x2.1mmDC
Communication Interface: UART
Product Size: Approx. 42 x 33mm / 1.7 x 1.3in
Positioning Hole Diameter: Approx. 2.50mm / 0.10in
Positioning Hole Spacing: Approx. 37.00x28.00mm / 1.46x1.10in
1 x Serial Bus Servo Driver Board
2 x Jumper Caps
