Serial Module ESP-12E ESP8266 Port Complete 802.11

Serial Module ESP-12E ESP8266 Port Complete 802.11 Description

1. ESP-12E is a Wi-Fi module developed by Essence Technology. The core processor ESP8266 of this module integrates Tensilica L106 ultra-low power consumption 32-bit Mini MCU in a smaller size package with 16-bit streamlined mode. The frequency supports 80 MHz and 160 MHz, supports RTOS, and integrates Wi-Fi ///PA/LNA.

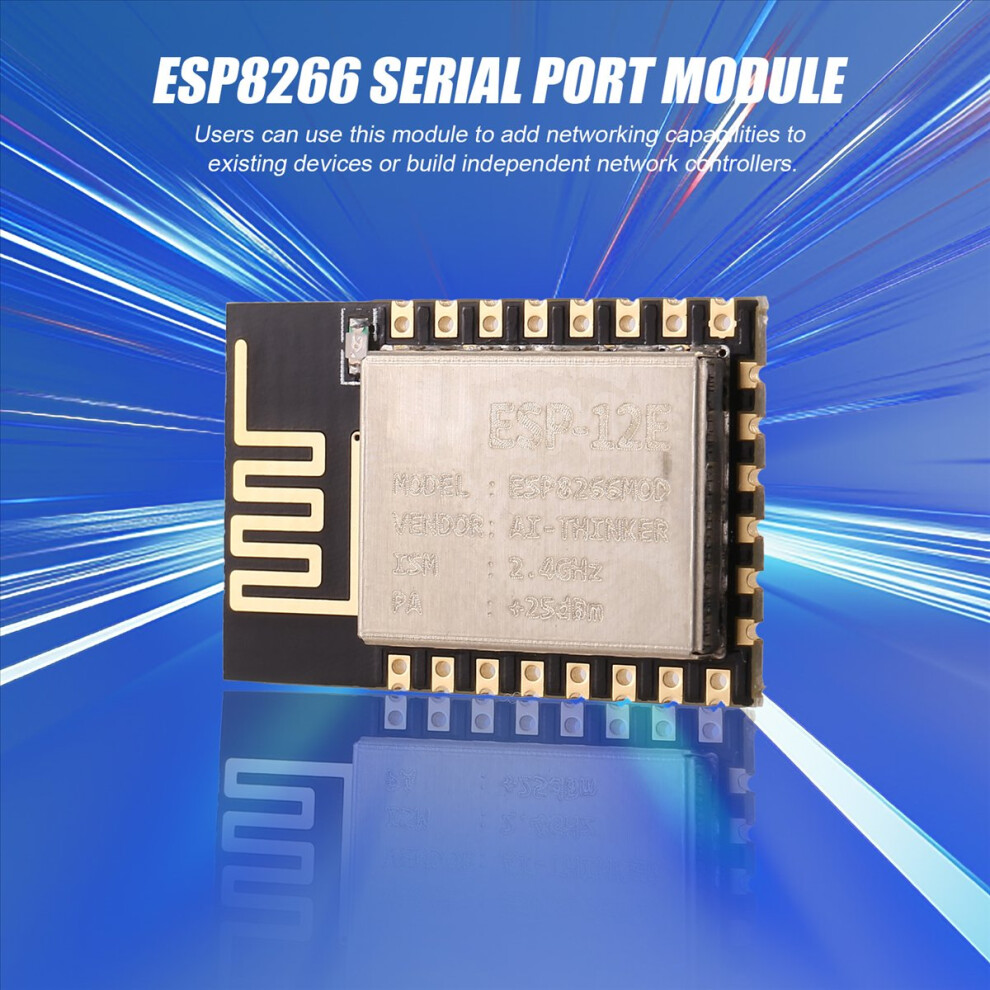

2. The ESP-12E Wi-Fi module supports the standard IEEE802.11 b/g protocol and the complete IP protocol stack. Users can use this module to add networking capabilities to existing devices or build network controllers.
3. ESP8266 is a high-performance wireless SoC that provides maximum practicality at the lowest cost and unlimited possibilities for embedding wifi functions into other systems.

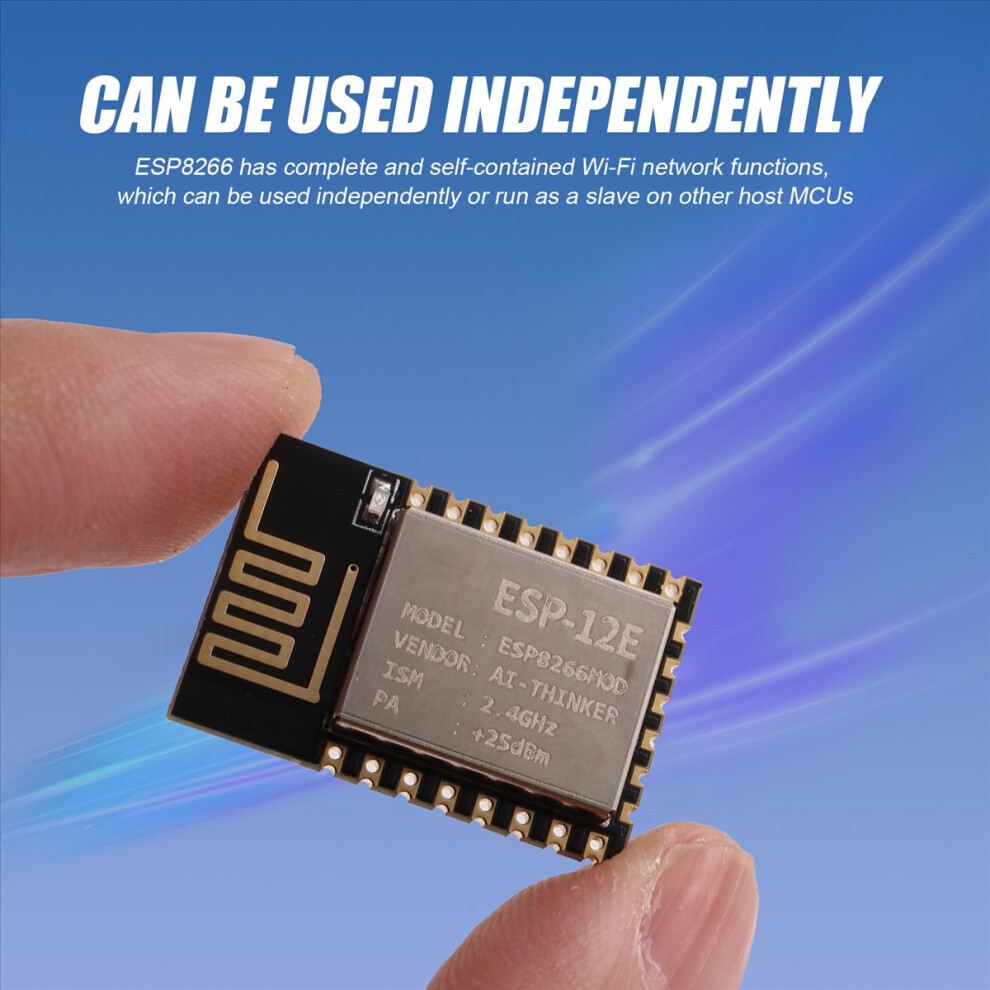

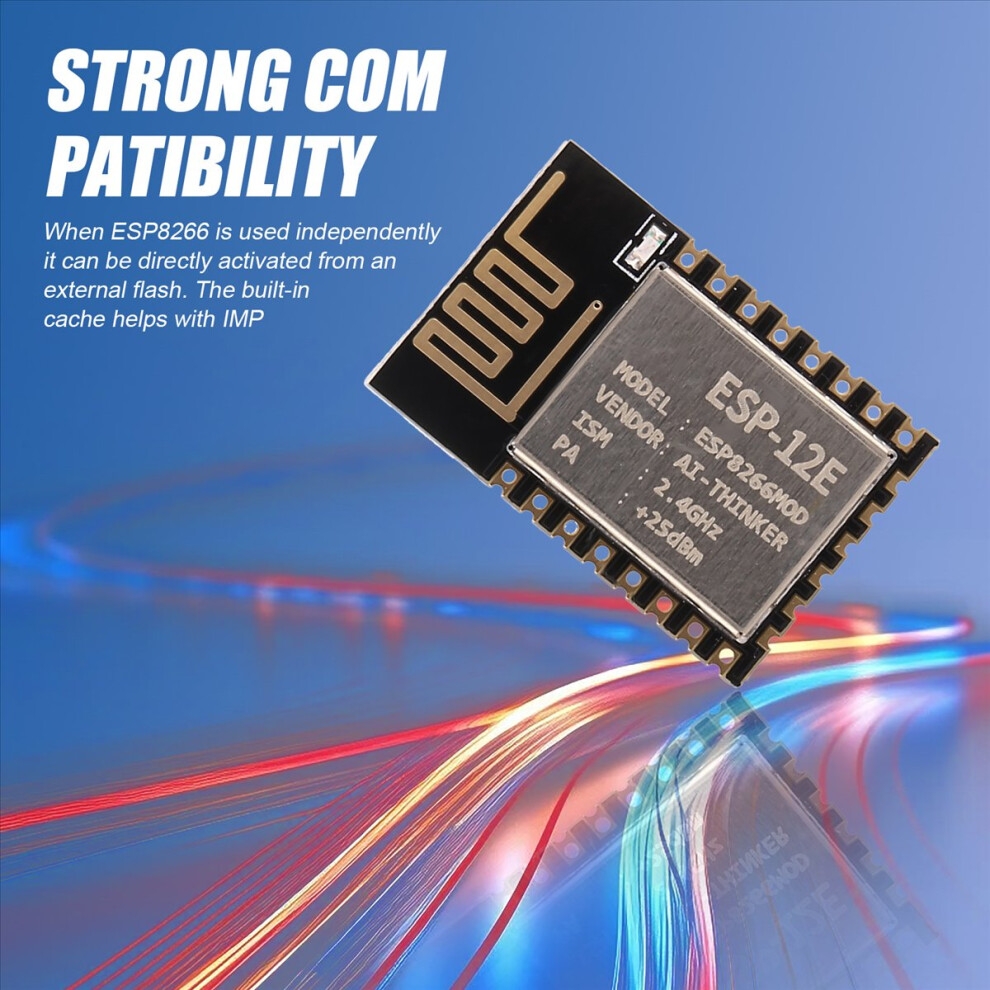

4. ESP8266 has complete and self-contained Wi-Fi network functions, which can be used independently or run as a slave on other host MCUs. When ESP8266 is used independently, it can be started directly from the external flash. The built-in cache memory helps improve system performance and optimizes the storage system. In another case, ESP8266 can be used as a WiFi adapter through the SPI/SDIO interface or UART interface and can be applied to any Minicontroller-based design.
5. The powerful on-chip processing and storage capabilities of ESP8266 enable it to integrate sensors and other application-specific devices through the GPI0 port, greatly reducing the cost of early development.

Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Not Affect The Use
1.Module model: ESP-12E
2. Antenna form: onboard PCB antenna
3.Spectrum range: 2400-2483.5MHz
4. Working temperature: -20 -70
5. Storage environment: -40 -125 , Less than 90%RH
6. Power supply range: power supply voltage 3.0V - 3.6V, power supply current 500mA
7.Supported interfaces: UART/GPIO/ADC/PWM/SPI/
8. Number of IO ports: 9
9. Serial port rate: supports 110-4608000 bps, default 115200 bps
10. Security: /WPA-/WPA2-
11.SPI Flash: Default 32Mbit
Colour:As Shown
Material:PCB

Package Contents:

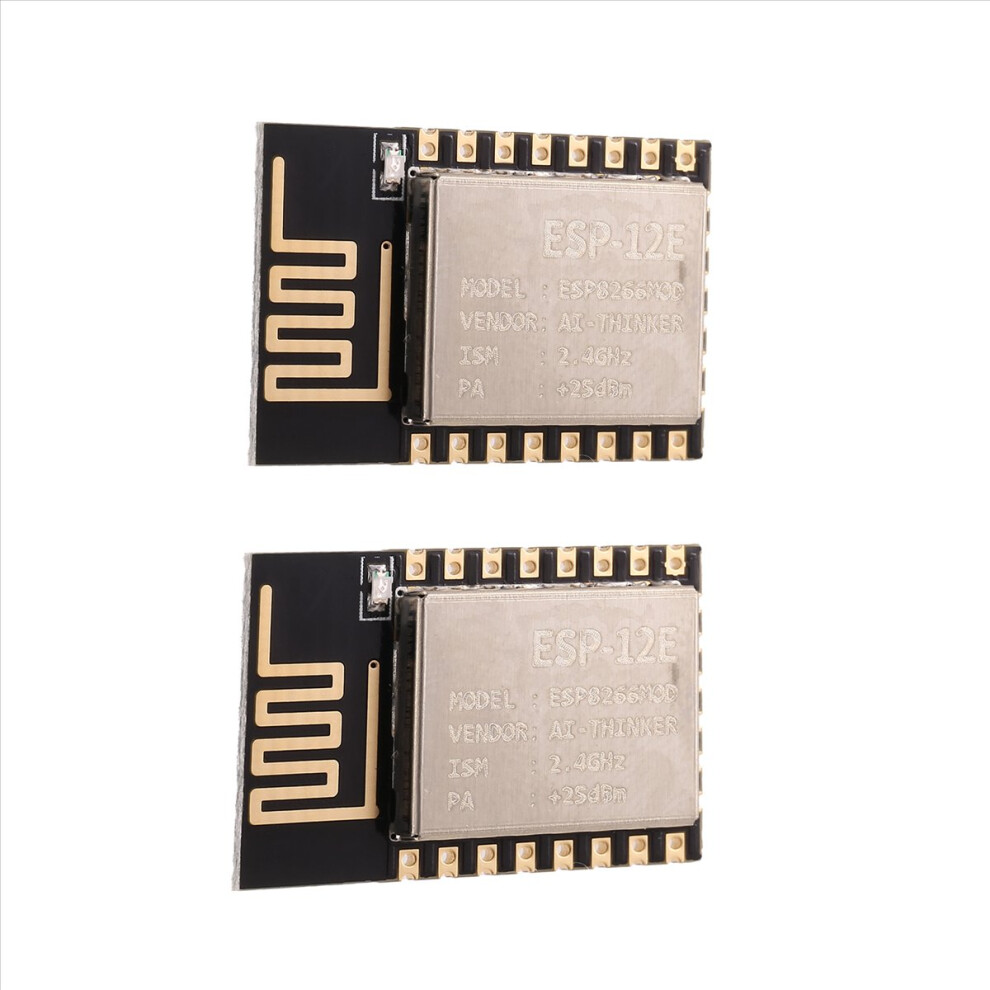

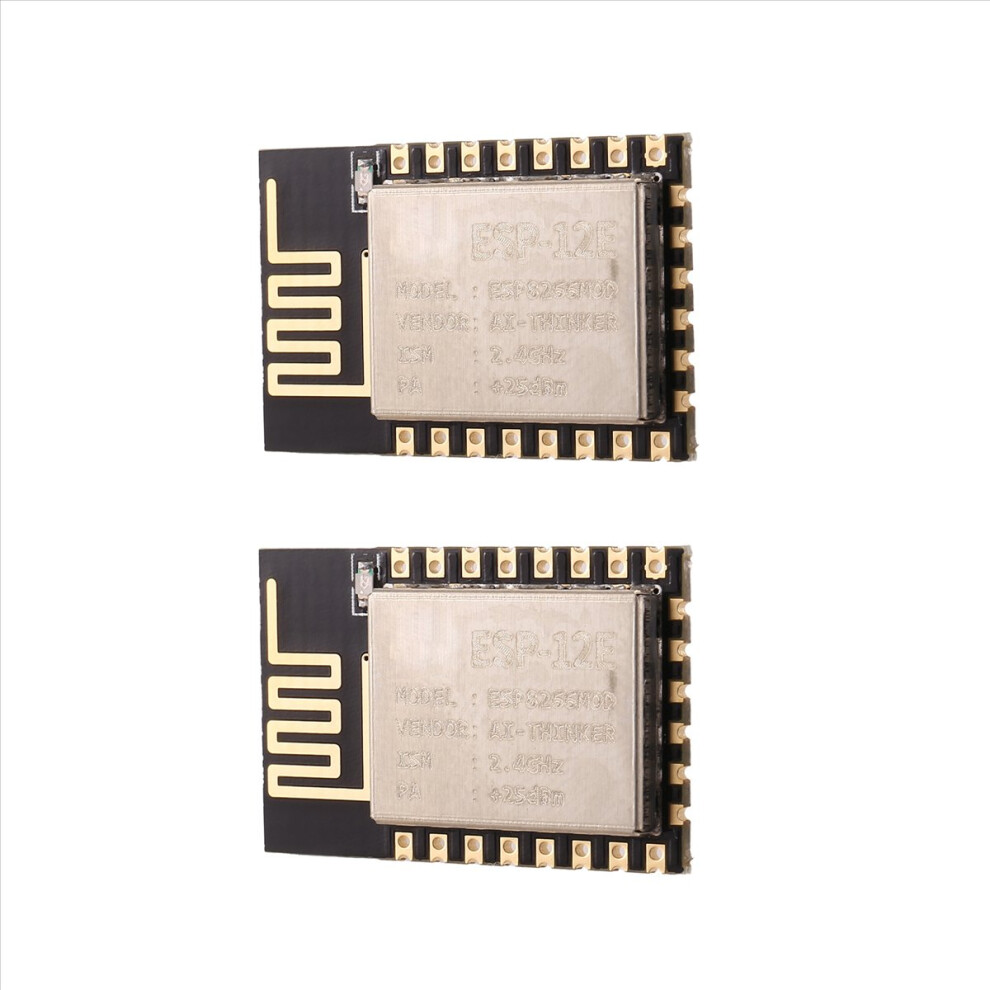

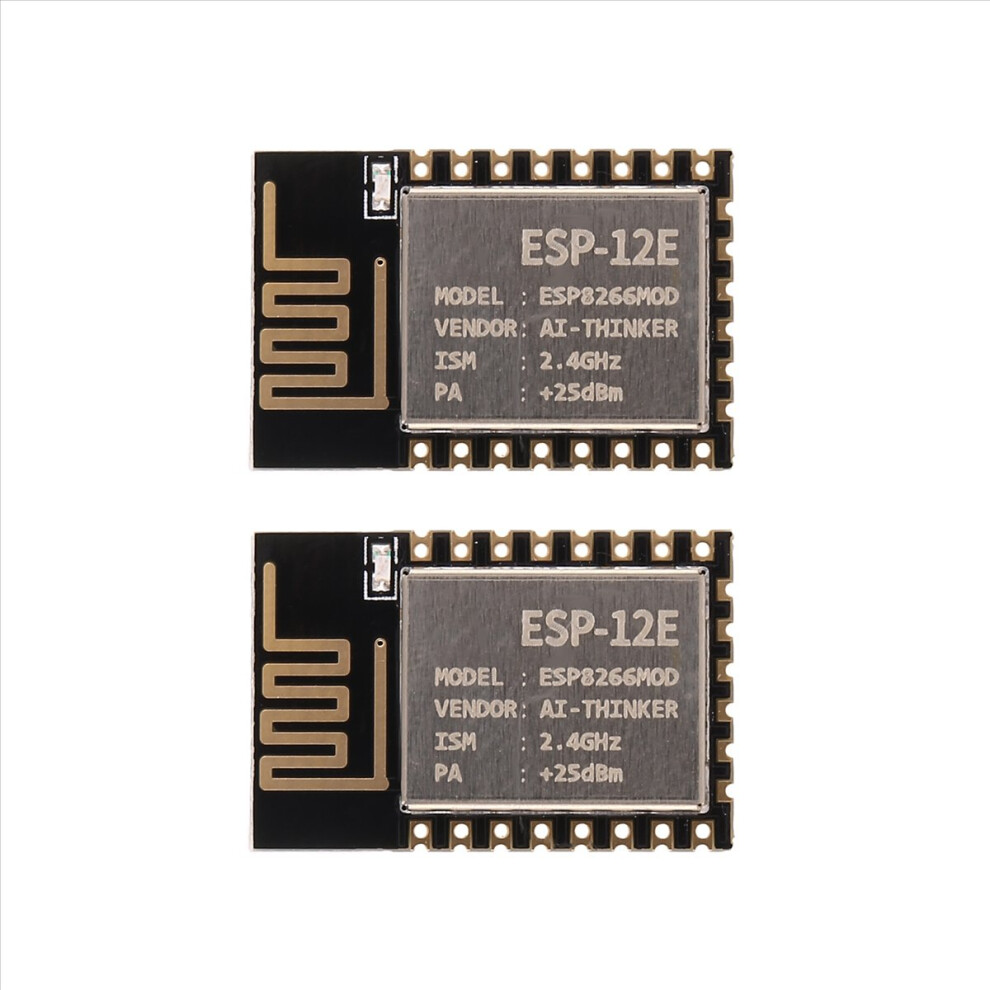

2x ESP8266 Serial Port Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
