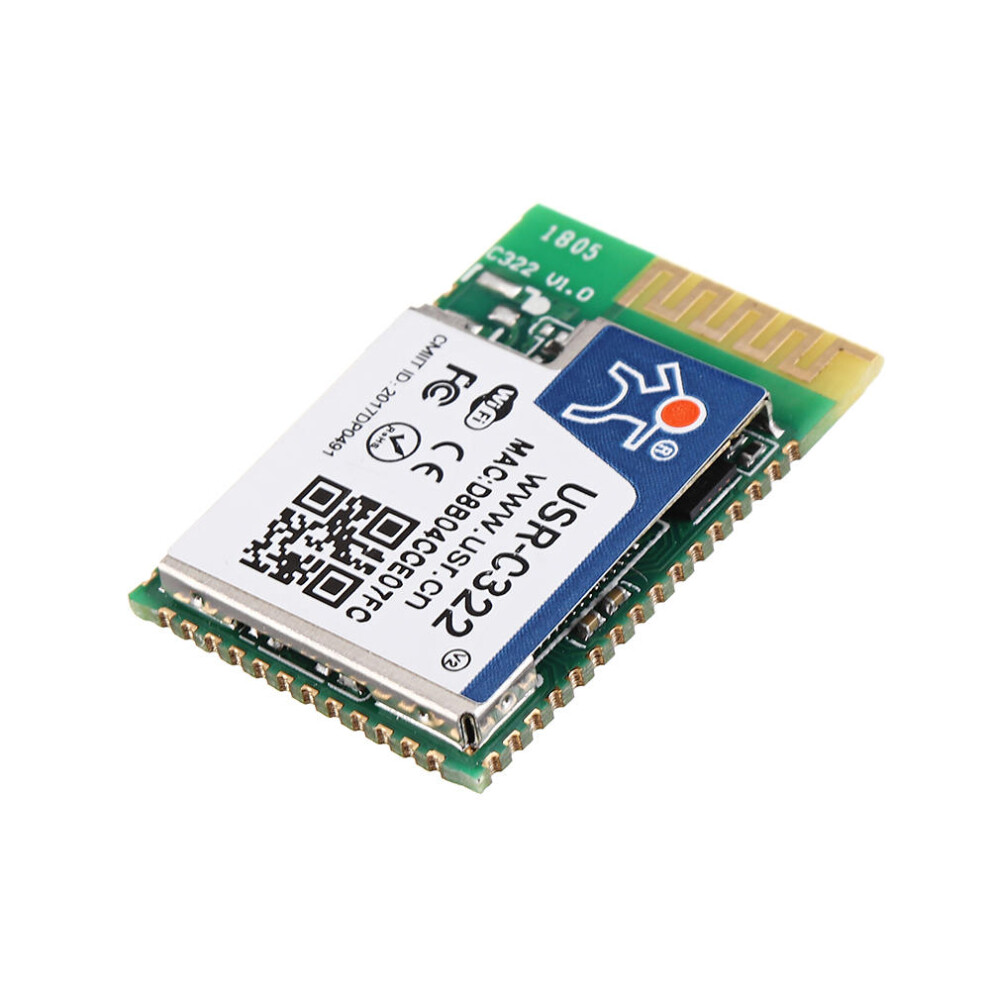

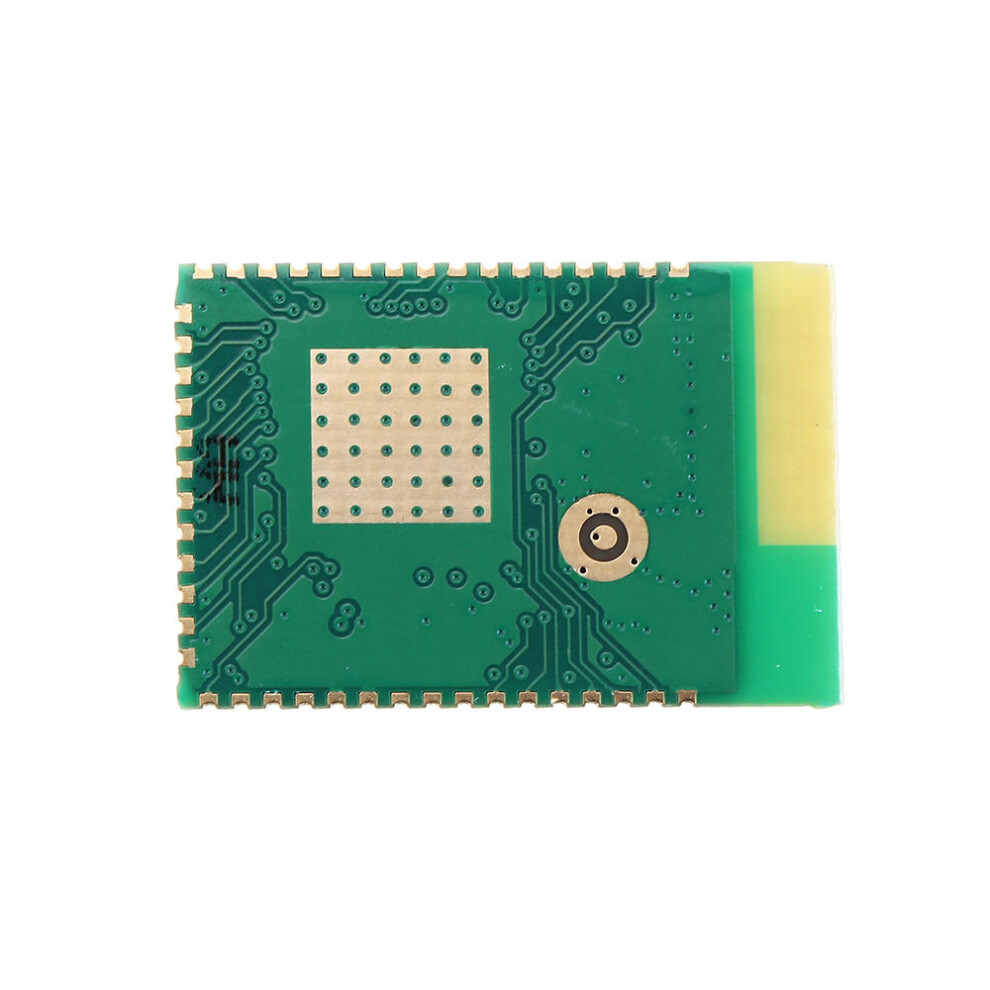

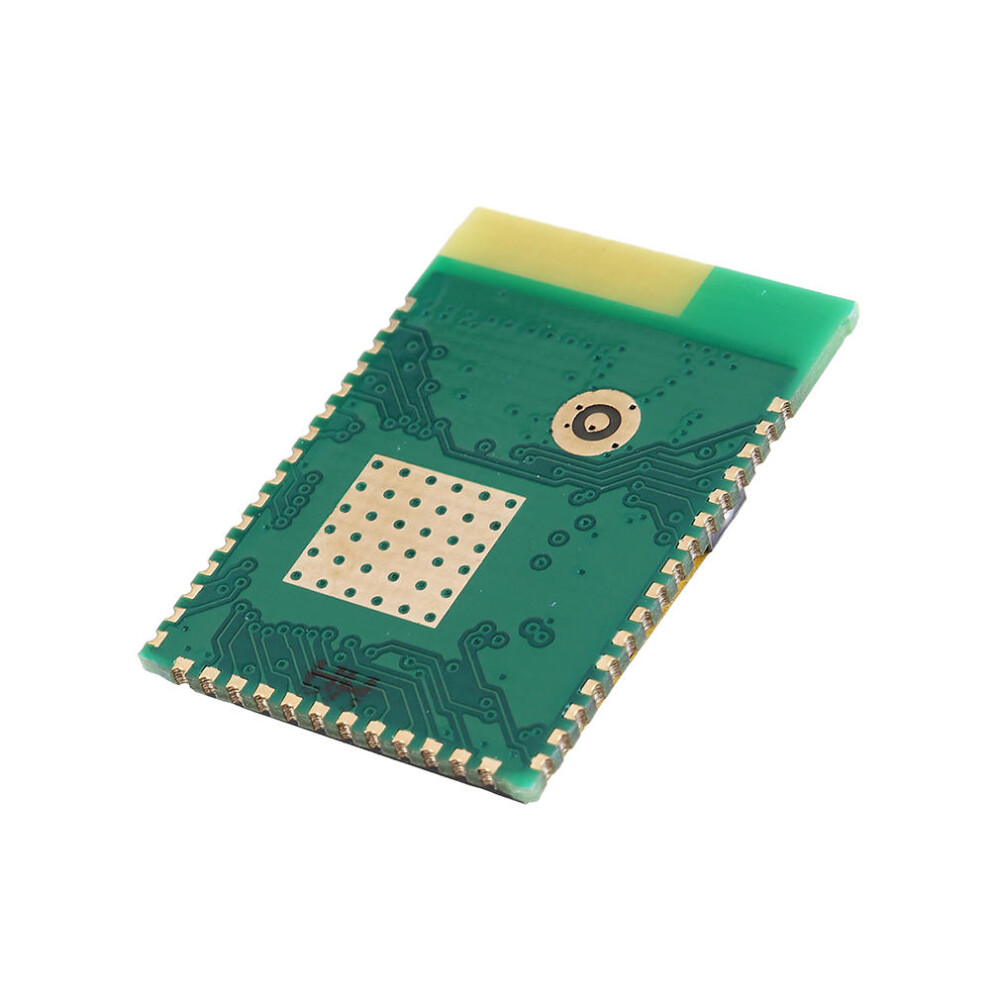

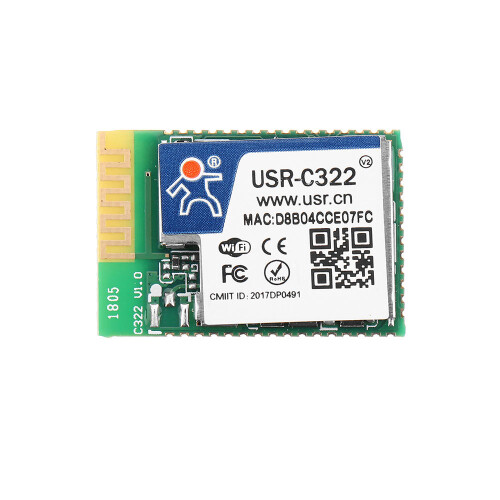

Serial to WiFi Module TICC3200 Wireless Transmission Industrial Grade Low Power Consumption C322

Serial to WiFi Module TICC3200 Wireless Transmission Industrial Grade Low Power Consumption C322 Description

Feature:
Processor: TI CC3200 (Cortex-M4 core).
Main frequency: 80MHz.

Network parameters:
Network protocol: IPv4, TCP, UDP, DHCP, DNS, HTTP, ARP. ICMP.
TCP Server maximum TCP number: 3.

Wi-Fi:
Standard: 802.11 b/g/n.
Network mode: AP / Station.
Number of AP mode access terminals: 1.
Frequency Range: 2.412 GHz-2.484 GHz.
Transmit power: 17.0 dBm @1 DSSS.
17.25 dBm11 CCK.
13.5 dBm @54 OFDM.
Receiving sensitivity:
-94.7 dBm @1 DSSS.
-87.0 dBm @11 DSSS.
-73.0 dBm @54 OFDM.
Transmission rate:
802.11b: 11 Mbps.
802.11g: 54 Mbps.
802.11n: 54 Mbps.
Transmission distance:
Built-in maximum 180m (empty line of sight).
External maximum 310m (empty line of sight, 3dbi antenna).
Security Mechanism: Security mechanism: WEP-A/WPA-PSK/WPA2-PSK.
Encryption type: WEP64/WEP128/TKIP/AES.
Antenna interface: Built-in: onboard antenna.

Serial port:
Number of ports: 2.
Interface standard: TTL serial port : 3.3V.
Data bit: 5, 6, 7, 8.
Stop bit: 1, 2.
Check Digit: None, Even, Odd, Space, Mark.
Baud rate: 300 bps - 3M bps.
Flow Control: RTS / CTS.
Cache: Receive 1K bytes.

Software:
Virtual serial port (USR-VCOM): Windows 2000 or higher (32 bit / 64 bit).
Configuration method: Built-in web page, serial AT command, network AT command.
Networking method: UsrLink: "People" Customized Module Networking Mode.
SimpleLink: One-click networking capabilities provided by TI.
Unique features: Registration package mechanism: with registration package when connecting or sending data (registration package can be set to MAC address or double-byte character).
Synchronous baud rate function: Network command to change the serial port baud rate.
Secure encryption: support PC1 transparent data encryption and SSL Client function.
Webpage: Support for custom webpage features.
Transfer: Support Httpd Client and Websocket (web to serial).

Very specific parameter:
Size: 26.6x18.2x2.8 (mm).
Operating temperature:
-40 - 85C (B38 Industrial Grade).
-40 - 125C, 5 - 95% RH (no condensation).
Operating Voltage: DC 3.0 ~ 3.6 V.
Working current: AP: 70mA @3.3V.
STA: 18mA @3.3V.
Bee value: 247mA @3.3V.

Package includes:
1 x Module
