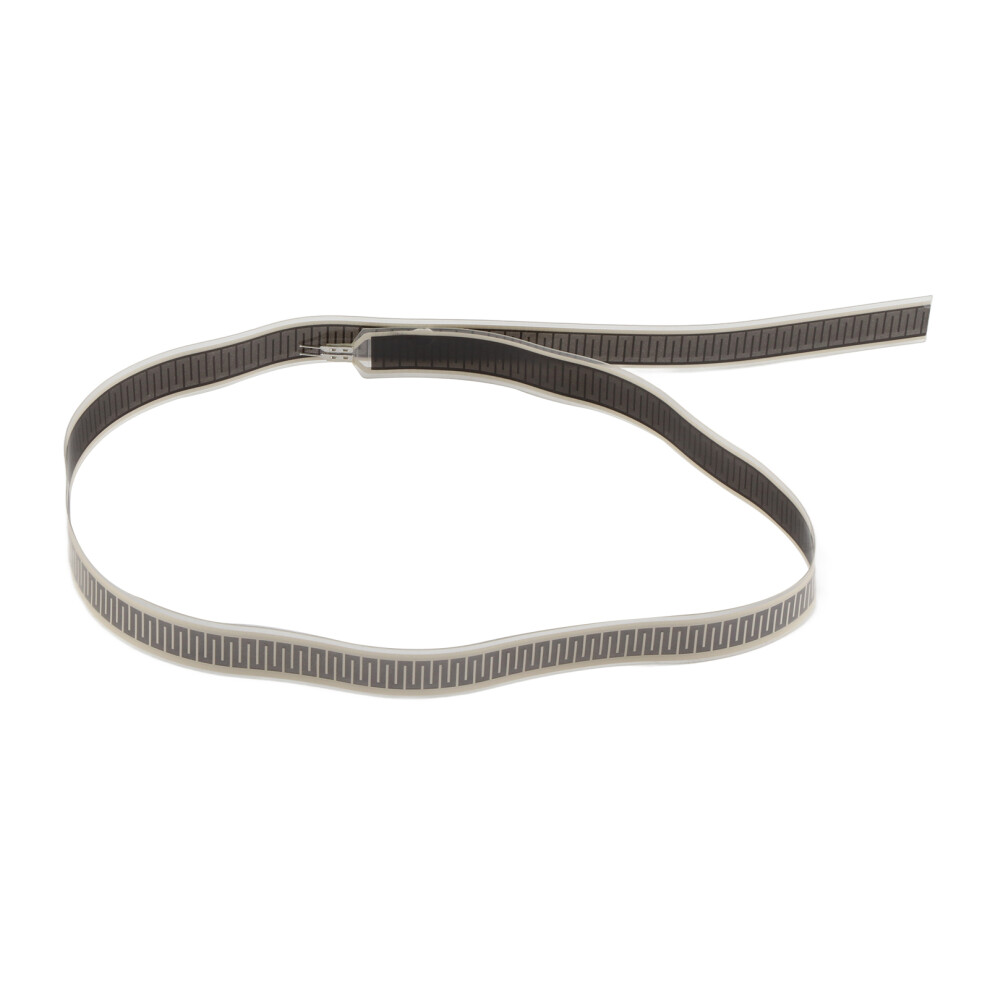

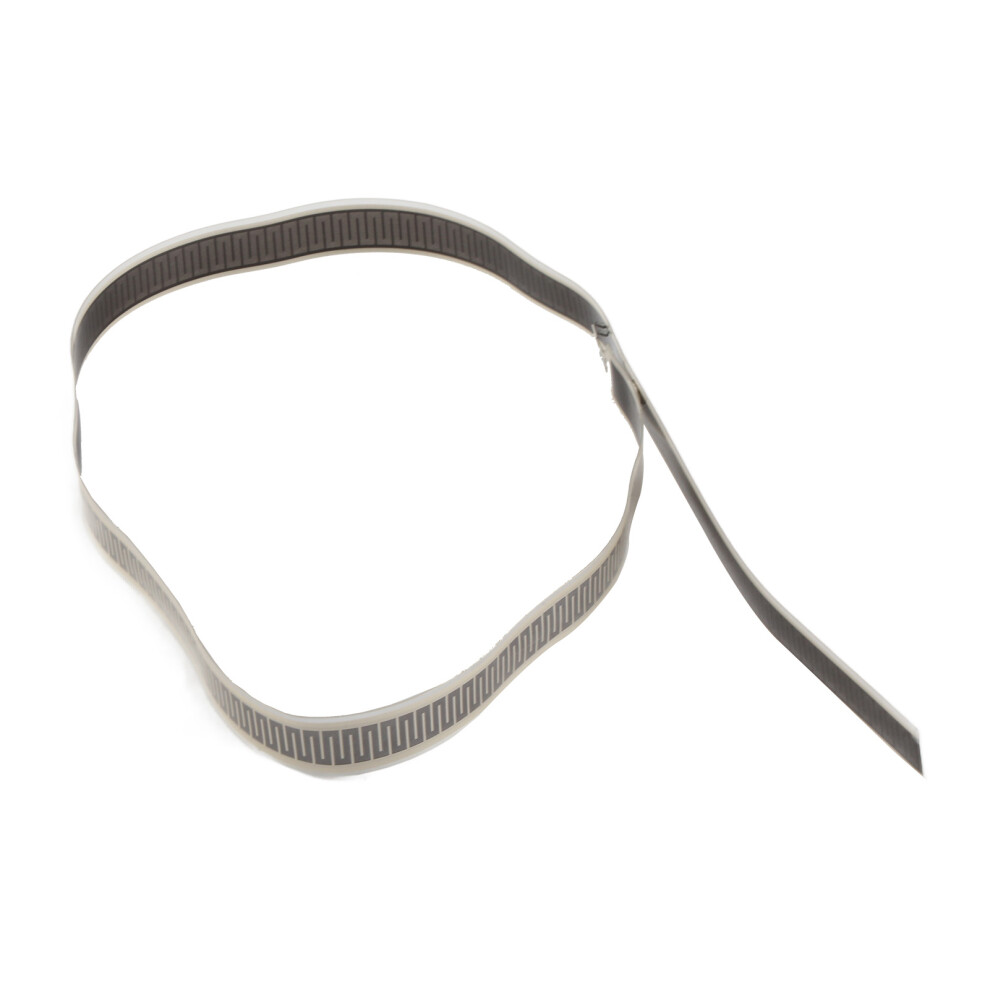

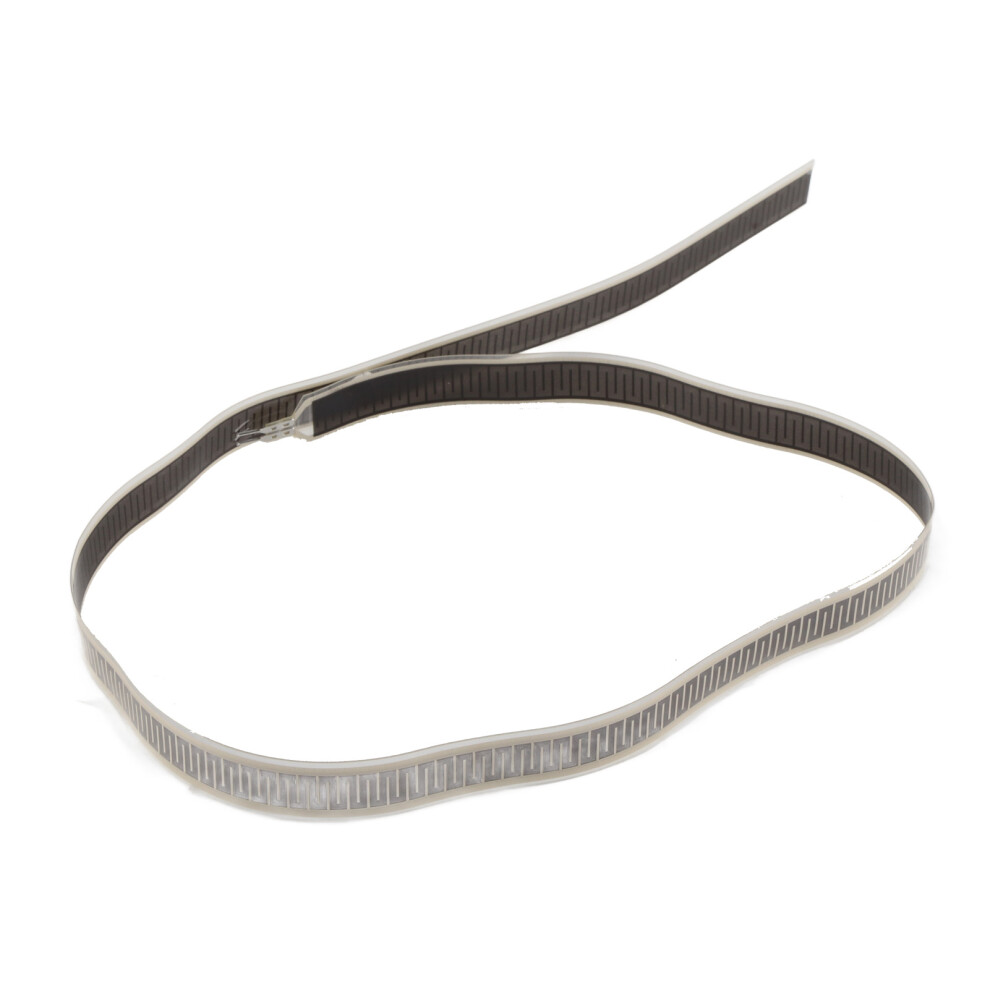

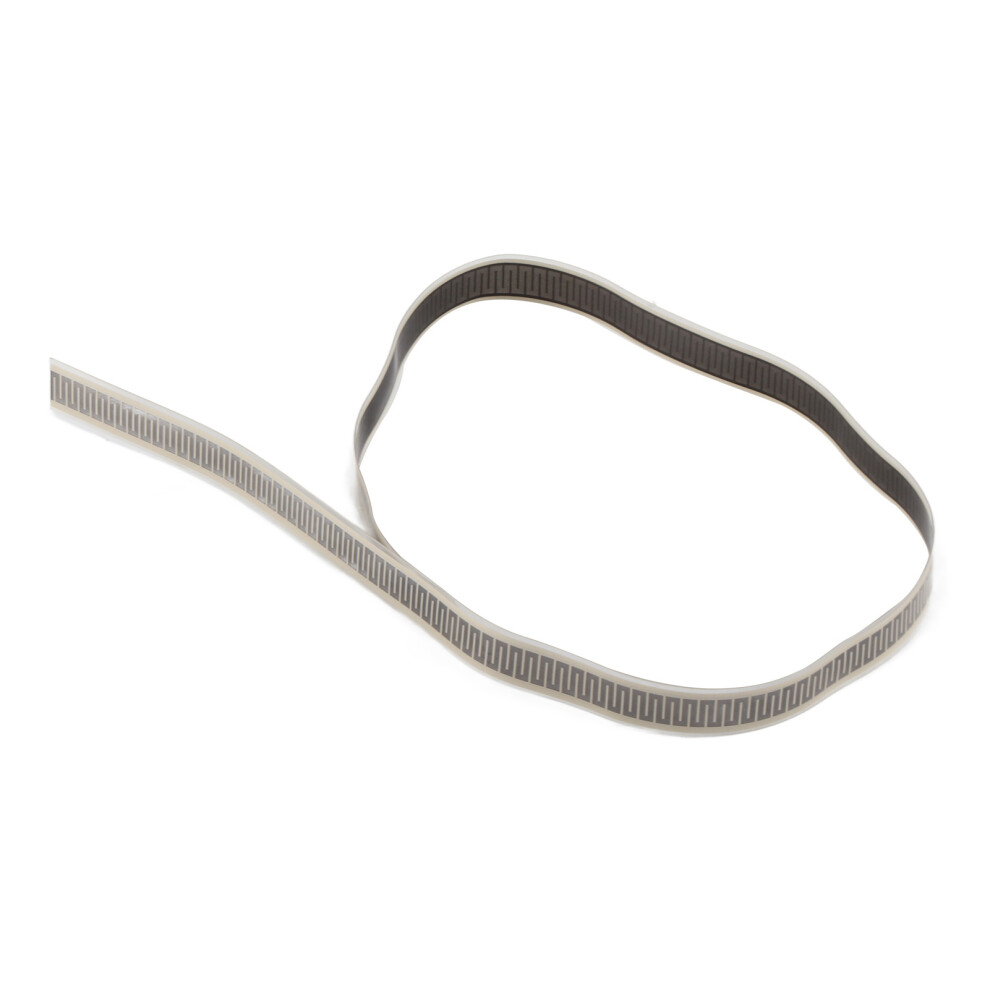

SF15‑600 10kg Resistance Type Thin Film Pressure Sensor Force Sensor

SF15‑600 10kg Resistance Type Thin Film Pressure Sensor Force Sensor Description

1、The flexible sensor has the characteristics of flexible ultra‑thin, and extreme speed response, etc. 2、Waterproof and pressure sensitive dual function 3、Highly sensitive flexible nanometer materials can realize highly sensitive detection of pressure. 4、High sensitivity and long service life 5、Application: Smart home, medical electronics, wearable devices.
Features:
The flexible sensor has the characteristics of flexible ultra-thin, and extreme speed response, etc.
Waterproof and pressure sensitive dual function
Highly sensitive flexible nanometer materials can realize highly sensitive detection of pressure.
High sensitivity and long service life
Application: Smart home, medical electronics, wearable devices.
When sensor detects outside pressure, the resistance of sensor will change.
Pressure signal can be converted into a corresponding electrical signal output using simple circuit
Specification:
Model:SF15-600
Length: 600 mm/23.6in
Width:15mm/0.6in
Range: 0 ~ 10 kg
Thickness:less than 0.35mm
Response point: less than 50g
Durability: more than 1 million times
Response time: less than 10ms
Recovery time: less than 15ms
Working temperature:- 20~ 60
EMI: no
ESD: not sensitive
Weight: Approx.5g/0.2oz
Package list:
1 x Pressure Sensor
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
