SFP+ Module RJ45 Switch GBIC 10G Connector SFP Copper Cable SFP 10G Electrical Port Optical Module E

SFP+ Module RJ45 Switch GBIC 10G Connector SFP Copper Cable SFP 10G Electrical Port Optical Module E Description

feature:
Supports links up to 30m using Cat 6a/7 cable
Complies with SFF-8431 and SFF-8432 MSA standards
Compliant with IEEE 802.3az standard
Low power consumption (max 2.5W @ 30m)

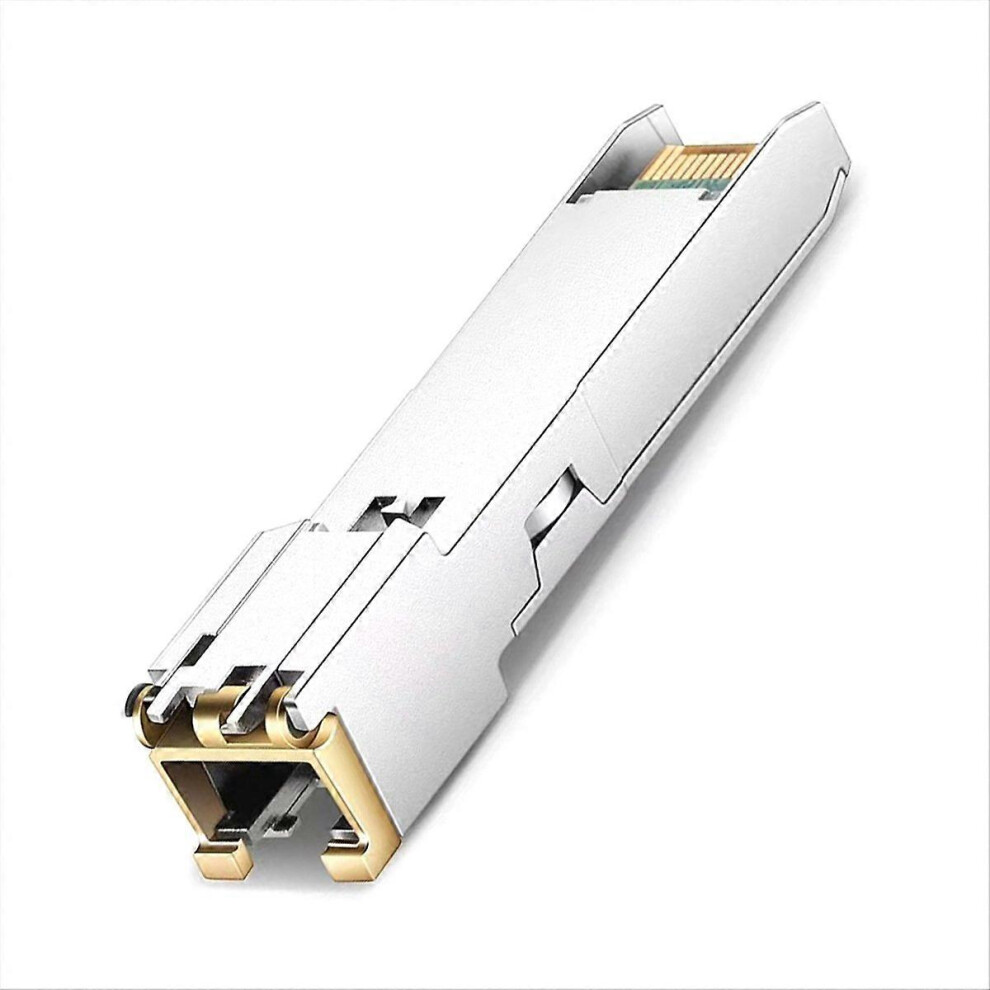

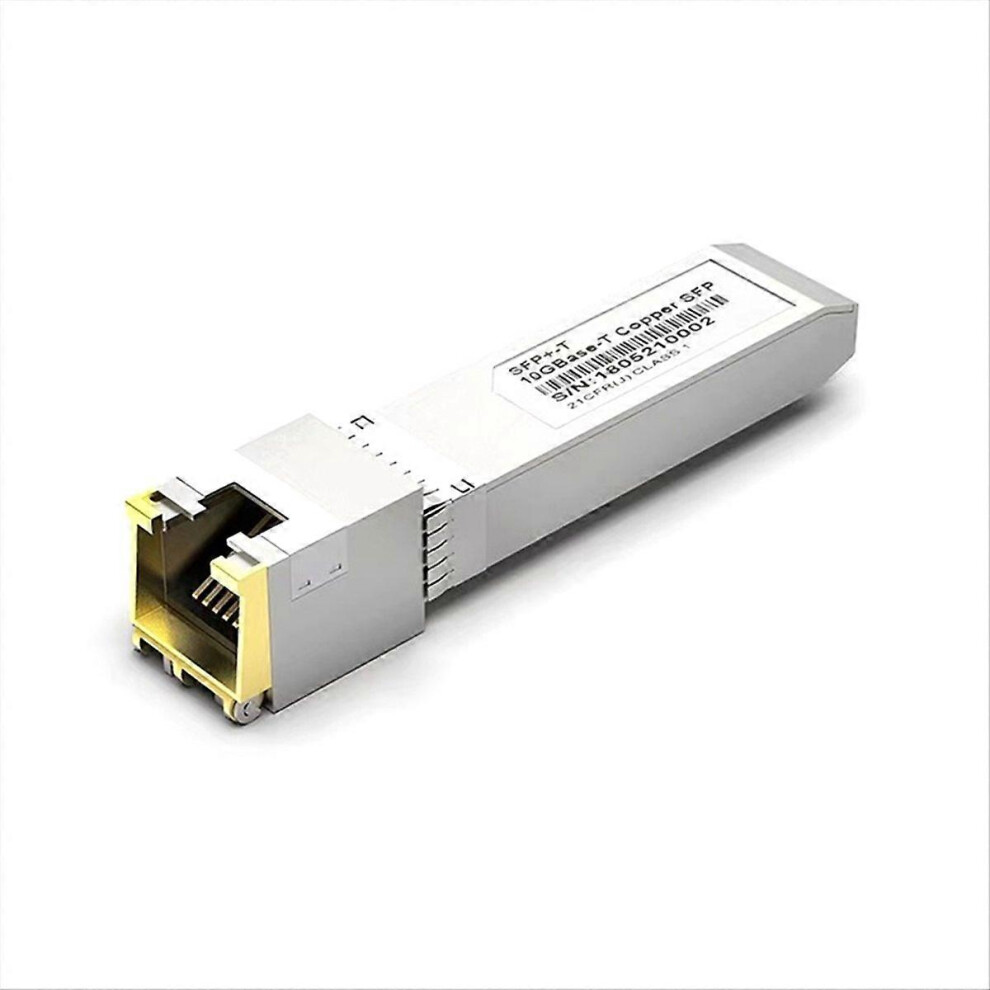

10G-RJ45-SFP
The 10G-RJ45-SFP copper ceiver module is a high-performance integrated duplex data link for bidirectional communications over copper cables. It is designed for high-speed communication links requiring 10 Gigabit Ethernet over Cat 6a/7 cable. This is the first SFP+ ceiver to provide 10 Gb/s communications over this type of media. 100% compatible with all major brands.
Quickly retrain EMI elimination algorithms
Low EMI emissions
I2C 2-wire interface for serial ID and PHY register access
Auto-negotiation with other 10GBase-T PHYs
Supports 100/1000Base-T using Cat 5e cable or better
MDI/MDIX crossover
Multiple loopback modes for testing and troubleshooting
Built-in cable monitoring and linking: cable length measurement; opening/shorts
Rugged die-cast housing
bail latch pop-up mechanism
Unshielded and shielded cable support
color: White
Material: abs
Package Contents:
1 x 10G SFP electrical port module
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
