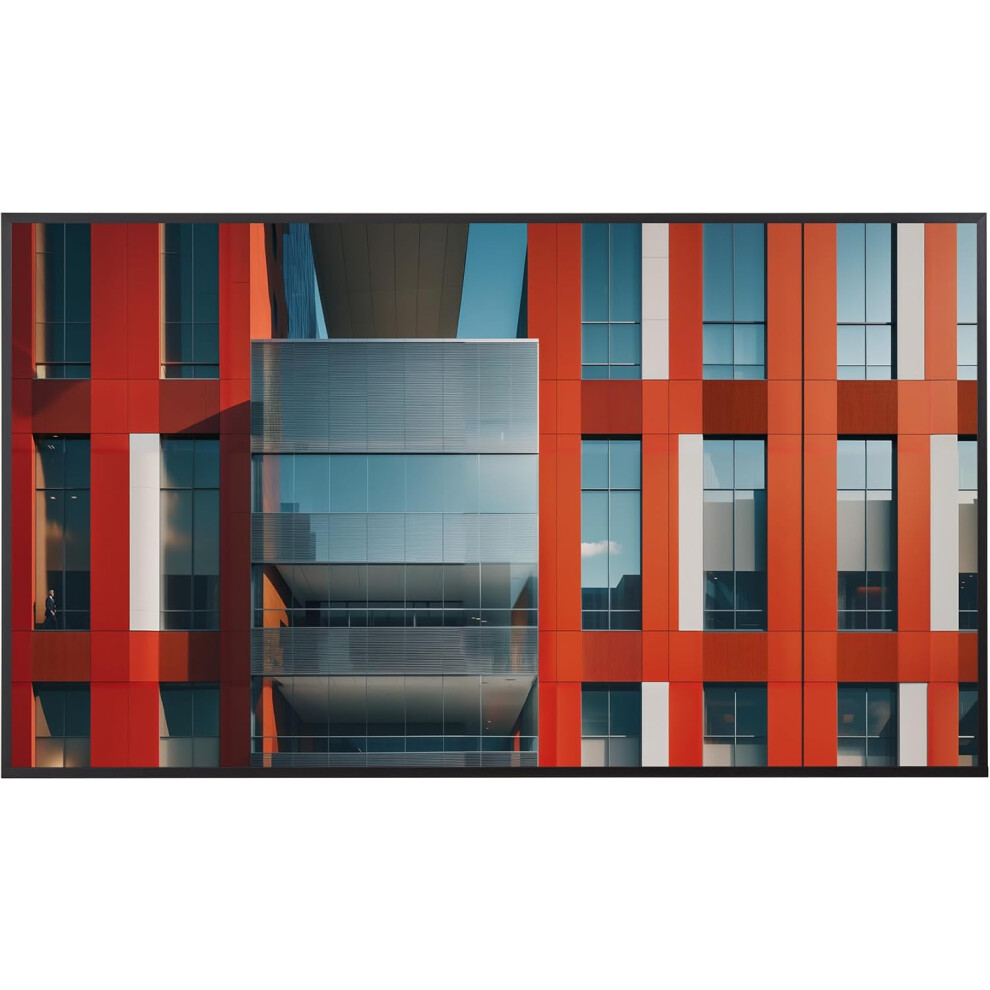

Sharp MultiSync ME552 55" 4K Digital Signage

Sharp MultiSync ME552 55" 4K Digital Signage Description

Class-leading performance and value

For best-in-class visual performance and value, the second generation ME series commands feature-rich professional capabilities for meeting rooms and signage applications. The multi-functional Sharp MultiSync® displays with high haze panel, native USB-C connectivity, and quick input detection appeals to Enterprise users for Bring Your Own Device simplicity, supporting hybrid workflows and spontaneous meetings.

An integrated System on Chip (SoC) with Android 13 CTS-compliant Operating System brings the most up to date features and security, powering signage applications and commanding high compatibility with CMS partners, making the multi-purpose Sharp MultiSync® ME series suitable for cost sensitive retail signage applications. Experience seamless access to Android apps and install apps directly on the display using the integrated browser, without the hassle and expense of an additional external media player.

Trusted long-life reliability is assured through Japanese engineering standards and high-quality components. The Sharp MultiSync® ME series is a class-leading solution for today's workplace challenges, bringing value and professional performance, without compromise.


Seamless connectivity
Native USB-C supports Bring Your Own Device workflows, safeguarding inclusion and boosting productivity, with a single cable connection between notebook and display.

Best readability
Aiding high productivity in well-lit meeting spaces, a high haze filter eliminates glare and reflections from windows and other light sources.

Quick input detection
Removing potential frustration and smoothing the way to productive meeting outcomes, the display responds immediately when a device is connected.

Third-party compatibility
Not simply a display, but an out-of-the-box solution, compatible with popular workplace and content management systems through the integrated SoC platform.

New feature-ready
Regular OTA Android OS updates ensure availability of the latest features and system security.

★★Specifications★★

Display

Panel Technology: IPS with Direct LED backlights

Screen Size [inch/cm]: 55 / 138.8

Aspect Ratio: 16:9

Brightness [cd/m²]: 450

Contrast Ratio (typ.): 1200:1

Viewing Angle [°]: 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)

Colour Depth [bn]: 1.073 (8bit + FRC)

Response Time (typ.) [ms]: 8

Panel Refresh Rate [Hz]: 60

Haze Level [%]: Pro (25)

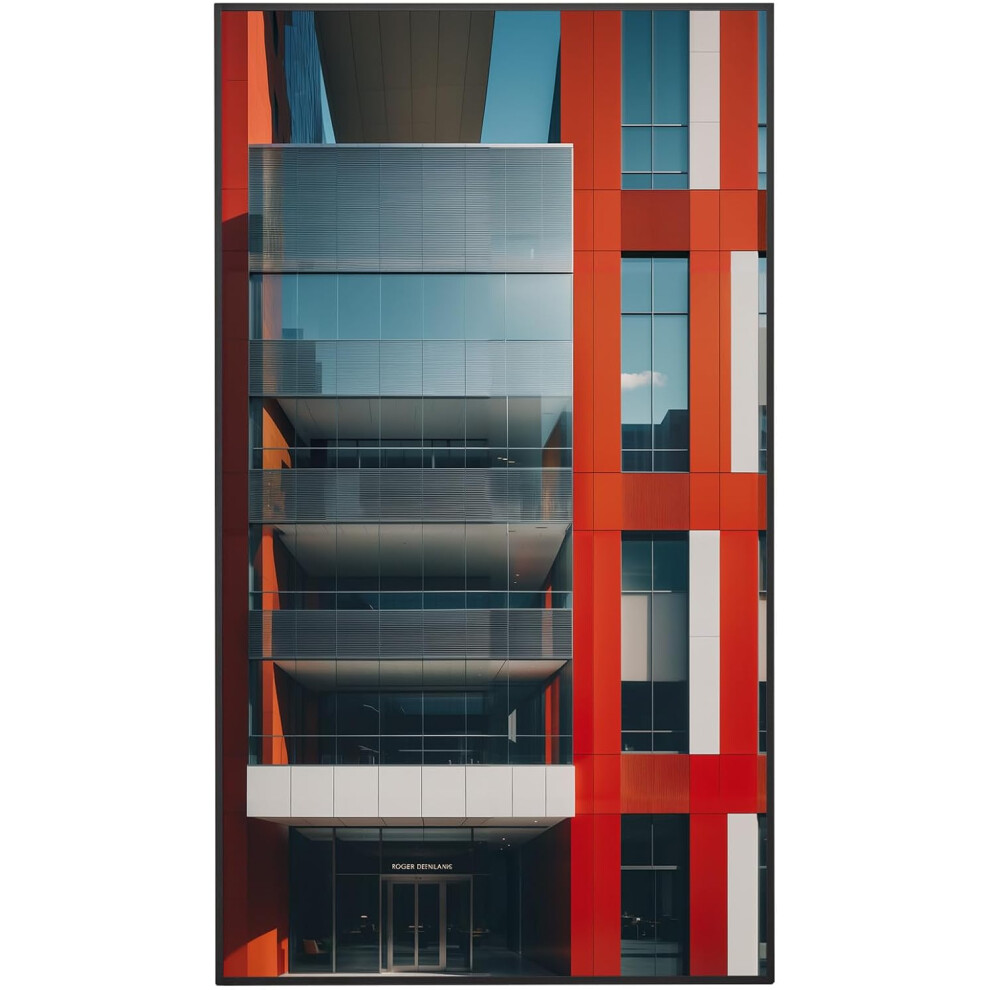

Supported Orientation: Landscape; Portrait

Resolution

Native Resolution

3840 x 2160

Supported Resolutions

1024 x 768;

1280 x 1024;

1280 x 720;

1280 x 800;

1360 x 768;

1366 x 768;

1400 x 1050;

1440 x 900;

1440 x 900;

1600 x 1200;

1680 x 1050;

1920 x 1080;

1920 x 1200;

1920 x 2160;

3840 x 2160;

4096 x 2160;

640 x 480;

720 x 480;

720 x 576;

800 x 600

Synchronisation

Horizontal Frequency [kHz]: 15 - 135

Vertical Frequency [Hz]: 23 - 76

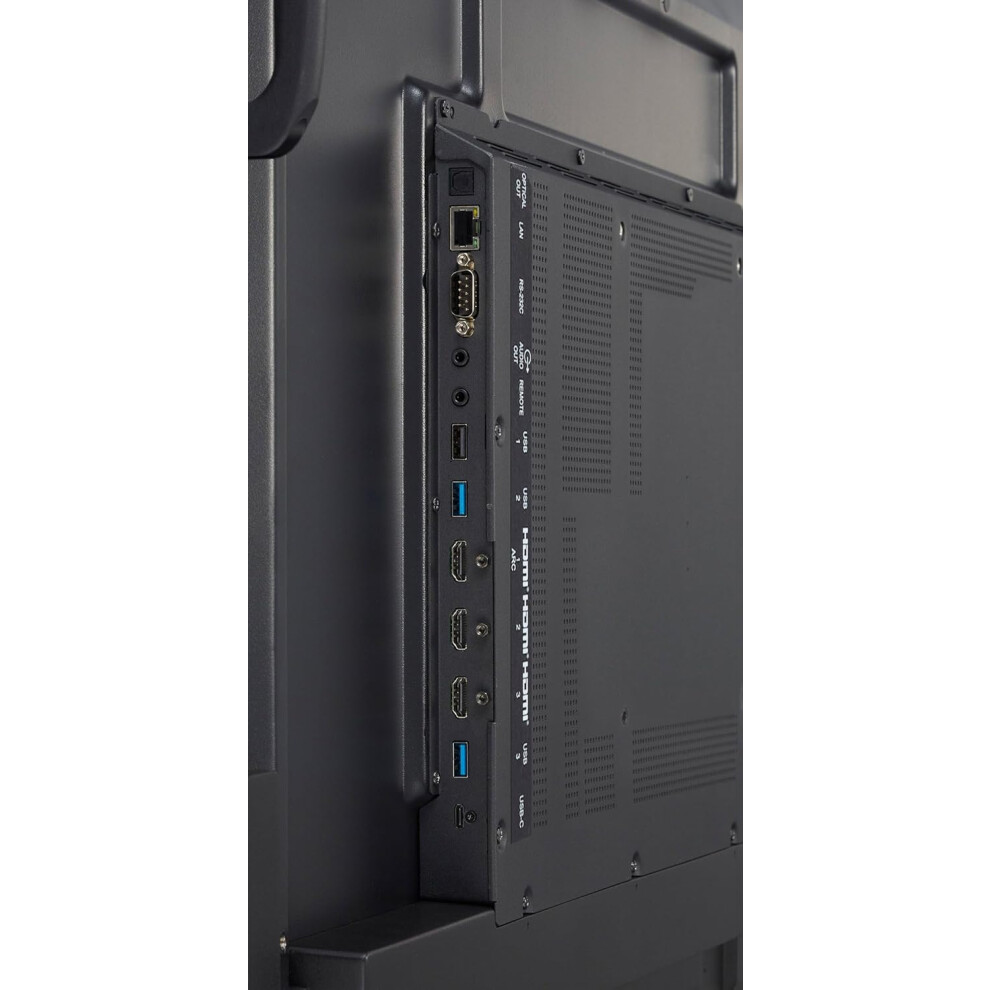

Connectivity

Input Video Digital: 1 x USB-C (with HDCP 1.3/2.2); 3 x HDMI (with HDCP)

Input Audio Digital: 1x USB-C; 3 x HDMI

Input Control: LAN 100Mbit; remote control wire (3,5mm jack); RS232

Input Data: 3 x USB 2.0 (Downstream)

Output Audio Analogue: 1 x 3,5 mm jack

Output Audio Digital: 1 x SPDIF; 1x HDMI

Input Detect: Custom; First; Last

Electrical

Power Consumption [W]: 120 shipping

Power Savings Mode [W]: < 0.5; < 2 (Networked Standby)

Power Management: VESA DPMS

Power Supply: 100-240 V AC; 50/60 Hz; internal

Mechanical

Dimensions (W x H x D) [mm]: 1,233 x 703.5 x 62

Weight [kg]: 13.2

Bezel Width [mm]: 9.9

VESA Mounting [mm]: 4 holes; 400 x 400 (FDMI); M6

Ingress Protection: IP5x (front); IP5x (back)

Colour Bezel: Pantone (Process Black M)

Material: Metal
