Shore Type A Rubber Tire Durometer Hardness Tester Meter 0‑100 Degrees(A)

Shore Type A Rubber Tire Durometer Hardness Tester Meter 0‑100 Degrees(A) Description

Shore Type A Rubber Tire Durometer Hardness Tester Meter 0‑100 Degrees(A)

Features:

Easy e, accurate measurement, easy to carry, sturdy and stable, practical and strong.


This rubber hardness tester is a measure of sulfur rubber and plastic products of hardness of the instrument.


Made of alloy material,waterproof not rust,fine workmanship,sturdy.


The dial scale is clear and the degree is more intuitive and convenient.


The connecting device is more convenient e with the frame.






Type A is suitable for general rubber, synthetic rubber, soft rubber, poly fat, leather, wax etc.
Specifications:
Type(Optional):  A,  O,  D
Dial value: 0-100 degrees
Pressure needle trip: 0-2.5 mm
Pressure needle end pressure:
A/O type: 0.55 N - 8.06 N,
D-type: 0-44.5 N
Accuracy: 0.1 mm
Test force: 0.5 N

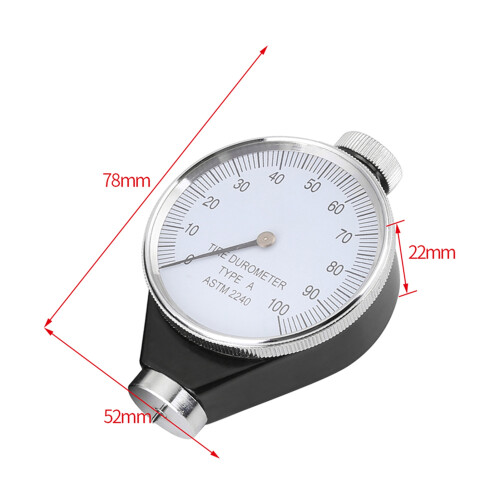

Size: 78 * 52 * 22 mm/3.07*2.05*0.87inch
Weight: 200 g

Instructions:
The sample on strong plane,
take the hardness tester, pressure needle distance sample at least 12
mm edge smooth put pressure on foot pressure in the sample, makes the
needle vertical pressure into the sample, until the feet and sample
completely contact pressure when within 1 s reading. Measuring at least 6
mm apart in different positions of the measurement hardness value 5
times, take the average (micro porous materials are measuring at least
15 mm). In order to stabilize determination conditions, to enhance
determination accuracy, hardness tester device should be in the same
determination on supporting producer determination.

Package Included:
1 x   Rubber Tire Durometer
