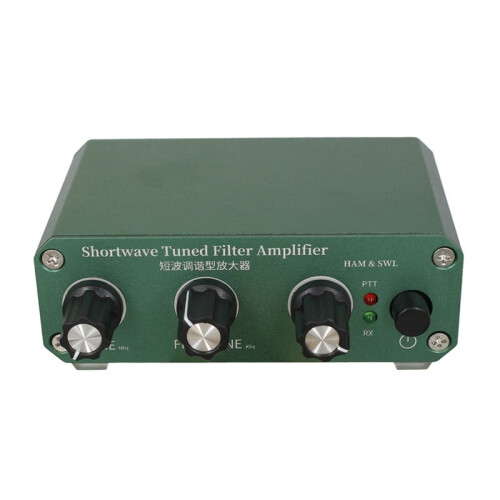

Shortwave Tuned Filter Amplifier with Transmit and Pass Modes, Frequency Coverage 3-30MHz, Adjustable Gain 0-30dB
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 132,000 Trustpilot reviews and an 'Excellent' rating
£84.14
£138.83
39% off!
+£0.50 Delivery
1%
Earn £0.84 instantly
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (£0.50) | Wed 2nd - Tue 8th Sep
Sold by: Dopipoo
Returns: 30 days
180-day payment protection
You might also like
Description & Details
Summary
- This unit is a receiving amplifier with a shortwave tunable bandpass filter center frequency, covering a frequency range of 3-30MHz, and an adjustable gain of 0-30dB.
- Shortwave tuned amplifier
- Shortwave Power Amplifier 3-30MHZ
- Shortwave amplifier
- Shortwave Power Amplifier

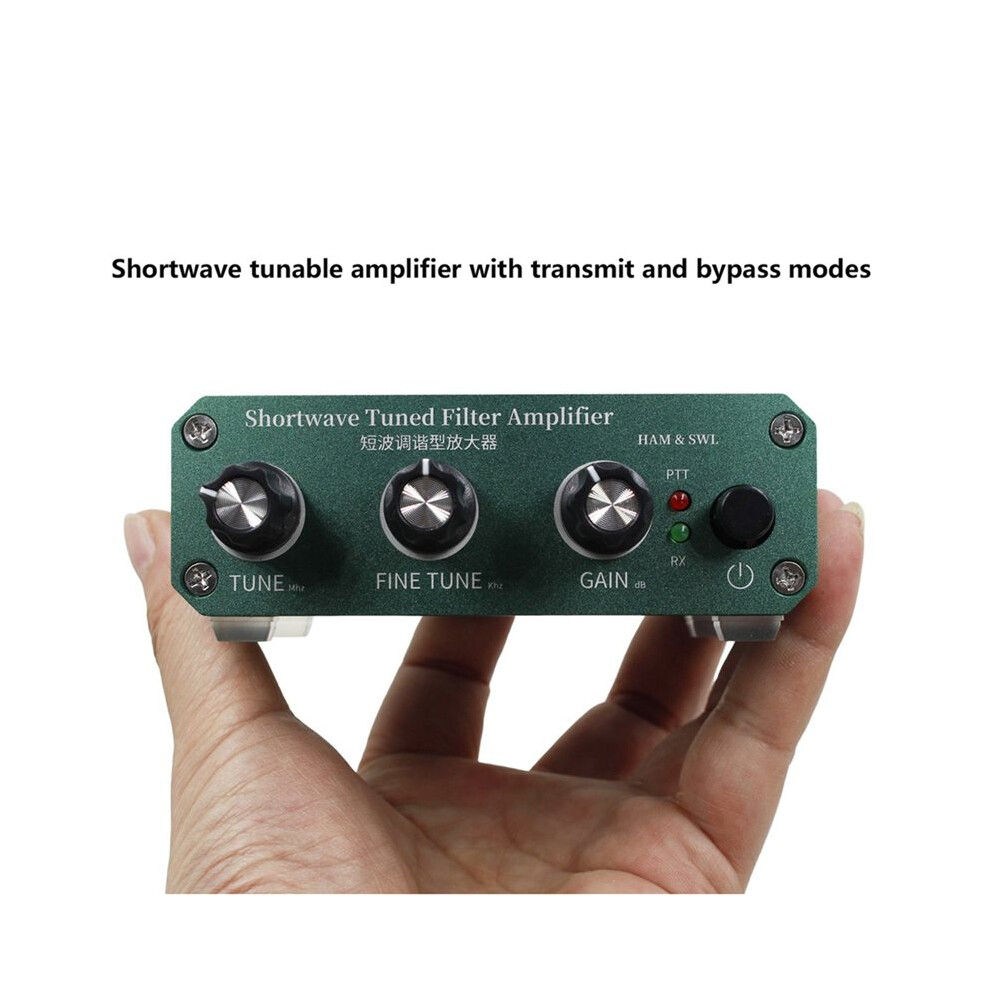

Shortwave Tuned Filter Amplifier with Transmit and Pass Modes, Frequency Coverage 3-30MHz, Adjustable Gain 0-30dB Description

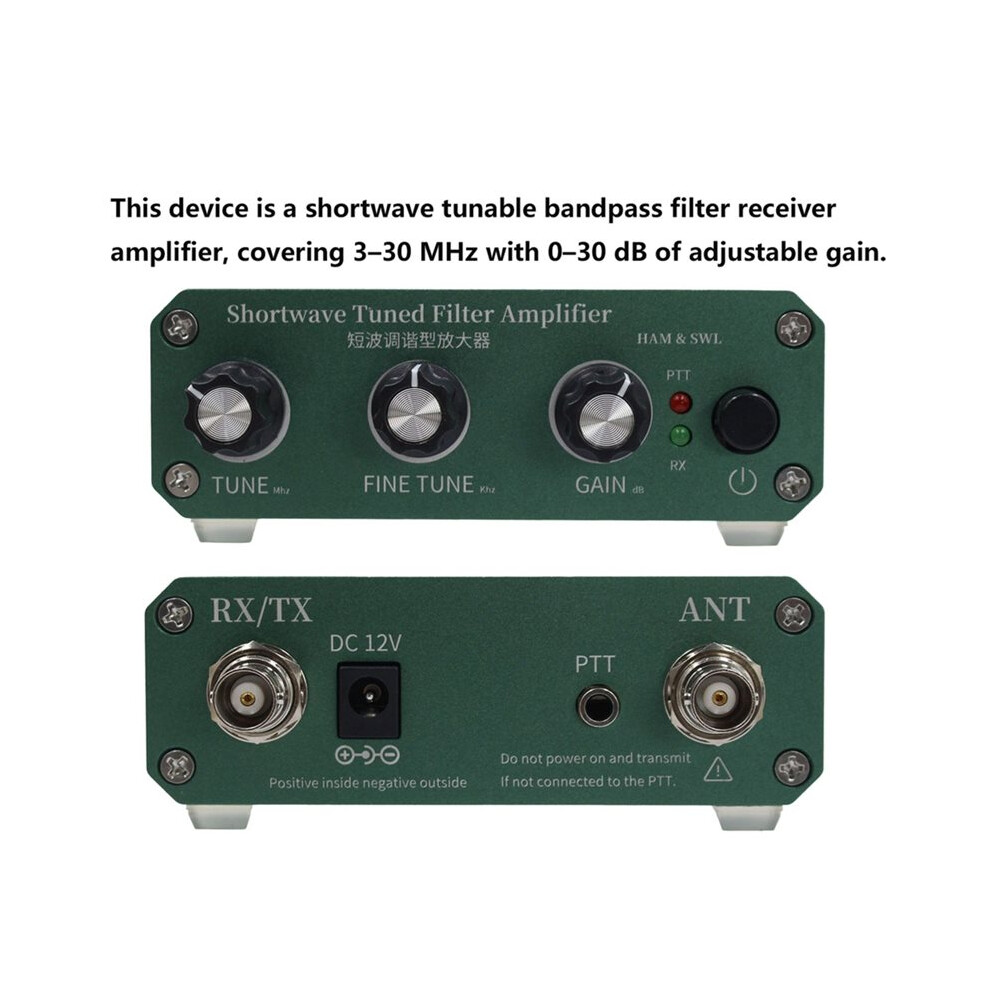

This unit is a receiving amplifier with a shortwave tunable bandpass filter center frequency, covering a frequency range of 3-30MHz, and an adjustable gain of 0-30dB.

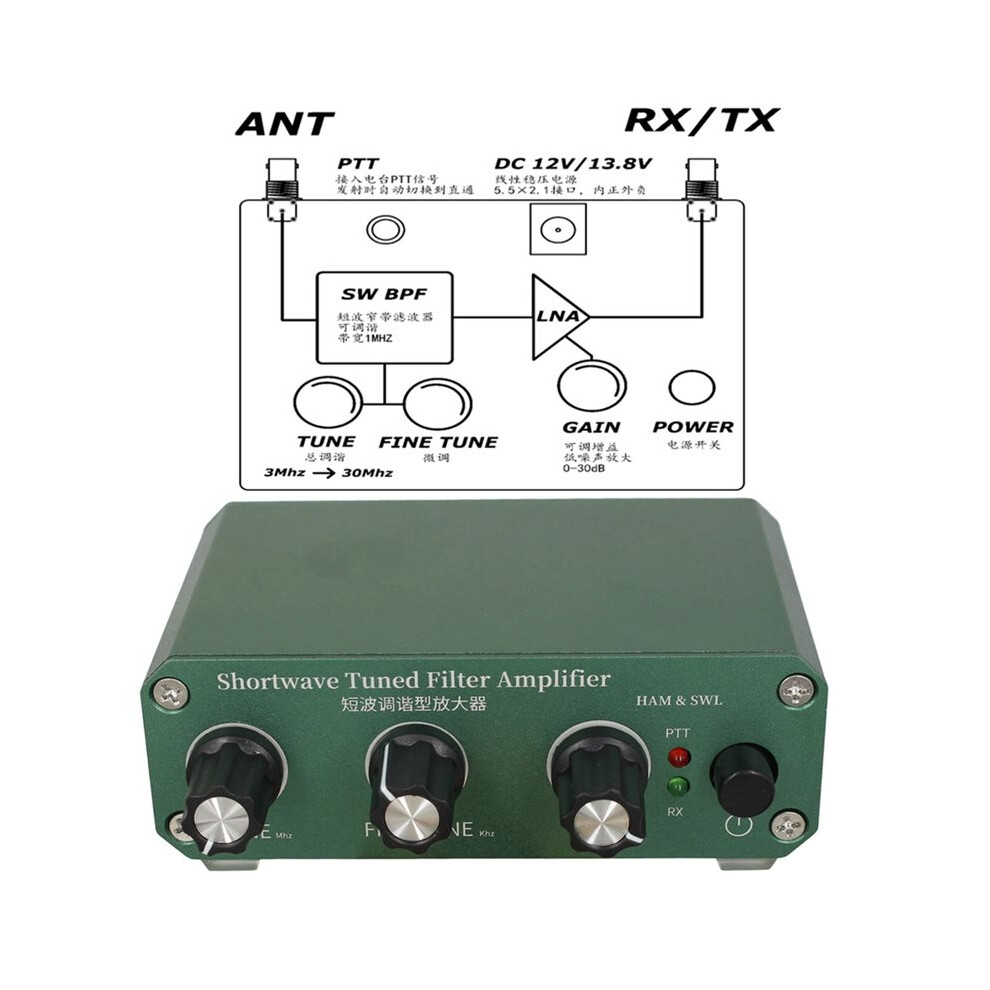

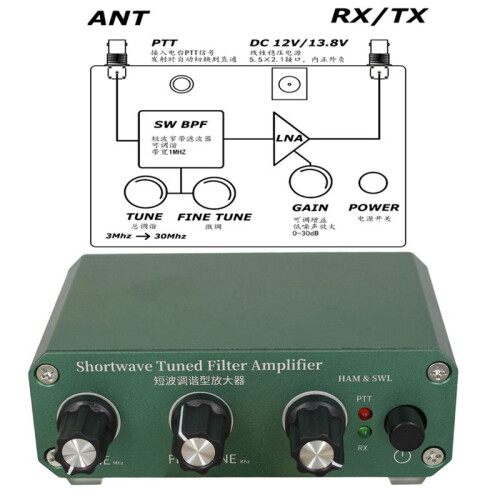

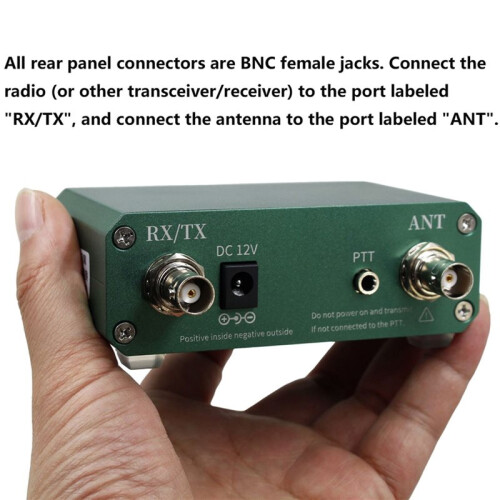

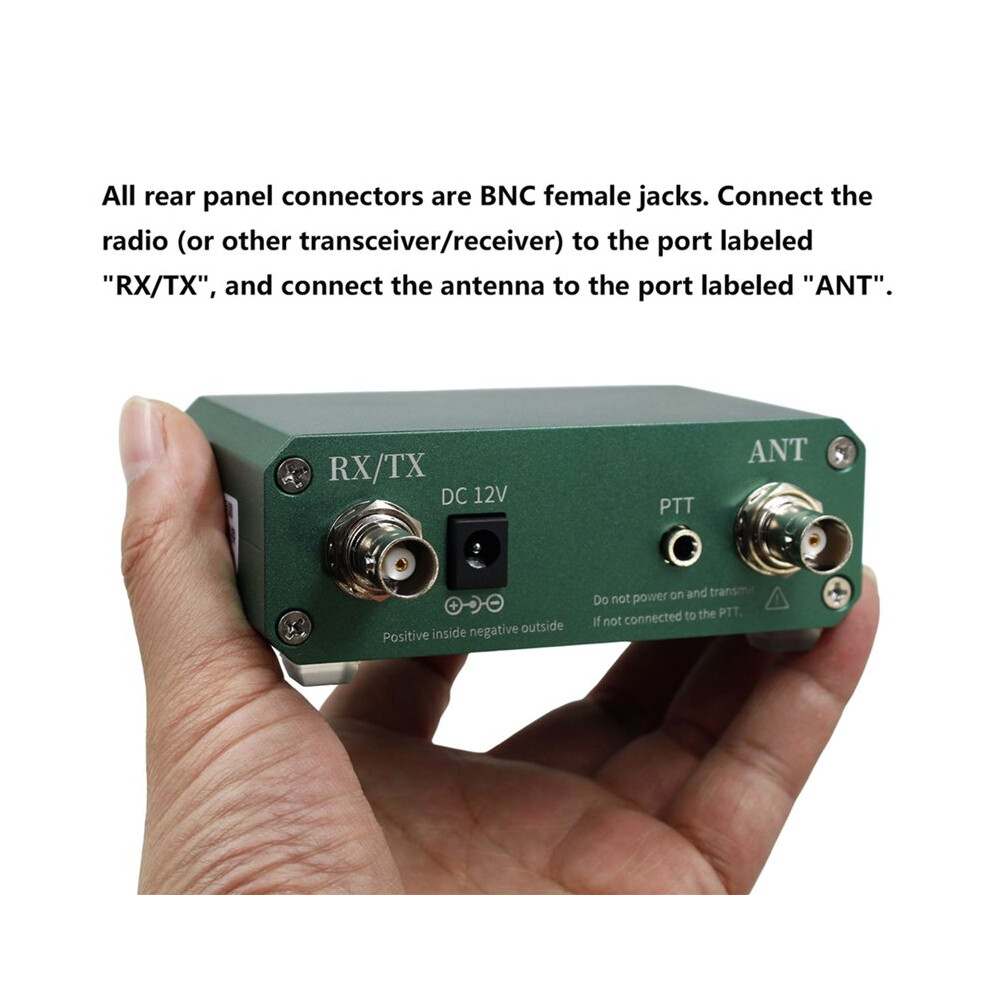

Signals from the ANT interface are filtered by the built-in shortwave tunable narrowband filter, amplified by a low-noise amplifier, and then sent to the RX/TX interface.
The bandwidth of the tunable narrowband filter is approximately 1MHz. Adjusting the filter knob to reach the target frequency allows the signal at that frequency to pass through, while other frequency signals either side are attenuated. The filtered signal is then amplified by the low-noise amplifier, whose gain is adjustable. Adjusting the gain to a suitable level based the strength of the received signal and the dynamic range of the device prevents receiver overload.
Built-in relay allows transmission even when powered off or connected to the PTT signal . Maximum withstand voltage is AC 440V/ 120V, maximum withstand current is 8A. Please use below the maximum withstand voltage and current.
For both transmission and reception, please turn off the amplifier before transmitting or connect the PTT signal to the amplifier to control the internal relay .
Color: Dark Green
Material: Aluminum Alloy
Package Contents:
1*Shortwave tuned Filter amplifier
Details
| OPC | PTRHB6R |
|---|---|
| Codes | 6032982420488 (EAN) |
Product Data
| Height | 10cm |
|---|---|
| Width | 16.5cm |
| Length | 19.5cm |
| Weight | 0.27kg |
| Colour | Dark Green |
| Material | Aluminum Alloy |
