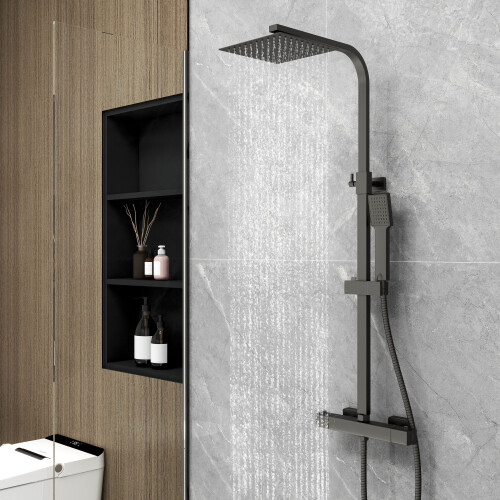

Shower Square Thermostatic Mixer Exposed Valve Head Matte Black

Shower Square Thermostatic Mixer Exposed Valve Head Matte Black Description

• Thermostatic shower system is equipped with a safety lock at 38°C to protect children and the elderly against scalding-hot water, enjoy a more comfortable shower.
• Thermostatic Control: Many stylish bar valves come with thermostatic control, ensuring a consistent water temperature and preventing scalding.
• Dual Controls: Usually equipped with dual controls for adjusting water temperature and flow separately, providing precise control over your shower experience.
• High-Quality Materials: Constructed from durable materials such as solid brass, stainless steel, plastic, etc, ensuring longevity and resistance to corrosion.
• Easy to Clean: Smooth surfaces and finishes are easy to wipe down and keep clean.
• Our Bathroom Shower System with all mounting parts for quick and easy installation. At the same time, if there is any problem during the use, please connect with us.

Specifications

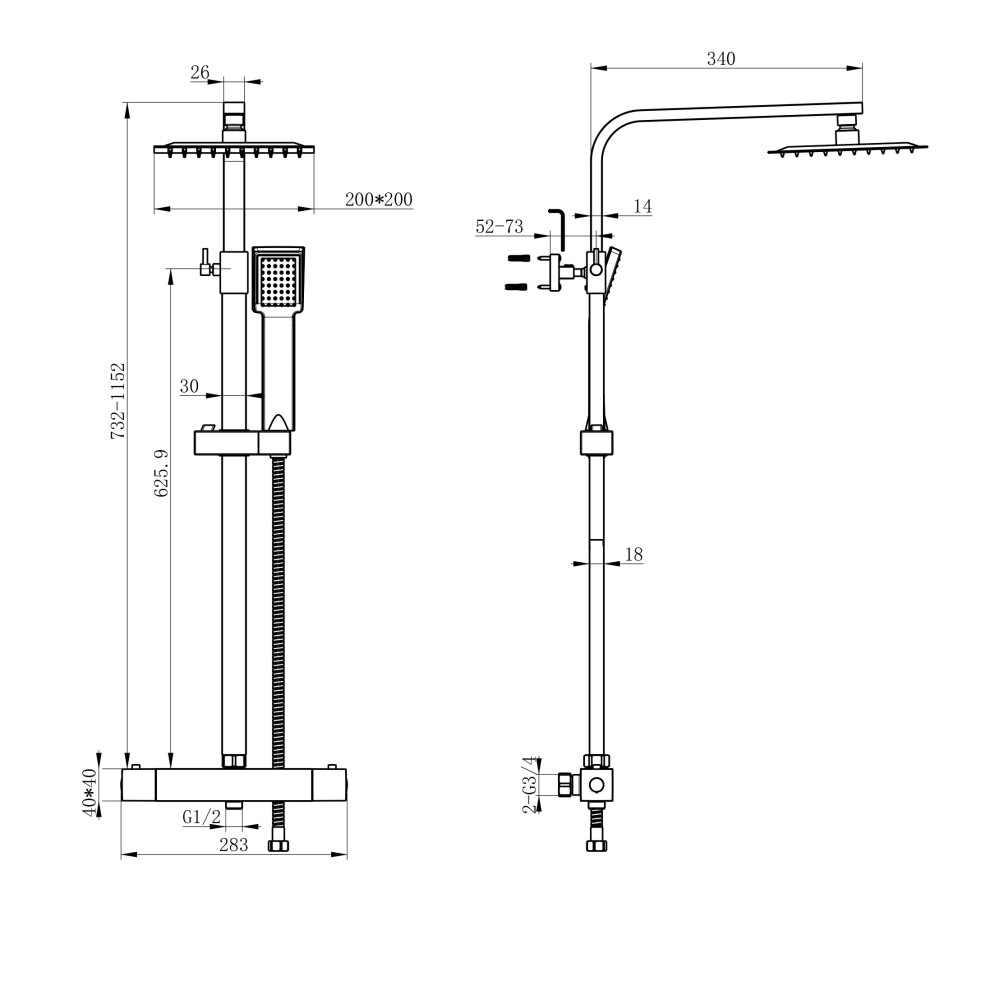

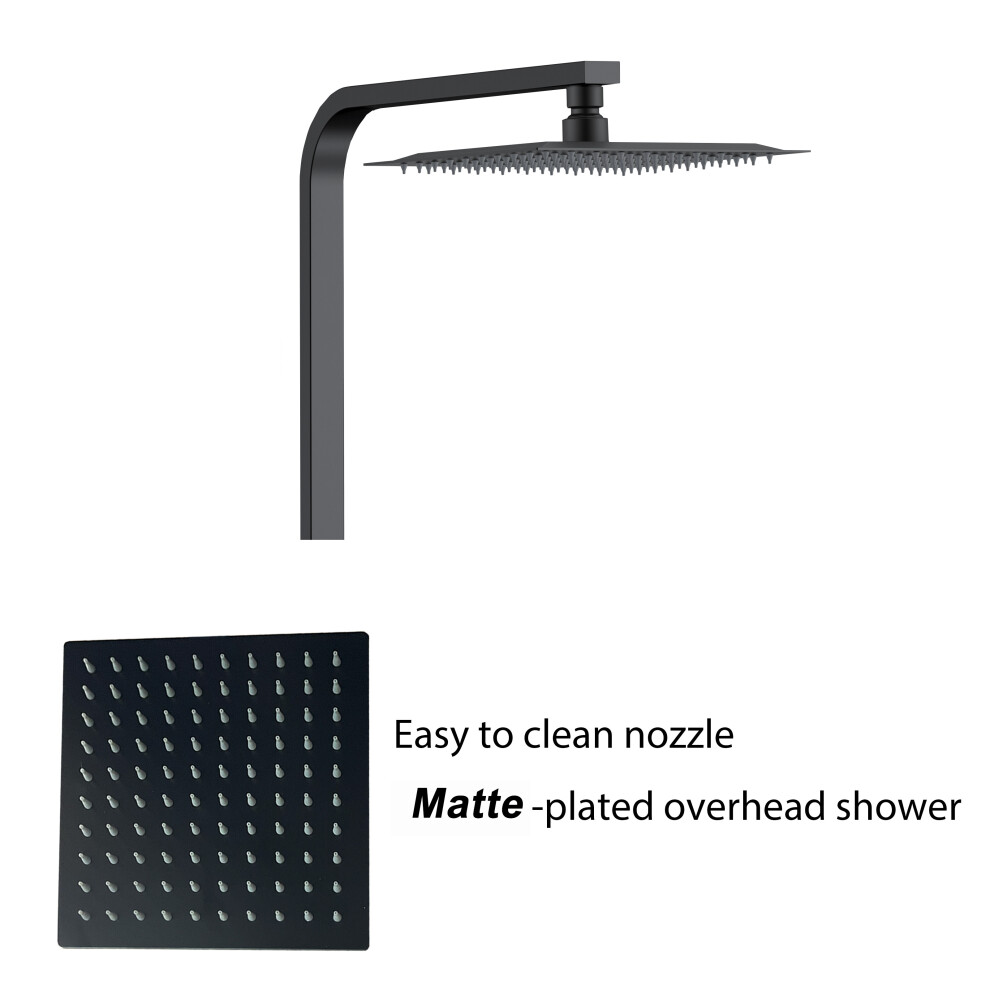

• Square shower Head Size: φ200mm, adjustable up to 360° rotation and ± 30° tilt angle

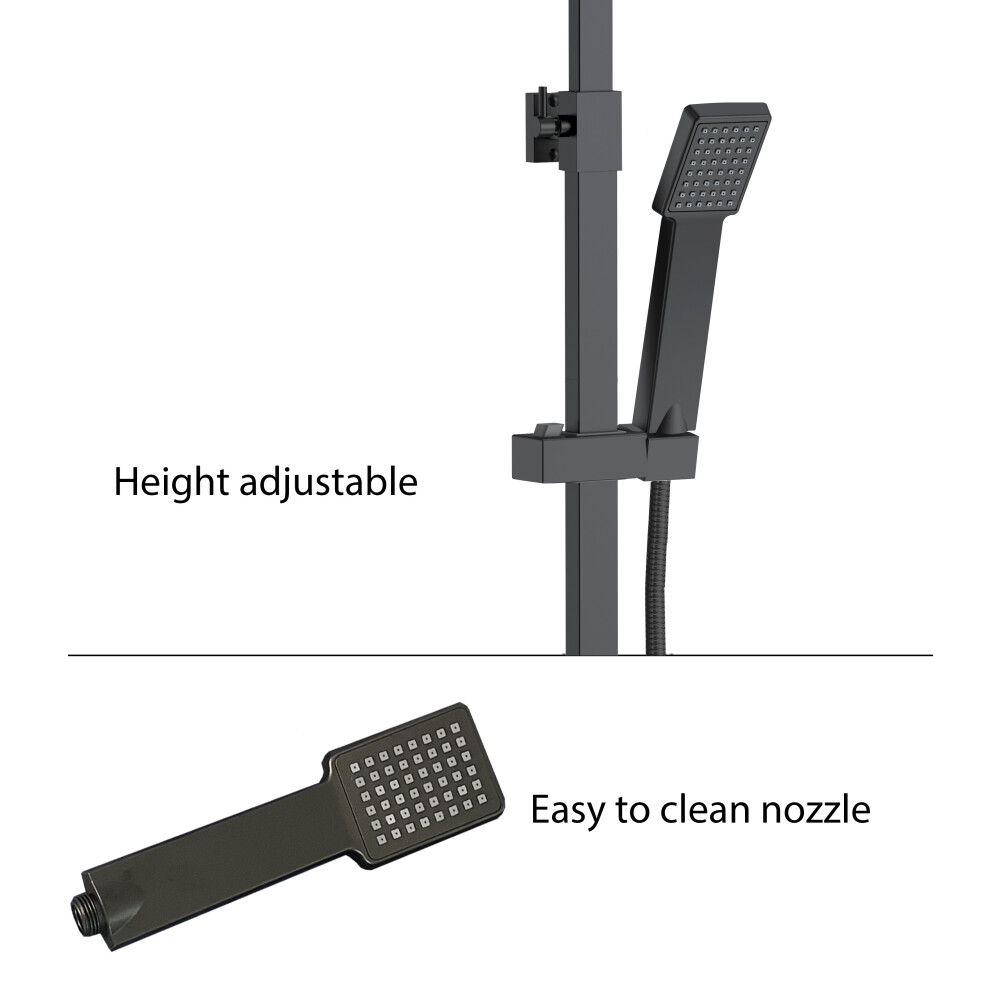

• Square shower rod: 732mm-1152mm adjustable height

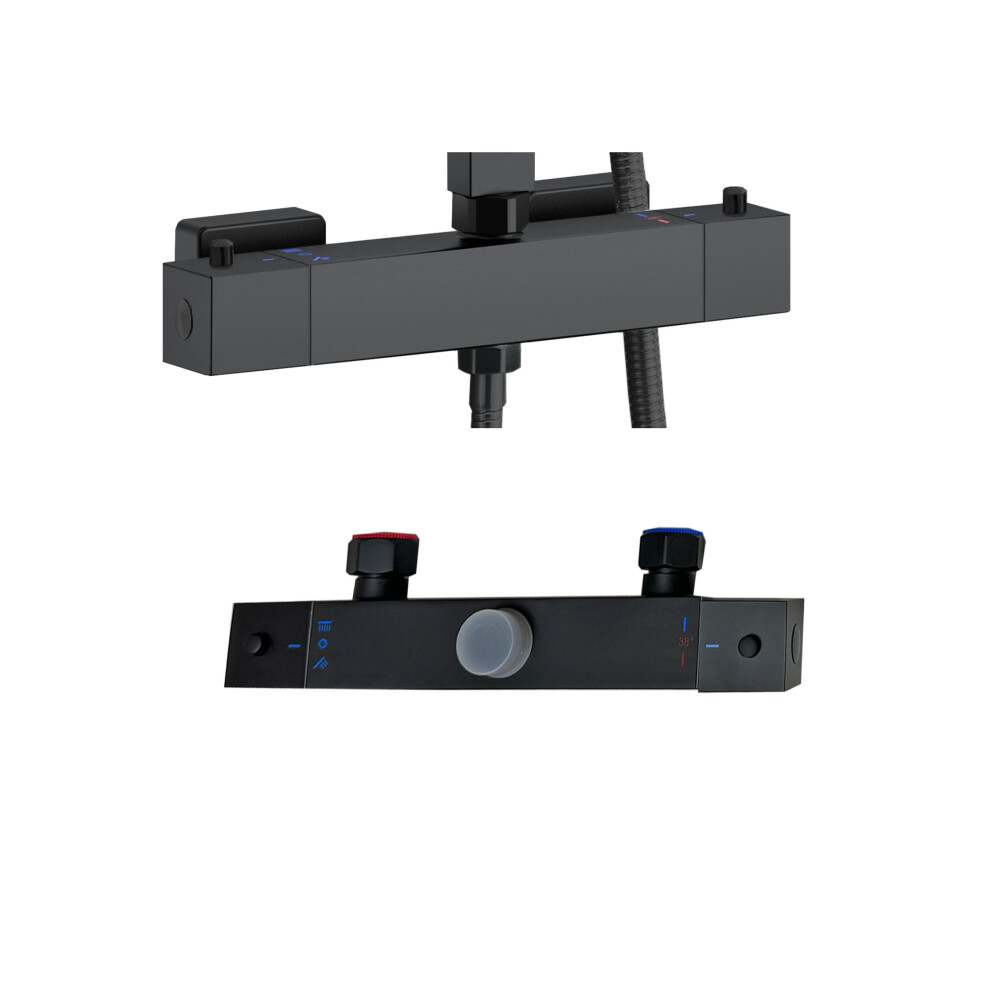

• Square exposed thermostatic mixer valve: 40mm x 283mm
• The distance between is 150mm with the hot water supply on the left and the cold water supply on the right.
• The left side of the thermostatic valve is used to switch between handset and drencher head,and the right side is used to temperature control.
• Temperature range: 18-60℃
• Handheld: Square, 1 function mode
• Body Material: Solid Brass
• Shower head Material: Stainless Steel
• Handset: ABS handset with matte plating
• Hose: 1.5m flexible stainless steel
• Nozzles: Easy clean rubber nozzles
• Exceptional build quality and finish. Highly polished 3 layer PVD mirror chrome finish, create a silky- feel surface, mirror-like sheen and tarnish & corrosion resistant
• Standard size fitting
• Finish: Matte Black
• Guarantee: 2 years
• Item Weight : 3.4kg

Flow Rates

Top Spray

• 1.0 Bar - 3~5 L/MIN
• 2.0 Bar - 6~8 L/MIN
• 3.0 Bar - 9~11 L/MIN

Handheld Shower

• 1.0 Bar - 2~4 L/MIN
• 2.0 Bar - 5~7 L/MIN
• 3.0 Bar - 8~10 L/MIN

Technical Information

• Combi-boilers
• Gravity Fed systems
• MegaFlow Systems
• Pumped systems
• Un-vented systems
• Pressurised cylinder systems
• Subject to a minimum pressure of 0.5 bar water

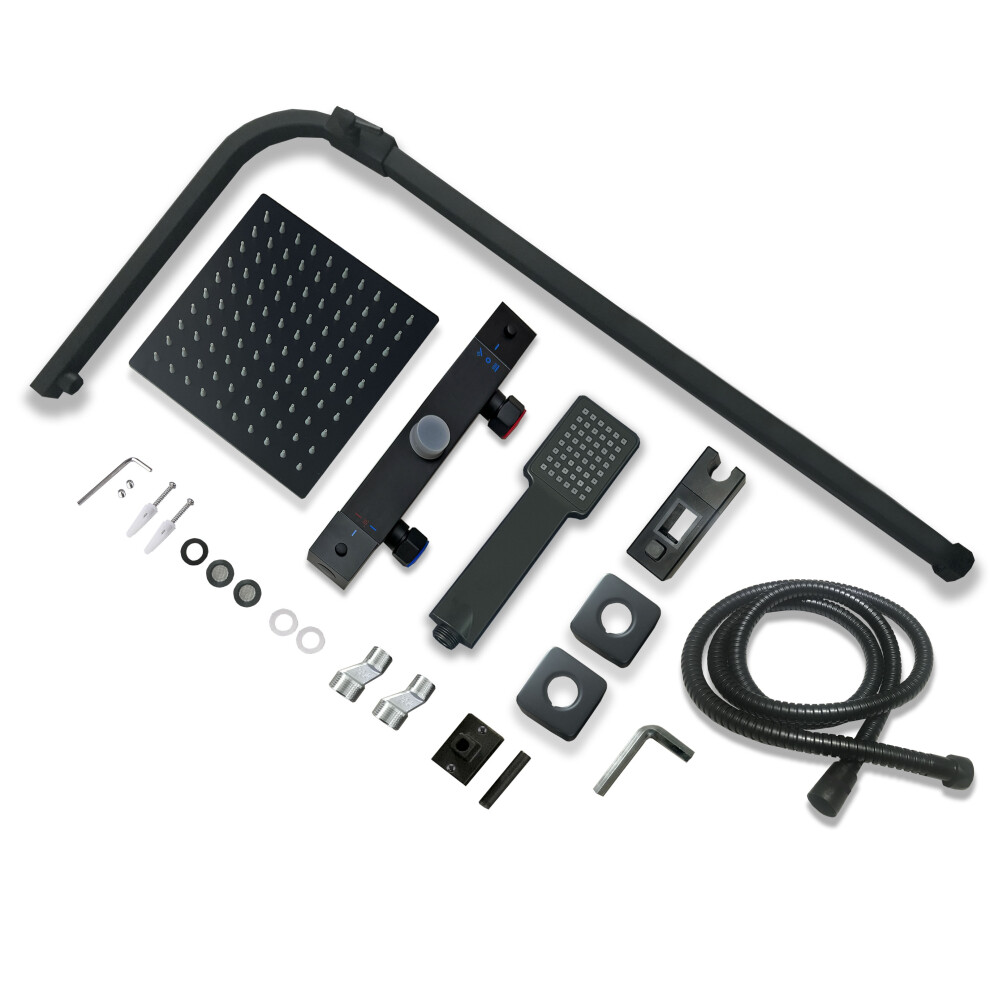

What's in the package

• Square Thermostatic Shower Mixer
• Shower Pipe
• Overhead Shower (8")
• Hand Shower
• Stainless steel Shower Hose (1.5M)
• Wall Bracket & Fixings
• S-connections
• Decorative Cover
• Assembly Instruction

NOTE: Rinse the pipe sediment before installing the shower to avoid blockage or odor.

Tips: Precautions for sliding shower holder installation

• The direction of the shower holder button has to be upward direction.
• When installing the shower holder, press the button down to the end before putting the shower pipe into the shower holder.
