Si4703 FM Tuner Evaluation Board Broadcast Data Processing Module

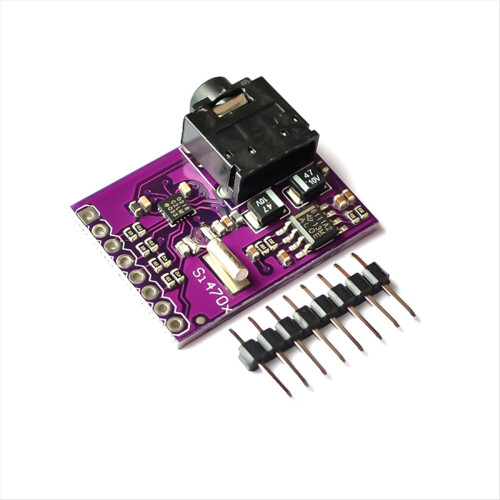

Si4703 FM Tuner Evaluation Board Broadcast Data Processing Module Description

The Si4703-C is a complete FM tuner receiver system from FM radio input to stereo output. A digital processor is integrated on the chip to handle the symbol decoding block synchronization, error detection and error correction functions required by the Radio Data Broadcasting System (RBDS).
The FM receiver uses a mixer to reduce the RF signal to a low intermediate frequency, thereby reducing additional peripheral circuit devices. The automatic frequency control (AFC) adjusts the voltage-controlled oscillator to generate an orthogonal local signal to the mixer. The output of the orthogonal mixer is amplified, filtered and digitized by a high-resolution analog-to-digital converter (ADC).
The digital signal processing () can perform channel selection, FM demodulation and stereo audio processing. The internal automatic gain control (AGC) circuit controls the gain of the low-noise amplifier (LNA) to more sensitive and more powerful in noise suppression.
The integrated regulator on the chip can be directly connected to the battery, and the headphone jack can be used as an RF receiving antenna by inserting headphones. This advanced architecture has superior performance compared to traditional analog architectures.
The module also has a 150mW stereo power amplifier with thermal protection and short circuit protection and a 3.5mm headphone jack. When connected to a microcontroller, it can control the volume, automatically search channels manually, mute by software or hardware, and measure signal strength.

Product name: Radio tuner development board
FM frequency range: 76-108MHZ
Programmable de-emphasis: 50us/70us
Operating temperature: -20-85
Module operating voltage: 3.3V

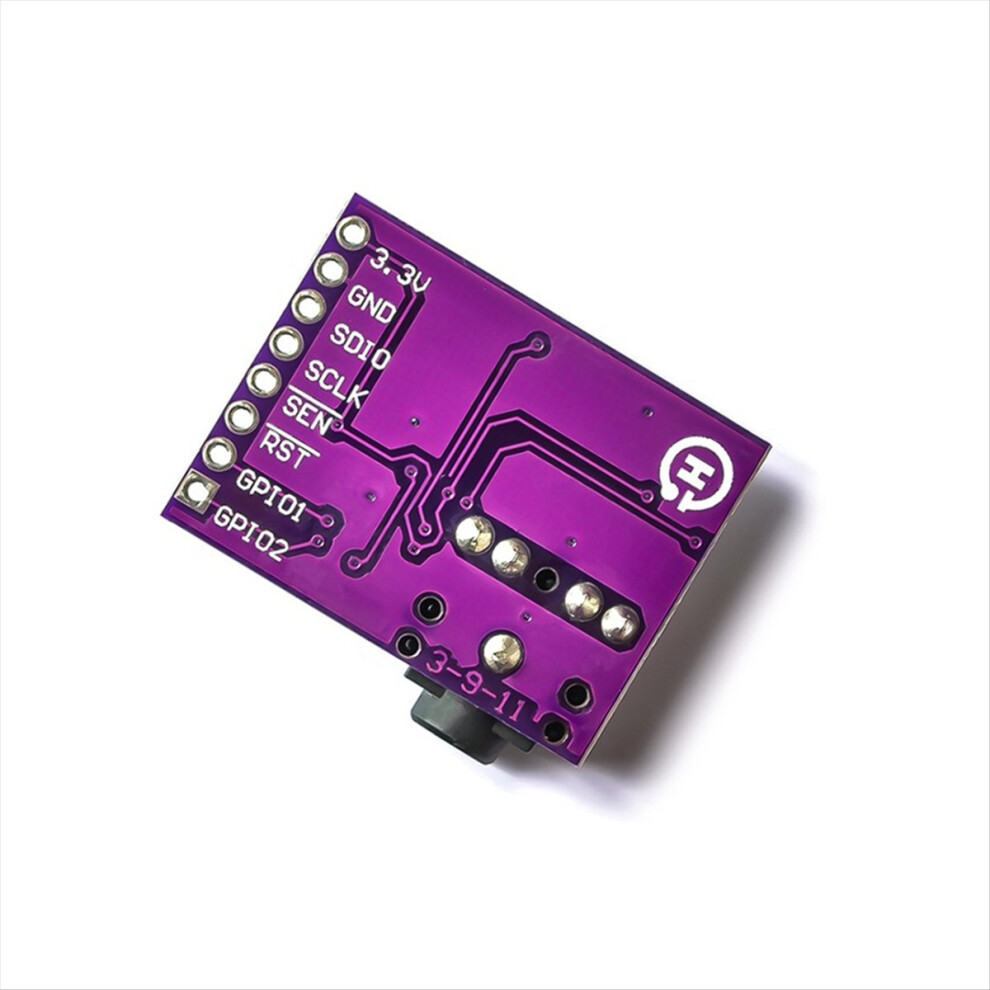

Communication interface: 3-wire (Less than 2.5MHz), module default 2-wire IIC (Less than 400KHz)

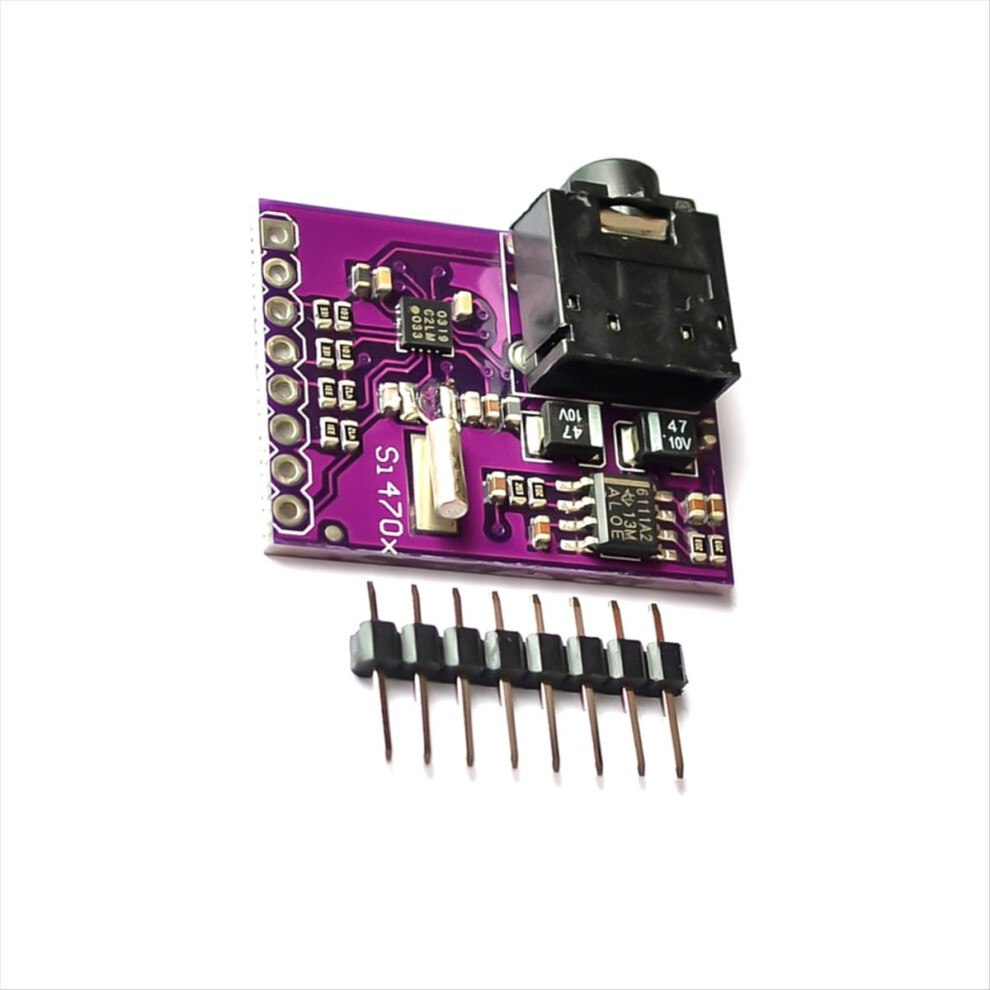

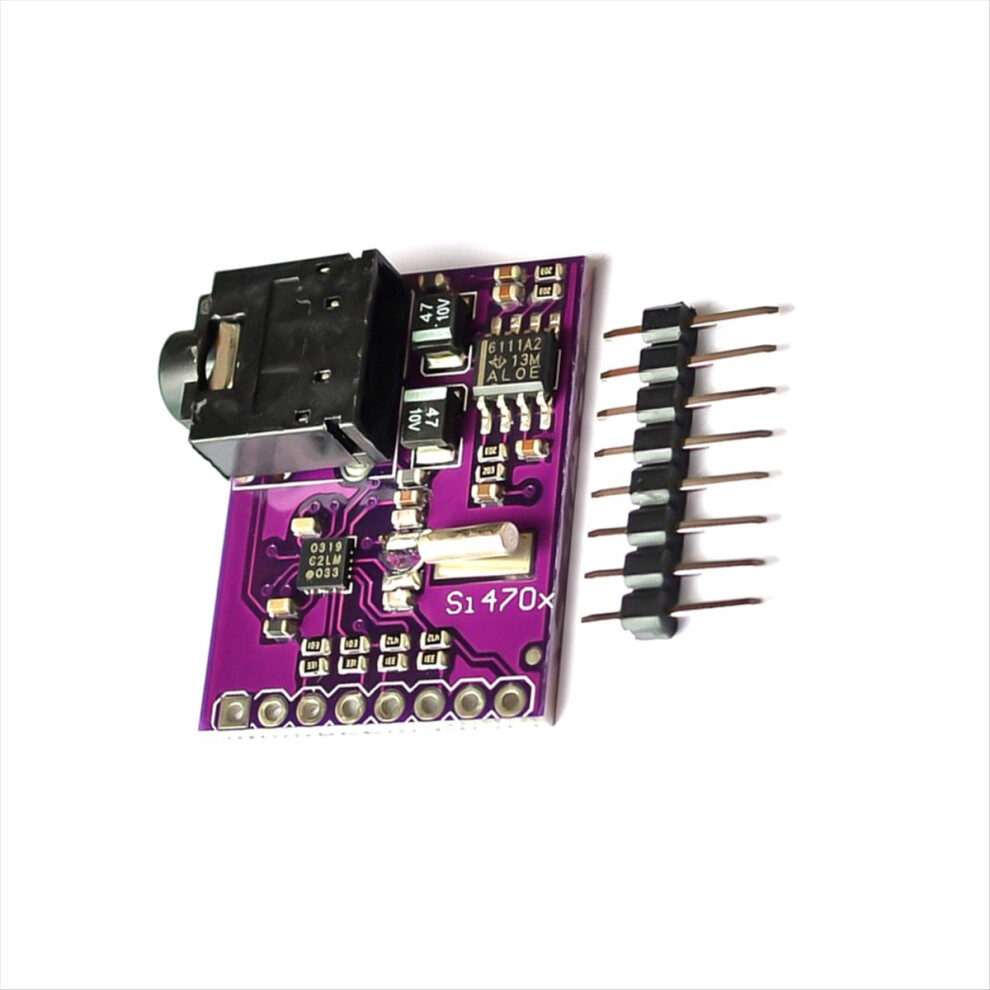

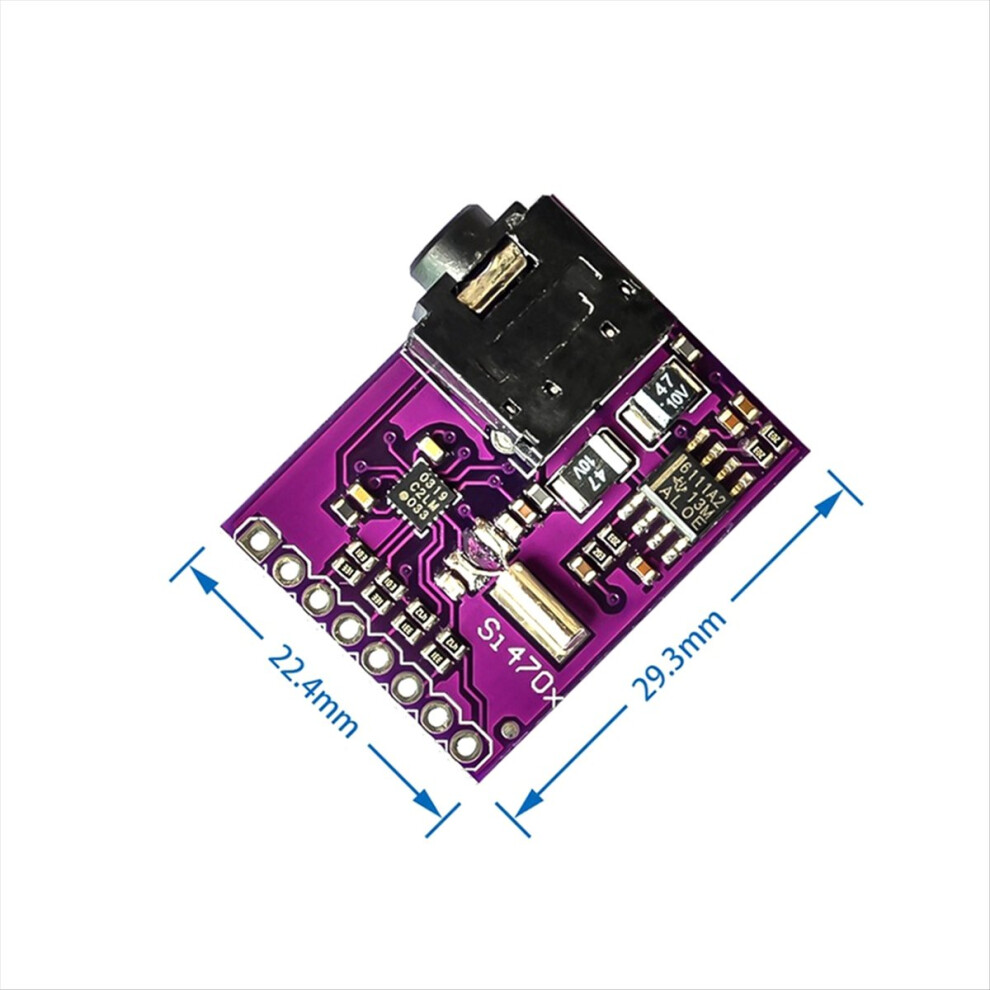

Size: 29.3x22.4x8mm
Weight: about 5g
Colour:As Shown
Material:PCB

Package Contents:
1 * Si4703 FM Tuner Evaluation Board

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
