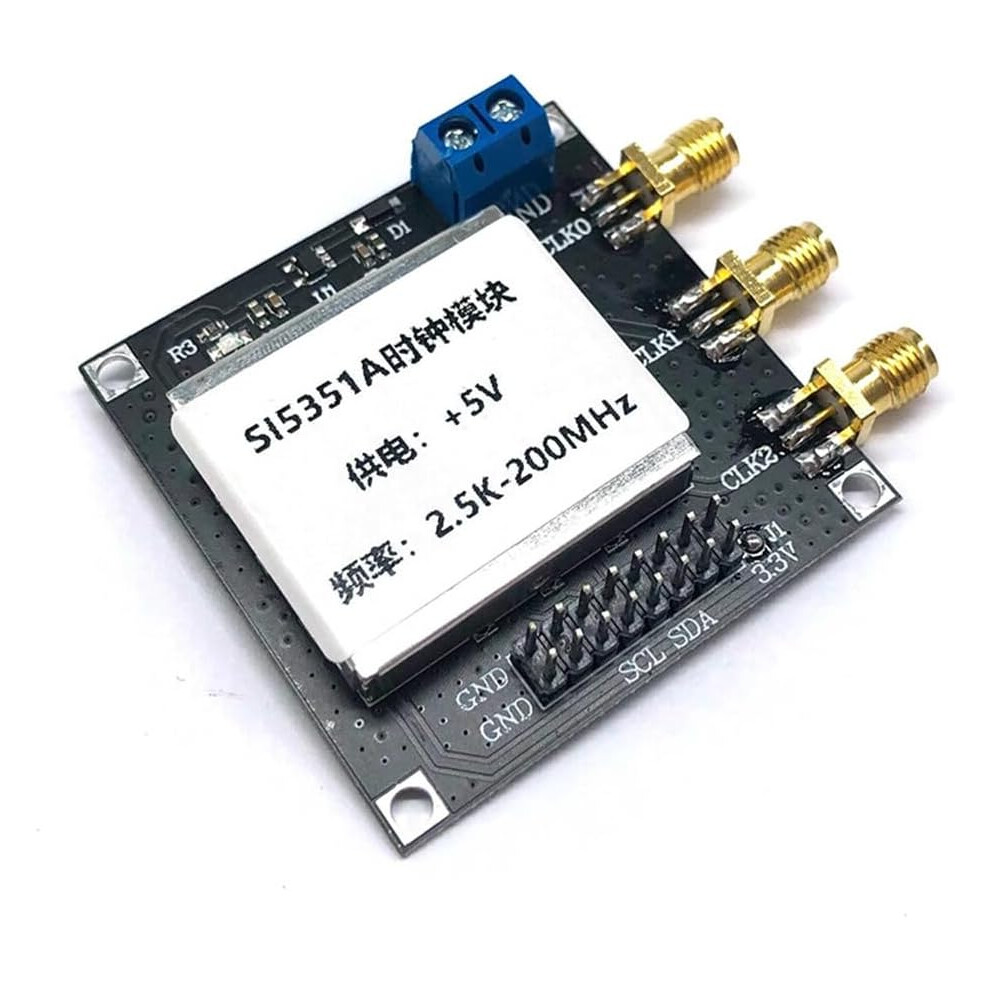

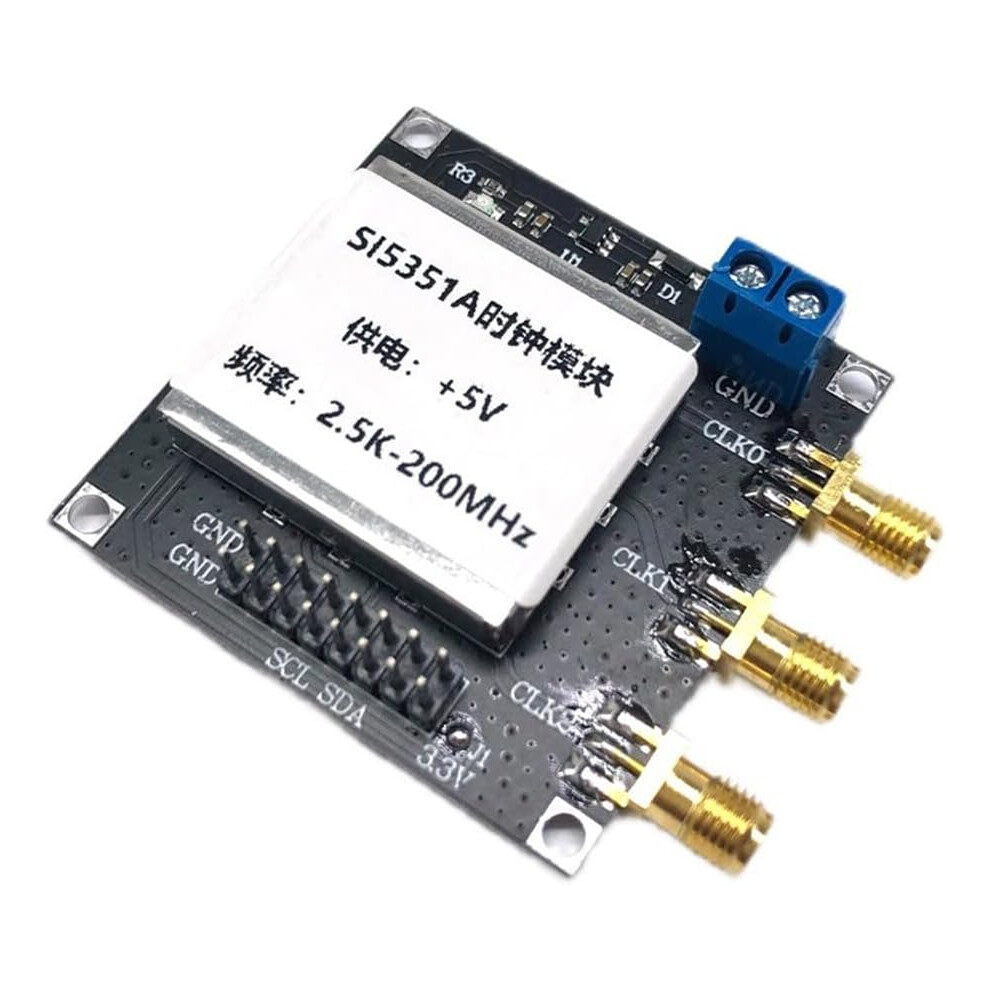

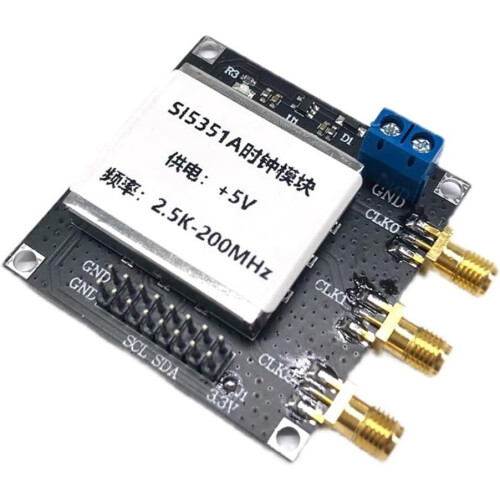

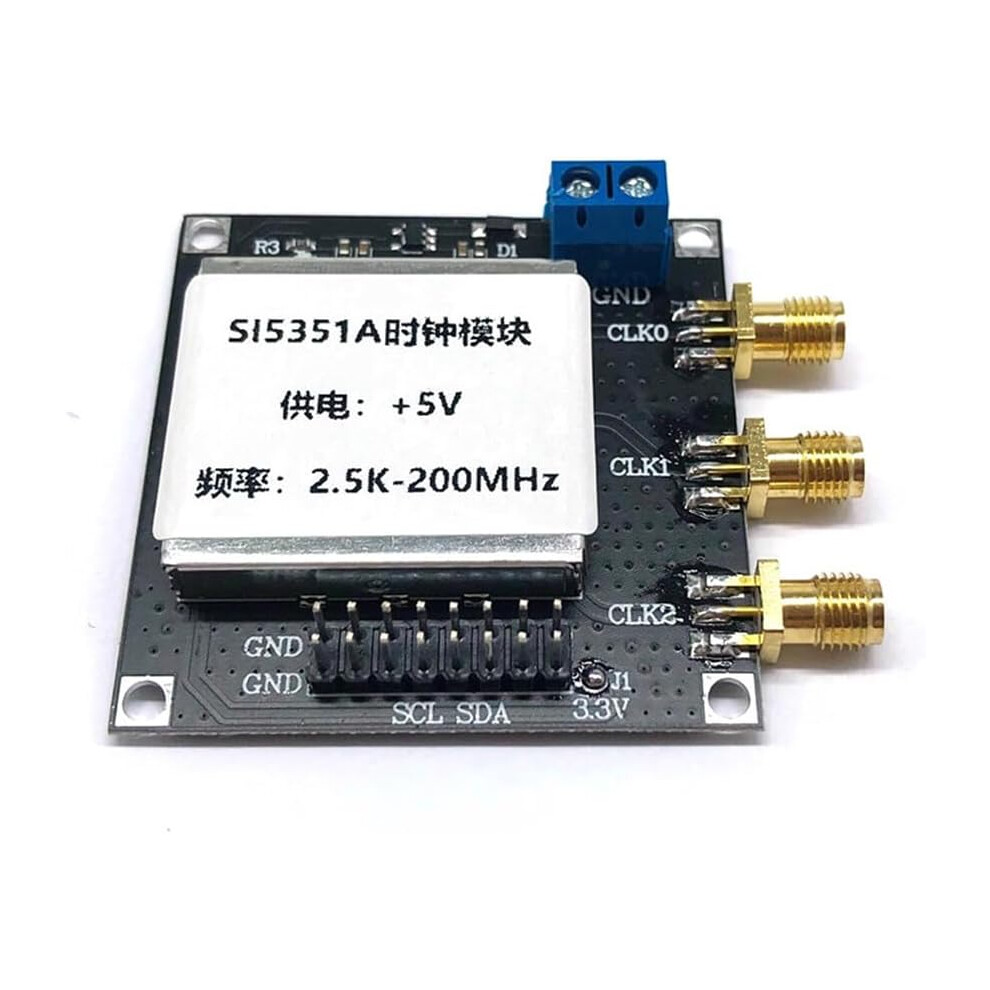

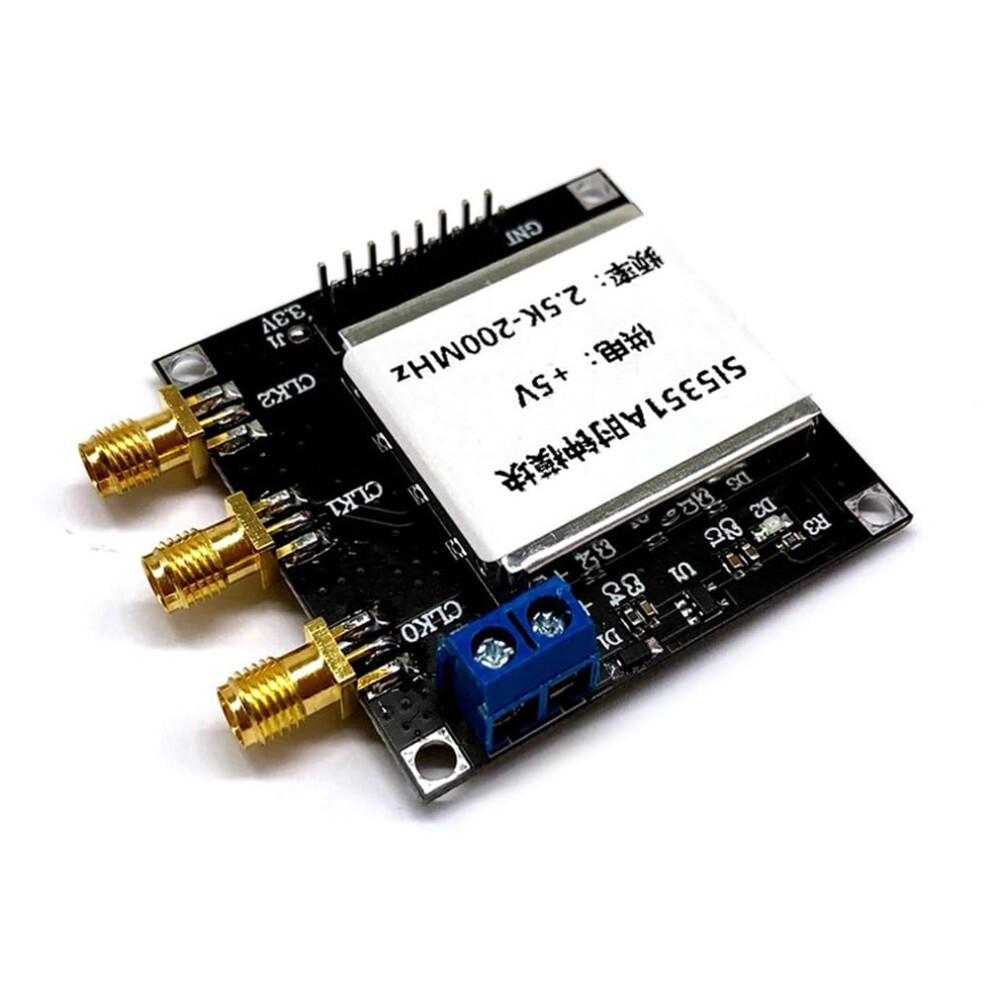

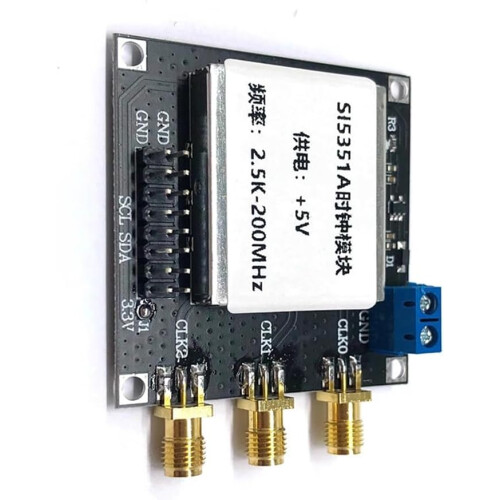

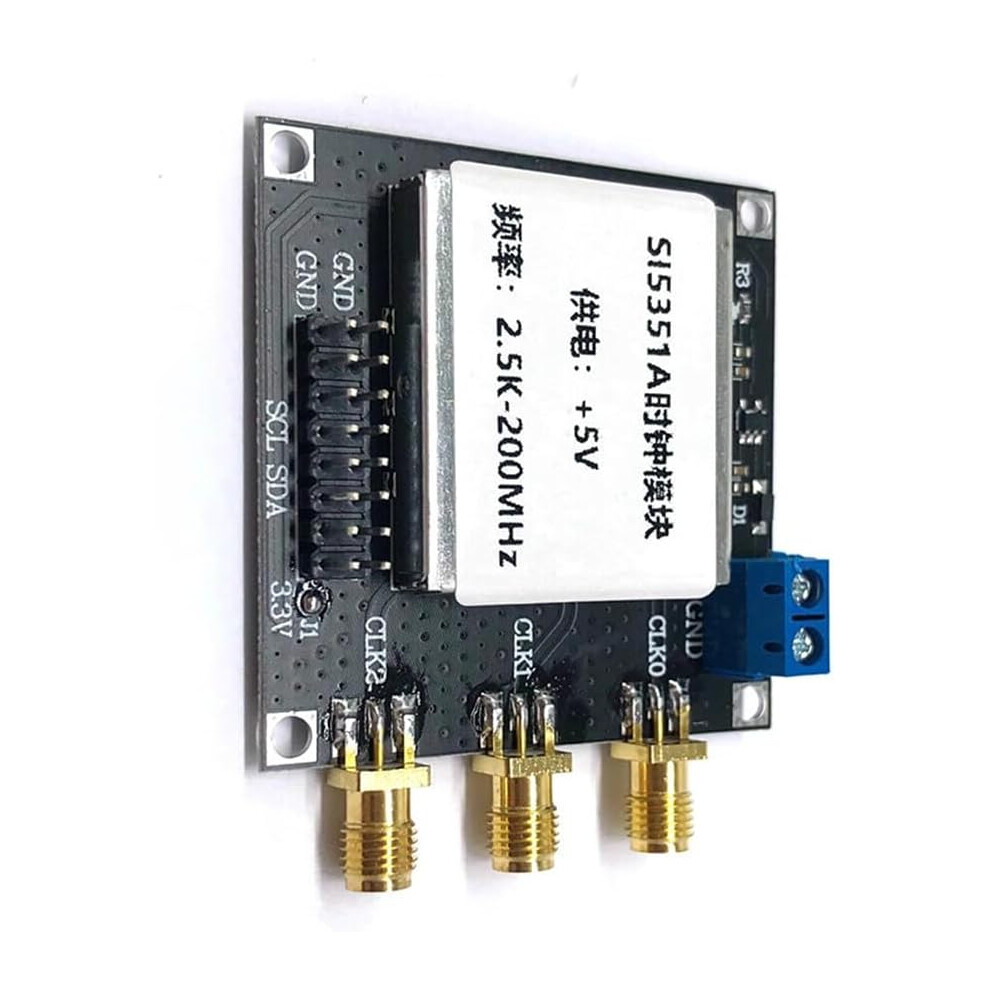

SI5351 Clock Generator Module 2.5K200MHz Frequency Signal Output with STM32 TFT Display

SI5351 Clock Generator Module 2.5K200MHz Frequency Signal Output with STM32 TFT Display Description

Key benefits Wide frequency range for flexible RF testing: F0 and F1 can operate from 2.5K to 200 MHz, enabling diverse signal generation tasks. Synchronized multichannel output: F2 and F1 share a phaselocked loop for stable, coordinated signals. Configurable frequency division: The division ratio can be adjusted, allowing precise output frequencies without hardware changes. Easy integration: Powered by a +5V supply and features an SMA female output interface for compatibility with standard test equipment. Technical specifications Power supply voltage: +5V Output interface: SMA female connector Output frequency: F0 = F1 = 2.5K to 200 MHz PLL configuration: F2 and F1 share a phaselocked loop, and the frequency division ratio can be configured Applications RF frontend testing and development Calibration and timing reference signals for measurement equipment Laboratory experiments and prototyping involving signal generation and synchronized outputs
