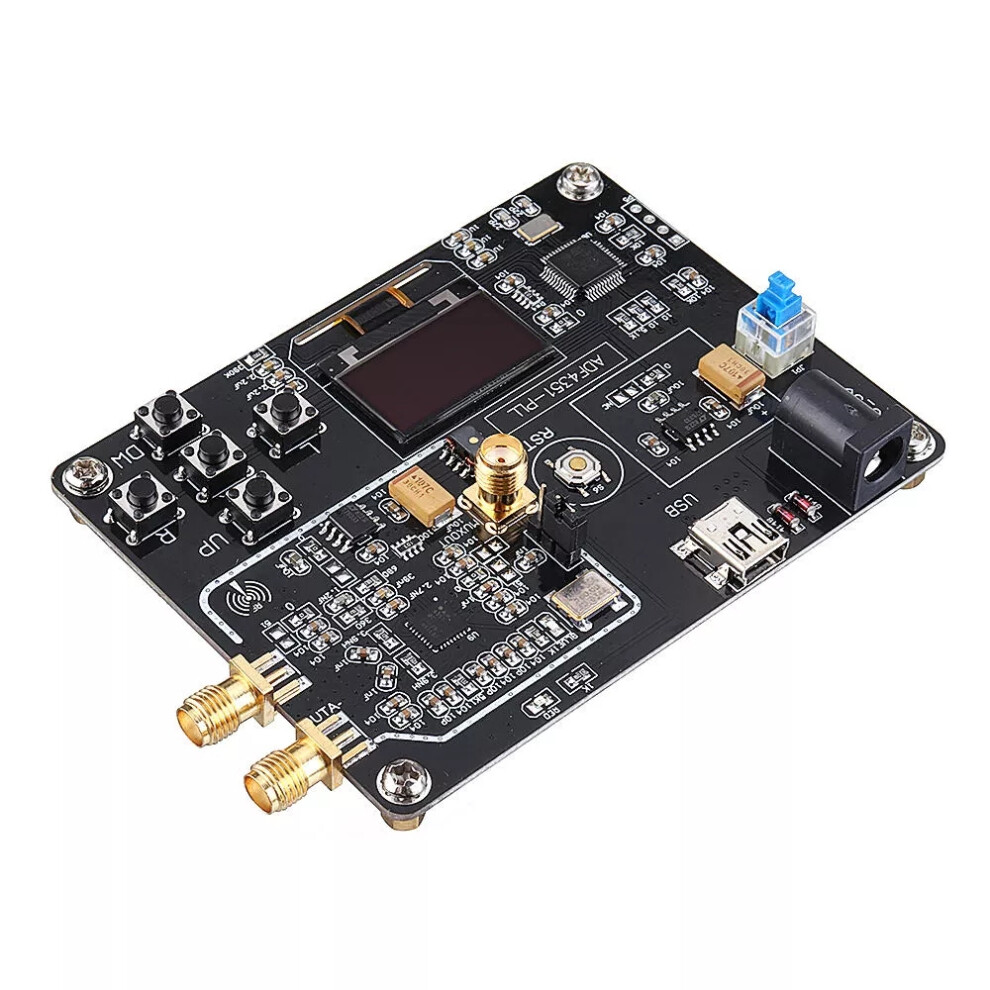

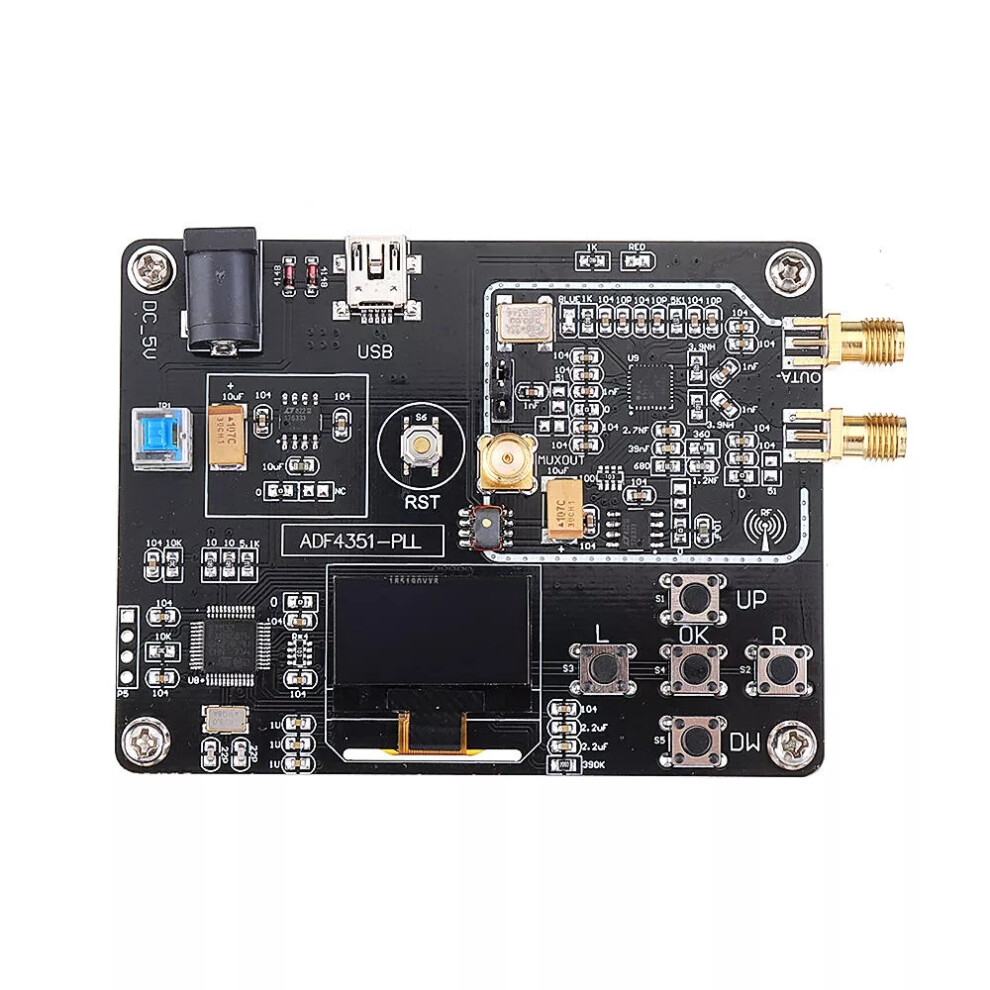

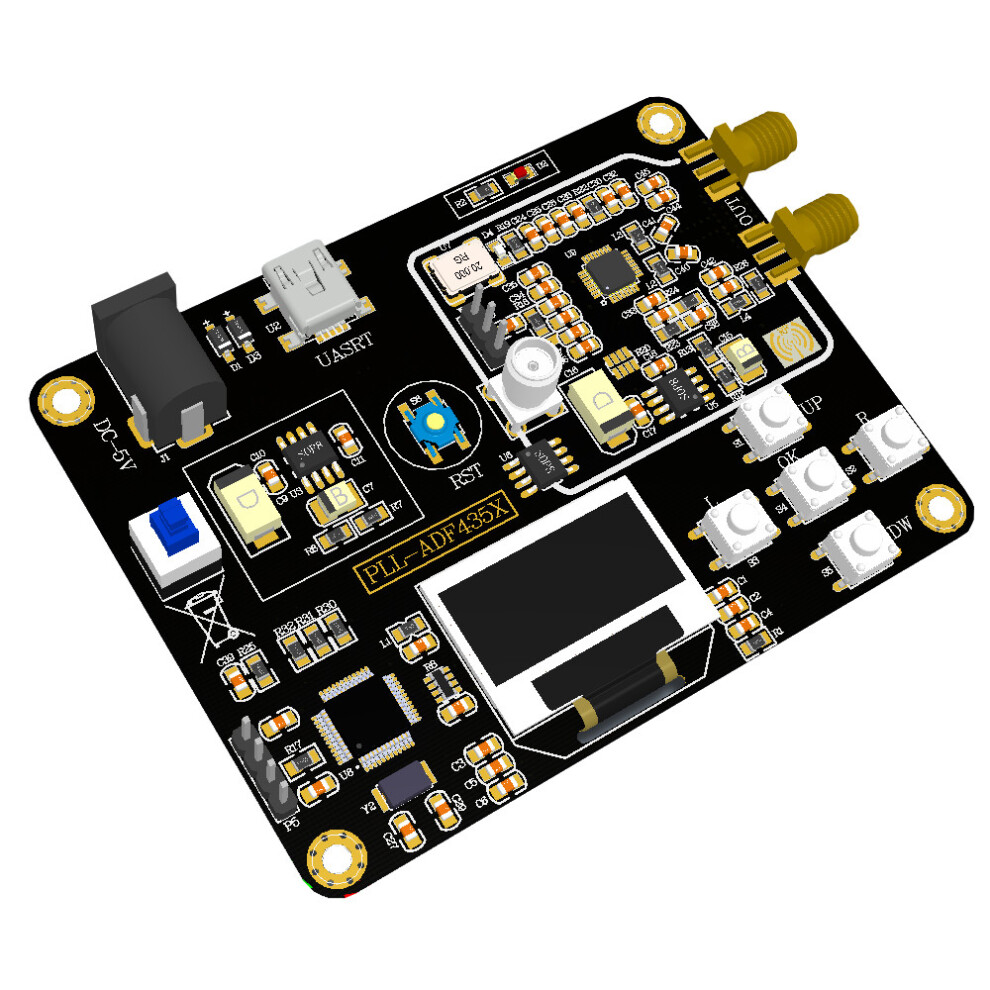

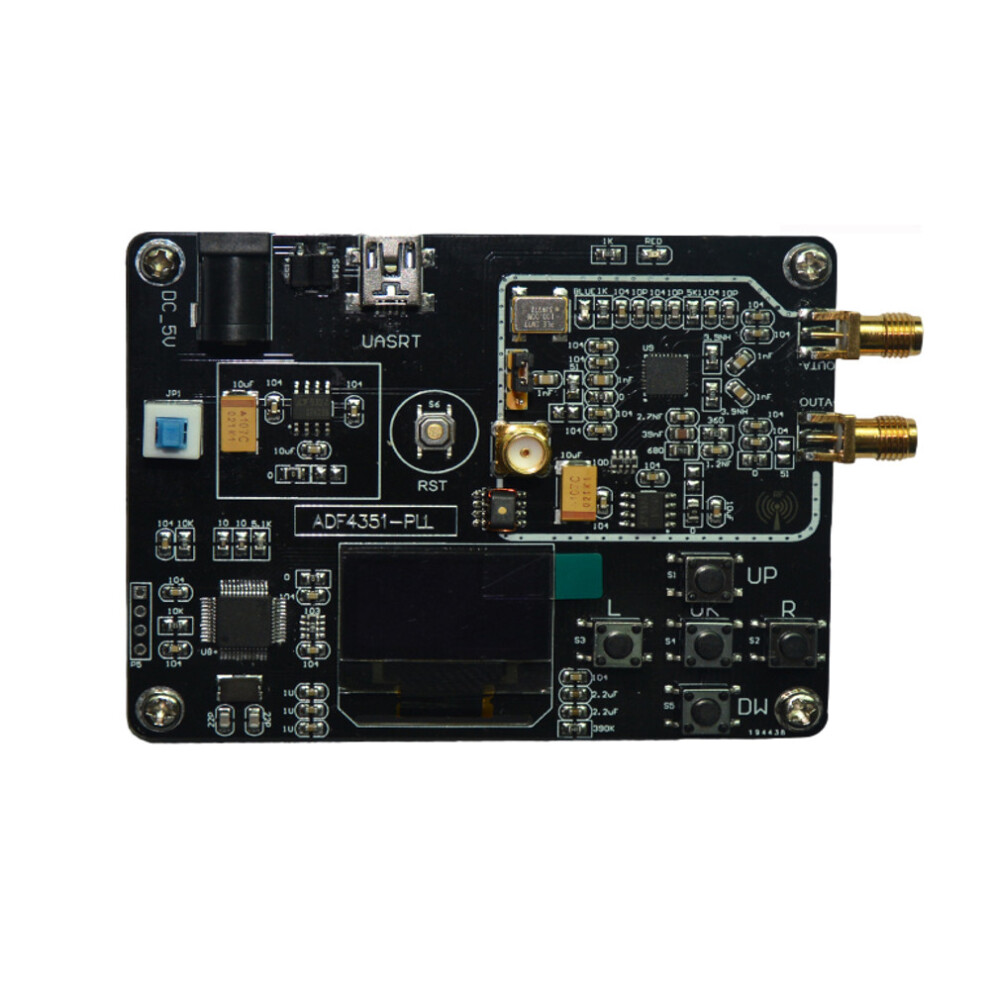

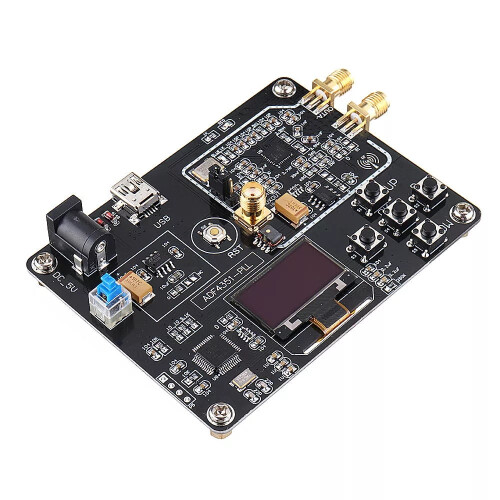

Signal Generator Module 35M-4.4GHz RF Signal Source Frequency Synthesizer ADF4351 Development Board

Signal Generator Module 35M-4.4GHz RF Signal Source Frequency Synthesizer ADF4351 Development Board Description

Specifications:

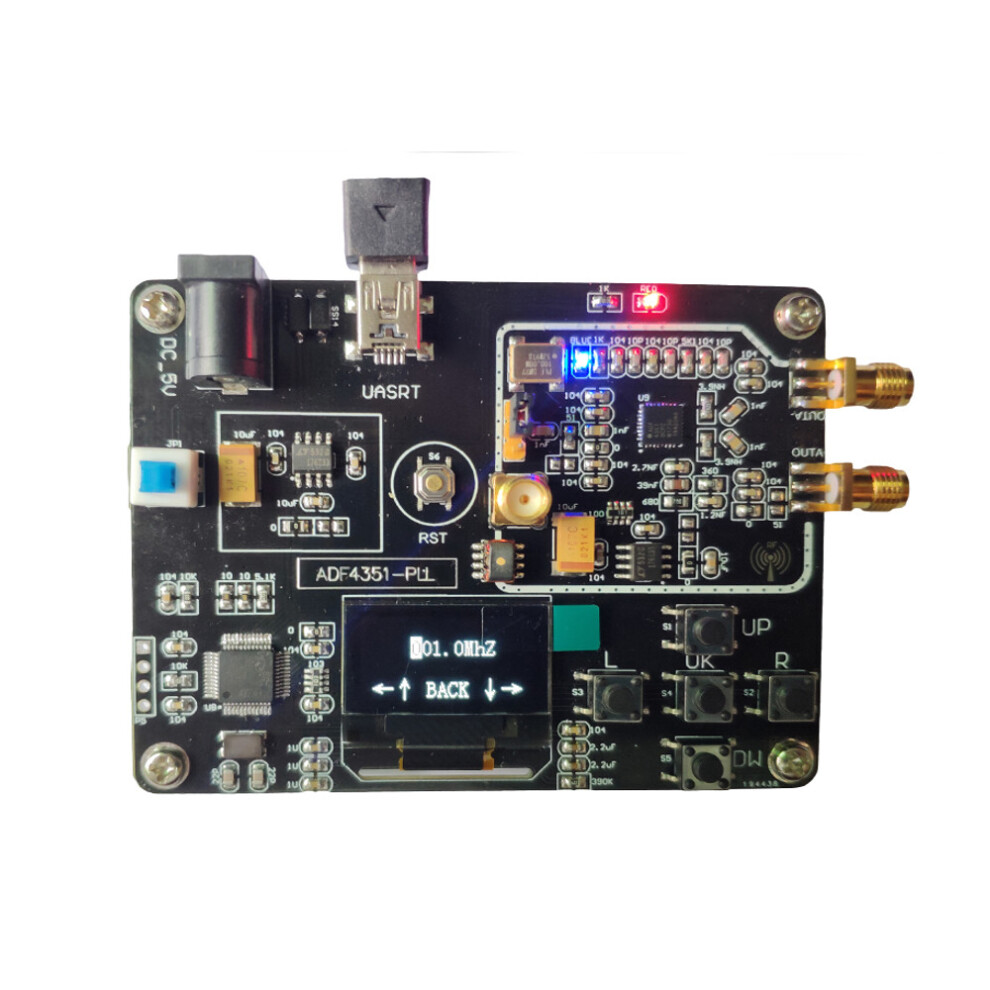

With OLED display.
Host computer USB & serial port.
Integrated key operation.
Wide range voltage supply.
Good man-machine interface. Many improvements on the phase noise, phase spurious and loop filter.
Much enhancement on the power filter and ground processing.
Module can achieve 35MHz - 4.4GHz frequency output, point frequency, sweep, frequency hopping and other basic functions.

Parameters:
Dimensions: about 88mm * 67mm

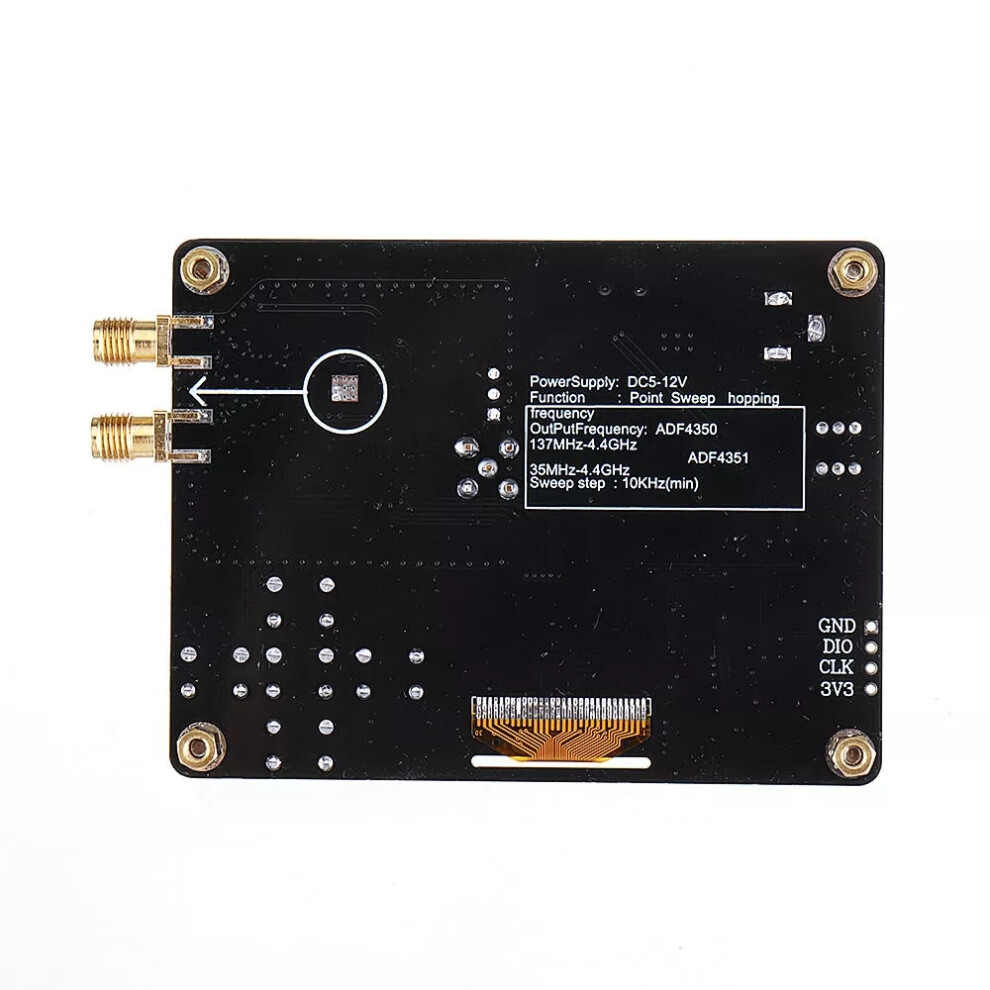

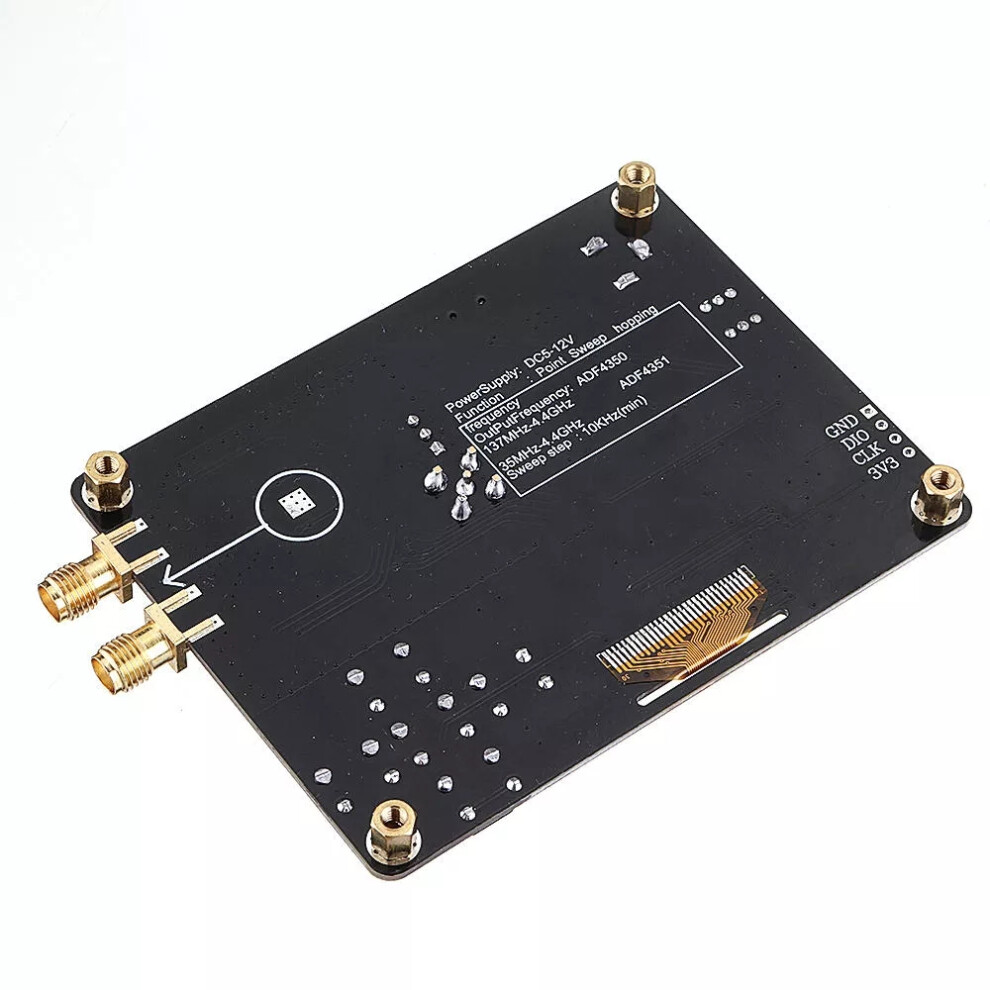

Power supply: 5V-15V (DC 5.1MM); 5V (USB)
Bandwidth: ADF4351: 35MHz-4.4GHz; ADF4350: 137MHz-4.4GHz
Module step: 100KHz(min)
Frequency error: ?? 1KHz
Output: OUTA OUTB two way
Module phase noise: better than -100dBc @ 10KHz (noise is different with different band phase)

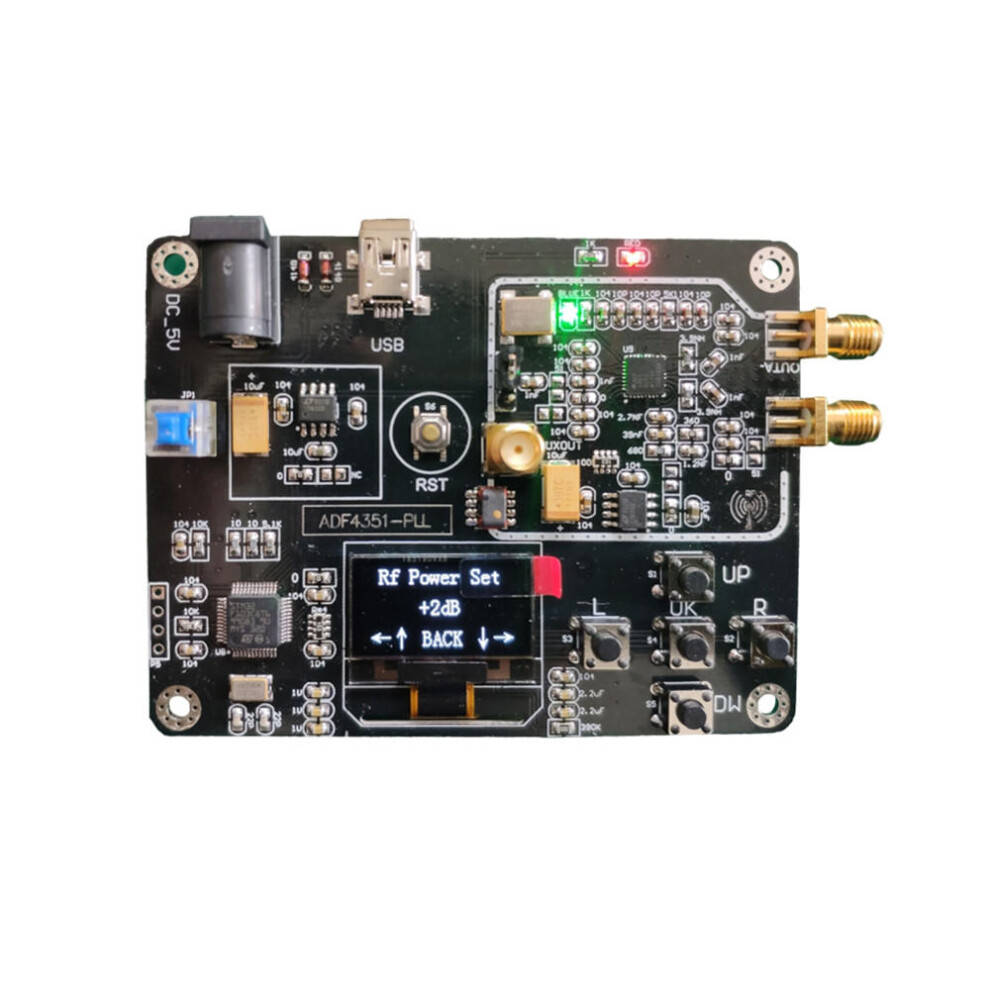

Module output power: 7dBm (MAX)
Module interface: The external communication port of the STM32 USB can be configured to USB or analog serial port (in default)
Module program download mode: SW module, three-wire system (GND SWCLK SWDIO)

Packing included:
1 x Module

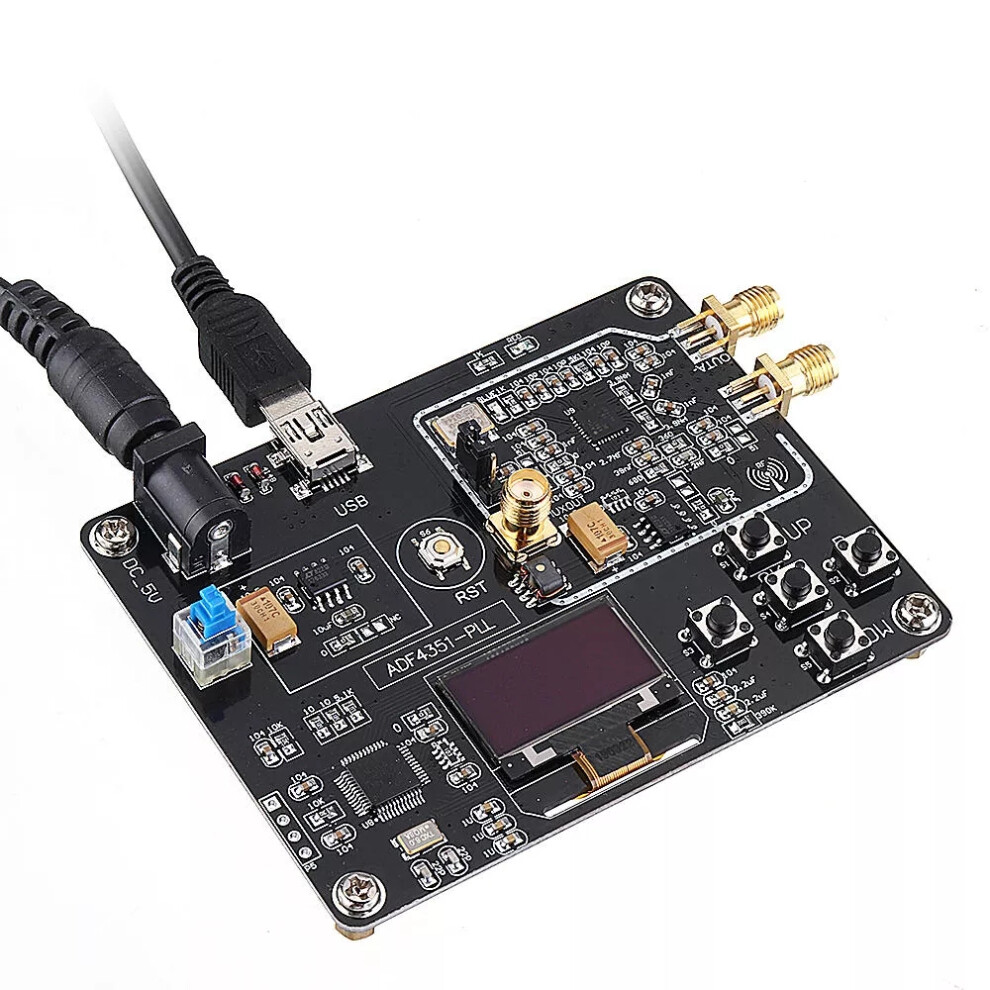

1 x USB-mini cable
1 x BNC male head to SMA male high-frequency cable
