Signal Generator Module Precision Function Generator 1Hz1MHz Sine Triangle Square Outputs 912V DC Input With DC Male Cable

Signal Generator Module Precision Function Generator 1Hz1MHz Sine Triangle Square Outputs 912V DC Input With DC Male Cable Description

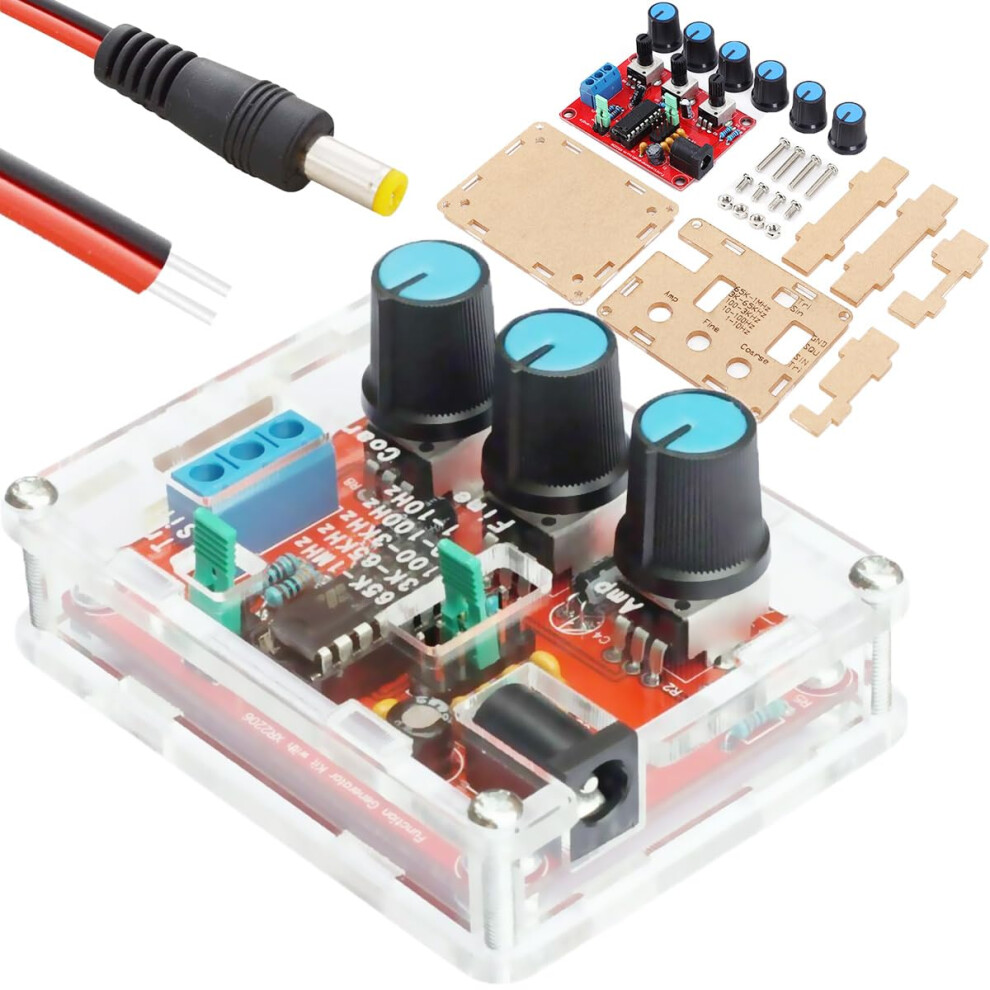

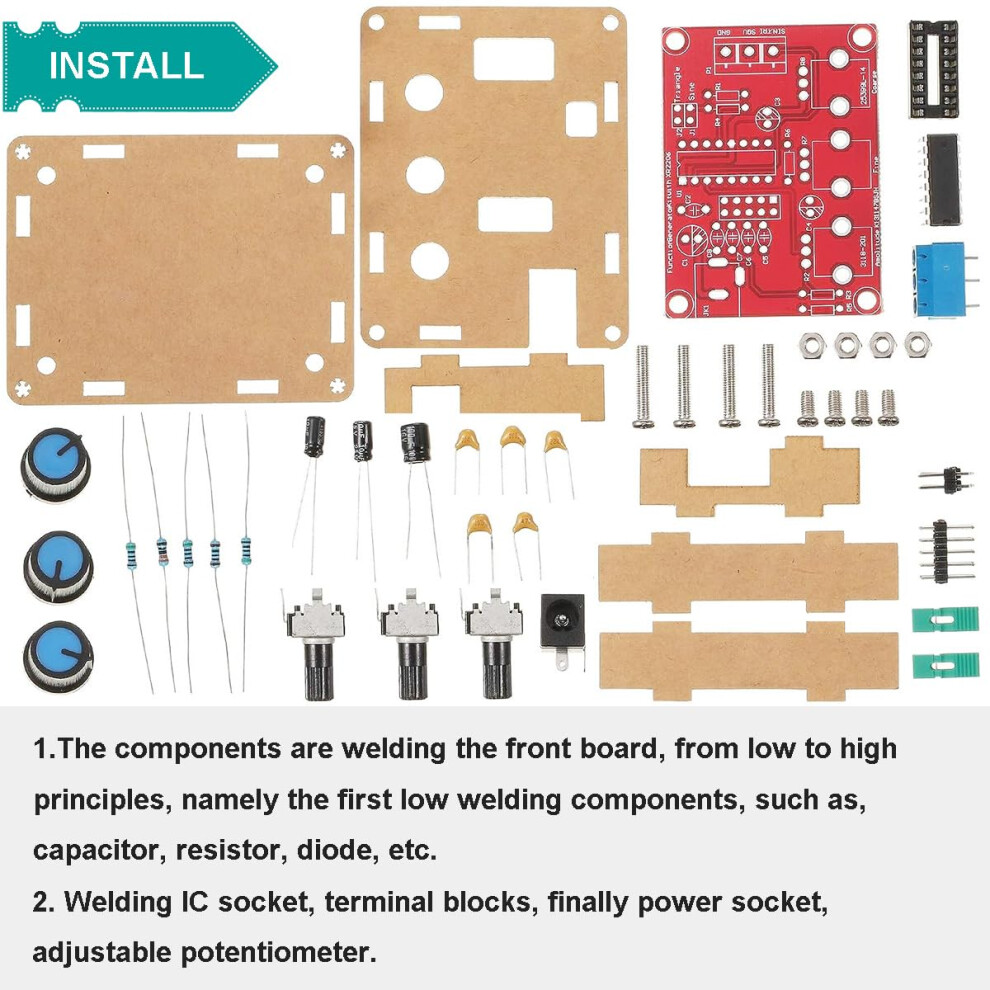

XR2206 Function Signal Generator Key benefits Generates accurate sine, triangle, and square wave signals for testing and measuring circuits, enabling quick verification of circuit performance. Precise, repeatable waveforms with clearly defined amplitude, distortion, and timing characteristics. Compact device with a transparent enclosure for easy inspection and assembly, suitable for bench use. Core capabilities Waveforms: Sine, Triangle, Square Applications: testing circuits, characterizing components, educational and DIY projects Design: compact housing with a transparent case for visibility Specifications Power supply: 912 V DC input Output impedance: 600 ohm 10% Frequency range: 1 Hz to 1 MHz Waveforms available: Square, Sine, Triangle Sine wave performance Amplitude: 03 V at 9 V DC input Distortion: less than 1% at 1 kHz Flatness: +0.05 dB from 1 Hz to 100 kHz Square wave performance Amplitude: 8 V (no load) at 9 V DC input Rise time: less than 50 ns at 1 kHz Fall time: less than 30 ns at 1 kHz Symmetry: less than 5% at 1 kHz Triangle wave performance Amplitude: 03 V at 9 V DC input Linearity: less than 1% up to 100 kHz at 10 mA Design and build notes Case: transparent enclosure supports easy observation and inspection during assembly and testing Use scenarios Scenario 1: Characterize RC and LC networks, filters, or amplifier stages by applying precise sine or triangle signals and observing the frequency response. Scenario 2: Calibrate and validate opamps, comparators, and timing circuits that require known waveform inputs. Scenario 3: Demonstrate waveform generation fundamentals in electronics labs or training sessions, supporting handson learning with reliable signals.
