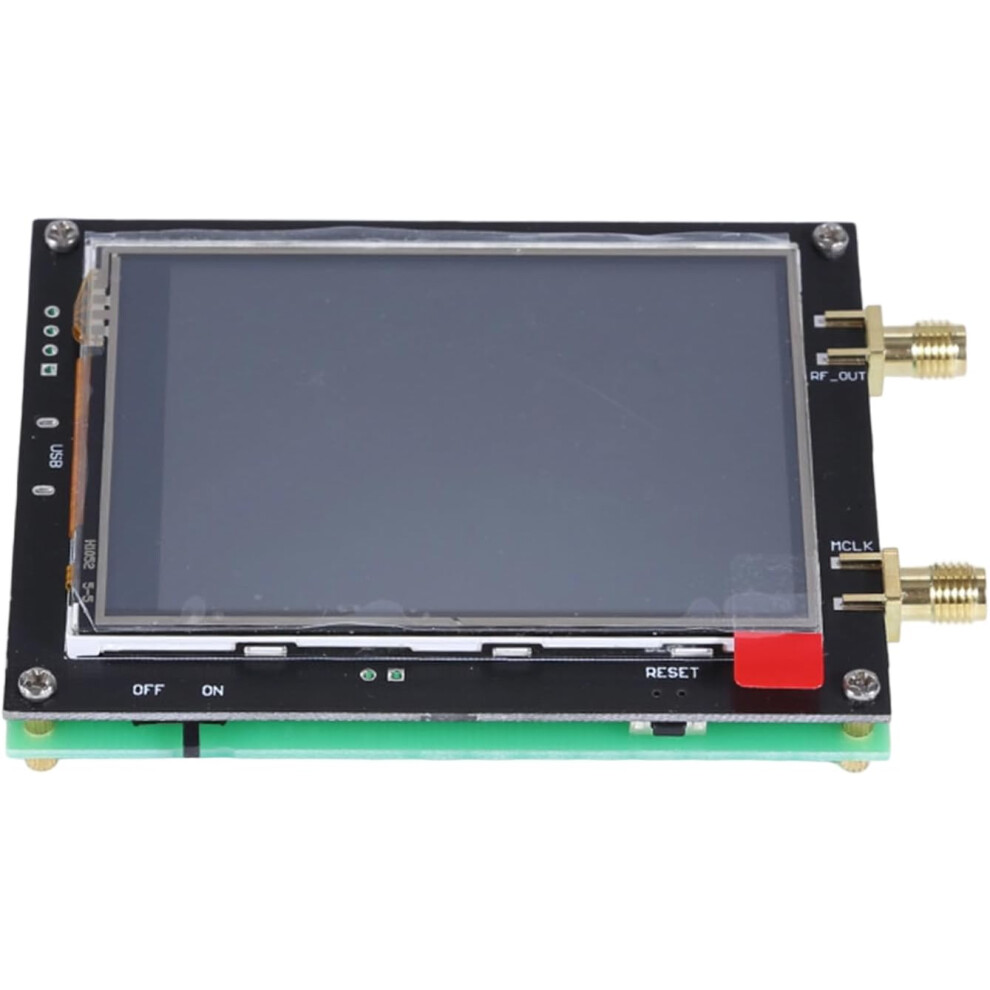

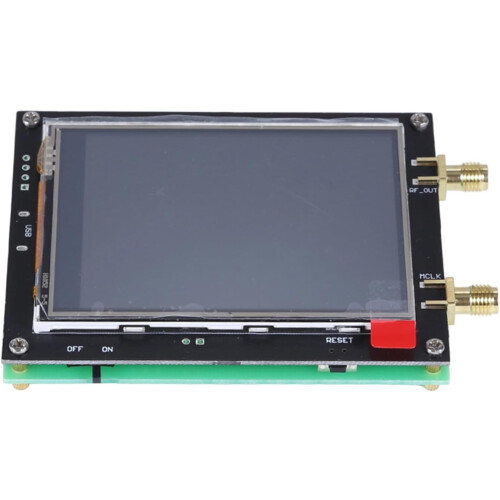

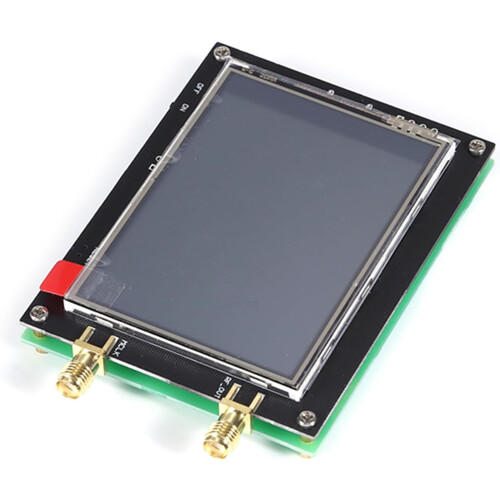

Signal Source Generator Module With LCD Display Stability Industrial Grade Signals Generator

Signal Source Generator Module With LCD Display Stability Industrial Grade Signals Generator Description

Key benefits and why you need it Wideband, configurable clock output: internal multiplexing tuned VCO covers 3000 MHz to 6000 MHz with a 1128 output frequency divider, enabling flexible wideband clock distribution for diverse systems. performance frequency synthesis: with external reference clock oscillator and filter, the MAX2870based module delivers clocks from 23.5 MHz up to 6000 MHz while preserving phase noise and low spurious levels. Precision and stability: signals source module integrates a 25 MHz 0.5 ppm TCXO for stable reference, while the internal VCO covers 36 GHz with baseband frequency division to 3 GHz, combining accuracy with wide tunability. Userfriendly display and modes: the signals source module includes an LCD screen for realtime readout, and supports flexible output frequency modes including point frequency and optional frequency selections for quick adjustments. Key features and specifications Internal VCO and wideband output VCO range: 3000 MHz to 6000 MHz Output frequency divider: 1128 for wideband clock output Frequency synthesis with MAX2870 External reference clock oscillator and filter incorporated Clock generation range: 23.5 MHz to 6000 MHz Emphasis on phase noise and spurious performance Signals source module TCXO: 25 MHz, 0.5 ppm Internal VCO output range: 36 GHz Baseband frequency divided to 3 GHz LCD screen for display Output frequency mode: point frequency and optional frequency Compatibility, size and performance Synthesizer platform based on MAX2870 for reliable, repeatable wideband clock generation Designed to integrate with external reference sources and filters to optimize phase noise and spurious performance Compact signal source module with LCD display for straightforward operation Flexible output options (1128 division) support diverse clock distribution architectures and synchronization schemes Use scenarios and practical applications RF test and measurement bench Use the wideband clock output from 3 GHz to 6 GHz to drive RF frontend test setups, PLLs, and LO chains Leverage external reference with filtering to achieve low phase noise and reduced spurs during calibration and characterization Multiband communications development Generate precise clocks across 23.5 MHz to 6 GHz to support transceivers and SDRs, enabling rapid testing of wideband interfaces and frequencyhopping schemes Flexible division allows alignment with system timing requirements and distribution networks Research and lab experiments TCXOstable reference (25 MHz, 0.5 ppm) provides consistent base for experiments requiring stable LO and baseband combinations LCD display provides realtime frequency readout, while point and optional frequency modes simplify quick switching between test conditions Notes on operation The described functionality centers on internal VCO multiplexing, an integrated 1128 divider, and MAX2870based synthesis with an external reference and filter The signals source module combines a 25 MHz 0.5 ppm TCXO with an internal VCO of 36 GHz and a 3 GHz baseband division, and includes an LCD display for user visibility Output frequency modes include point frequency and optional frequency as specified This description preserves the original model, functions, and specifications while presenting clear, customerfocused benefits and practical use cases.
