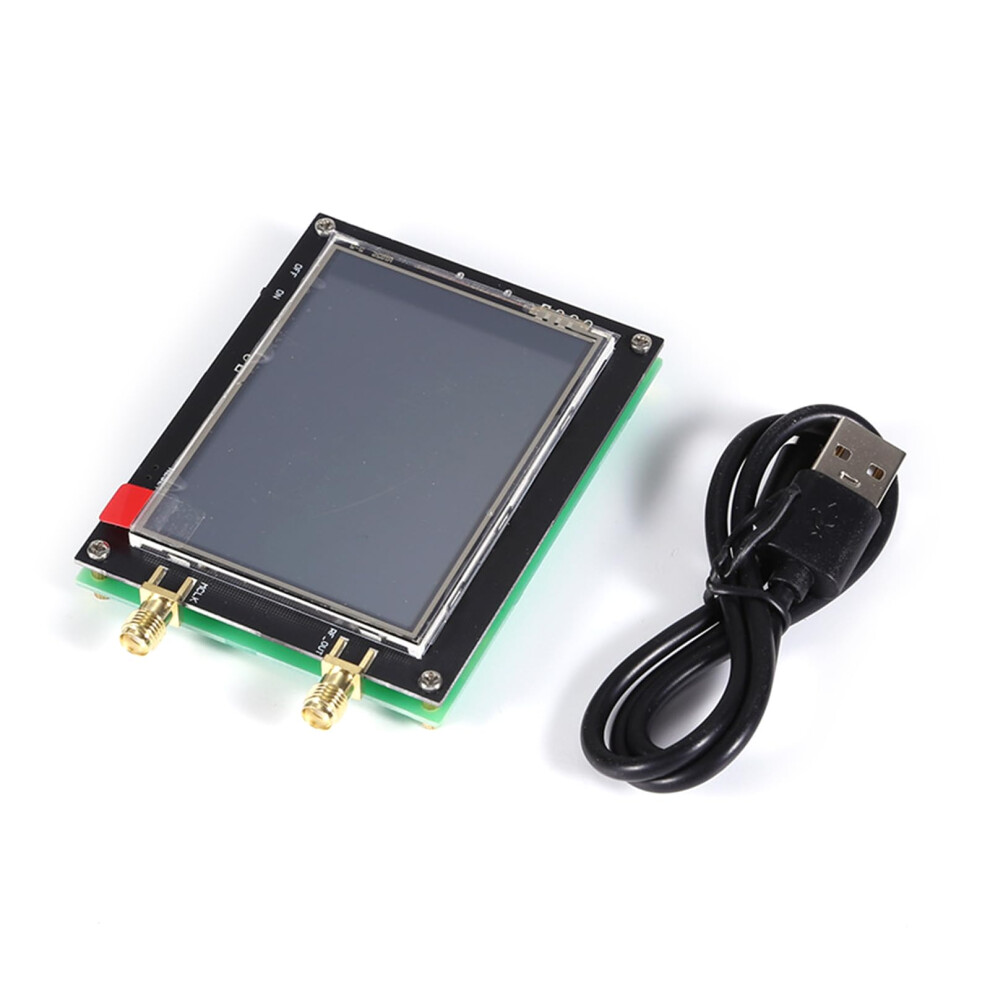

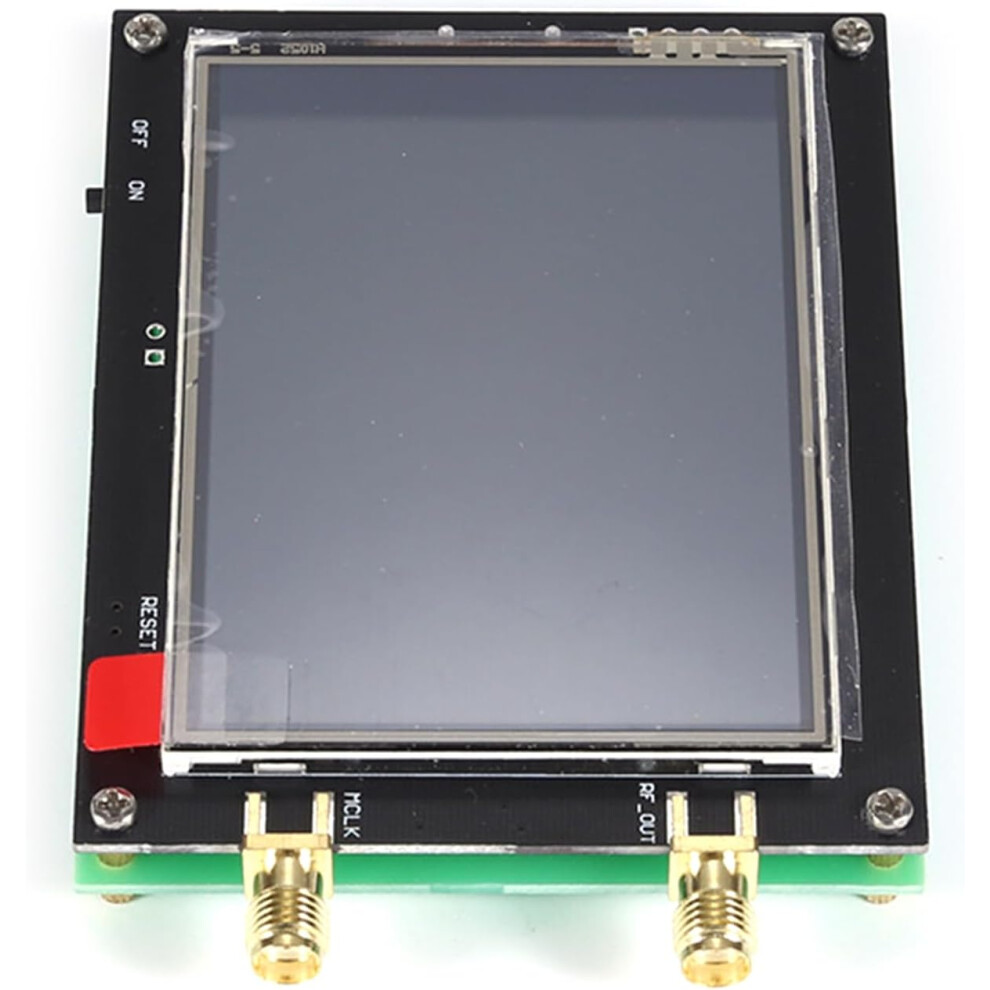

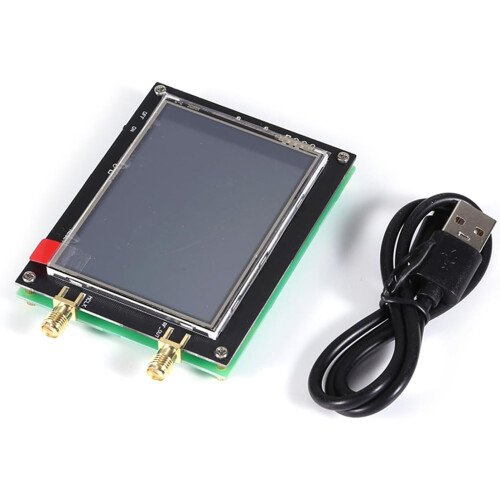

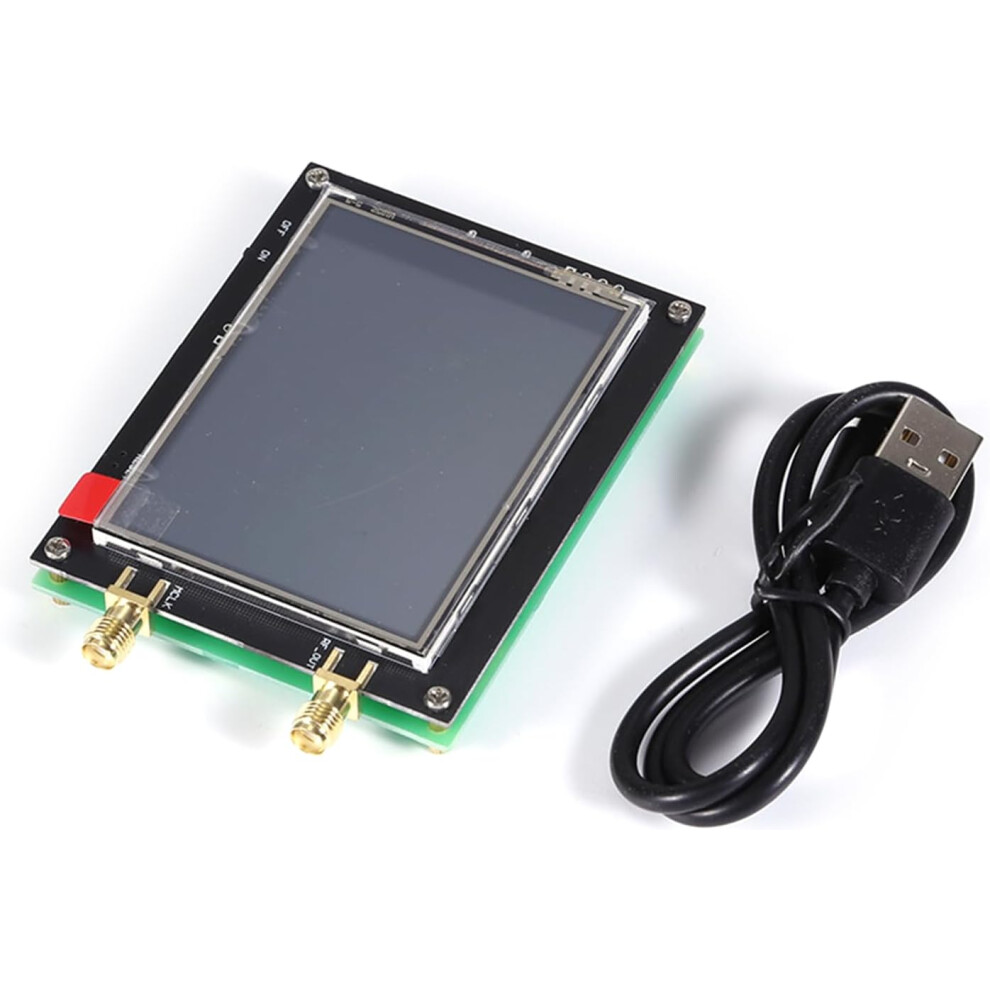

Signal Source LCD Display Module For Industrial Electronics Accuracy Signal Generator

Signal Source LCD Display Module For Industrial Electronics Accuracy Signal Generator Description

The Signals source module integrates a 25 MHz 0.5 ppm TCXO to provide a stable reference for precise frequency synthesis. Its design centers on wideband, flexible LO and clock generation in the 3 GHz to 6 GHz range, with a userfriendly display for easy operation. Key benefits and features stability reference 25 MHz TCXO with 0.5 ppm stability for accurate LO and clock generation. Enables reliable frequency tracking and repeatable measurements. Wideband frequency generation Internal VCO covers 3,000 MHz to 6,000 MHz (36 GHz) for broad coverage. Baseband frequency is divided to 3 GHz, enabling versatile modulation and signal paths. Flexible synthesis with wide bandwidth MAX2870 wideband phaselocked loop (PLL) with an integrated VCO. Supports N frequency division mode for flexible frequency planning and hopping. Flexible output architecture Internal multiplexing VCO covers 3,000-6,000 MHz. Uses a 1-128 output frequency divider to realize wideband clock output. Easy operation and monitoring LCD display provides realtime visibility of current settings. Output frequency mode supports fixed (point) frequency and optional selectable frequency. Specifications at a glance (as provided) Reference: 25 MHz TCXO, 0.5 ppm VCO output range: 3,000-6,000 MHz Baseband handling: divided to 3 GHz Synthesis: MAX2870 wideband PLL with integrated VCO Division: 1-128 output frequency divider Interface: LCD display Output mode: fixed frequency or selectable frequency Applications and use scenarios RF test and measurement setups Use as a stable local oscillator (LO) or clock source for 3-6 GHz frontends and mixers, enabling repeatable calibration and testing. RF transceiver development and characterization Suitable for labbased development and validation of receivers/transmitters operating in the 3-6 GHz bands, with flexible frequency planning thanks to Ndivision mode. Wideband clock reference for digital systems Provides a stable reference and controllable clock path for instruments or systems requiring GHzrange timing and synchronization. Notes Size, enclosure materials, and power specifications are not provided in the described documentation. The description preserves the original branding and function: Signals source module, MAX2870 integration, 3-6 GHz VCO range, 1-128 divider, 25 MHz 0.5 ppm TCXO, and LCD display with fixed/optional frequency output modes.
