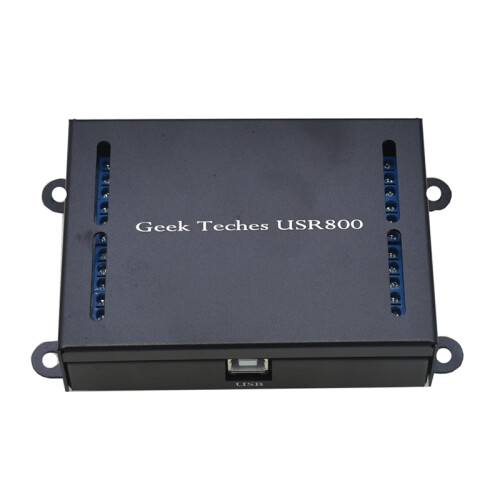

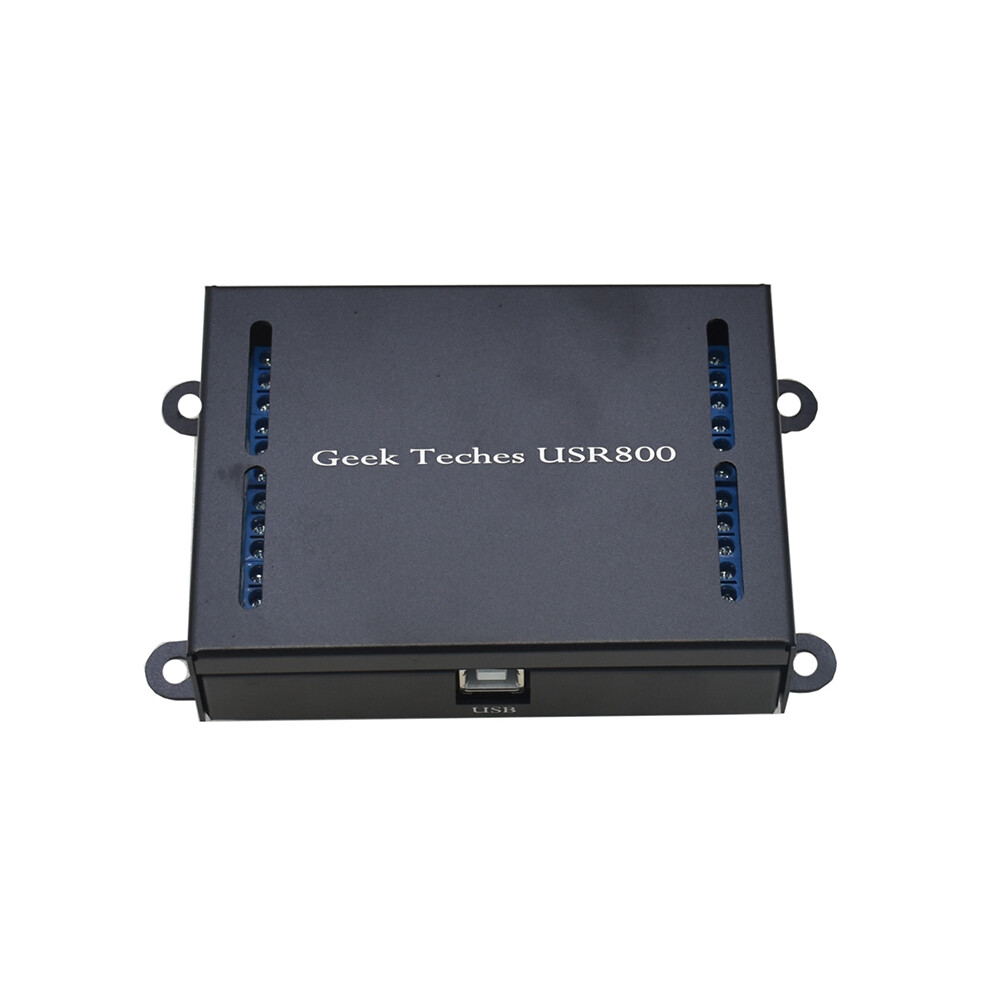

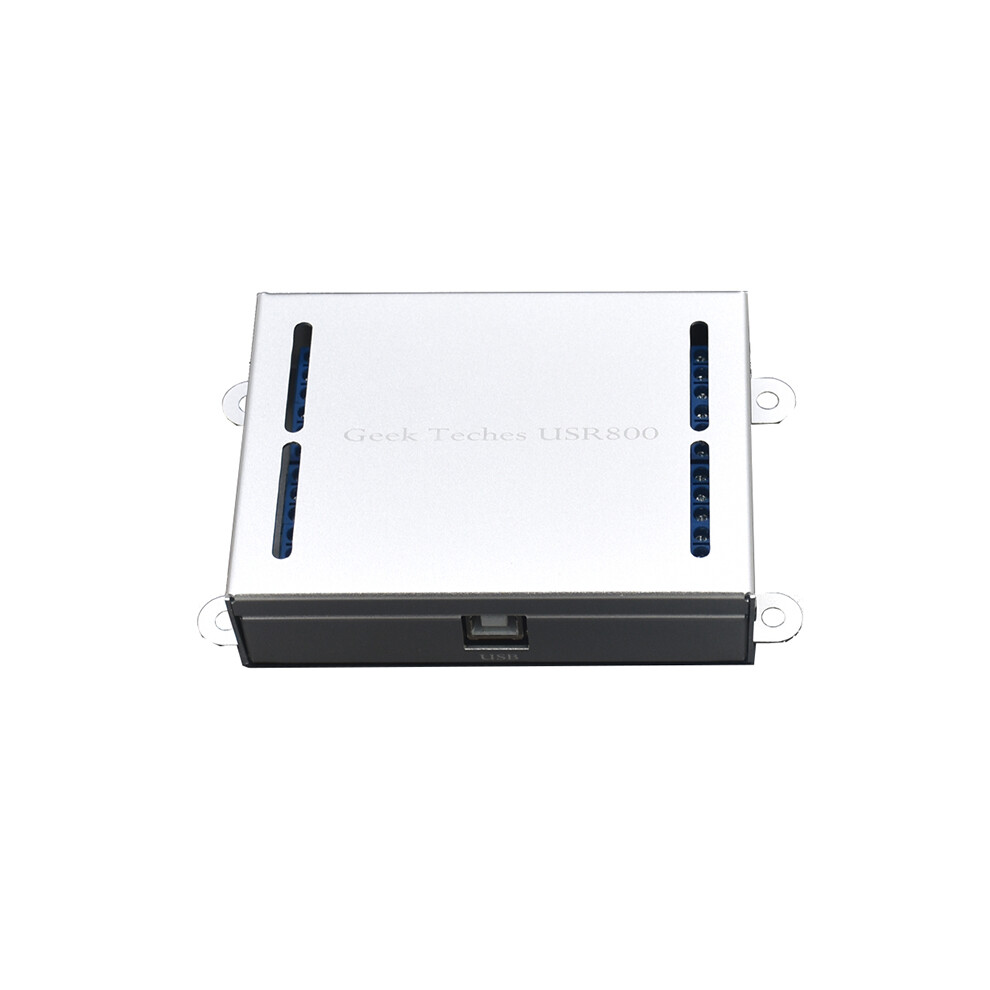

(Silver) 8 Channel USB Relay Board Module Controller for Automation Robotics with Shell

(Silver) 8 Channel USB Relay Board Module Controller for Automation Robotics with Shell Description

Specification:
8 SPDT relays SRD-12VDC-SL-C
Relay specification: 10A 250VAC/10A 125VAC/10A 30VDC /10A 28VDC
Power Supply: 12 VDC
Current consumption: 300 mA
FT245RL. Datasheet (http://www.ftdichip.com/)
LED for each relay output
Power LED
USB LED
Size: about 93mm / 70mm / 16mm
Windows software examples: VB6, BCB6, VB.NET 2010 Express, C++. NET 2010 Express
PCB parameters: FR4 / 1.5mm / two layers / metalized holes / HAL / white stamp / solder mask
Extra PCB openings for better voltage isolation.
Doubled high current tracks.

Type: SRD_12VDC_SL_C
Recommend voltage: DC12V
Voltage limits:Including ripple: DC11~14.4V
Nominal input current: Voltage 12V DC 300mA
Powered dissipated: 3.6W When all are ON
Protection Against reverse polarity: None

Type: 12V-T73-USB
Relay type:T73
Relay outputs count:8
Contact type: NO, NC
Current consumption: 12VDC 30mA
Switching parameters??220VAC 10A/125 VAC/28 VDC 10A/250 VAC 10A

Notice:
When the board is connected to the PC and the PC is restarted, the relays will be toggled several times. This is because of the structure of the FTDI chip.
The device must be supplied with 12 VDC or order to work.
There is no protection against reversed voltage! If the VCC(+12V) and GND are reversed the board will be damaged!
The board can not work without computer.

Package included:
1 x 8 Channel 12V USB Relay Board with Case
