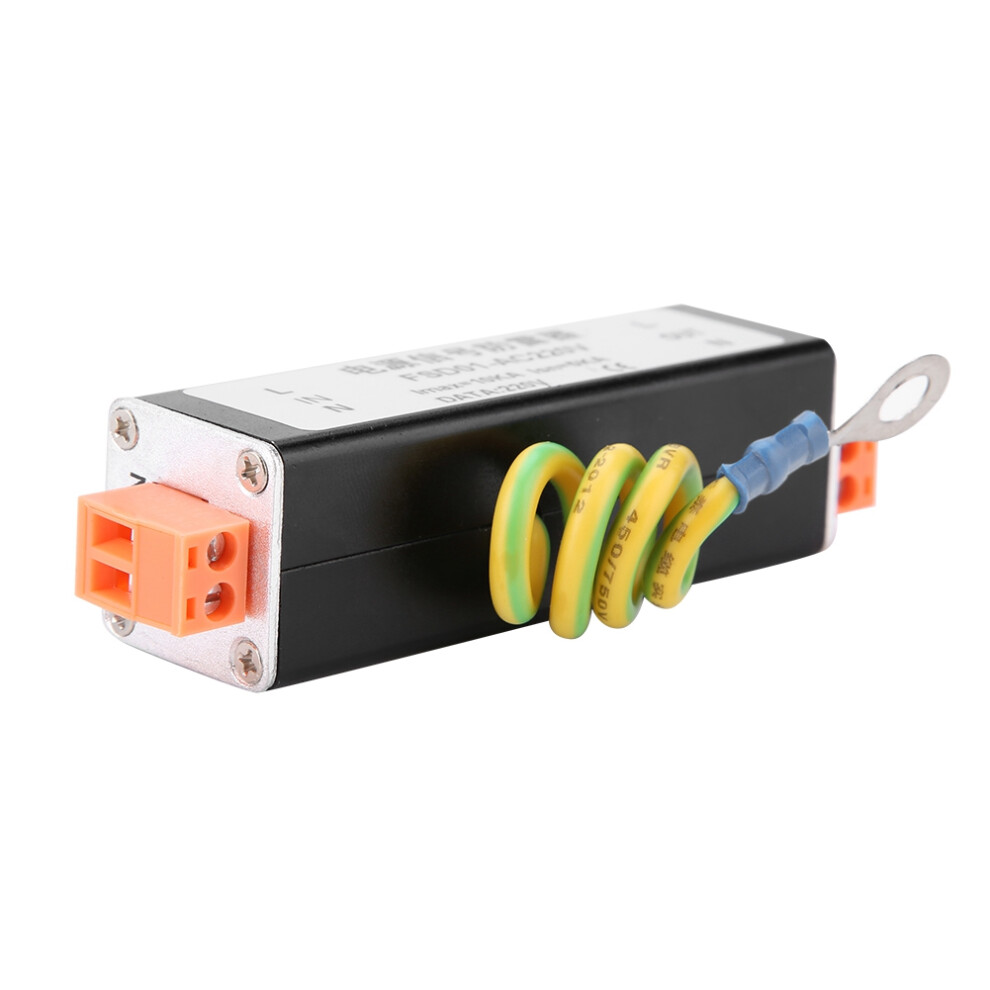

Single Channel AC/DC Power Surge Protector for Security Systems

Single Channel AC/DC Power Surge Protector for Security Systems Description

AC220V Power Surge Protector Protection Device Lightning Arrester SPD for CCTV AC/DC Power

Features:



Series series single channel AC/DC power lightning arrester, used for lightning protection of ac/dc power distribution equipment, such as SPC switch, security monitoring system, etc.


Excellent performance flow capacity, fast response


Multi-level protection circuit, residual depression


This product has beautiful appearance, convenient installation and connection, simple maintenance, and can work steadily in a harsh environment for a long time.


This product is used for the front end of AC/DC power distribution equipment to prevent the damage to the system or equipment caused by induction overvoltage and overcurrent caused by lightning or surge


Suitable for various low-voltage power supply systems, such as output terminal of secondary power supply equipment, DC distribution screen, and other various DC power supply equipment, vulnerable to lightning strikes, to protect the equipment power system from the damage caused by lightning over voltage







Specification:


Rated working voltage: AC220V


Rated working current: 5A


Nominal discharge current（8/20μS）In:5kA


Maximum discharge current（8/20μS）Imax:10kA


Maximum continuous operating voltage: 275V


Limit voltage: no more than900V


Protection mode: L-PE  N-PE


Enclosure material: aluminum alloy,UL94-V0


Size: 10.2*2.5*2.5cm/4*1*1in


Weight: Approx.105g/3.7oz










Package list:


1 x Power Surge Protector
