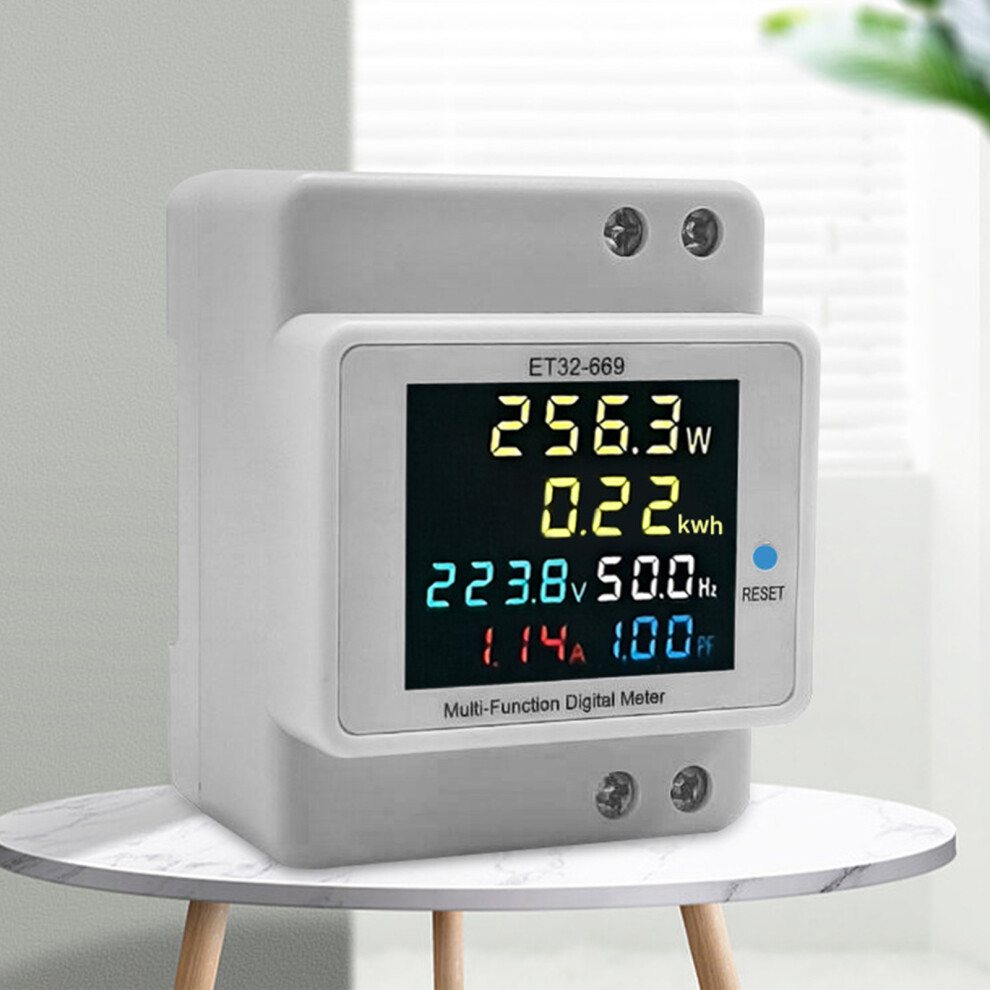

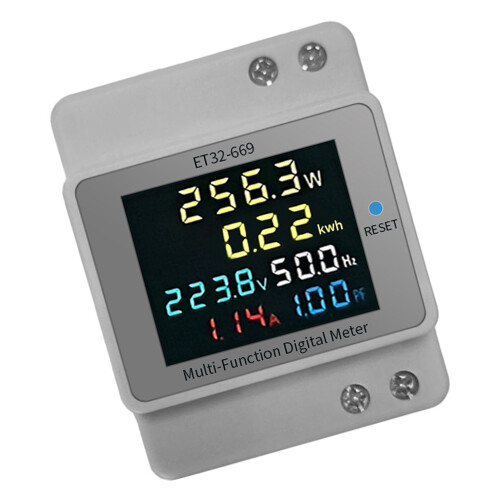

Single Phase Digital Energy Meter with LCD Display 220V Voltage

Single Phase Digital Energy Meter with LCD Display 220V Voltage Description

Features:
Simultaneously displays electric , current, active power, energy, frequency, and power factor on 1 screen with 1%2 digits accuracy. Ideal for home power distribution and equipment debugging, providing comprehensive electrical parameter tracking.
Measures 40 300 electric and 0 100A current, supporting up to 30kW (22kW home compatible) load. Works with built in/external current power converter for flexible single phase 220V applications.
Features a 178 wide angles color screen with clear parameter differentiation and flat industrial design. Ensures readability even in bright light for easy post installation monitoring.

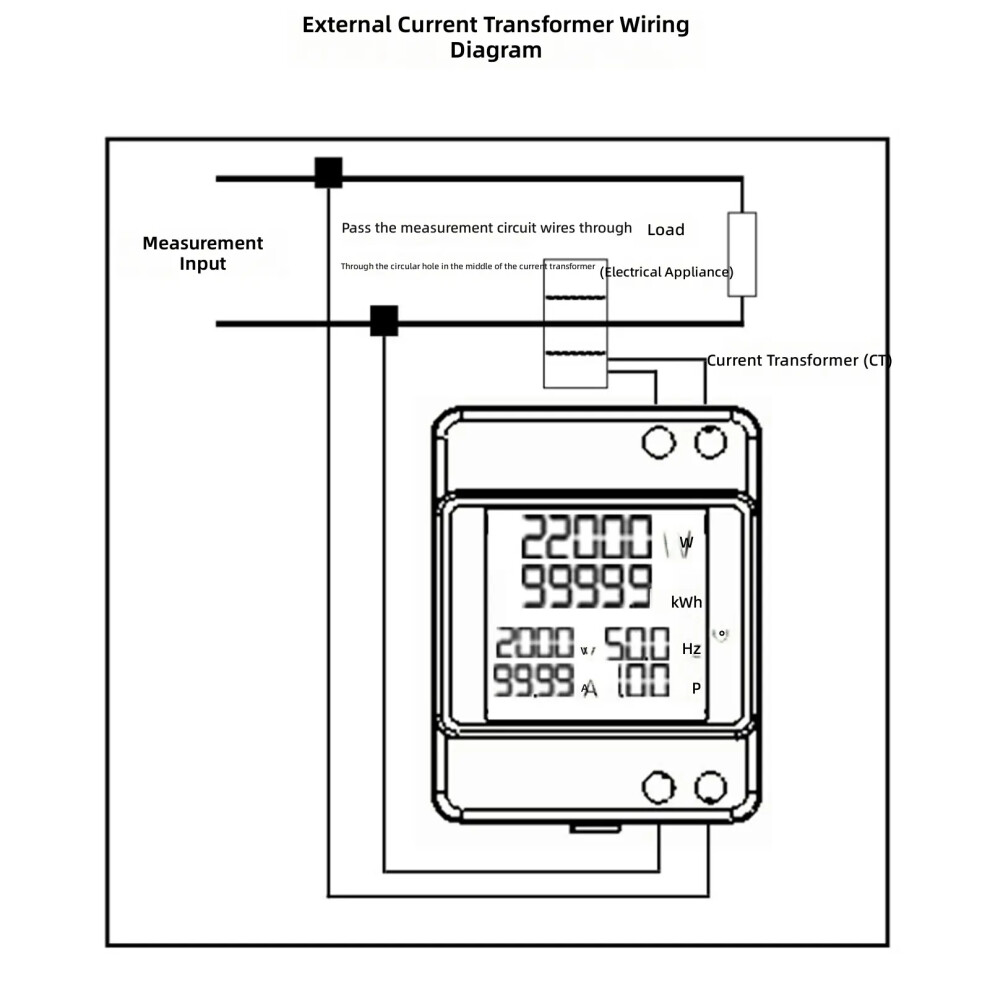

Designed for direct mounting in house electrical switches boxes with simplified wiring (supports live wire threading or external CT connection). Fits standard track setups without complex modifications.
Accurately records kWh usage with 1 total RESET function for device/house energy analysis. Enables power management to optimize electricity efficiency.

Specifications:
Component : ABS.
Dimensions: about 60ｘ76ｘ54ｍｍ/2x3x2.13inch
Measurement accuracy: 1%2 digits.
electric ranges: 40.0-300.0V.
Current ranges: 0.00-100.0A.
Power factor: 0.00-1.00PF.
Electric energy/electricity: 0-99999KWh.
Active power: 0-30000W.
Measuring frequency: 45.0Hz-65.0Hz.

Package Includes:
1xDigital Power Meter

note:
1.Please allow 1-2cm errors due to manual measurement, make sure that you do not mind before you order.
2.Due to the difference between different monitors, the picture may not reflect the actual color of the item.
