SK120 DC Buck Boost Converter CNC Adjustable Regulated Power Supply Constant Voltage Current Solar Charge Module 6A

SK120 DC Buck Boost Converter CNC Adjustable Regulated Power Supply Constant Voltage Current Solar Charge Module 6A Description

SK120:
Input voltage: 6.0~36V
Output current: 0~6.000A
Output power: 120W
Voltage resolution: 0.01V

Conversion efficiency: about 88%
Output voltage: 0~36V
Voltage accuracy: 0.5%+1 word
Current accuracy: 0.5%+3 words
Current resolution: 0.001A

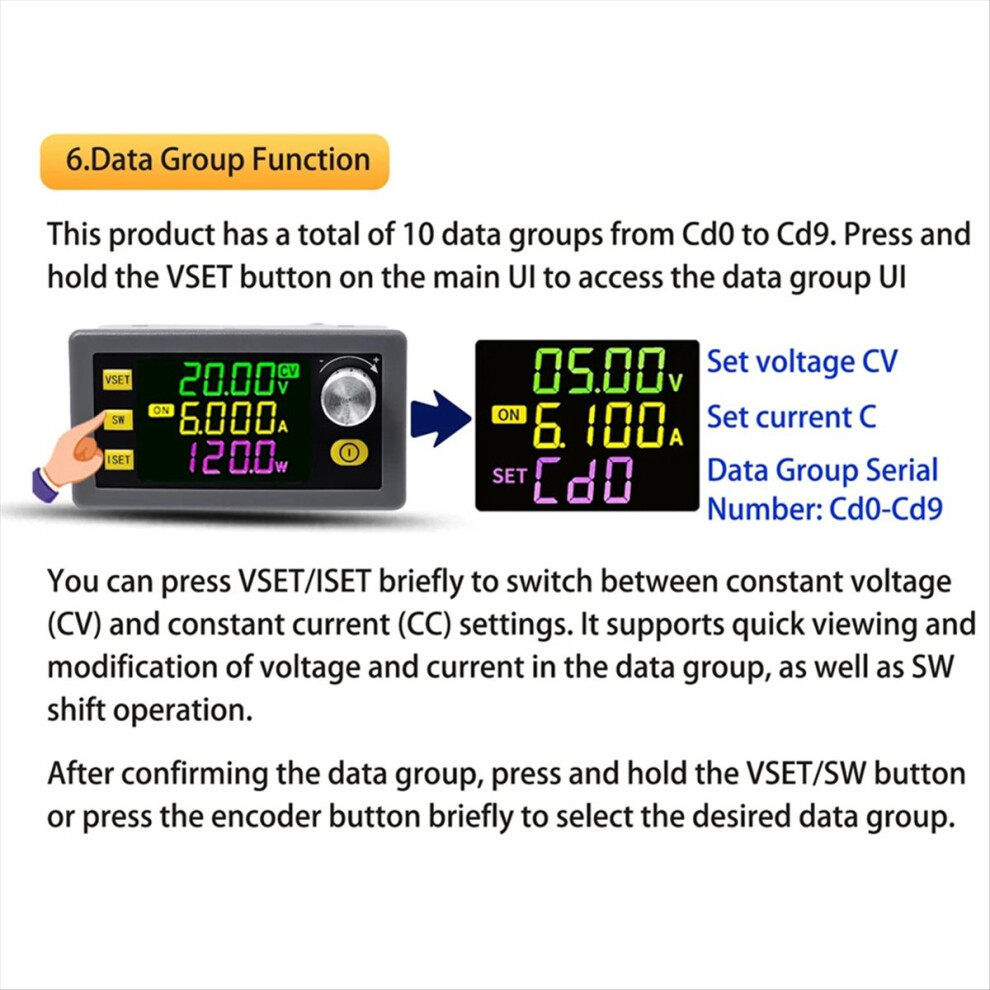

Storage data group: 10 groups
MPPT function: Support MPPT solar charging
Buzzer: Yes
Soft boot: Yes
Protection mechanism:
Input anti-reverse: Yes
Output anti-backpouring: Yes
Input undervoltage protection: 5.5-36V adjustable, 5.5V by default
Output overvoltage protection: 0-38V adjustable, default 38V
Output overcurrent protection:
SK120:0-6.2A Adjustable, default 6.2A
Output overpower protection:
SK120:0-150W Adjustable, the default is 125W
Overtemperature protection: adjustable from 0 to 110 C, default 95C
Timeout protection: 0-100H adjustable, disabled by default
Overcapacity protection: 0 to 9999AH adjustable, disabled by default
Super energy protection: 0~4200KWH adjustable, default off.
Color: Black
Material: PCB

Package Contents:
1 x DC Buck-Boost Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
