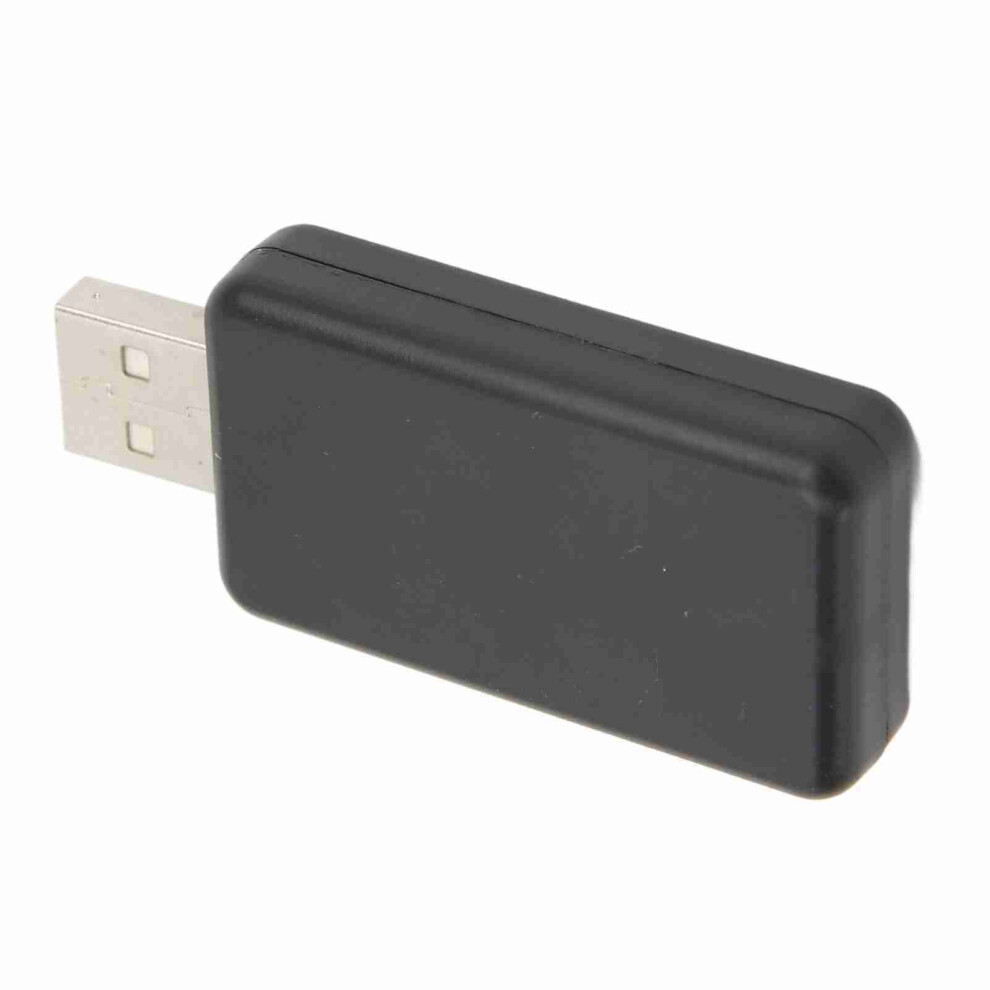

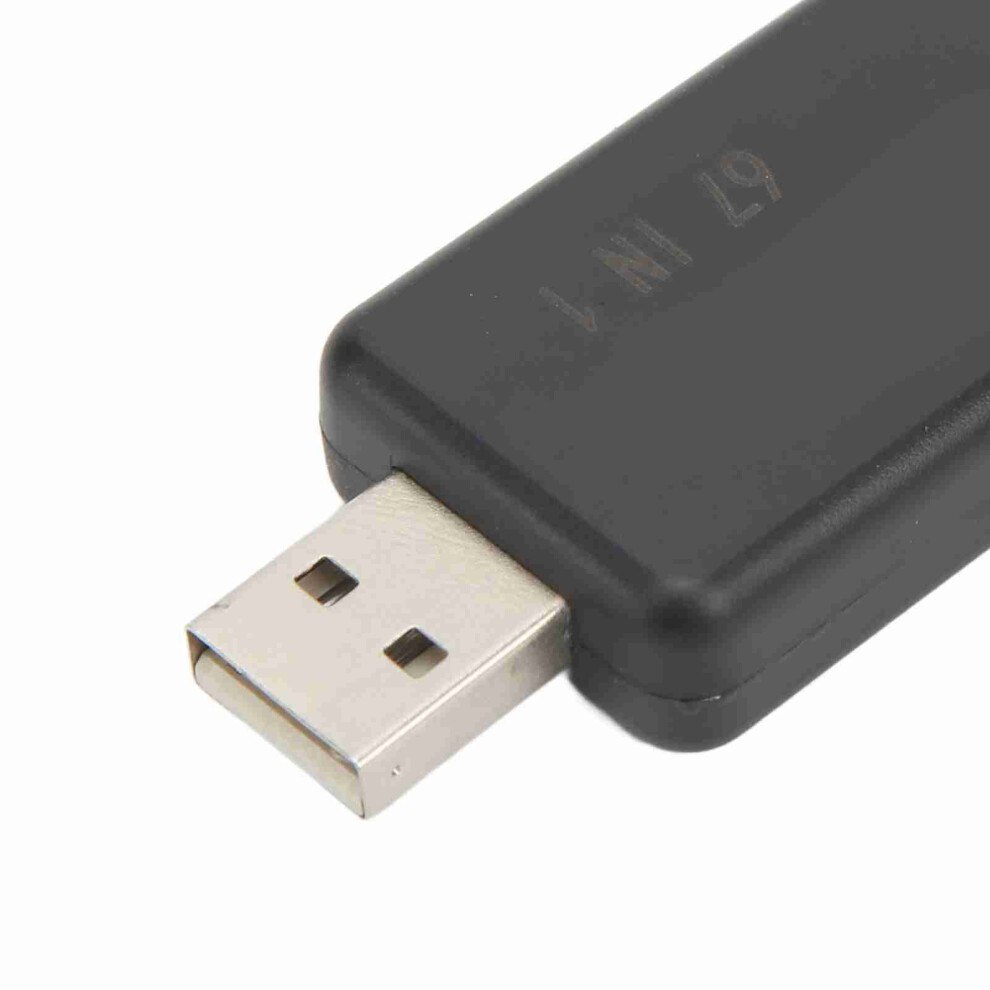

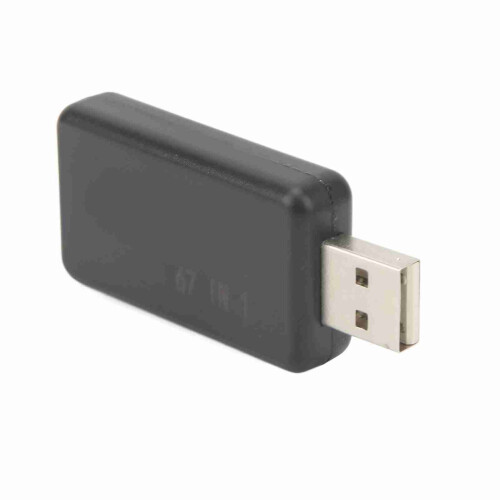

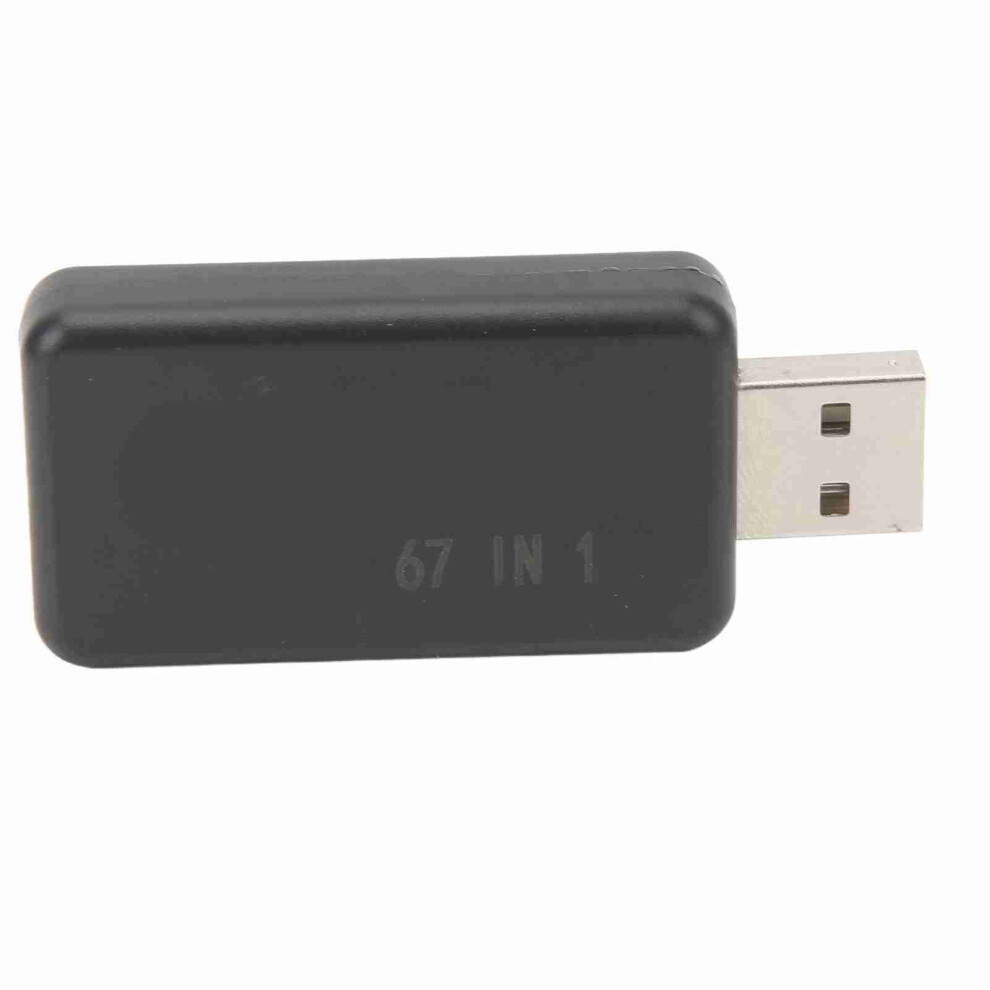

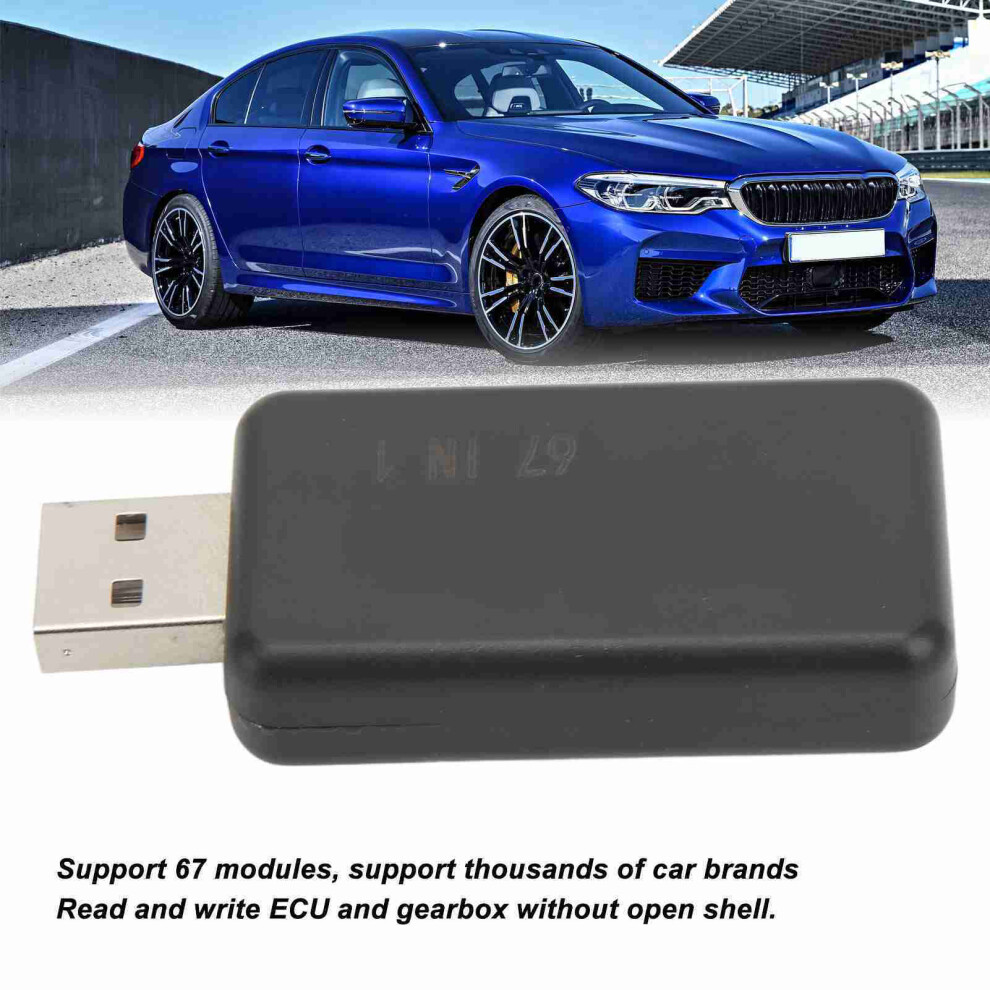

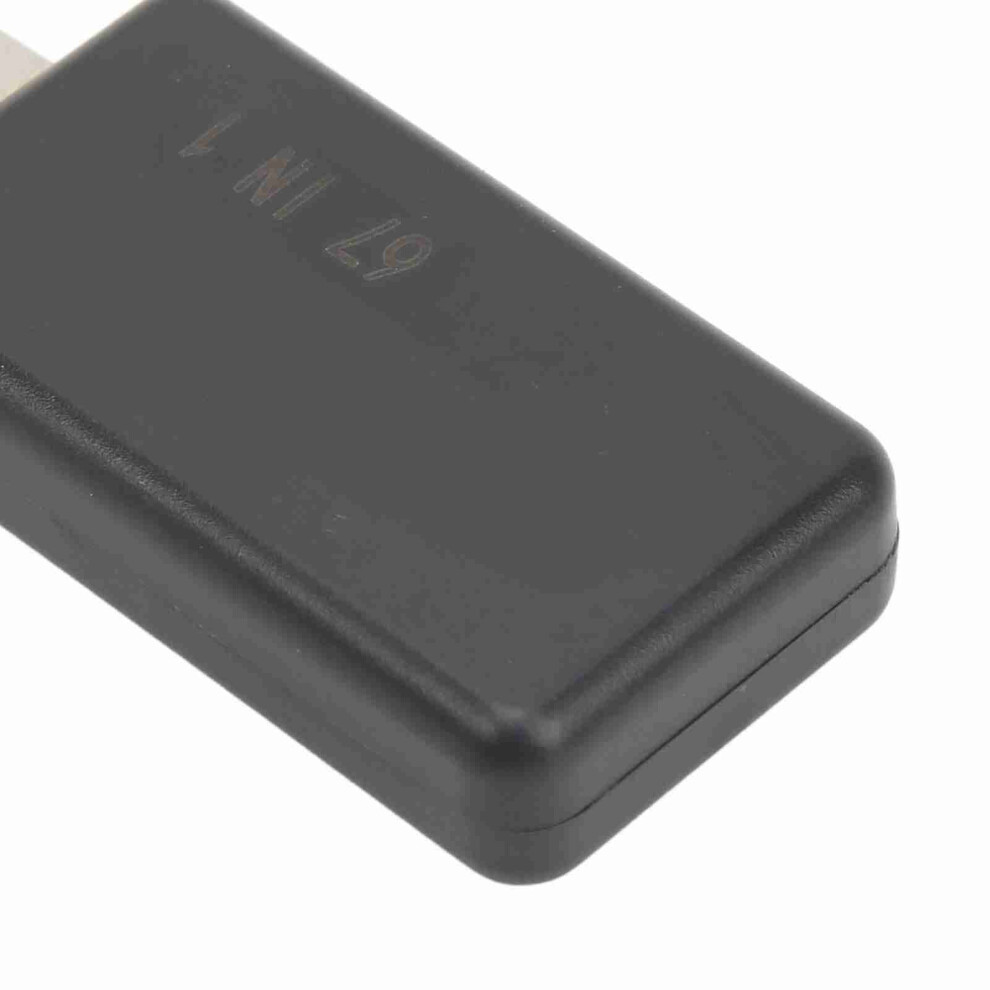

SM2 PRO J2534 USB Dongle 67 Modules ECU Diagnostic Tool No Disassembly

SM2 PRO J2534 USB Dongle 67 Modules ECU Diagnostic Tool No Disassembly Description

SM2 PRO J2534 USB Dongle Support 67 Modules OBD2 Diagnostic Tool for ECU Chip Tuning Programmer

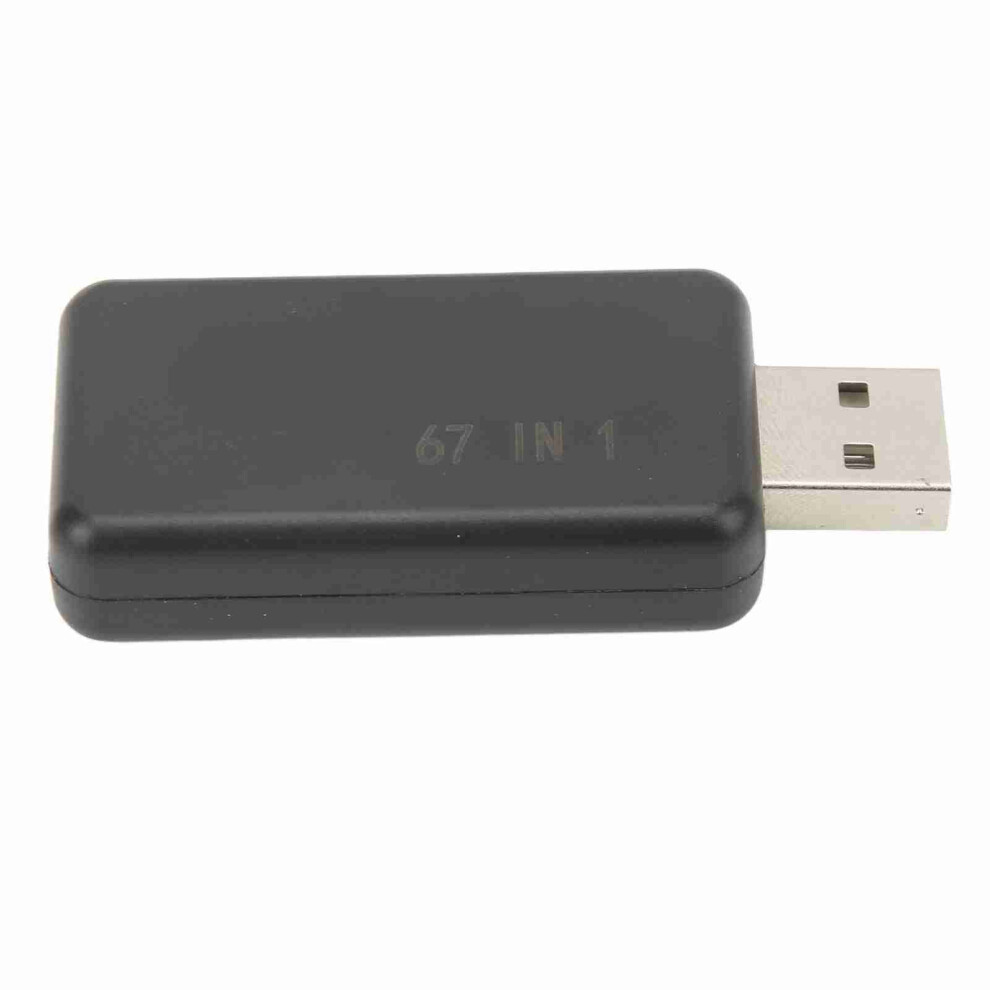

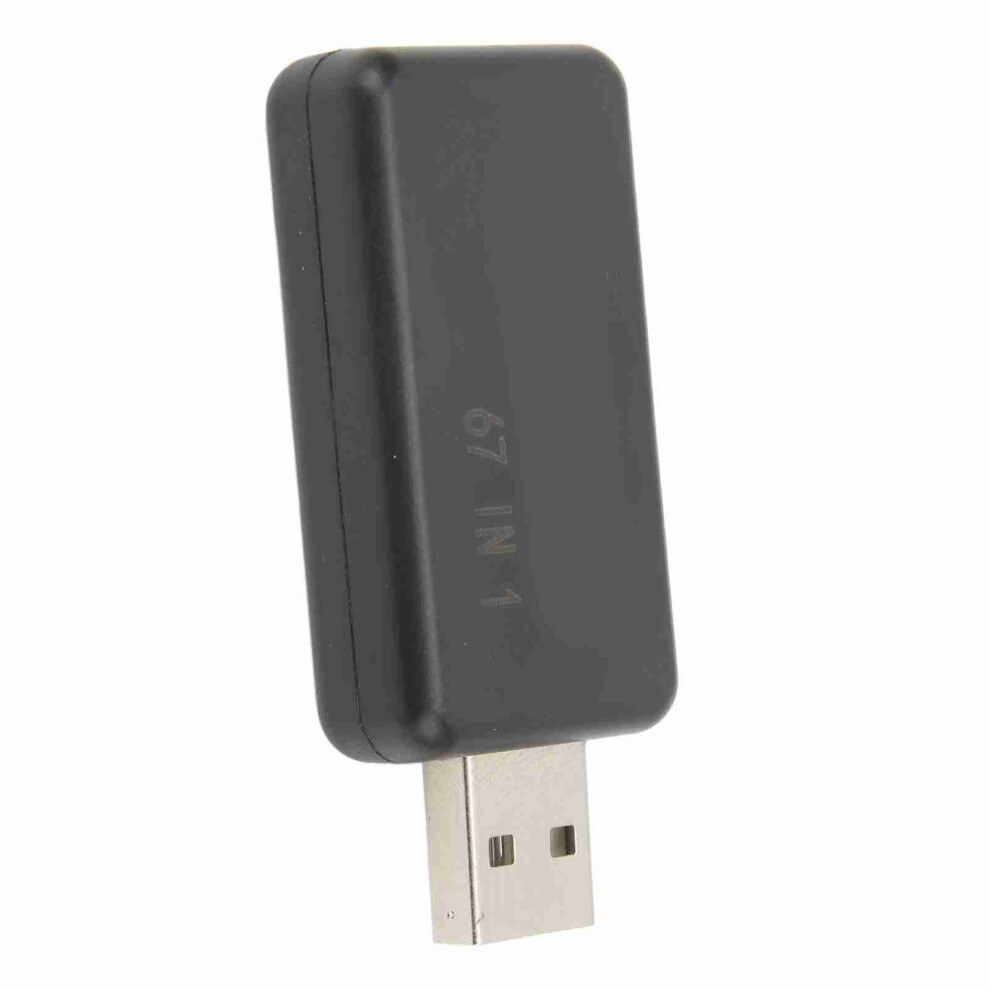

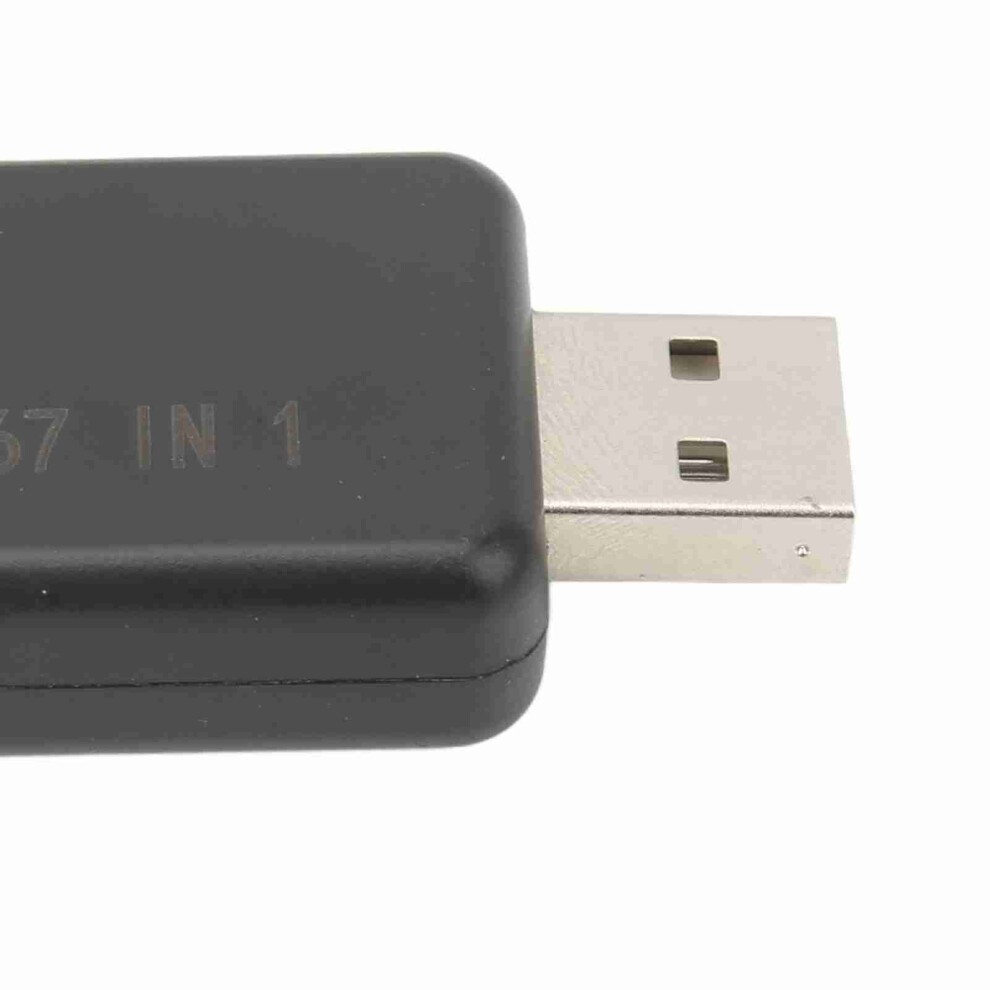

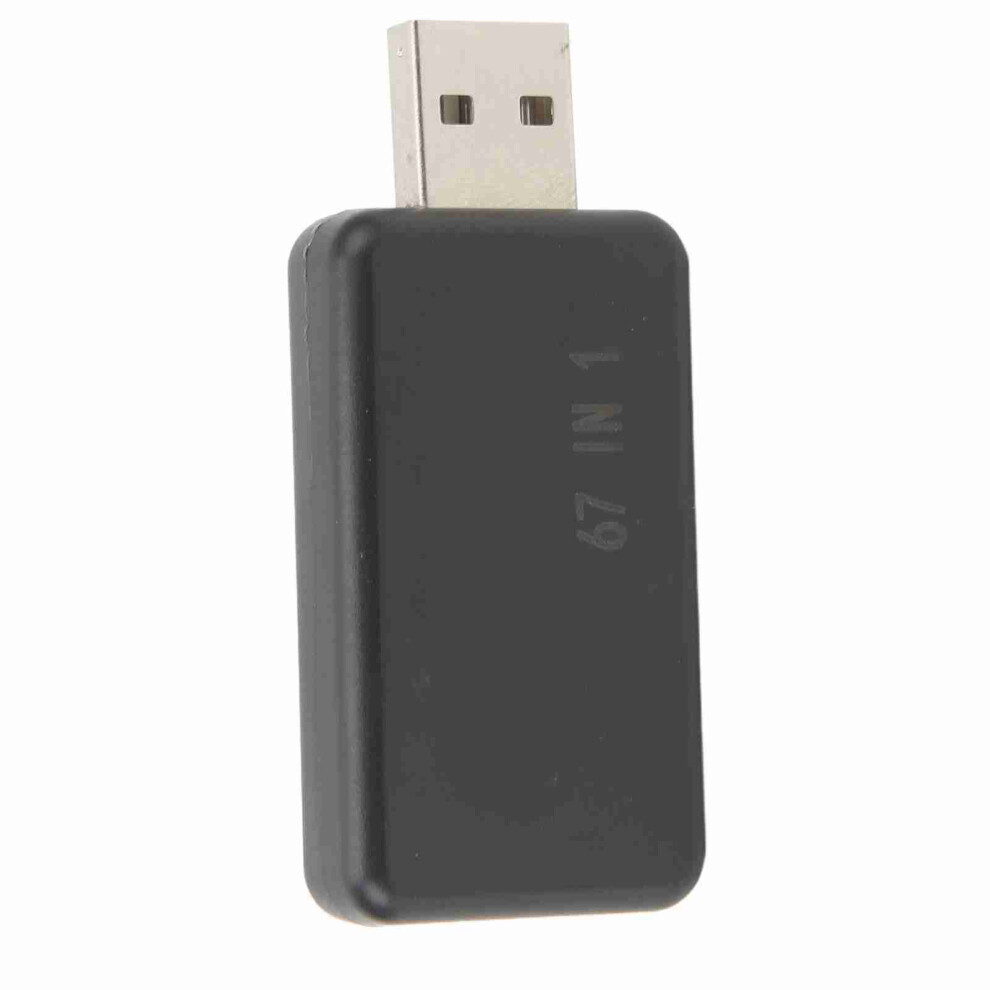

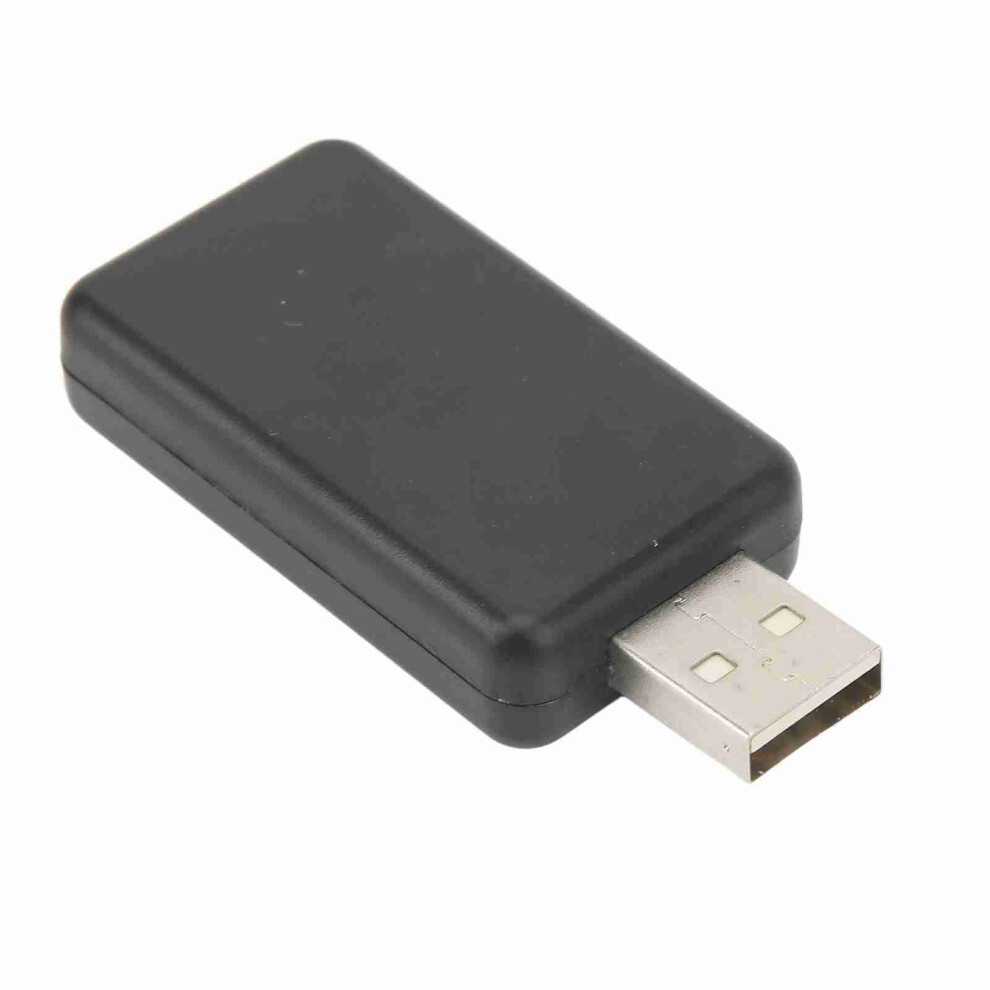

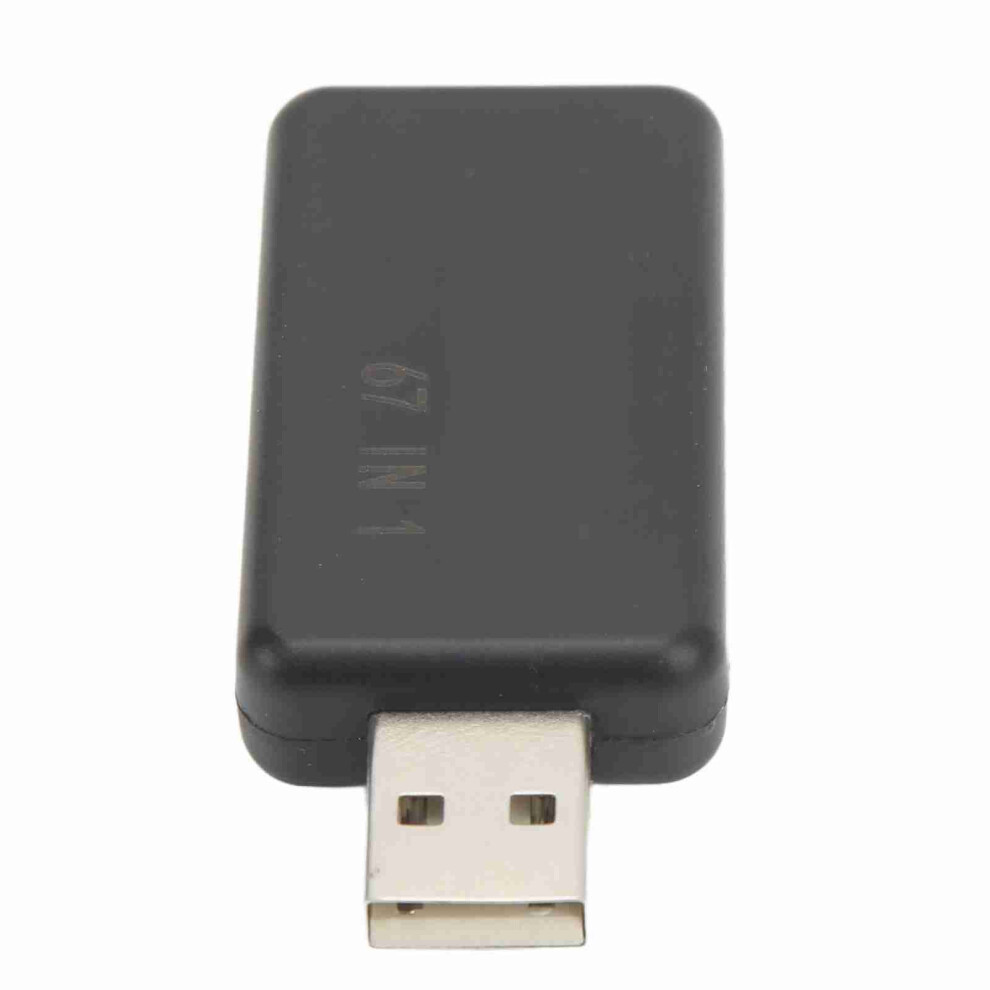

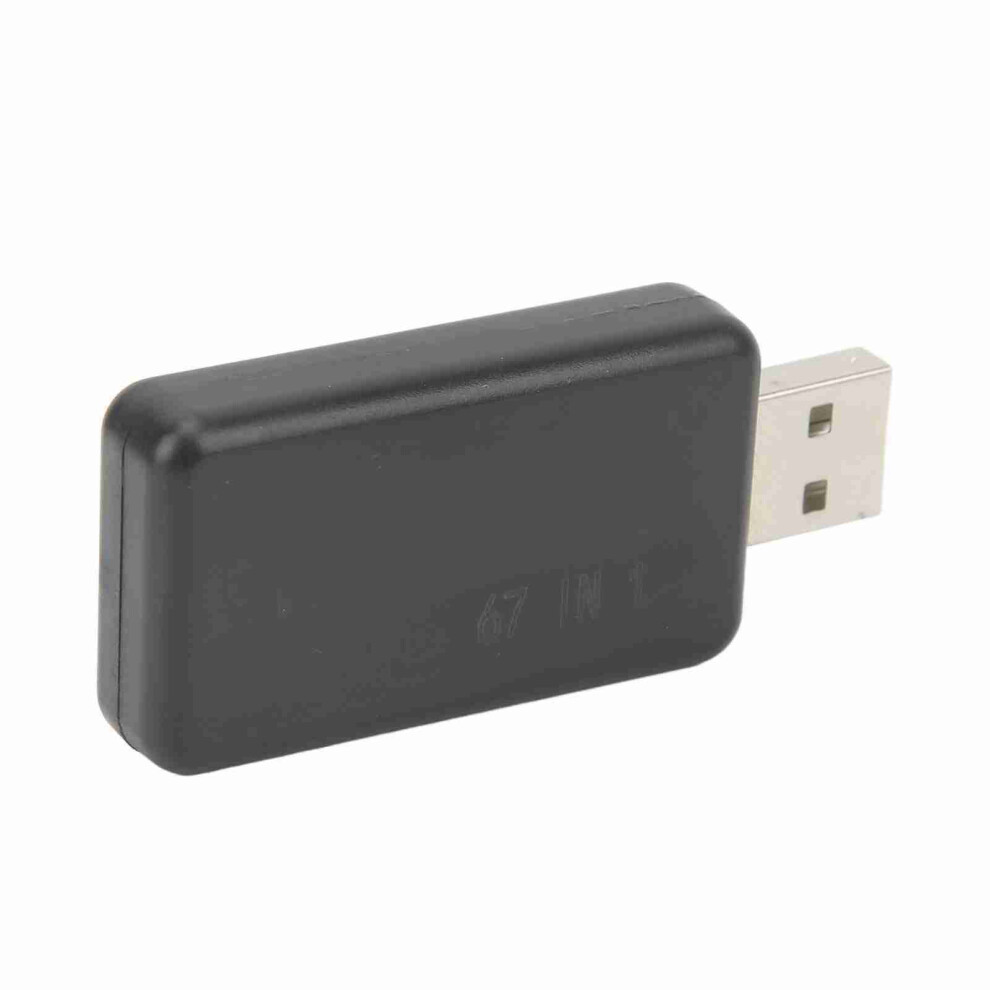

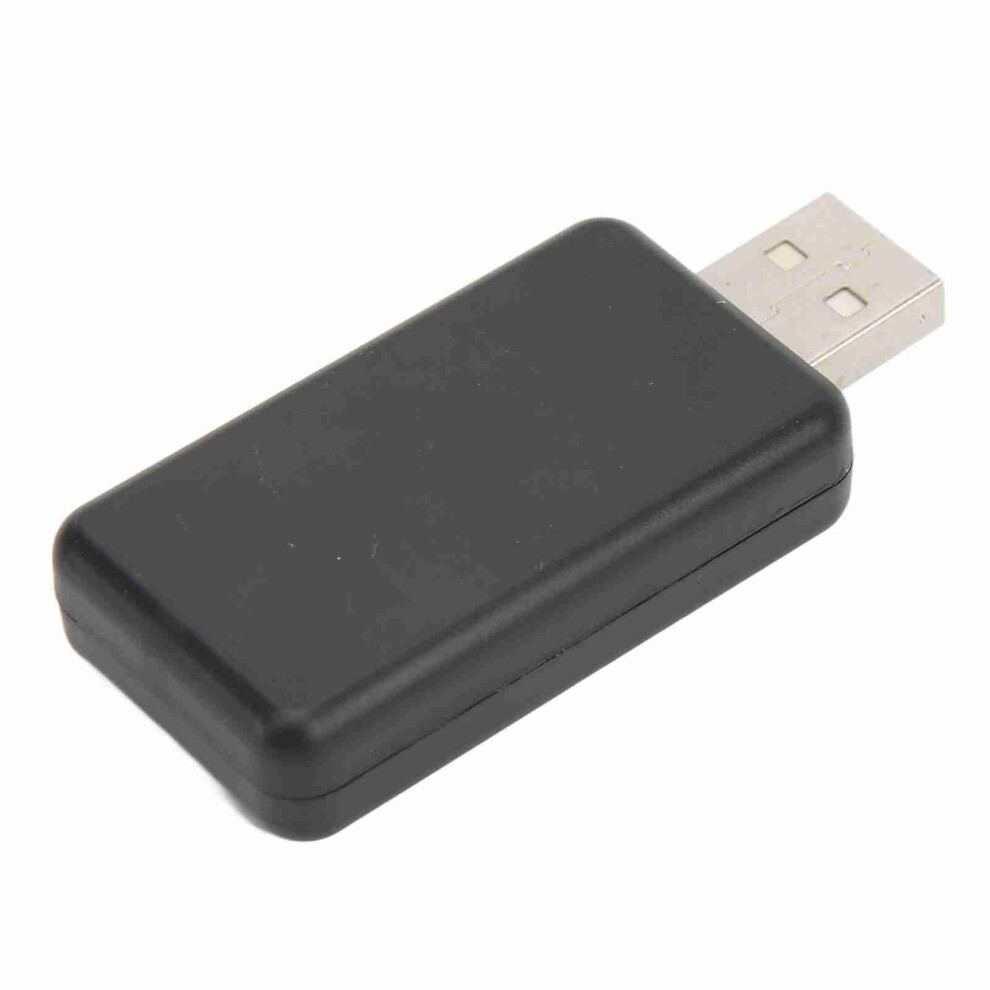

Item Type: USB Dongle
Material: ABS, MetalSoftware Version: V1.20Features:
1. Read and write ECU data
2. ECU clone
3. ECU parameter adjustment
4. ECU maintenance engineering
5. Chip tuning
6. OBD2 reading
7. Cover free wielding free no disassembly data reading, greatly reduce the risk of destroying the ECU, bench style.
8. Cover opening data reading, boot style
9. Read ECU maps
10. Checksum correction
11. Stage1-3, gearcase tuning, LC, sportdisplay, immo off, adblue off, dpf off, dtc off, vmax , swirl off
12. Read flash and ep files
13. Powertrain adjustment67 Modules List Below:
Module 1
Replacement for Ford Focus 3
Replacement for Ford Focus 3: 1.6L Sigma Ti VCT 85/105/125PS (EMS2204)
Replacement for Ford Focus 3: 1.6L, 2.0L PowerShift TCM (6DCT250)
Virtual reading, writing, checksum correction. VBF writing and VBF to BIN conversion is supported!
Replacement for Ford Focus 3: 2.0L Duratec GDI Ti VCT 150/170PS (MED17)
Replacement for Ford Focus 3 ST: 2.0L Ecoboost GTDI 250PS (MED17)
Reading, writing, checksum correction.
Module 2
Replacement for Ford Kuga 2, Ford Explorer 2011 up
Replacement for Ford Focus 3: 1.0L Ecoboost 2015 up GTDI 100/125PS [FV6A] (MEDG17)
Replacement for Ford Kuga 2: 1.6L Ecoboost GTDI AWD 150/182PS (MEDG17)
Replacement for Ford Mondeo 5: 1.5L Ecoboost GTDI AT 150/180PS (MEDG17)
Replacement for Ford Mondeo 5: 2.0L Ecoboost GTDI 200PS (MEDG17)
Replacement for Ford Explorer 2011-: 3.5L Ecoboost V6 GTDI 360PS (MEDG17)
Replacement for Ford Kuga 2: 2.5L Duratec Ti VCT 150/171PS
Replacement for Ford Mondeo 5: 2.5L Duratec Ti VCT 150/171PS
Replacement for Ford Explorer 2011 Up 3.5L Cyclone V6 Ti VCT 294PS
Reading, writing, checksum correction
Module 3
For Diesel engines 2.0L, DCM3.5/DCM6.1/SID206
Replacement for Ford Focus 3: 2.0L DW10C STAGE 5 140/163PS (DCM3.5)
Replacement for Ford Kuga 1: 2.0L DW10C STAGE 5 140/163PS (DCM3.5)
Replacement for Ford Kuga 2: 2.0L DW10C STAGE 5 140/163PS (DCM3.5)
Replacement for Ford Mondeo 4: 2.0L DW10C STAGE 5 140/163PS (DCM3.5)
Virtual reading, writing, checksum correction.
Replacement for Ford Mondeo 4: 1.8L Lynx, 2.0L DW10C STAGE 4 (SID206)
Replacement for Ford Mondeo 5: 2.0L DW10F STAGE 5/6 150/180PS (DCM6.1)
Replacement for Ford Focus 2: 1.8L, 2.0L Duratorq Lynx/DW10C (SID202/SID206)
Reading, writing, checksum correction.
Module 4
Petrol engines 1.25-1.6L, Replacement for Ford Fiesta 2008up, Replacement for FordMondeo 4
Replacement for Ford Fiesta: 1.25L, 1.4L Sigma Ti VCT (EMS2102)
Replacement for Ford Fiesta: 1.6L Sigma Ti VCT (EMS2101)
Replacement for Ford Mondeo 4: 1.6L Sigma Ti VCT 110/125PS (EMS2101)
Reading, writing, checksum correction.
Replacement for Ford Fiesta: 1.6L Sigma Ti VCT USA [AE81] (EMS2205)
Writing, checksum correction.
Module 5
For petrol engines 1.6L, 2.0L, Ecoboost T PROT7
Replacement for Ford Focus 3: 1.6L Ecoboost GTDI 150/180PS (MED17)
Replacement for Ford Mondeo 4: 2.0L Ecoboost GTDI 200/240PS (MED17)
Reading, writing, checksum correction. VBF writing and VBF to BIN conversion is supported!
Module 6
For petrol Engines 1.0, 1.6L, Ecoboost T PROT12
Replacement for Ford Focus 3: 1.0L Ecoboost GTDI 100/125PS (MED17)
Replacement for Ford Kuga 2: 1.6L Ecoboost GTDI FWD 150PS (MED17)
Replacement for Ford Fiesta: 1.0L Ecoboost GTDI 100/125PS (MED17)
Reading, writing, checksum correction. VBF writing and VBF to BIN conversion is supported!
Module 7
Replacement for Ford Transit/Tourneo/Ranger, Replacement for Land Rover Defender
Replacement for Ford Transit 2007: 2.2L, 2.4L Diesel 85/100/115/140PS (DCU101-108, DCU201-208)
Reading, writing, checksum correction.
Replacement for Ford Transit 2012: 2.2L Diesel 100/125/140/155PS (SID208)
Replacement for Land Rover Defender 2012: 2.2L TD4 (SID208))
Replacement for Ford Ranger: 3.2L Diesel (SID209)
Writing after unlocking in BSL,checksum correction.
Replacement for Ford Transit 2012: 2.2L Diesel 100/125/140/155PS (SID208/BSL)
Replacement for Ford Ranger: 3.2L Diesel (SID209/BSL)
Reading.
Replacement for Ford Transit: 2.2L Diesel (SID211) [Unlocked]
Writing after unlocking in BSL with Module 53, checksum correction.
Replacement for Ford Ranger: 2.5L Duratec (EMS2207)
Writing, checksum correction.
Module 8
Replacement for Mazda 1st generation (2004-2008/10)
Replacement for Mazda : 1.6L Z6 AT (Replacement for Mazda 3 2004up )
Replacement for Mazda : 1.6L Z6 MT (Replacement for Mazda 3 2004up )
Replacement for Mazda : 1.3L ZJ (Replacement for Mazda Demio 2003up )
Replacement for Mazda : 1.8L, 2.0L, 2.3L L8/LF/L3 (Replacement for Mazda 3/6/CX7 2003up )
Replacement for Mazda : 1.3L N3 (Replacement for Mazda RX8 2003up )
Replacement for Mazda : 1.3L N3 (Replacement for Mazda RX8 -2008)
Replacement for Mazda : 1.3L N3 (Replacement for Mazda RX8 2009-2012)
Replacement for Mazda : 2.0L LF USA (Replacement for Mazda 3 -2009/1MB
Reading, writing, checksum correction.
Module 9
Replacement for Mazda 2nd generation (2008/10-2012/13)
1.3L, 1.5L ZJ/ZY (Replacement for Mazda 2 2011up )
1.5L ZY (Replacement for Mazda 2 US 2011up )
1.6L Z6 (Replacement for Mazda 3 2010up )
1.8L, 2.0L, 2.5L L8/LF/L5 (Replacement for Mazda 6 2008up )
2.0L, 2.3L, 2.5L LF/L3/L5 (Replacement for Mazda 3/5/CX7 2010up )
2.0L LF (Replacement for Mazda Biante 2013up /2MB)
Reading, writing, checksum correction.
Module 10
Replacement for Mazda 3rd generation (2012up )
Replacement for Mazda : 1.5L, 2.0L, 2.5L SKYACTIV G P5/PE/PY (Replacement for Mazda 3/CX5/6 SkyActiv Replacement for Mitsubishi)
Replacement for Mazda : 1.5L, 2.0L, 2.5L SKYACTIV G P5/PE/PY (Replacement for Mazda 3/CX5/6 SkyActiv for Denso)
Replacement for Mazda : 2.5T SKYACTIV G PY (Replacement for Mazda CX9 SkyActiv Replacement for Mitsubishi)
Replacement for Mazda : 2.2L SKYACTIV D SH (Replacement for Mazda 3/CX5/6 SkyActiv for Denso)
Replacement for Mazda : 1.6L Z6 ( for Denso)
Reading, writing, checksum correction.
Module 11.
Replacement for Mazda 3rd generation (2012up ) crypto
Replacement for Mazda : 1.5L, 2.0L, 2.5L SKYACTIV G P5/PE/PY (Replacement forMazda 3/CX5/6 SkyActiv for Denso Crypted)
Replacement for Mazda : 2.2L SKYACTIV D SH (Replacement for Mazda 3/CX5/6 for DensoCrypted 2MB)
Replacement for Mazda : 1.5L, 2.2L SKYACTIV D S5/SH (Replacement for Mazda2/3/CX5/6 for Denso Crypted 3.75MB)
Replacement for Mazda : 1.6L Z6 ( for Denso Crypted)
Reading, writing, checksum correction.
Module 12
Replacement for Acura CAN bus
Fit for PGM FI Generic Read Only
Fit for AT/CVT/DCT Generic Read Only
Fit for PGM FI (for Keihin SH7058/1MB)
Fit for PGM FI (for Keihin SH72543/2MB)
Fit for PGM FI (for Keihin SH72546/3.75MB)
Fit for PGM FI (for Keihin MPC5566/3MB)
Fit for PGM FI (for Keihin TC1782/2.5MB)
Fit for AT/CVT/DCT (for Keihin 512KB)
Fit for AT/CVT/DCT (for Keihin 1MB)
Fit for PGM FI (for Matsushita SH7058/1MB)
Fit for PGM FI (for Matsushita SH72543/2MB)
Fit for PGM FI 2013up (for Matsushita SH72543/2MB) (Test)
Fit for PGM FI (Panasonic TC179X/4MB)
Fit for AT/CVT/DCT (for Matsushita 512KB) (Test)
Fit for PGM FI (Continental MPC5554/2MB)
Fit for PGM FI (for Hitachi SH7058/1MB) (Test)
Fit for PGM FI (for Hitachi SH7059/1.5MB) (Test)
Fit for PGM FI (for Hitachi SH72543/2MB)
Fit for PGM FI (for Hitachi MPC5554/2MB) (Test)
Fit for AT/CVT/DCT (for Hitachi SH72531/1280KB)
Fit for AT/CVT/DCT (for Hitachi SH725x3/2048KB)
Reading, writing, checksum correction.
Fit for UDCT (Continental TC1782/2.5MB)
Writing, checksum correction.
Module 13
Replacement for Acura K Line
Replacement for Accord 7 2003-2005 (for Matsushita RBA/RBB SH7055/512KB)
Replacement for Accord 7 2006-2007/TSX 2004-2005 (for Matsushita RBA/RBB SH7055/512KB)
Replacement for Acura: TSX 2006 (for Matsushita RBB A56-A62 SH7058/1MB)
Replacement for Accord/Replacement for CR-V/Replacement for Element/Replacement for Legend/Replacement for Odyssey/Replacement for Ridgeline (for Keihin SH7058/1MB)
Replacement for Element/Inspire (for Keihin SH7055/512KB)
Replacement for Legend/Acura TL 2005-2007 (for Keihin RJA SH7058/1MB)
Replacement for CR-V 2002/2005-2007 (for Keihin PPA/PNL SH7058/1MB)
Replacement for Fit/Jazz/Airwave 2001-2007 (for Keihin OKI ML66Q592/192KB)
Replacement for Acura: MDX 2003-2007 (for Motorola RDJ SH7055/512KB)
Replacement for Accord 7 USA (for Motorola RCA SH7055/512KB SH7058/1024K)
Only writing, checksum correction. Stock files database included!
Module 14
Petrol engines 1.6L, 2.0L, 2.3L, 2.5L Replacement for Ford Mondeo 4
Replacement for Ford Mondeo 4: 1.6L Sigma Ti VCT 110/125PS (EMS2101)
Replacement for Ford Mondeo 4: 2.0L Duratec HE (ESU312 for Galaxy/S-Max 2006)
Replacement for Ford Mondeo 4: 2.0L, 2.3L Duratec HE (ESU412/415)
Reading, writing, checksum correction.
Replacement for Ford Mondeo 4: 2.5L Duratec I5 225PS (ME9.0)
Only writing, checksum correction. VBF writing and VBF to BIN conversion is supported!
Module 14
Petrol engines 1.6L, 2.0L, 2.3L, 2.5L Replacement for Ford Mondeo 4
Replacement for Ford Mondeo 4: 1.6L Sigma Ti VCT 110/125PS (EMS2101)
Replacement for Ford Mondeo 4: 2.0L Duratec HE (ESU312 Galaxy/S-Max 2006)
Replacement for Ford Mondeo 4: 2.0L, 2.3L Duratec HE (ESU412/415)
Reading, writing, checksum correction.
Replacement for Ford Mondeo 4: 2.5L Duratec I5 225PS (ME9.0)
Only writing, checksum correction. VBF writing and VBF to BIN conversion is supported!
Module 15
Replacement for Infiniti K Line
Fit for EFI SH705415N (for Hitachi SH7054/384KB)
Fit for EFI SH705507N (UJ/for Hitachi SH7055/512KB)
Fit for EFI SH705513N (for Hitachi SH7055/512KB)
Fit for EFI SH705520N (for Hitachi SH7055/512KB)
Fit for EFI SH705821N (for Hitachi SH7058/1MB)
Fit for EFI SH705823N (for Hitachi SH7058/1MB)
Fit for EFI SH705524N Almera Classic (for Hitachi SH7055/512KB)
Fit for EFI SH705529N Almera Classic (for Hitachi SH7055/512KB)
Fit for EFI SH705826N (for Hitachi SH7058/1MB)
Reading, writing, checksum correction.
Module 16
For Subaru for Hitachi
Replacement for Forester, Replacement for Impreza 2000-2002 K Line (UJ WA12212920/128KB)
Replacement for Forester, Replacement for Impreza 2000-2002 K Line (UJ WA12212930/256KB)
Replacement for Forester, Replacement for Impreza 2002-2005 K Line (UJ/for HitachiWA12212940/384KB)
Replacement for Forester, Replacement for Impreza 2002-2005 K Line (UJ/for HitachiWA12212970/512KB)
Reading, writing.
Replacement for Forester 2006, Replacement for Impreza 2006-2007 K Line (for HitachiWA12212970WWW/512KB)
Replacement for Forester 2007-2008, Replacement for Impreza 2008up 2006up CAN (for Hitachi WA12212970WWW/512KB)
Replacement for Forester 2009-2011 CAN(for Hitachi SH7058/1MB)
Replacement for Forester 2013up CAN (for Hitachi SH7059/1.5MB)
Replacement for Forester 2013up CAN (for Hitachi SH7254/2MB)
Reading, writing, checksum correction.
Module 17
For CFNA/CFNB/CLRA 7GV K Line (for Marelli 7GV/832KB) 1.6L
For CGGB K Line (for Marelli 7GVE/832KB) 1.4L
For BFQ K Line (for Simos 3.3A/512KB) 1.6L
For BUD/BXW/CGGA/CGGB K Line (for Marelli 4HV/832KB) 1.4L
For BSA/BSE/BSF Calibration K Line (for Simos 7.1/512KB) 1.6L
For BSA/BSE/BSF Calibration K Line (for Simos 7PP/1MB) 1.6L
For BME/BZG/CGPA Calibration K Line (for Simos 9.1/512KB) 1.2L
Reading, writing, checksum correction.
Module 18
Replacement for Infiniti CAN bus
Fit for EFI Generic Read Only (for Hitachi)
Fit for EFI SH705519N (for Hitachi SH7055/512KB)
Fit for EFI SH705822N, SH705828N (for Hitachi SH7058/1MB)
Fit for EFI SH705927N (for Hitachi SH7059/1.5MB)
Fit for EFI SH725331N (for Hitachi SH72531/1.25MB)
Fit for EFI S7253332N (for Hitachi SH72533/2MB)
Fit for Koleos/Latitude 2.5 SH705822N (for Hitachi SH7058/1MB)
Fit for Koleos 2 2.5L S7253332N (for Hitachi SH72533/2MB)
Reading, writing, checksum correction.
Module 19
Replacement for Kia/Replacement for Replacement for Hyundai
Replacement for Kia/Replacement for Hyundai: 1.4L, 1.6L (M(G)7.9.8)
Replacement for Kia/Replacement for Hyundai: 1.1L-1.6L (M(G)7.9.7)
Only writing, checksum correction.
Replacement for Kia/Replacement for Hyundai: 1.4L, 1.6L (ME17.9.11/12/13)
Replacement for Kia/Replacement for Hyundai: 1.4L, 1.6L (ME(G)17.9.21)
Replacement for Kia/Replacement for Hyundai: 1.6L, 3.0L (ME17.9.2/ME(D)(G)17.9.8)
Reading, writing, checksum correction.
Module 20
Replacement for Ford Focus 2/Fiesta/Fusion (automatic transfer for VID area)
Replacement for Ford Focus 2: 1.4L, 1.6L Duratec 85/100/115PS (SIM28/29)
Replacement for Ford Focus 2: 1.8L, 2.0L Duratec HE 125/145PS (ESU131/411/418)
Replacement for Ford Focus 2: 1.8L, 2.0L Duratorq Lynx/DW10C (SID202/SID206)
Replacement for Ford Fiesta/Fusion: 1.4L, 1.6L Duratec 85/100PS (SIM210)
Replacement for Ford Focus 2 ST: 2.5L Duratec I5 225PS (ME9.0)
Reading, writing, checksum correction.
Replacement for Ford Kuga 1: 2.5L Duratec I5 200PS (ME9.0)
Writing, checksum correction.
Module 21
Replacement for Ford USA (automatic transfer for VID area)
Replacement for Mazda 6 3.0L AJ 2003-2005
Replacement for Escape, Explorer, Replacement for Mazda CX9 -2009 (PCM150F)
Replacement for Explorer, Replacement for Mazda CX9 2010-2011/2012 (M799G)
Replacement for Focus 2008-2011 (for GreenOak/PCM190)
Replacement for Escape, Mariner, Tribute 2009-2011 (9L8A)
Replacement for Ford 6.0L (for BlackOak/PCM122/448KB)
Replacement for Expedition, Navigator 5.4L (for Bosch ME9.8/2048KB)
Reading, writing, checksum correction
Replacement for Mustang 2005-2009 (PCM170F)
Reading, writing.
Module 22
Replacement for Valeo V40/V42 (SH7058/1024KB)
Replacement for Sagem 3000 (SH7055/512KB)
Replacement for EMS3110 (TC1766/1504KB)
Replacement for Logan, Sandero, Fluence, Megane, Almera EMS3120 (TC1738/2048KB)
Replacement for Duster, X-Ray EMS3125 (TC1782/2560KB)
Replacement for Clio 4 1.6T EMS3150 (TC1767/2048KB)
Replacement for Juke 1.2T EMS3155 (TC1782/2560KB)
Reading, writing, checksum correction.
Module 23
Replacement for Subaru for Denso
2.5L, 3.0L, 2.0T, 2.5T for for Denso 2003up K Line (SH7055/512KB)
2.5L, 3.0L, 2.0T, 2.5T for for Denso 2003up K Line (SH7055S/512KB)
2.5L, 3.0L, 2.0T, 2.5T for for Denso 2003up K Line (SH7058/1MB)
2.5L, 3.0L, 2.0T, 2.5T for for Denso 2007up CAN bus (SH7058S/1MB)
2.0L, 2.5L, 3.0L, BRZ for for Denso 2013up CAN bus (SH72531/1.25MB)
1.6L, 2.0L DI for for Denso 2018up CAN bus (1N83M/1.5MB)
2.0L for for Denso Diesel Euro 4 CAN bus (SH7058S/1MB)
2.0L for for Denso Diesel Euro 5 CAN bus (SH7059/1.5MB)
2.0L for for Denso Diesel Euro 6 CAN bus (SH72543/2MB)
Reading, writing, checksum correction.
Module 24
Replacement for Mitsubishi CAN bus
MH Generic Read Only
Replacement for Colt MT (MH8304F/512KB)
Replacement for Colt AT (MH8304F/768KB)
Replacement for Colt RallyArt 1.5T (MH8104F/512KB)
Replacement for Pajero AT (2007-) (MH8304F/768KB)
Replacement for Pajero Sport (2010-) (MH8106F/1MB)
Replacement for L200 2.4L MT (2008-) (MH8302F/512KB)
Replacement for Lancer X 1.5L (2007-), Outlander XL JDM (MH8104F/512KB)
Replacement for ASX (-2013), Lancer X 1.6/1.8/2.0L, Outlander XL (MH8106F/1MB)
Replacement for ASX (2013-), Mirage, Outlander 3 (2013-) (MH8115F/1.25MB)
Replacement for Galant 9 2.4L (2005-) (MH8304F/768KB)
Replacement for Pajero MT (2007-) (MH8302F/512KB)
Replacement for Cross (2018-) (MH8601/4MB) (MH8115F/1.25MB)
Replacement for Expander (2018-) (MH8611/2MB)
Reading, writing, checksum correction.
Module 25
1.5L for Delphi DCM 1.2 (ST10/512KB)
1.5L for Delphi DCM 3.4 (SH7059/1536KB)
1.5L SID 303/304 (MPC562/2MB)
1.5L SID 305/306 (TC1766/1504KB)
1.5L SID 307 (TC1767/2MB)
2.3L SID 309 (TC1767/2MB)
Replacement for Juke 1.5L SID 310 (TC1767/2MB)
Reading, writing, checksum correction.
Module 26
Replacement for Replacement for Mitsubishi Diesel CAN bus
For Denso Diesel (SH7058/SH7058S/1MB SH7059/1.5MB SH72543/2MB)
Reading, writing, checksum correction.
Module 27
For EFI SH72533 Gen 2 (2014up) Calibration (for Hitachi SH72533/2MB)
Replacement for Samsung 1.6T (for Hitachi SH72533/2MB)
Reading, writing, checksum correction.
Module 29
Replacement for Ford PWM (Replacement for Ford VCM2 or Scanmatik is required)
Replacement for Mondeo 3 1.8L, 2.0L, 2.5L, 3.0L Duratec HE (LEVANTA)
For EEC-V 216K (EEC-V)
For 3.0L, 4.0L, 4.6L Duratec V6/V8 (PCM150)
Reading, writing, checksum correction
For 1.8L, 2.0L, 2.2L Duratorq TDCi (for Visteon)
For 1.8L, 2.0L, 2.2L Duratorq TDCi (for Delphi)
Reading, writing
Module 30
Replacement for Kia/Replacement for Hyundai SIM2K
For 2.0L, 2.4L (SIM2K-140)
For 2.0L, 2.5L (SIM2K-D160)
For 2.0L, 2.4L (SIM2K-141/142/341)
For 2.0L (SIM2K-C201)
For 2.0L, 2.0T (SIM2K-240/241/242/245)
Reading, writing, checksum correction.
Module 31
Replacement for Replacement for Mitsubishi K Line
K Line/Bootloader (MH720xF/MH810xF/MH820xF/MH830xF/MH8115)
Reading, writing, checksum correction.
Module 32
Replacement for Ford Focus 3 2015, Replacement for Ford Explorer 2016, Replacement for Ford Kuga 2 2017
Replacement for Ford Fiesta: 1.0L Ecoboost GTDI 100/125PS [C1BA] (MED17)
Replacement for Ford Focus 3 2015: 1.0L Ecoboost 2015up GTDI 100/125PS [DA6A] (MED17)
Replacement for Ford Focus 3 2015: 1.5L Ecoboost 2015up GTDI 150/180PS [FV6A] (EMS2510/EMS2511)
Replacement for Ford Kuga 2 2017: 1.5L Ecoboost 2015up GTDI 150/180PS [FV6A] (EMS2510/EMS2511)
Replacement for Ford Explorer 2016: 3.5L Cyclone V6 Ti VCT 249/294PS (2016)
Replacement for Ford Mondeo 5: 1.5L Ecoboost GTDI MT 150/180PS (MED17)
Replacement for Ford Mondeo 5: 2.5L Duratec Ti VCT 150/171PS [GV6A] (EMS24XX)
Reading, writing, checksum correction.
Module 33
Replacement for Ford EcoSport/Fiesta 2015up
For 2.0L Duratec HE 140PS (IAW 7GFR.HR)
Reading, writing, checksum correction.
1.6L for Sigma Ti VCT 85/105/110/122PS (EMS2211)
1.6L for Sigma Ti VCT USA [C1BA] (EMS2214)
Writing, checksum correction.
Module 34
Replacement for Kia, Replacement for Hyundai EDC15/EDC16
For 2.0L, 2.5L CRDI K Line (EDC15C7)
For 2.0L, 2.2L, 2.5L CRDI K Line Calibration (EDC16C39)
For 3.0L CRDI K Line Calibration (EDC16CP34)
For Reading, writing, checksum correction.
For 2.0L, 2.2L, 2.5L CRDI (EDC16C39)
For 3.0L CRDI (EDC16CP34)
Writing, checksum correction.
Module 35
For Scion/ for Hino
For 76F0038/39/40/70/85, MPC565/SH72512/SH72544 CAN bus
For 76F0038/39/40/50/70/85, 70F4019 Gearcase CAN bus
For 76F0038/39/40/50/70/85 HV Control CAN bus
For 76F0004/23/38/39/40/70/85, MPC565 K-Line
Writing, checksum correction.
Module 36
Replacement for Kia/Replacement for Hyundai EDC17
For 1.6L, 2.0L CRDI (EDC17C08/TPROT3)
For 2.0L, 2.2L CRDI (EDC17CP14/TPROT3)
For 2.0L, 2.2L CRDI (EDC17CP14/TPROT11)
For 1.6L, 2.0L CRDI (EDC17C53)
For 2.2L CRDI (EDC17C57) (after unlocking with Module 53 or 71)
Reading, writing, checksum correction.
Module 38
Replacement for Duster 1.6L 2WD EMS3130 (ST10/512KB)
for EMS3132 MT (C167/256KB)
for EMS3134 AT (C167/512KB)
Replacement for Sagem 3000 (SH7055/512KB)
Replacement for Sirius 35 (C167/512KB)
Reading, writing, checksum correction.
Module 40
Replacement for Kia/Replacement for Hyundai SIMK
For 2.0L, 2.7L K Line (SIMK-41/43)
For 2.0L, 2.4L CAN (SIMK-43/SIM2K-47)
Reading, writing, checksum correction.
Module 42
For for for Denso SH705X Bootloader
For SH7055/SH7058(S)/SH7059 FLASH (512KB/1024KB/1536KB)
Reading, writing, checksum correction.
Replacement for Mazda 3 Z6 -2009 SH7055/SH7058 EEPROM (56)
Replacement for Replacement for Mitsubishi/Replacement for Subaru DieselSH7058(S)/SH7059 EEPROM (86)
Replacement for Subaru Metal Case SH7055/SH7058 EEPROM (56)
Replacement for Subaru Plastic Case SH7058 EEPROM (86)
Replacement for Subaru Plastic Case SH7058S EEPROM (56)
Replacement for Subaru Plastic Case SH7058S EEPROM (86)
Replacement for Suzuki Liana/Jimny SH7055 EEPROM (56)
Replacement for Suzuki SH7055/SH7058 EEPROM (56)
Replacement for Suzuki SH7058S EEPROM (56)
Replacement for Opel 1.7L CDTI SH7058/SH7059 EEPROM (86)
For Trucks SH7058(S)/SH7059 EEPROM (25A320/640/128)
Reading, writing.
Module 43
Replacement for Land Rover EDC17СP42/MED17
Replacement for Freelander 2/Evoque/Discovery Sport 2.2L I4 Diesel (EDC17CP42)
Replacement for Ford Mondeo 4 2.2L DW12C STAGE 5 (EDC17CP42)
Replacement for Freelander 2 2.2L I4 Diesel (EDC16CP39)
Replacement for Freelander 2/Evoque 2.0L Ecoboost GTDI (MED17)
Replacement for Jaguar XF (X250) 2.0L Ecoboost GTDI (MED17.9.7)
Reading, writing, checksum correction.
Module 45
Replacement for MB Sprinter 906/909 EDC16CP31
Replacement for Sprinter (906) 2.2L CDI (EDC16CP31-6)
Replacement for Sprinter (909) 2.2L CDI (EDC16CP31-8)
Replacement for Dodge Sprinter (906) 3.0L CDI (EDC16CP31-6)
Reading, writing, checksum correction.
Module 46
For Scion/ for Hino 2 Generarion
For 76F0196/198/199/219 CAN bus
Writing, checksum correction.
For 76F0196/198/199/219 P5 CAN bus
For 76F0199 Gearcase P5 CAN bus
Reading, writing, checksum correction.
Module 47
Replacement for Mitsubishi Gearcase CAN bus
For CVT Lancer X/ASX 1.8/2.0L, for Outlander XL/3 2.0/2.4L (MH8104F/512KB MH8106F/1MB)
For AT Pajero Sport (2010-), for Lancer X 1.5/1.6L (MH8102F/512KB)
For AT Outlander XL 3.0L (MH8104F/512KB)
Reading, writing.
For TC SST Getrag 6DCT470
For Getrag 6DCT470 Boot (MICRO)
For Getrag 6DCT470 Boot (EEPROM
Reading, writing, checksum correction.
For CVT ASX/Outlander 3/Eclipse Cross 1.5T/2.0L/2.4L (MH8115F/1.25MB)
Reading, writing, checksum correction.
Module 48
For ME(D)17 UDS
For 1.4L, 1.8L TSI (MED17.5/MED17.5.2/MED17.5.5)
For 1.0L, 1.2L, 1.4L TSI (MED17.5.21/MED17.5.25/MED17.1.27)
For 1.0L, 1.6L MPI (ME17.5.20/ME17.5.24/ME17.5.26)
For 1.4L TSI, 2.0L, 2.5L, 4.0L TSI, 4.2L FSI (MED17.1/17.1.1/17.1.10/17.1.61/17.1.62)
For 1.4L TSI, 3.6L FSI (MED17.1.6/MED17.1.21)
For 5.2L FSI Master/Salve (MED17.1.1)
Virtual reading, writing, checksum correction.
Module 50
For EDC17CP44, EDC17C46, EDC17C64
For 2.0L, 3.0L TDI (EDC17CP04/EDC17CP14/EDC17CP20/EDC17CP24)
For 3.0L TDI (EDC17CP44)
For 4.2L TDI (EDC17CP24/EDC17CP44)
For 2.0L TDI (EDC17C46)
For 2.0L TDI (EDC17C54)
For 1.6L, 2.0L TDI (EDC17C64)
For 2.0L TDI (EDC17C74)
For 3.0L TDI (EDC17CP54)
Virtual reading, writing, checksum correction.
Module 52
Replacement for Kia, Replacement for Hyundai for Delphi MT38/86
For 2.7L, 3.3L, 3.8L (MT38/CAN)
Writing, checksum correction.
For 2.7L, 3.3L (MT38/K-Line)
For 2.7L, 3.3L, 3.8L (MT38/BSL)
For 3.3L, 3.8L, 5.0L (MT86)
Reading, writing, checksum correction.
Module 53
Replacement for Infineon Tricore BSL
For TC1762/TC1766 MICRO (1504KB)
For TC1762/TC1766 EEPROM (32KB)
For TC1792/TC1796 MICRO (2048KB)
For TC1796 MICRO+EXT (4096KB/6144KB)
For TC1796 EXT (2048KB/4096KB)
For TC1792 EEPROM (64KB)
For TC1796 EEPROM (128KB)
For TC1738/TC1767 MICRO (2048KB)
For TC1738/TC1767 EEPROM (64KB)
For TC1797 MICRO (4096KB)
For TC1797 EEPROM (64KB)
For TC1797 MICRO+EXT (6144KB/8192KB)
For TC1797 EXT (2048KB/4096KB)
For TC1724/TC1728 MICRO (1536KB)
For TC1724/TC1728 EEPROM (64KB)
For TC1782/TC1784 MICRO (2560KB)
For TC1782/TC1784 EEPROM (128KB)
For TC1791/TC1793 MICRO (4096KB)
For TC1791/TC1793 EEPROM (192KB)
For TC1791/TC1793 MICRO+EXT (6144KB/8192KB)
For TC1791/TC1793 EXT (2048KB/4096KB)
For Delphi MT86 EEPROM (16KB)
For Delphi CRD3.1 EEPROM (32KB)
For for Bosch, for Siemens/Continental, for Delphi ECUs, etc. Reading, writing, checksum correction for most ECUs.
Possible password reading for SIM2K-24x, Replacement for Ford EMS22XX, Replacement for Ford SID20X, for Bosch, for Bosch GPT, etc.
Module 54
For Delphi DCM3.7/AP (SH72513/72543/72544)
Replacement for Kia/Replacement for Hyundai 2.5L CRDI (DCM3.7AP)
Replacement for Opel 2.0L, 2.2L CDTI (DCM3.7)
Replacement for SsangYong 2.0L XDI (DCM3.7AP)
For 1.2L TDI (DCM3.7)
For Great Wall/Haval 2.0L TD (DCM3.7)
Reading, writing, checksum correction.
Module 55
Replacement for Kia/Replacement for Hyundai Kefico/ for for Denso
Replacement for Kia/Replacement for Hyundai 2.5L CRDI (SH72546)
Replacement for Hyundai Euro 5 ( for for Denso SH7058S)
Replacement for Hyundai Euro 6 ( for for Denso SH72543)
Reading, writing, checksum correction.
Module 56
Replacement for Ford SID807EVO/EDC17C10/EDC17C70
Replacement for Ford Focus 3: 1.6L DV6C (SID807EVO)
Replacement for Ford Mondeo 4: 1.6L DV6C (SID807EVO)
Writing after unlocking,checksum correction.
Replacement for Ford 1.6L DV6C (SID807EVO/BSL) Reading.
Replacement for Ford Focus 3: 1.6L ECOnetic 105PS 2012+ (EDC17C10)
Replacement for Ford Fiesta: 1.4L, 1.6L DV4/DV6 75/95PS 2010-2011 (EDC17C10)
Replacement for Ford Fiesta: 1.5L, 1.6L DV5/DV6 70/75/95PS 2012+ (EDC17C10)
Replacement for Ford Focus 3: 1.5L DV5F 90/105/120PS (EDC17C70)
Replacement for Ford Fiesta: 1.5L DV5F 90/105/120PS (EDC17C70)
Reading, writing, checksum correction.
Module 57
For SIMOS 8/10/11/12/PCR2.1
For 2.8L V6 FSI (SIMOS8.1)
For 3.2L V6 FSI (SIMOS8.2)
Reading, writing, checksum correction.
For 3.0L V6 TFSI (SIMOS8.3)
For 3.0L V6 TFSI (SIMOS8.4)
For 3.0L V6 TFSI (SIMOS8.5)
Virtual reading, writing, checksum correction.
For 2.8L V6 FSI (SIMOS8.6)
Reading, writing, checksum correction (map area reading/writing after unlocking in BSL!)
For SIMOS8.6 (EEPROM/UNLOCK/BSL)
Reading, writing (EEPROM reading/writing, ECU unlocking)
For 1.2L TSI (SIMOS10)
For 1.2L MPI (SIMOS11)
For 1.8L TSI (SIMOS12.1/SIMOS12.2)
For 2.0L TSI (SIMOS12.1/SIMOS12.2)
Virtual reading, reading, writing, checksum correction.
For 1.6L TDI (PCR2.1)
Reading, writing, checksum correction (map area reading/writing after unlocking in BSL!)
For PCR2.1 (EEPROM/UNLOCK/BSL)
Reading, writing (EEPROM reading/writing, ECU unlocking).
Module 58
For CVT
For DQ200MQB/G2 (0CW)
For DQ250MQB (0D9)
Reading, writing, checksum correction
For VL381/DL382 (0AW/0CK)
For DL501/G2 (0B5)
For DQ200 (0AM)
For DQ250E/F (02E)
For VL300/V30 (01J/0AN)
Writing, checksum correction
For DQ200/MQB/G2 Boot (EEPROM)
For DQ250E/F/MQB Boot (EEPROM)
For DL501/G2 Boot (EEPROM)
For VL381 Boot (EEPROM)
For DL382 Boot (EEPROM)
For UDCT Boot (Continental TC1782/EEPROM)
Reading, writing
For DQ200/MQB/G2 Boot (MICRO)
For DQ250E/F/MQB Boot (MICRO)
For VL381 Boot (MICRO)
For DL501/G2 Boot (MICRO)
For DQ500 (0BH/0BT)
For VL300/V30 BSL (FLASH)
For VL300/V30 BSL (EEPROM)
For DQ250C (02E)
For DL382 Boot (MICRO)
For UDCT Boot (Continental TC1782/MICRO)
Reading, writing, checksum correction.
Module 59
For UDS
For 1.2T EMS3155 UDS (TC1782/2.5MB)
For 1.5L SID309 UDS (TC1767/2MB)
For 1.5L, 2.3L SID310 UDS (TC1791/3MB)
For 1.6L EDC17C84 UDS (TC1782/2.5MB)
1.8T, 2.0T for Hitachi UDS (RH850/4MB)
Reading, writing, checksum correction.
For 1.6L EDC17C84 UDS (Injectors)
Reading, writing.
Module 60
Replacement for Citroen/Replacement for Peugeot (PSA) SID208
Replacement for Citroen/Replacement for Peugeot 2.2L HDi (SID208)
Reading, writing, checksum correction (reading/writing after unlocking in BSL!)
Replacement for Citroen/Replacement for Peugeot 2.2L HDi (SID208/BSL)
Reading, unlock
Module 61
Replacement for Kia/Replacement for Hyundai CPGDSH/CPEGD
For 1.6L (CPGDSH2.24.1/CPEGD2.20.1/UDS
Reading, writing, checksum correction.
For 1.4T, 1.6L (CPEGD2.20.3/CPEGD2.20.4/UDS) - requires direct connection to the ECU
For 1.0L, 1.2L (CPEGP2.10.1/CPGPSH2.14.1/UDS)
Reading, writing, checksum correction, unlocking
Module 62
Replacement for Ford/Replacement for Getrag 6DCT450
For PowerShift TCM (6DCT450)
For PowerShift 6DCT450 Boot (MICRO)
For PowerShift 6DCT450 Boot (EEPROM)
For PowerShift 6DCT451 TCM GGDS
For PowerShift 6DCT451 [XPS6 Gen3] Boot (MICRO)
For PowerShift 6DCT451 [XPS6 Gen3] Boot (EEPROM)
Reading, writing.
Module 63
For DC4
For EDC DC4 Gearcase (TC1766/1506KB)
Reading, writing, checksum correction.
Module 64
Replacement for Replacement for Mitsubishi Fuso Canter
For Fuso Canter (EDC7C4-6/EDC16C31)
For Fuso Canter Euro 5 CAN bus (EDC17CP15)
For Fuso Canter Euro 5 CAN bus (EDC17CP52)
Reading, writing, checksum correction.
Module 65
For MED17/EDC17 CAN TP2.0/K-Line
For EDC17U01/U05/CP04/CP14 K Line
For ME17/MED17/EDC17 CAN TP2.0
For EDC17CP20 Crafter 2.5L TDI
Virtual reading, writing, checksum correction.
Module 66
For Bosch
For PGM FI (for Bosch EDC17CP06/EDC17CP16/2MB)
Writing, checksum correction.
For PGM FI (for Bosch EDC17CP50/4MB) [Unlocked]
For PGM FI (for Bosch EDC17C58/4MB) [Unlocked]
For PGM FI (for Bosch EDC17C72/2.5MB) [Unlocked]
For PGM FI (for Bosch MED17.9.3/4MB) [Unlocked]
For PGM FI (for Bosch ME17.9.55/1.5MB) [Unlocked]
Writing after unlocking with Module 53 or 71, checksum correction.
Module 67
For Bosch
For EFI ME7.9.20 Calibration (for Bosch ST10F275 EXT/512KB)
Writing, checksum correction
